(Bedsheet, Quilt Cover, Textile, Table Cloth ironing machine) Electric, steam, gas heated ironer laundry
- Category: >>>
- Supplier: Shanghai Gamesail Washing Machine Co. Ltd.
Share on (60157074336):
Product Overview
Description
Advantage
ADVANTAGE
- Patented of infrared heating technology (Patent no.201320488280.6
- Main and small rollers made of stainless steel, no pullotion & corrosion.
- Roller thickness 4mm, Safety under high steam pressure.
- Korea LS inverter system.
- Main bearing and revolving joint with elastic design to protect the machine from the influence of heated and cooled.
- Combined type design makes the rollers easy to upgrade to double roller, three roller and more, convenience to customers and help to save the cost.
- Big wrapping angles make ironing fast and flat.
- Finger protection and emergency stop for more safety.
- Space saving installation against the wall is possible.
- Front or rear return available.
- Electric,steam or Gas/LPG heating.

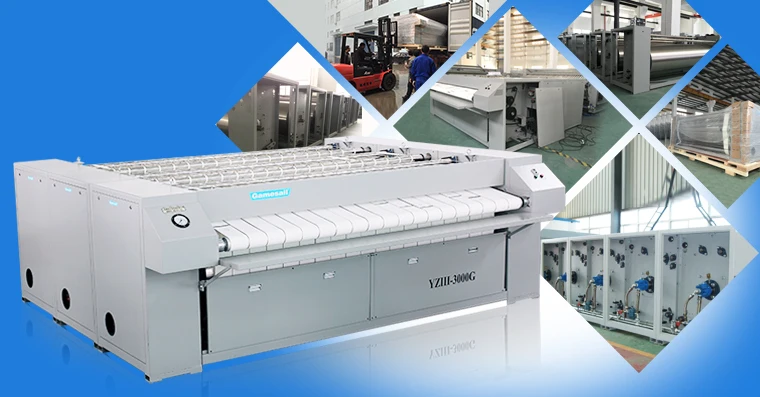

PRODUCT PICTURES
Product features
PRODUCT FEATURES
Parameter
| TYPE | YZI-1500G | YZI-2500G | YZI-2800G | YZI-3000G | YZII-2800G | YZII-3000G | YZII-3300G | |
| ROLLER | ||||||||
| Roller diameter | mm | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Roller Length | mm | 1500 | 2500 | 2800 | 3000 | 2800 | 3000 | 3300 |
| Number of rollers | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
| POWER | ||||||||
| Drive motor | kw | 1.10 | 1.10 | 1.10 | 1.10 | 1.50 | 1.50 | 1.50 |
| Inverter | kw | 0.75 | 0.75 | 0.75 | 0.75 | 1.50 | 1.50 | 1.50 |
| HEATING | ||||||||
| Electric | kw | 20 | 24 | 24 | 40 | 48 | 60 | / |
| Steam consumption | kg | 50-70 | 70-100 | 80-110 | 90-120 | 180-220 | 200-240 | 300.0 |
| Steam pressure | mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Gas | kg | |||||||
| ROLLER SPEED | m/min | 9 | 9 | 9 | 9 | 14 | 14.00 | 14.00 |
| CONNECTION | ||||||||
| Steam | inch | G3/2" | G3/2" | G3/2" | G3/2" | G3/2" | G3/2" | G3/2" |
| Drain | inch | G1" | G1" | G1" | G1" | G1" | G1" | G1" |
| DIMENTIONS | ||||||||
| Size WxDxH | mm | 2580x1100x1810 | 3580x1430x1340 | 3880x1430x1340 | 4080x1430x1340 | 3880x2380x1340 | 4080x2380x1340 | 4380x2380x1340 |
| N.W. | kg | 1100 | 1350 | 1430 | 1480 | 2540 | 2620 | 2750 |
The factory
THE FACTORY

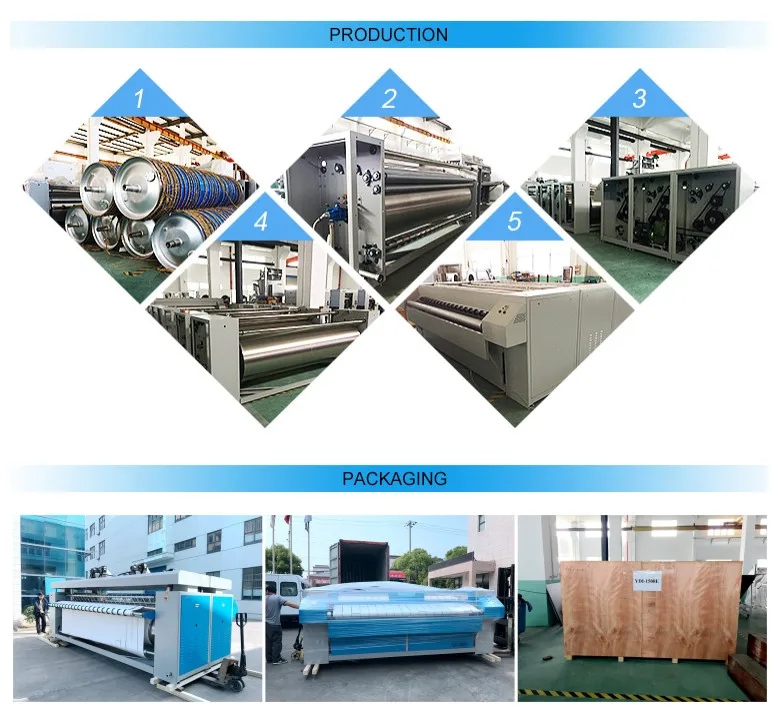

Production process
PRODUCTION PROCESS

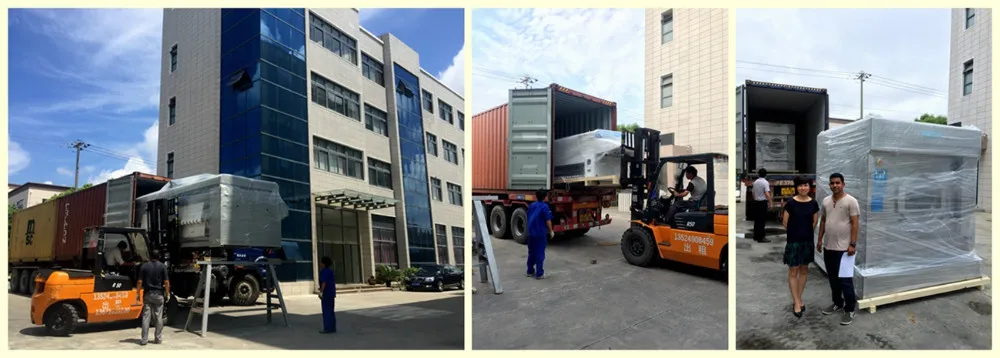

THE PACKING AND SHIPPING PROCESS
Each machine will be packed and protected well for shipment.
Wooden Pallet for FCL loading and Fully Wooden Packing for LCL loading.

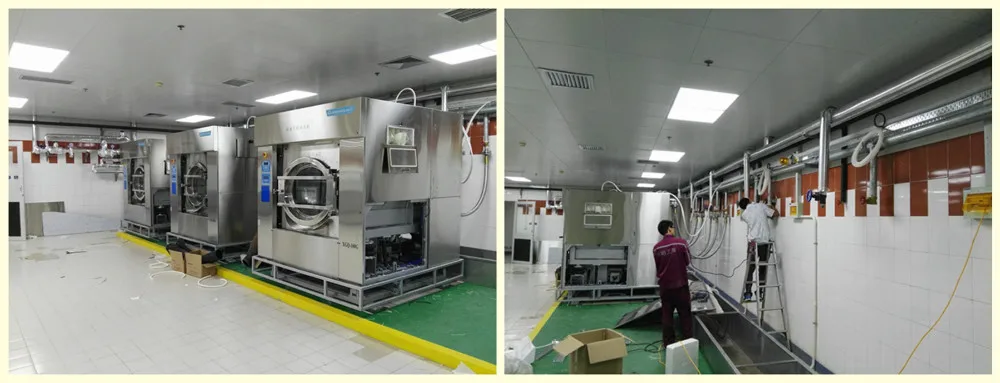

Gamesail oversea technicians available to help you install the machine & train the workers

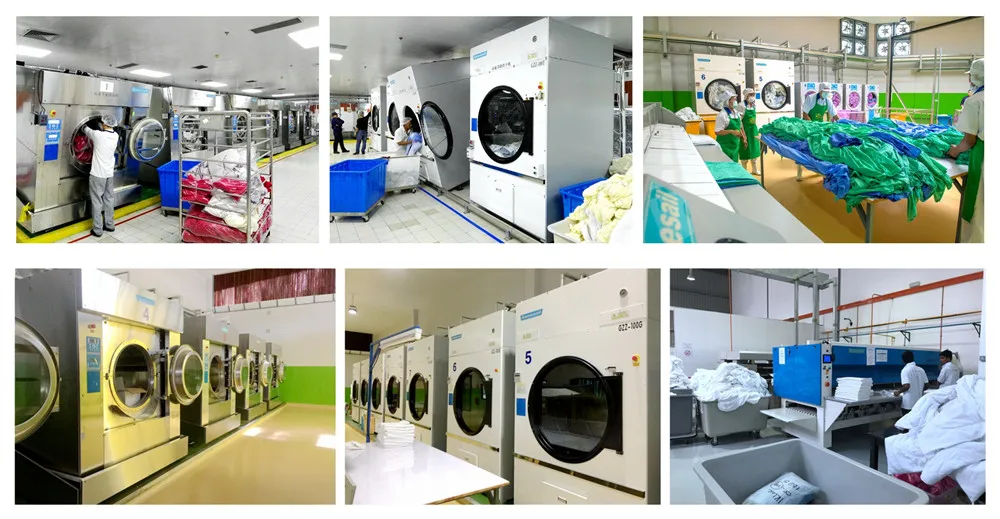

GAMESAIL LAUNDRY PROJECT
Most of Gamesail customers keep buying machine from us regularly because of less maintenance.
