CD6241 Manual Metal lathe machine
- Category: >>>
- Supplier: Tengzhou Uni-Tech Co. Ltd.
Share on (60157095840):
Product Overview
Description
CD6241 Metal lathe machine
Product Description
1.1500mm D.B.C AVAILABLE
2.WIDER BED WIDTH 250
3.BIG SPINDLE BORE 52
4.CE,ISO9001
Main specification
| MODEL | CD6241 | |
| Max.swing over bed | Φ410mm(16") | |
| Max.swing over cross slide | Φ255mm(10") | |
| Max. swing over gap | Φ580mm(23") | |
| Center height | 205mm(8") | |
| Distance between centers | 1000(40'')/1500mm(60") | |
| Width of bed | 250mm(10") | |
| Max.section of tool | 20mm×20mm(3/4"×3/4") | |
| Max.travel of cross slide | 210mm(8 1/2") | |
| Max.travel of compound rese | 140mm(5 1/2") | |
| Spindle bore | Φ52mm(2") | |
| Spindle nose | D1-6 | |
| Taper of spindle speed | M.T.#6 | |
| Range of spindle speed | 16changes25-1800r/min | |
| Leadscrew pitch | 4 T.P.I. | |
| Range of metric longitudinal feeds range | 0.05-1.7mm/rev(17 Nos) | |
| Range of inch longitudinal feeds | 0.002"-0.067"/rev (17 Nos) | |
| Range of metric cross feeds | 0.025-0.85mm/rev (17 Nos) | |
| Range of inch cross feeds | 0.001"-0.0335"/rev (17 Nos) | |
| Range of metric threads | 0.2-14mm(NO. 39) | |
| Range of inch threads | 2-72 T.P.I.(NO. 45) | |
| Range of Diametrical pitch | 8-44D.P.(21Nos) | |
| Range of module pitches | 0.3-3.5 M.P.(18Nos) | |
| Dia. of tailstock sleeve | 50mm(2") | |
| Travel of tailstock sleeve | 120mm(4 3/4") | |
| Morse taper of tailstock sleeve | M.T.#4 | |
| Power of main motor | 2.2/3.3kw | |
| Power of coolant pump | 0.1kw,3PH | |
| Overall diamension(L*W*H) | 1940X850X1320mm | |
| Packing size(L*W*H) | 2030x820x1620mm/2530x890x1620mm | |
| N.W/G.W | 1550/1760kg, 1950/2210kg | |
Metal lathe machine ACCESSORIES
| Standard accessories: |
| 3 jaw chuck ,4 jaw chuck |
| change gears set |
| chasing dial indicator |
| reduction sleeve, dead centers |
| full length splash guard |
| coolant system, brake system |

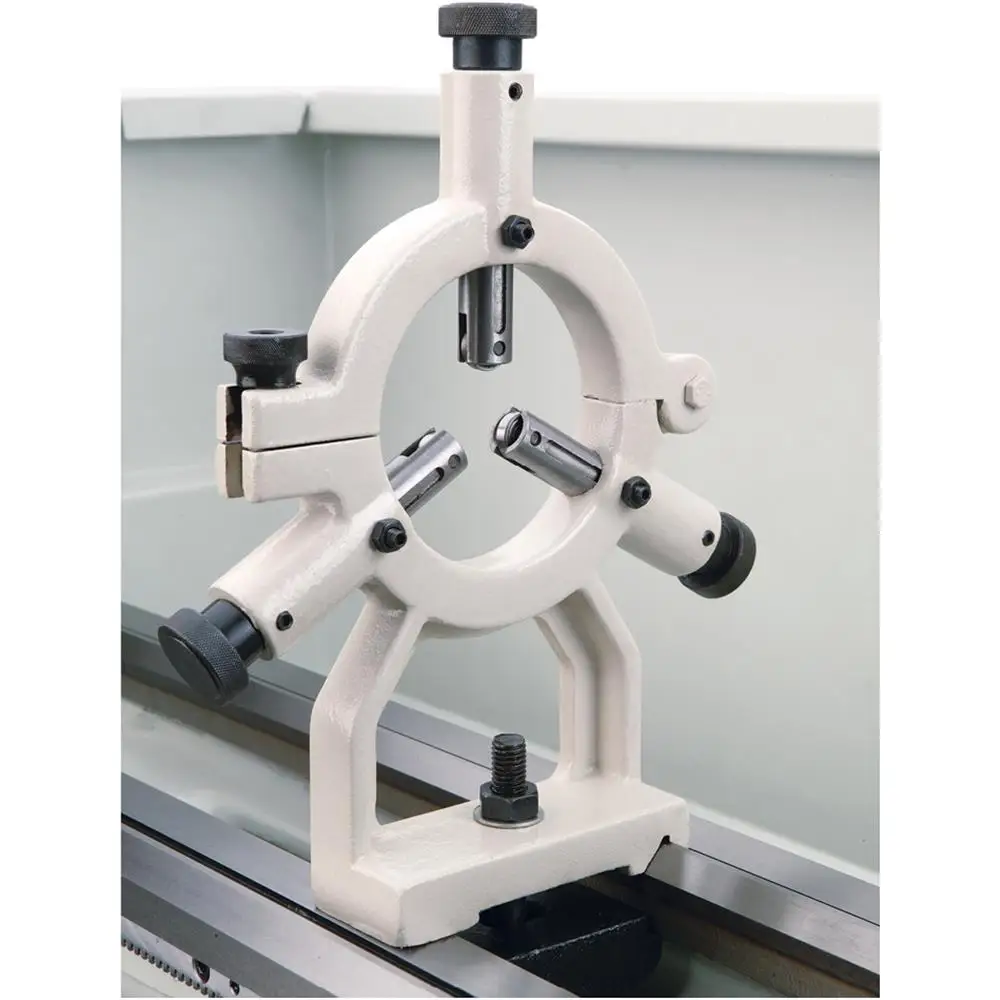

| face plate, steady rest, follow rest |
| work light, tool box&tools |
| Optional accessories |
| taper turning attachment |
| live center |
| leadscrew guard |
| DRO |
| quick change tool post |
| chuck gaurad |
Detailed Images

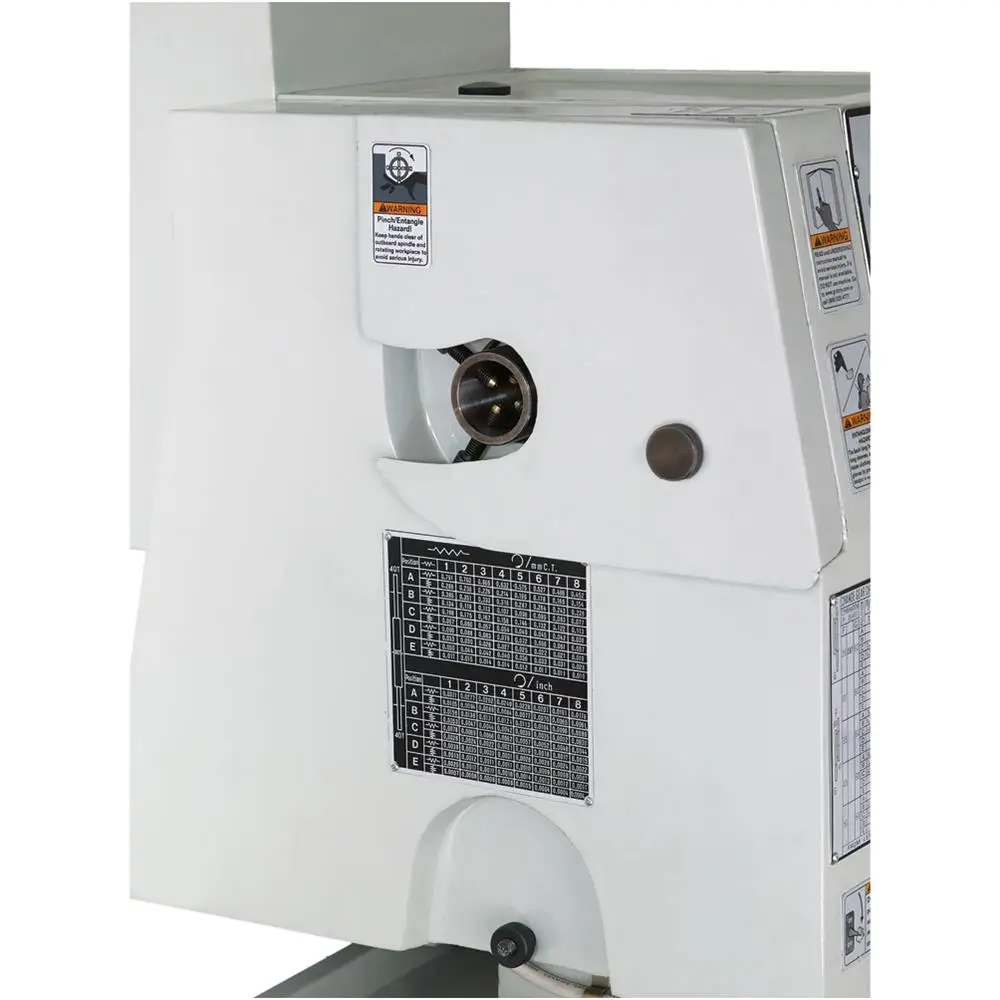

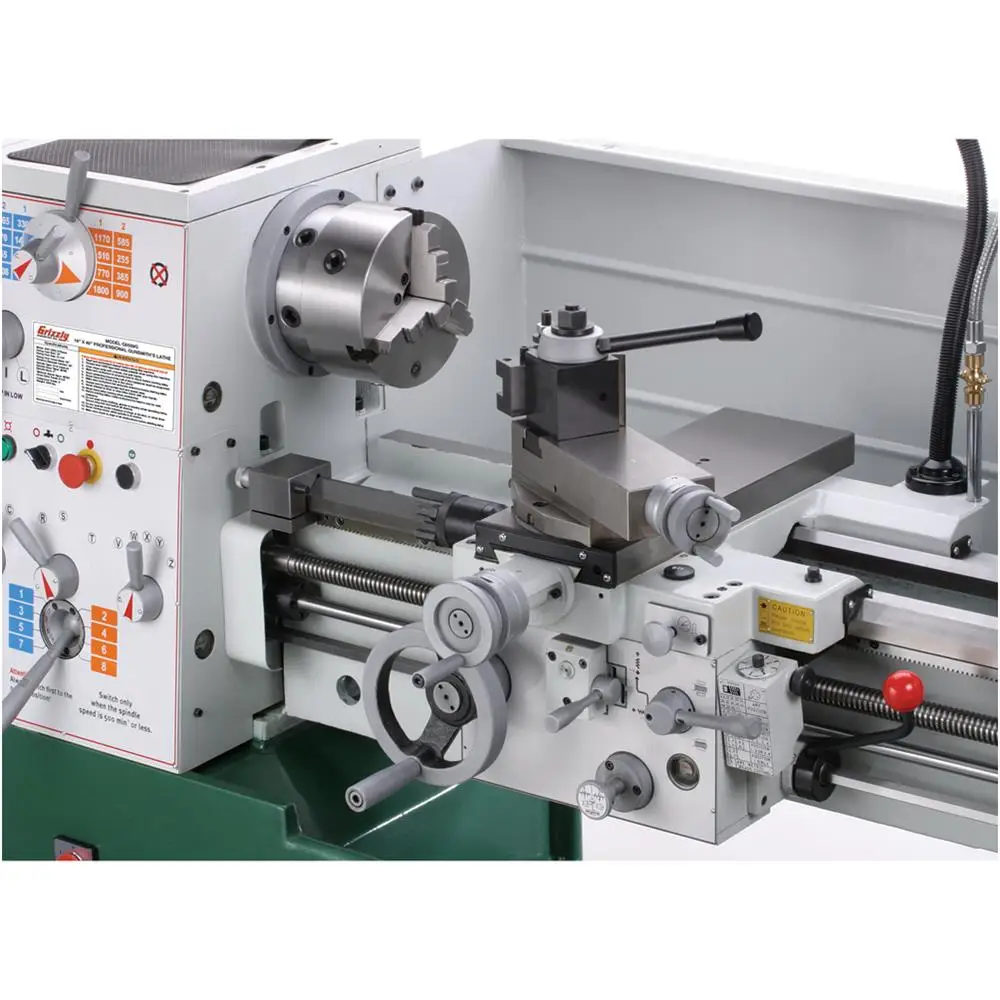

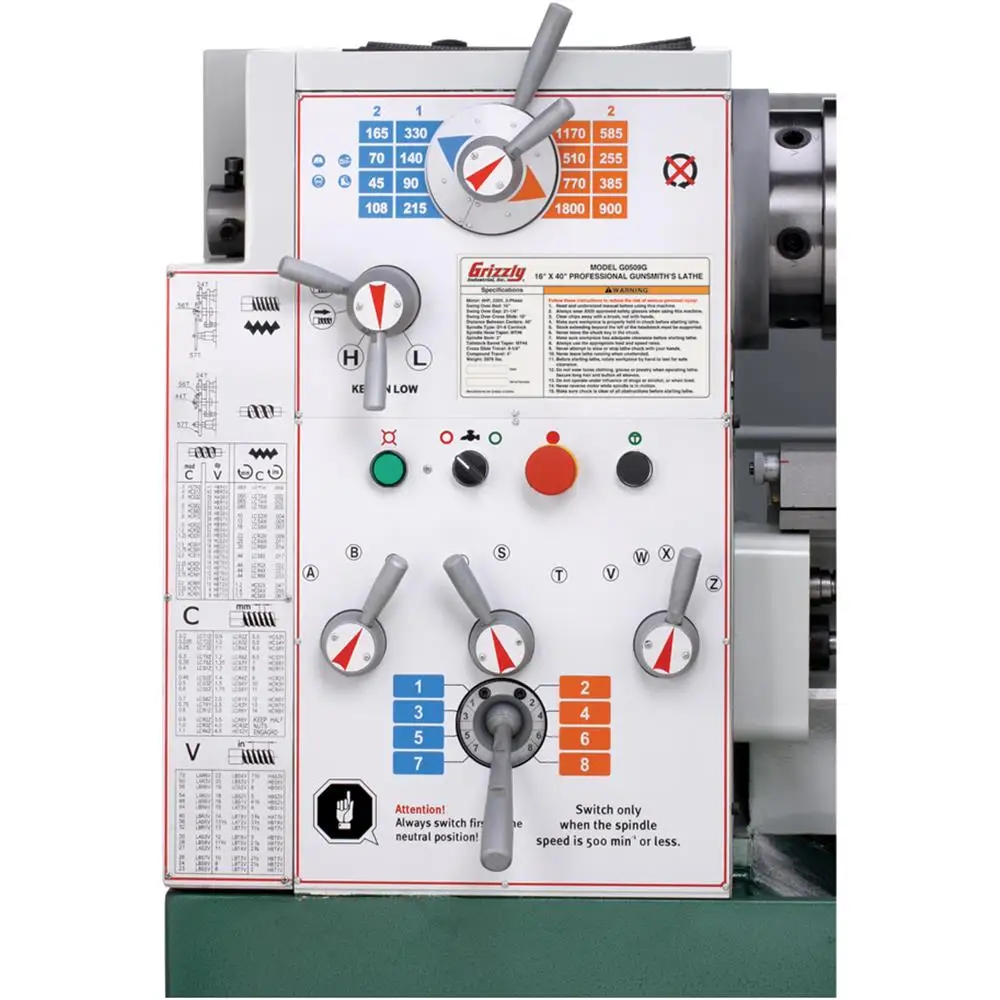

CD6241 Metal lathe machine MACHINE DETAILS

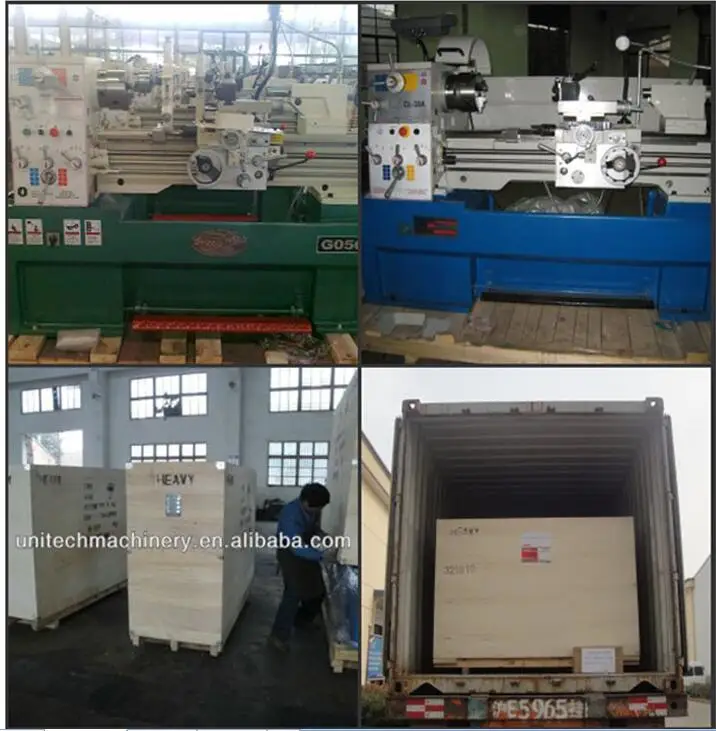

CD6241 Metal lathe machine PRODUCTION PROCESS
Packaging & Shipping
PRODUCT NAME: CD6241 Metal lathe machine
PACKING: WOODEN CASE,PLASTIC COVER INSIDER
PACKING SIZE: 2070X940X1600mm
G.W/N.W: 1760/1500kgs
CONTAINER: 20GP====6set 40GP====12set
Our Services
Customized services
We accept customized services around the world
Afer-sale services
1.Technical support online service provided.
2.Technical files service provided.
3.Spare parts replacement and repair service provided.
4.Questions will be replied within 24 hours
Company Information
Every month, we will export almost 50sets High precision universal lathe machine in the worldwide. We think we can give you the most comprehensive support not only service but also techniques.Because we are a know-how machinery expert.
View more about www.uni-techmachinery.com
FAQ
PAYMENTS: 1.TT 30% advance payment product,pay the balance before delivery.
2.L/C at sight.
COLOR, VOLOTAGE, POWER according to the client's requirement .
If you have any questions, please contact me.
