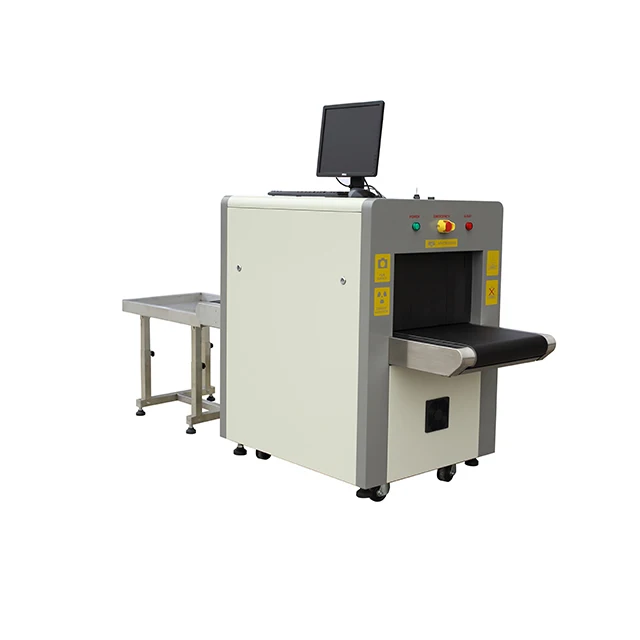

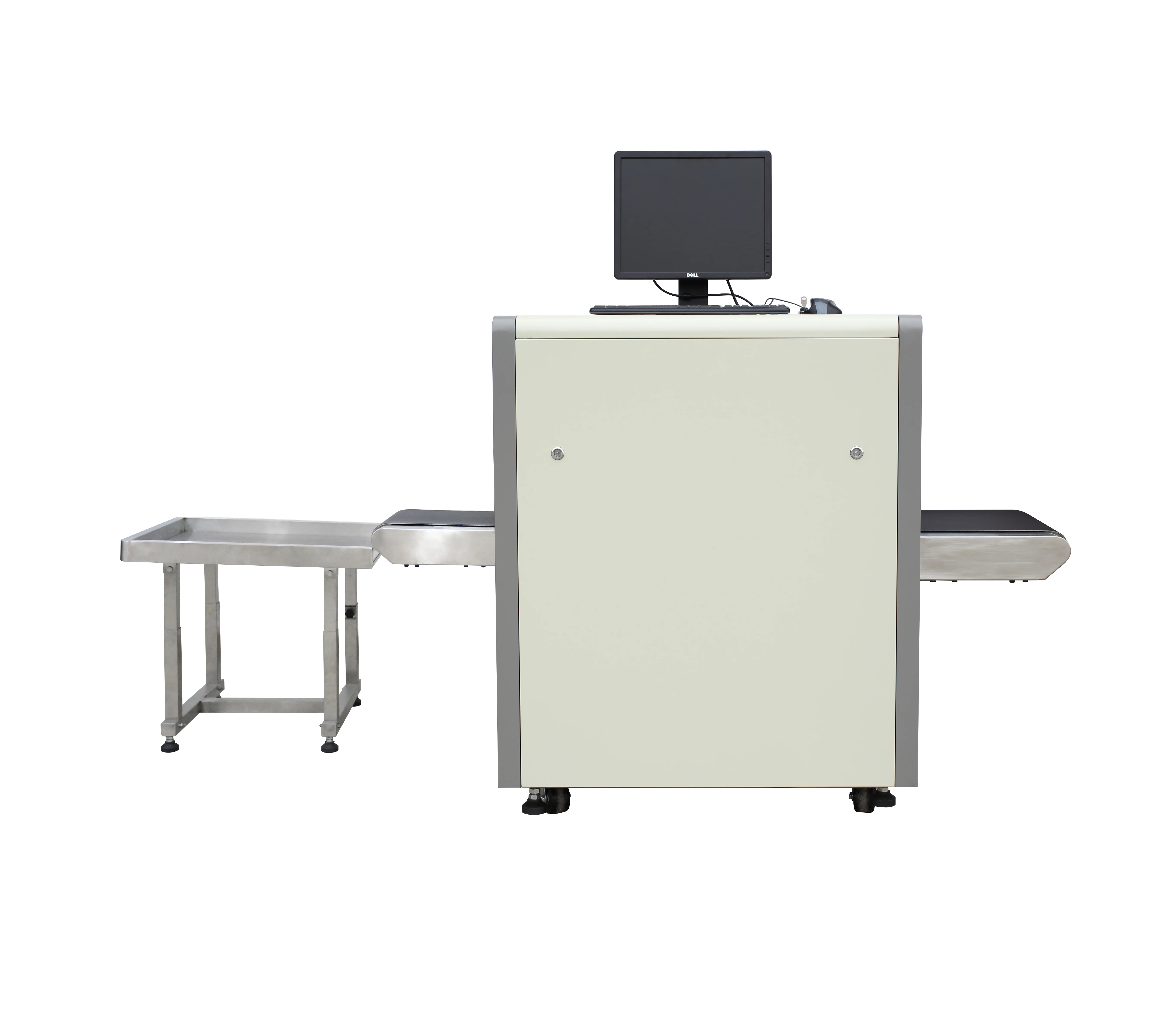

Factory price X ray Parcel Scanner Security Screening Equipment Cargo Baggage X ray Machine For Airport Subway

Product Overview

Description

Factory price X ray Parcel Scanner Security Screening Equipment Cargo Baggage X ray Machine For Airport Subway

Back to Home>>Junhong Electronic & Technology (Dongguan) Co., Ltd.







Feature:

1.     Alarm by sounds & light:: Alarm by sounds and light when conform to condition.

2.     Network interface: Could be connect local area network and support multi-terminal check baggage at same times

3.     Safety ray: Transmit ray under automatic control, avoids the miss

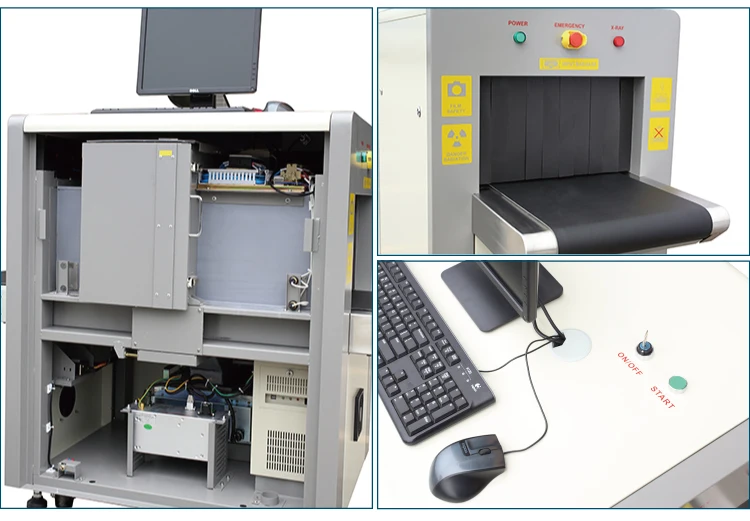

4.     Image monitoring for user-friendly: The monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.

5.     Simple operation by mouse: Without keyboard and work table, control by mouse, save space.

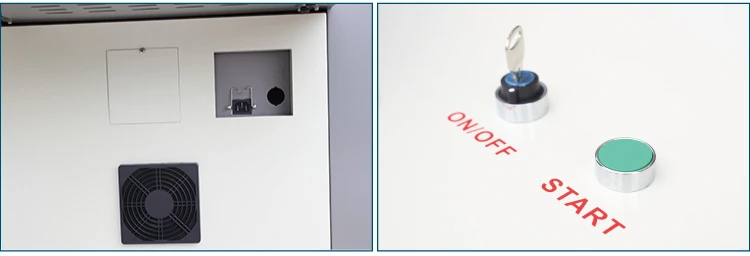

6.     Turn off by a key control: Turn off the machine only need one step: revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.

7.     Eagle-eye: Could be expediently observing enlargement area.

8.     Estimate malfunction by self: Automatic estimate malfunction and prompt message, helpful for the maintenance.



Technical data:

Tunnel Size:                      500(W)×300(H)mm

Conveyor Speed:                 0.22 m/s

Conveyor Max Load:             50 kg

Single inspection dosage:      < 1.5µGy

Wire Resolution:                 0.1mm metal line

Steel Penetration:               8MM armor plate

Film Safety:                       For ISO 1600

Maximum leakage radiation:     <0.3µGY/H

Orientation:                        Vertically Upward

Tube Current:                       0.4~0.5MA(adjustable)

Anode Voltage:                      80 KV(adjustable)

Angle:                             60°

Generator cooling/working periods       Sealed oil bath with forced air/100%

Image performance system:

X-ray sensor: l type photo-diode array detector, 12bit

Monitor: high resolution 17inch color LCD display

Color quality: 24 bit real colors

Edge enhancement: object contour edge is more distinct

Super image enhancement: image detail is more distinct





X-ray Scanner	Walk through metal detector	Under ground metal detector
Hand held and underground metal detector	Food metal detector	Others
