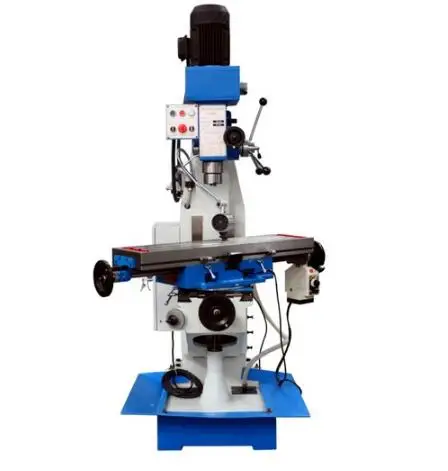

ZX5325C vertical universal milling drilling machine with CE
ZX5325C vertical universal milling drilling machine with CE
ZX5325C vertical universal milling drilling machine with CE
ZX5325C vertical universal milling drilling machine with CE
ZX5325C vertical universal milling drilling machine with CE

ZX5325C vertical universal milling drilling machine with CE

Share on (60157354067):


Price:$2,750.00

Quantity:


Product Overview

Description



Product Description


Universal Milling Machiner Features:

Rectanger guide way,better stability
Headstocck swivels ±90º
Worktable turns ±45º
Easily changing from vertical milling to horizontal milling
Worktable can be automatically feed in X axis ,and equipped with "quick-reverse"unit to realize high efficiency in working

ZX5325C Vertical milling is gear-driven
ZX7550CW Vertical milling is gear-driven ;Horizontal milling is belt-driven.

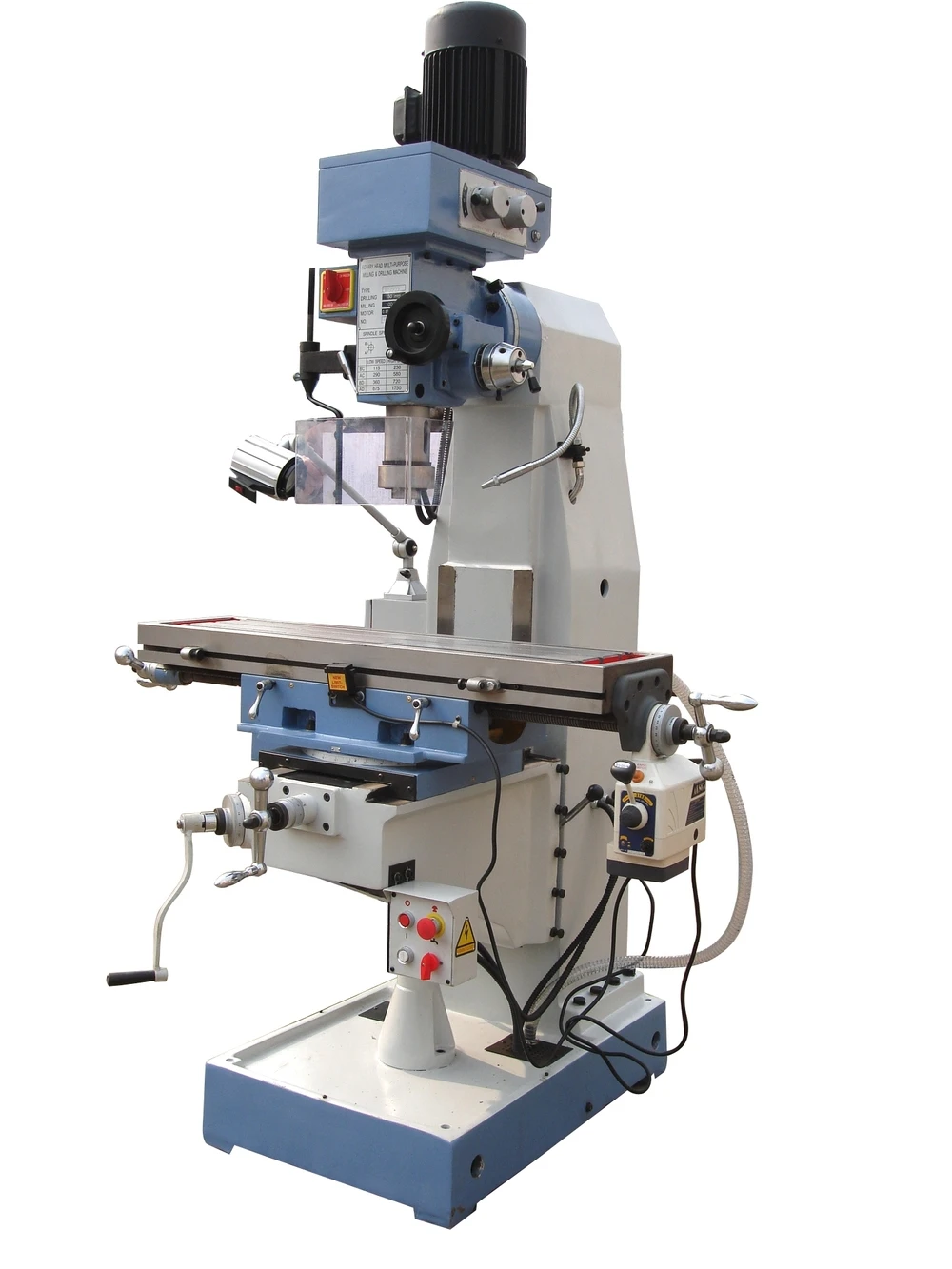

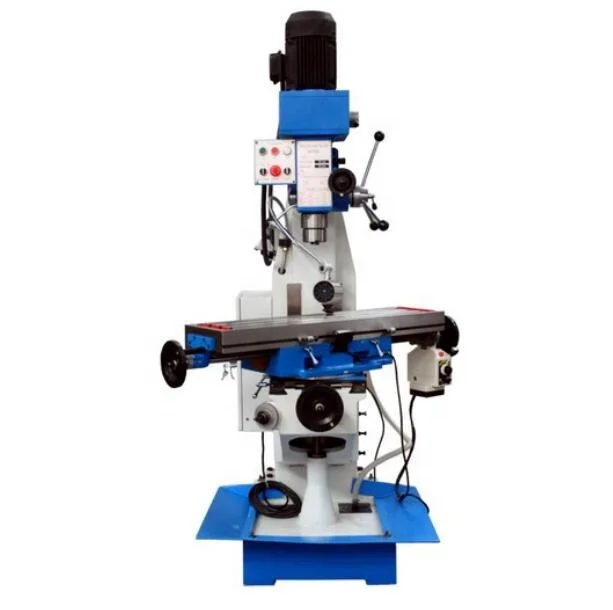

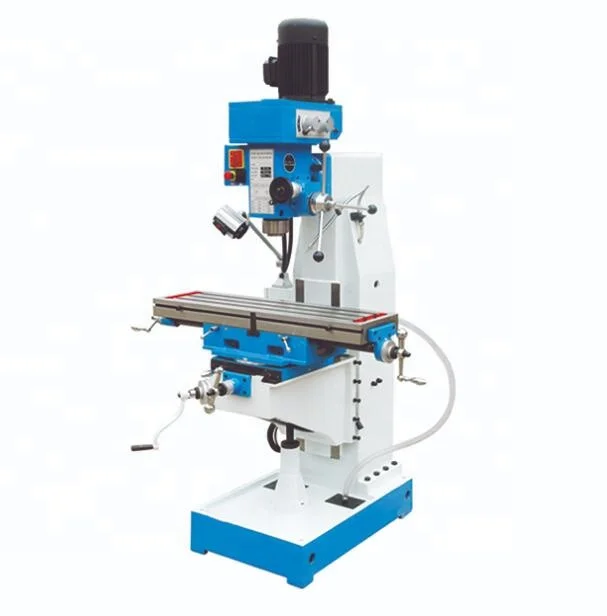

Detailed Images




Specifications
ZX5325C Drilling Milling Machine
Max. Drilling Dia. (mm)
50
Spindle Horizontal Milling Dia.
100
Max. Vertical Milling Dia.
32
Max. Boring Dia.
100
Spindle Taper
MT4,R8
Spindle Speed Range
115-1750
Spindle Travel
125
Table Size (mm)
260*1000
Table Travel (X.Y.Z) (mm)
450*280*380
Main Motor Power (KW)
0.85/1.5
Overall Dimension (mm)
1250*1120*2100
N.W./G.W.(Kg)
700/760
