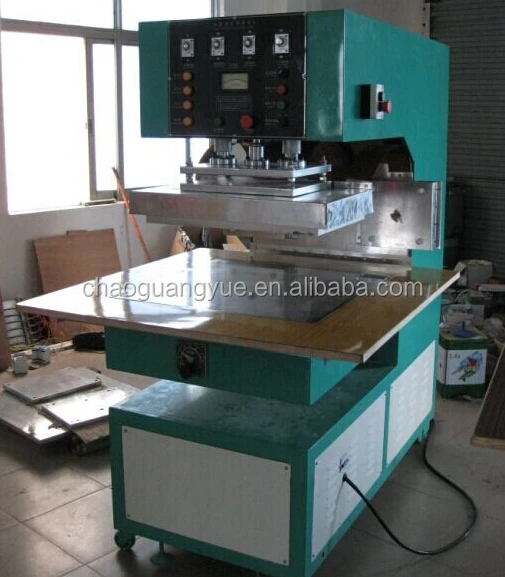

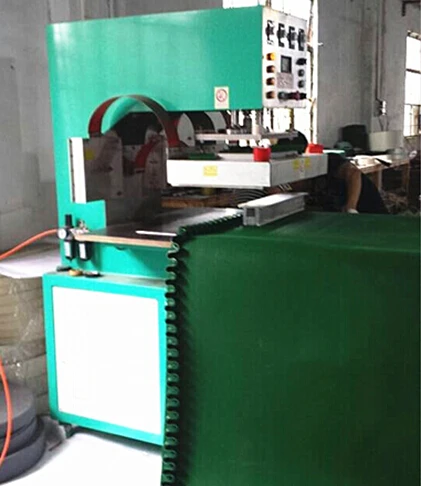

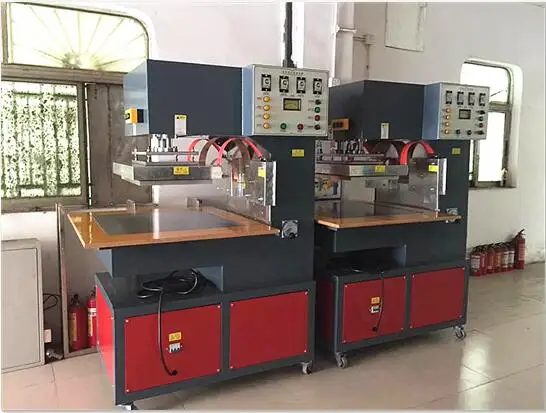

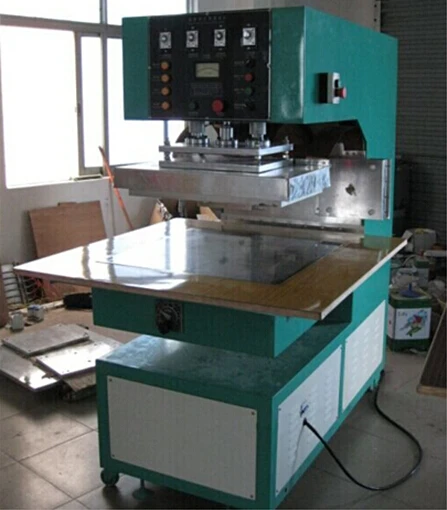

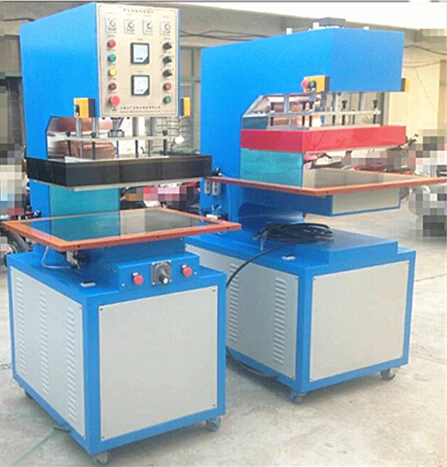

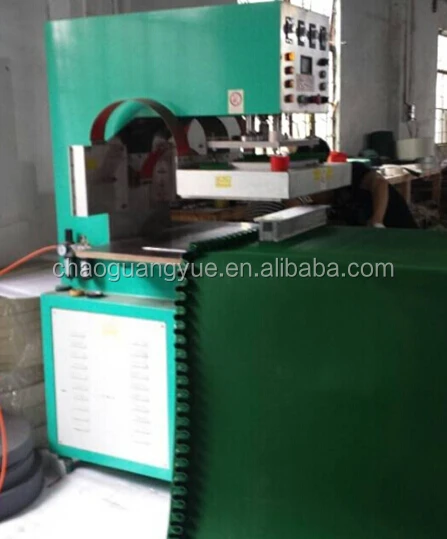

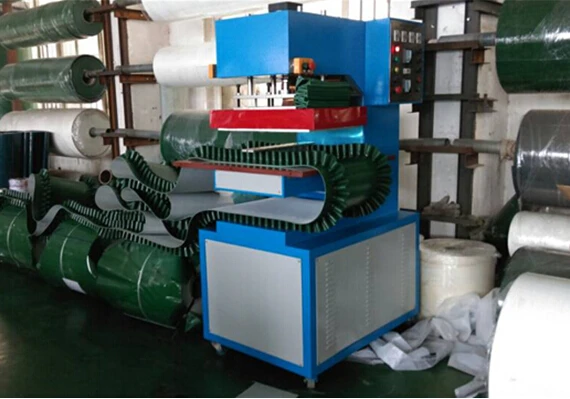

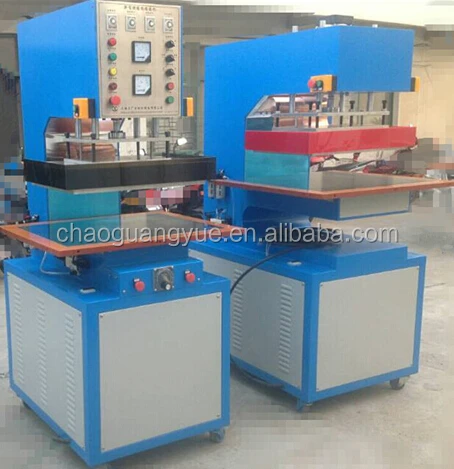

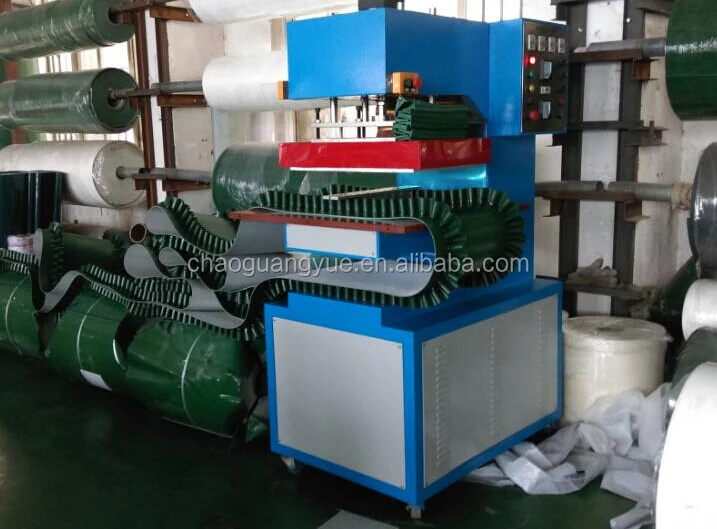

12kw High frequency pvc/pu conveyor belts welding machine

Product Overview

Description

               12kw High frequency pvc/pu conveyor belts welding machine







 Specific functions and advantages of PVC/PU conveyor belts welding machine :

 1.Design life of the whole welding machine :10 years.

 2.High frequency oscillation and stable output.

 3.Sensitive spark for safeguard .

 4.Sensitive high-touch protection.

 5.Sensitive overcurrent and current-limiting protection.

 6.Fast speed of preheating,heating is more stable ,suitable for a large area of conveyor belts welding ,to reduce the high frequency output by more than 30%.

 7.Range of application:sidewall conveyor belt welding,guard belt welding,belt edge welding and guide belt welding.





Technical parameters :





Power	10KW	12KW	15KW	25KW
Power Supply	380V 3P 50HZ	380V 3P 50HZ	380V 3P 50Hz	380V 3P 50HZ
Frequency	27.12MHz	27.12MHz	27.12MHz	27.12MHz
Input power	15KVA	15KVA	25KVA	35KVA
Rectifier	SILICON DIODE	SILICON DIODE	SILICON DIODE	SILICON DIODE
Oscillation tube	E3069	E3069RB	8T85RB	8T85RA
Max pressure	700KG	800KG	1500KG	2000KG
Gap of electrodes	250MM	210MM	250MM	250MM
Cylinder Stroke	150MM	170MM	150MM	150MM
Size of upper electrode	400*600MM	430*640MM	400*800MM	500*1000MM
Size of  bottom electrode	500*700MM	700*800MM	600*1000MM	600*1200MM
Max Welding surface each work cycle	240cm2	400cm2	450cm2	600cm2
Welding time	0-60s	0-60s	0-60s	0-60s

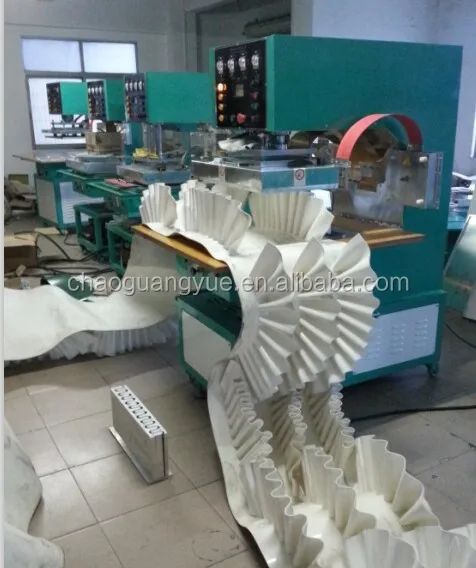

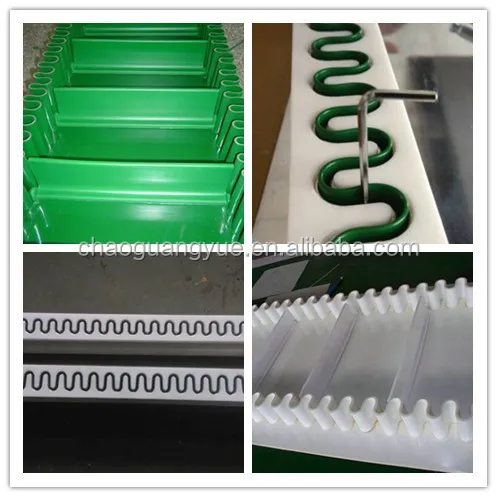

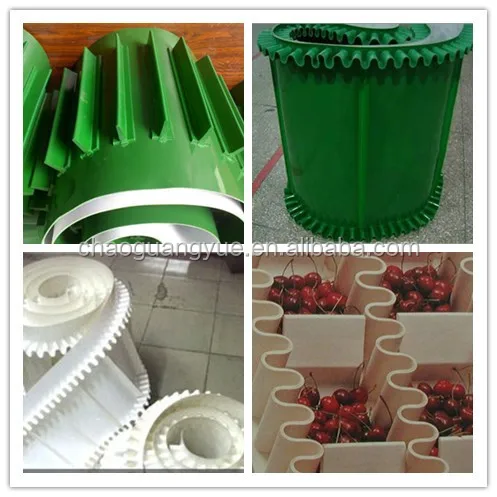

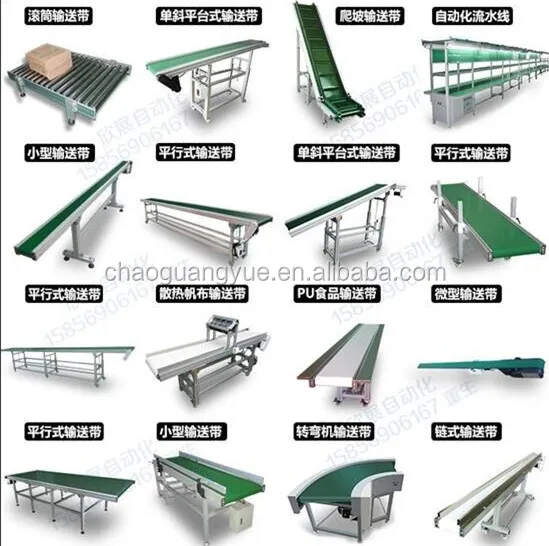

Different kinds of moulds and pvc/pu conveyor belts after welding:



Our packing way:Export  standard (wooden package ) or according to your requirement .



Our Services :

 1. We will design,manufacture,install and test the machines according to  customers' requirement .Relevant personnel  training for customers,ensure that customers fully grasp the use and maintenance of technology.

 2 .Our service department  listen to customers' feedback at any time and provide spare parts timely.







Welcome to visit our factory and we can show you the machine in working condition:



If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
