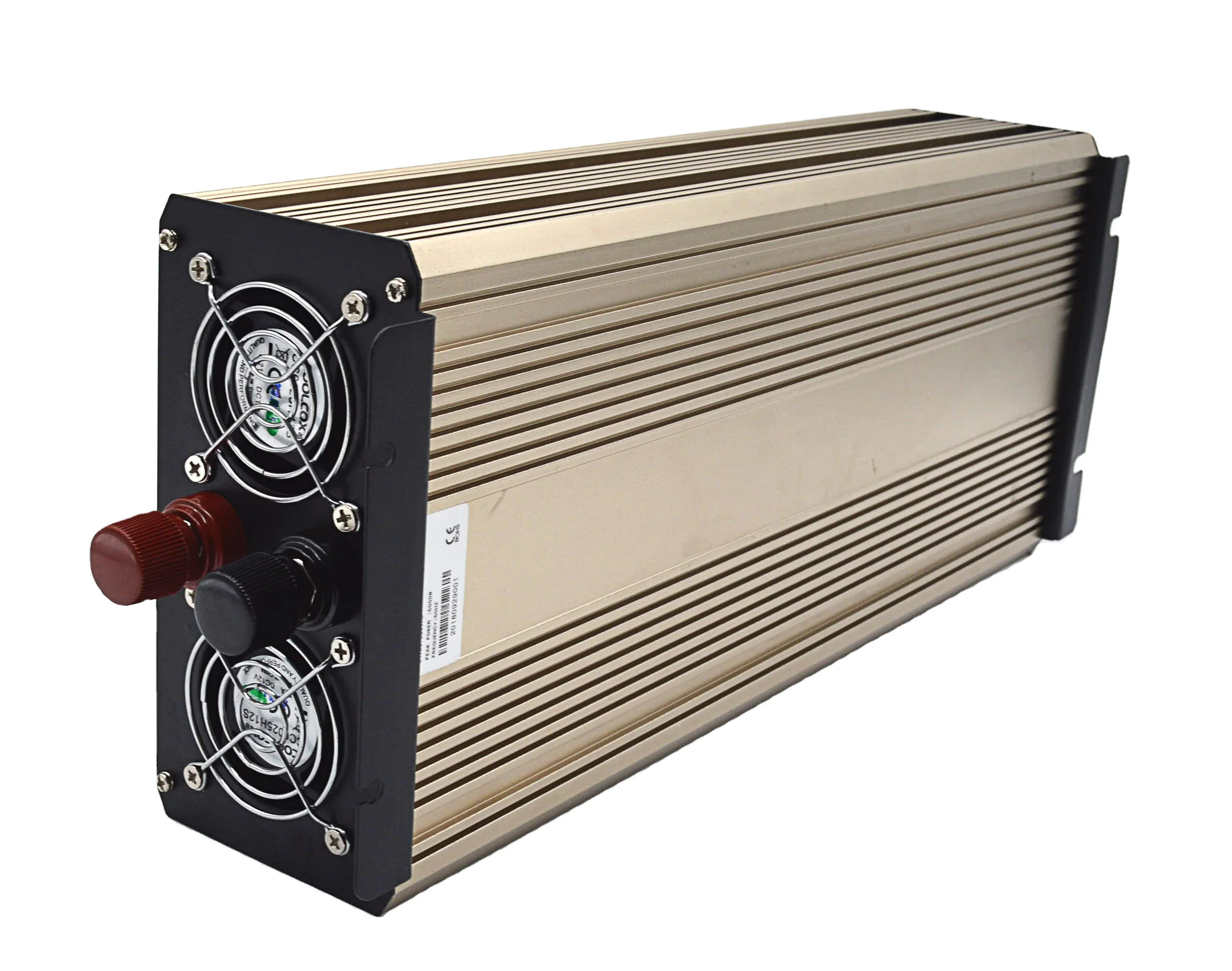

12 volt to 110 converter single phase solar inverter 2500w for pv system solar to ac converter dc to ac inverter price
- Category: >>>
- Supplier: Chengdu Dod New Energy Technology Co. Ltd.
Share on (60157504847):
Product Overview
Description
Product Video

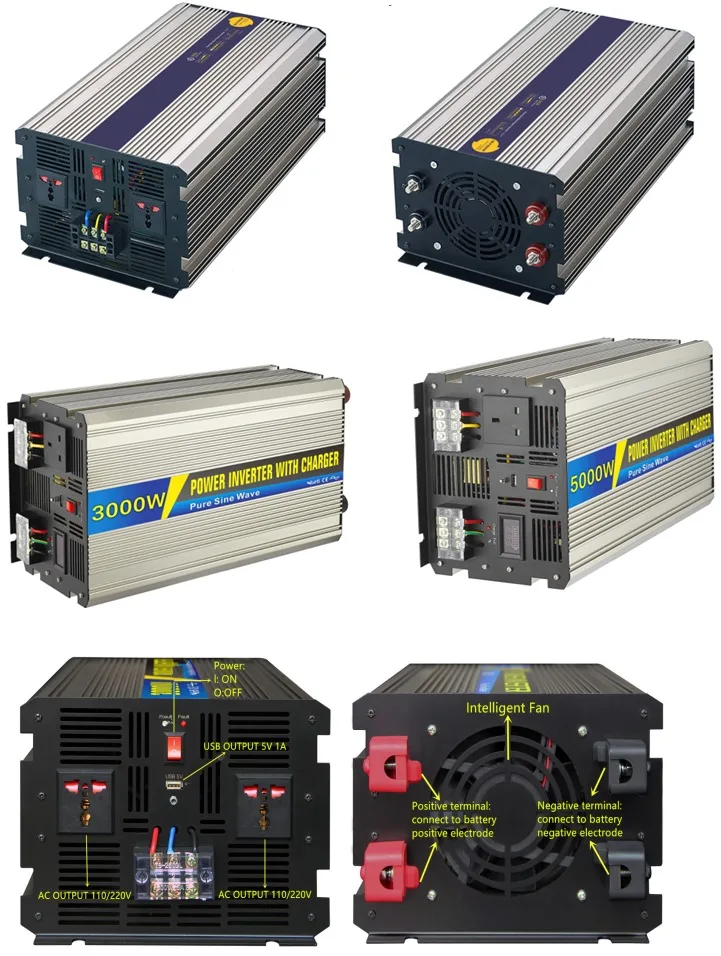

Product Details
Why Choose us?
1.We provide DC to AC pure sine wave inverters , modified sine wave inverter , inverter with charger ,car power inverter , with truly output over 88% efficiency and we also have mppt controller, pwm controller solar cable ,solar panel etc, customer can purchase each part of a whole solar system in our company to get more better discount.
2.We provide OEM Service
Not only printing customers logo on inverter , but also We can customize solar inverter appearance by open a new mold and also we can make change on some specification according to customer need.
3.Design Solar power system:
We have much experience on design solar power system. Customer just need to tell us what electrical appliance need to use and hours ,we can design a cost-effective system for our customers.
2.We provide OEM Service
Not only printing customers logo on inverter , but also We can customize solar inverter appearance by open a new mold and also we can make change on some specification according to customer need.
3.Design Solar power system:
We have much experience on design solar power system. Customer just need to tell us what electrical appliance need to use and hours ,we can design a cost-effective system for our customers.
4. We provide lifelong technical support while customer install and use of our products .
All these functions are optional , if you need these functions , pls contact us before order .
What's the Difference of inverter & inverter with a charger?
Pure sine wave inverters have function with UPS.
When there is on Grid, the load is the mains to the Grid.At the same time the inverter detects the battery power shortage, it
When there is on Grid, the load is the mains to the Grid.At the same time the inverter detects the battery power shortage, it
will automatically charge the battery. Untill the battery is full charged, it will automatically stop charging. If a sudden power
failure, the inverter will automatically switch to battery charging, will be not off power. So it can be guaranteed not to cause
data loss or electrical damage due to sudden power failure.
failure, the inverter will automatically switch to battery charging, will be not off power. So it can be guaranteed not to cause
data loss or electrical damage due to sudden power failure.
Where can the pure sine wave inverter be used ?
1. Field operation : lighting, drilling, disaster relief, commercial promotions.
2. Hospital emergency rescue: surgical lighting, equipment use, etc.
3. Home Appliance: Electronic energy-saving fluorescent, incandescent, small television sets, refrigerator, etc.
4. Energe: solar system, wind system .
2. Hospital emergency rescue: surgical lighting, equipment use, etc.
3. Home Appliance: Electronic energy-saving fluorescent, incandescent, small television sets, refrigerator, etc.
4. Energe: solar system, wind system .

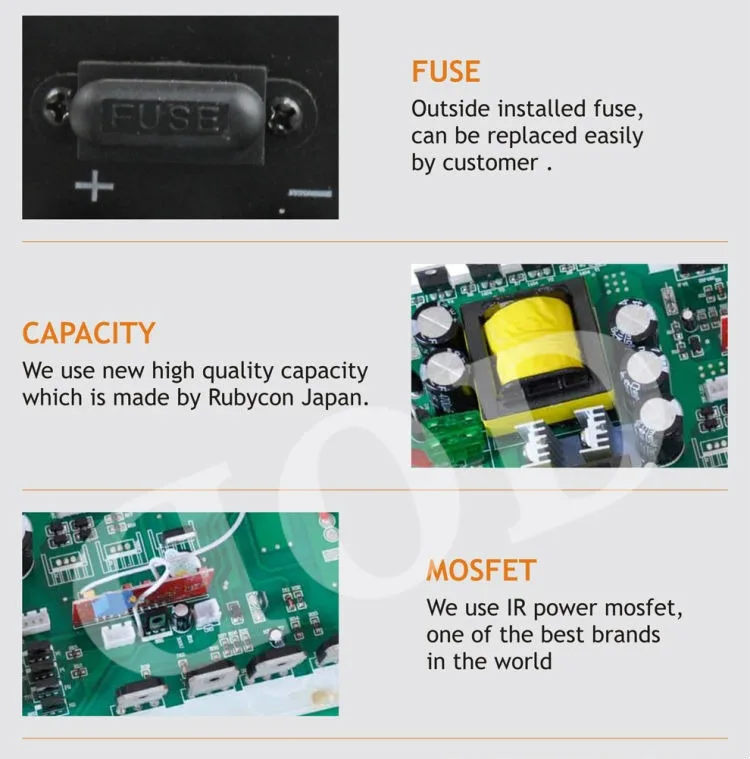

Advantages
Product Paramenters
Model | DB-P2500-121 | DB-P2500-122 | DB-P2500-241 | DB-P2500-242 | DB-P2500-481 | DB-P2500-482 | |||||||
Rated Power | 2500W | ||||||||||||
Surge Power | 5000W (few seconds) | ||||||||||||
Output Voltage | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% | |||||||
Frequency | 50Hz±3 or 60Hz±3 | ||||||||||||
Output Waveform | Pure Sine Wave | ||||||||||||
Total Harmonic Distortion | THD<3% (Linear Load) | ||||||||||||
Rated Input Voltage | 12VDC | 24VDC | 48VDC | ||||||||||
Input Voltage Range | 10-15.5V | 20-31V | 40-61V | ||||||||||
Maximum Input Current | 235A | 118A | 59A | ||||||||||
Input Current At No Load | 1.6A | 0.8A | 0.4A | ||||||||||
Low Input Voltage Alarm | 10.5±0.5V | 21±0.5V | 42±1V | ||||||||||
Low Input Voltage Shut Down | 10±0.5V | 20±0.5V | 40±1V | ||||||||||
Low Input Voltage Recovery | 13±0.5V | 24±0.5V | 48±1V | ||||||||||
High Input Voltage Shut Down | 15.5±0.5V | 31±0.5V | 61±1V | ||||||||||
High Input Voltage Recovery | 14.8V±0.5V | 29V±0.5V | 59V±1V | ||||||||||
Input | Terminals with cylindrical hole: 12V: 24mm 24V: 20mm | ||||||||||||
Output | Different socket type optional | ||||||||||||
Internal DC Side Input Fuse | 8*35A = 280A | 8*20A=160A | |||||||||||

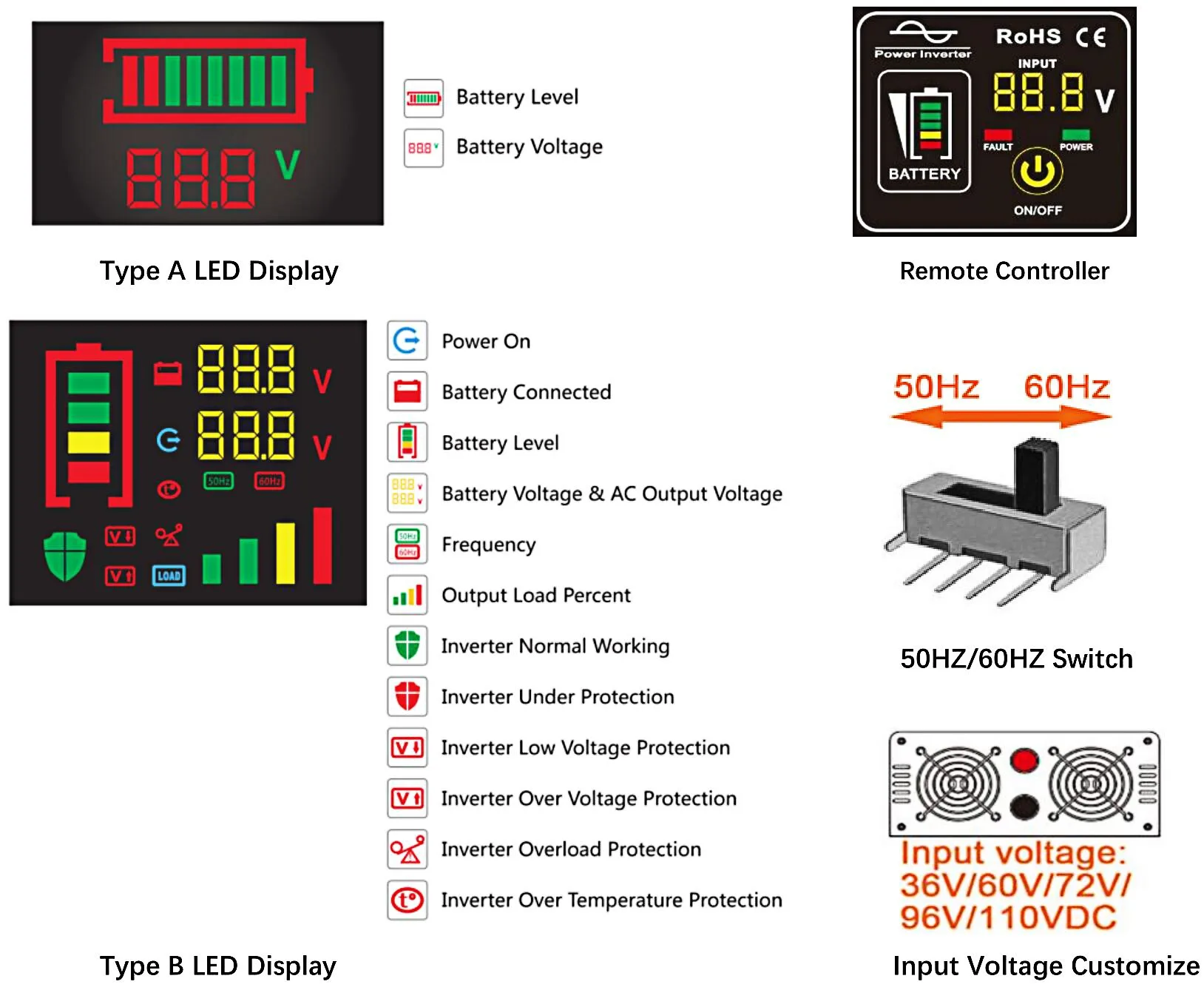

Remote | Remote controller optional | ||||||||||||

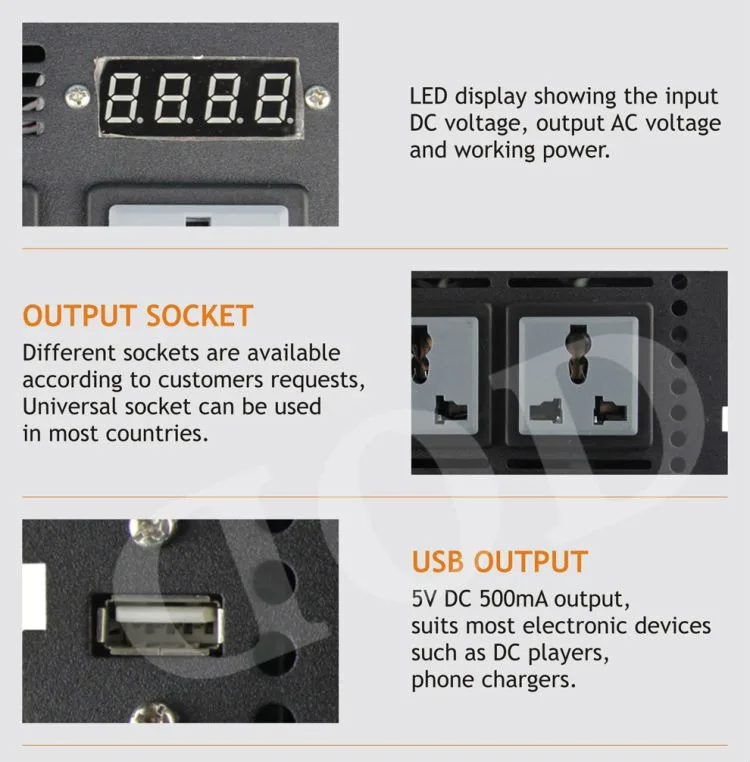

USB Port | 5V 1A | ||||||||||||
Soft Start | YES | ||||||||||||
Output Efficiency | > 85% (At full load) | ||||||||||||

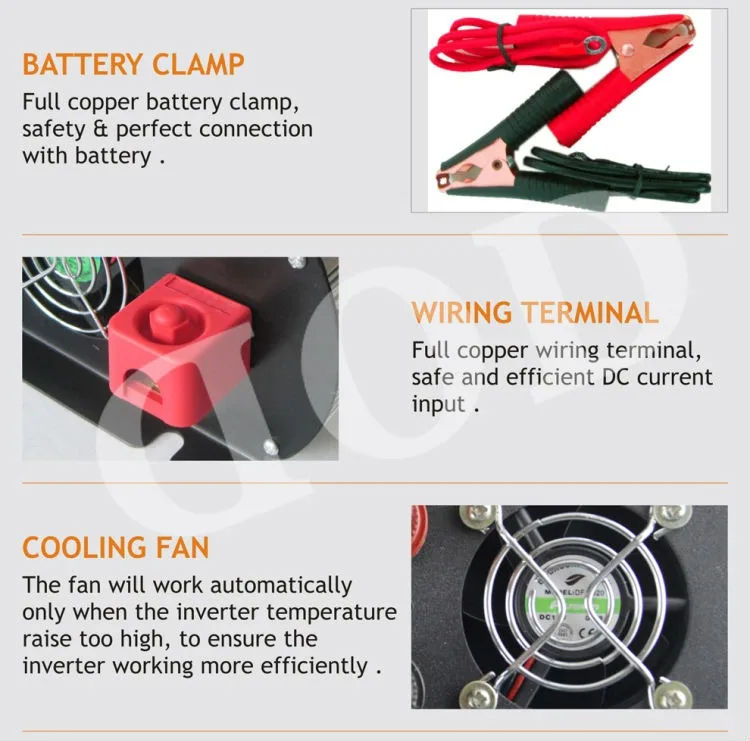

Cooling Way | Temperature controlled fan. Fan ON at 45°C ; Fan OFF at 42°C (sensed at internal hot spot) | ||||||||||||
Protection | Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit, Reverse Polarity | ||||||||||||

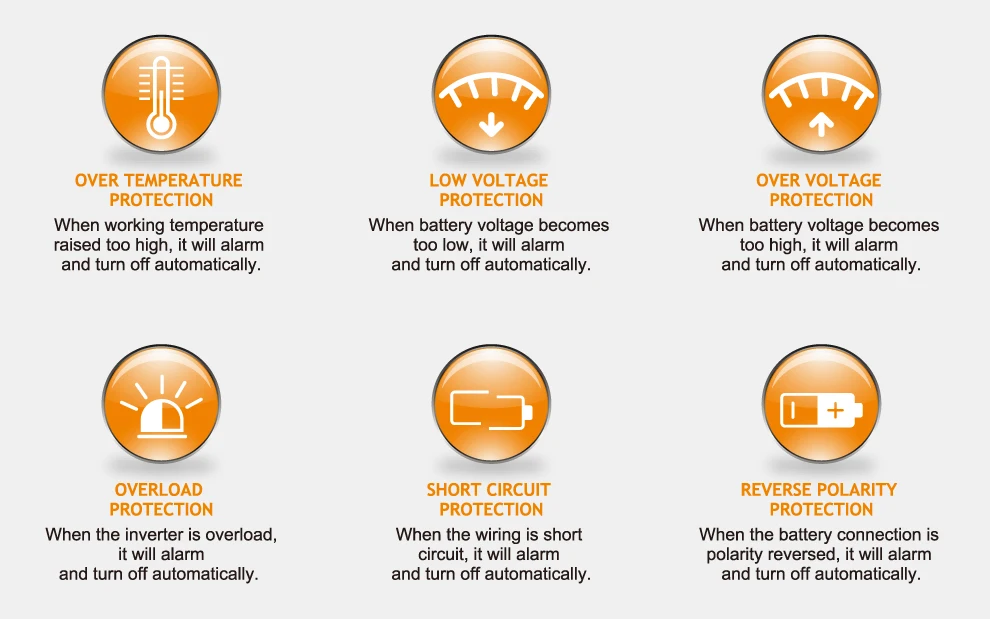

Auto Protection

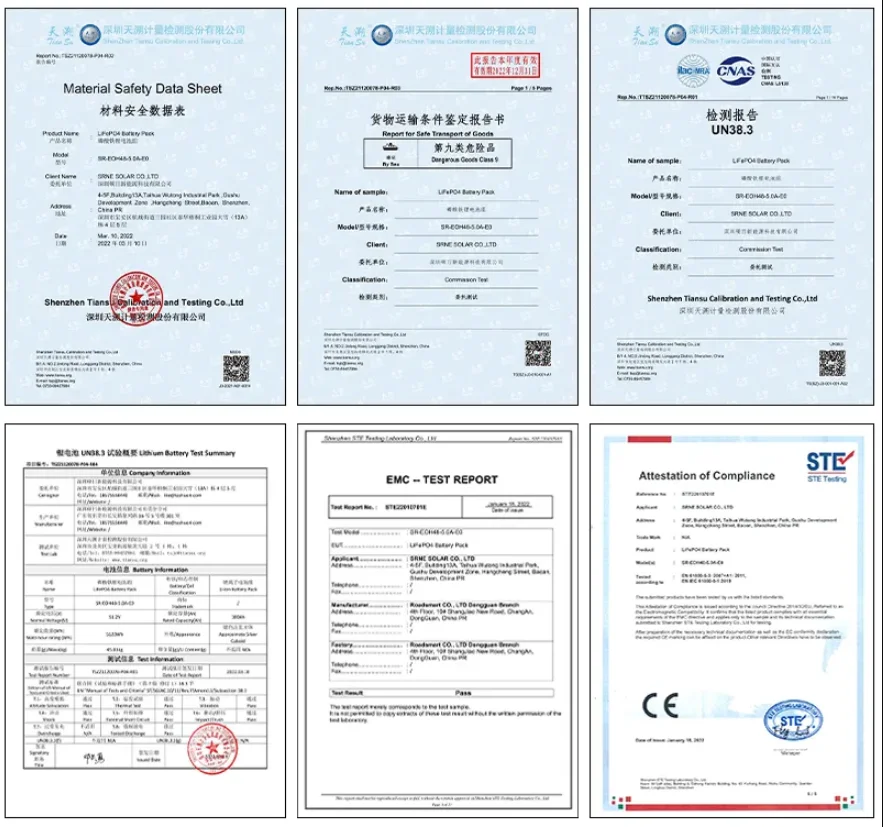

Certifications

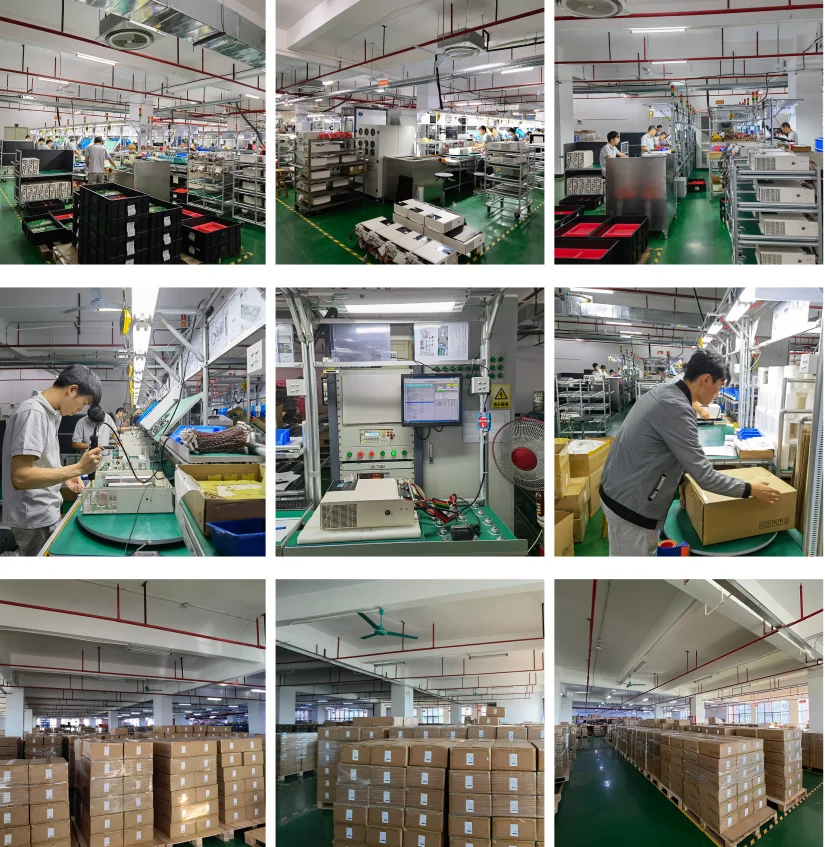

Our Factory
FAQ
Q1: Why you should choose us?inverter OFF-GRID
solar inverters
---More than 15 years solar products producing experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?3kw off-grid inverter
---solar panel : 10 years warranty ;
Hybrid inverter , charge controller , battery : 1-3 years warranty
--- we offer 1% sapre parts for free , will repair the PCB or provide new one
Q3: What kind of certification you have?
---More than 15 years solar products producing experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?3kw off-grid inverter
---solar panel : 10 years warranty ;
Hybrid inverter , charge controller , battery : 1-3 years warranty
--- we offer 1% sapre parts for free , will repair the PCB or provide new one
Q3: What kind of certification you have?
inverters converters
---ISO9001,ISO14001, CE, ROHS, TUV ,UL and so on
---All series product pass different testing according to different countries’ requirements.
Q4: Delivery time:inverter off-grid
---ISO9001,ISO14001, CE, ROHS, TUV ,UL and so on
---All series product pass different testing according to different countries’ requirements.
Q4: Delivery time:inverter off-grid
pasolar invertersnel all in one hybrid inverter split
---Standard products could be delivered within 15 days after payment ;
Q5. Can I have a sample order?3kw off-grid inverter
---Standard products could be delivered within 15 days after payment ;
Q5. Can I have a sample order?3kw off-grid inverter
solar inverter
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?off-grid inverter solar OFF GRID inverter
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?off-grid inverter solar OFF GRID inverter
hybrid inverter
---Yes, we have MOQ , it depends on different models.
Most products 1~10pcs sample order is available. Lowest MOQ : 1 pc
Q7. Do you support OEM , ODM ?power inverter off-grid
---Yes, we have MOQ , it depends on different models.
Most products 1~10pcs sample order is available. Lowest MOQ : 1 pc
Q7. Do you support OEM , ODM ?power inverter off-grid
---Yes. OEM & ODM is available , just tell us your idea , we can design it for you .
OEM& ODM MOQ depends on different models .
OEM& ODM MOQ depends on different models .
