Roller glass coating machine
US $10000-$13000

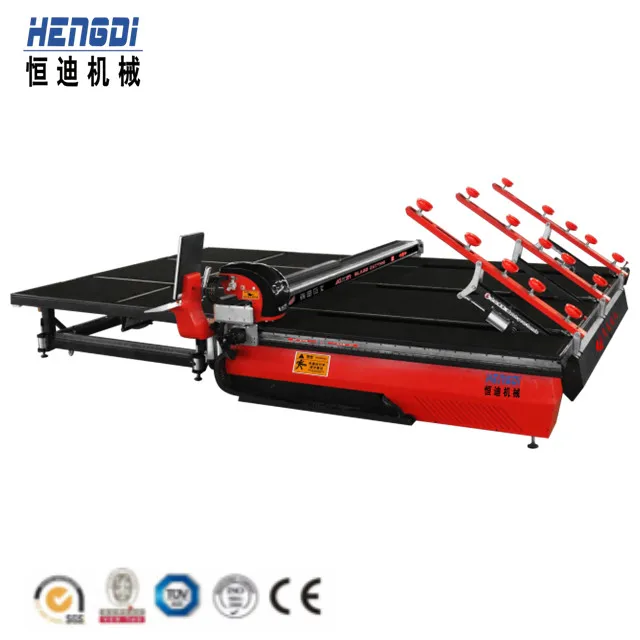

Good price automatic glass cutting machine made in China
- Category: >>>
- Supplier: Jinan Hengdi Machinery Co. Ltd.
Share on (60157547628):
Product Overview
Description
Product Description
CNC-2620/4028/4228/5133/6133/9133/12533
Product Application

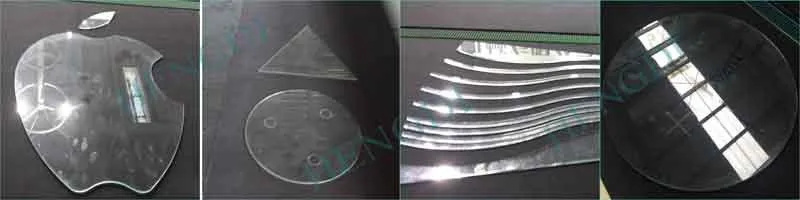

1, bus absolute value motor, boot without tedious zero operation, imported high-precision rack and other top vitality parts configuration effectively to ensure the glass cutting accuracy and stability, longer service life, can meet the cutting of various shapes of glass;
2. Integrate the upper piece and cutting into a system to achieve rapid internal docking and realize real self-locking and interlocking.
3, both axes are processed by large milling machine, install standard guide slider, cutting more stable, higher precision;
4, the machine table is waterproof, fireproof, high and low temperature, anti-corrosion materials, never deformation, milling surface through the milling machine, ensure the smoothness of the table;
5, infrared scanning point function and infrared scanning special-shaped template function;
6, intelligent cutting machine optimization software, greatly improve the glass utilization rate, reduce production costs;
7, air floating function, improve work efficiency, with the machine and the machine, can form a glass cutting line;
8, the cutting machine automatic oil injection, automatic lubrication and automatic pressure adjustment function, effectively ensure the cutting stability and cutting effect;
9, no special requirements for operators, simple operation, easy to manage;
10. The servo motor plate is used to replace the ordinary motor plate, the plate is faster, more stable and more accurate.
1, bus absolute value motor, boot without tedious zero operation, imported high-precision rack and other top vitality parts configuration effectively to ensure the glass cutting accuracy and stability, longer service life, can meet the cutting of various shapes of glass;
2. Integrate the upper piece and cutting into a system to achieve rapid internal docking and realize real self-locking and interlocking.
3, both axes are processed by large milling machine, install standard guide slider, cutting more stable, higher precision;
4, the machine table is waterproof, fireproof, high and low temperature, anti-corrosion materials, never deformation, milling surface through the milling machine, ensure the smoothness of the table;
5, infrared scanning point function and infrared scanning special-shaped template function;
6, intelligent cutting machine optimization software, greatly improve the glass utilization rate, reduce production costs;
7, air floating function, improve work efficiency, with the machine and the machine, can form a glass cutting line;
8, the cutting machine automatic oil injection, automatic lubrication and automatic pressure adjustment function, effectively ensure the cutting stability and cutting effect;
9, no special requirements for operators, simple operation, easy to manage;
10. The servo motor plate is used to replace the ordinary motor plate, the plate is faster, more stable and more accurate.
Dimensions | Length * Width * Height: 6000mm*4800mm*800mm |
Height of worktable | 800±30mm(adjustable foot) |
Power supply | 380V, 50Hz |
Installation power | 10kW |
Compressed air | 0.6-0.8Mpa |
Cut glass size | MAX.3660*2440mm |
Thickness of cut glass | 2~19mm |
Speed of nose beam | X axis 0 ~ 200m/min(adjustable) |
Nose speed | Y axis 0 ~ 200m/min(adjustable) |
Cutting acceleration | ≤6m/s² |
Cutting tool holder | The tool head can rotate 360 degrees (accurate cutting straight line and abnormity) |
Cutting accuracy | ≤±0.3mm/m (subject to the size of cutting line before breaking) |
Last cycle | 15-40 |
Suction depth | 600mm |
Number of upper arm | 2 |
Single-arm suction cups | 5 |
