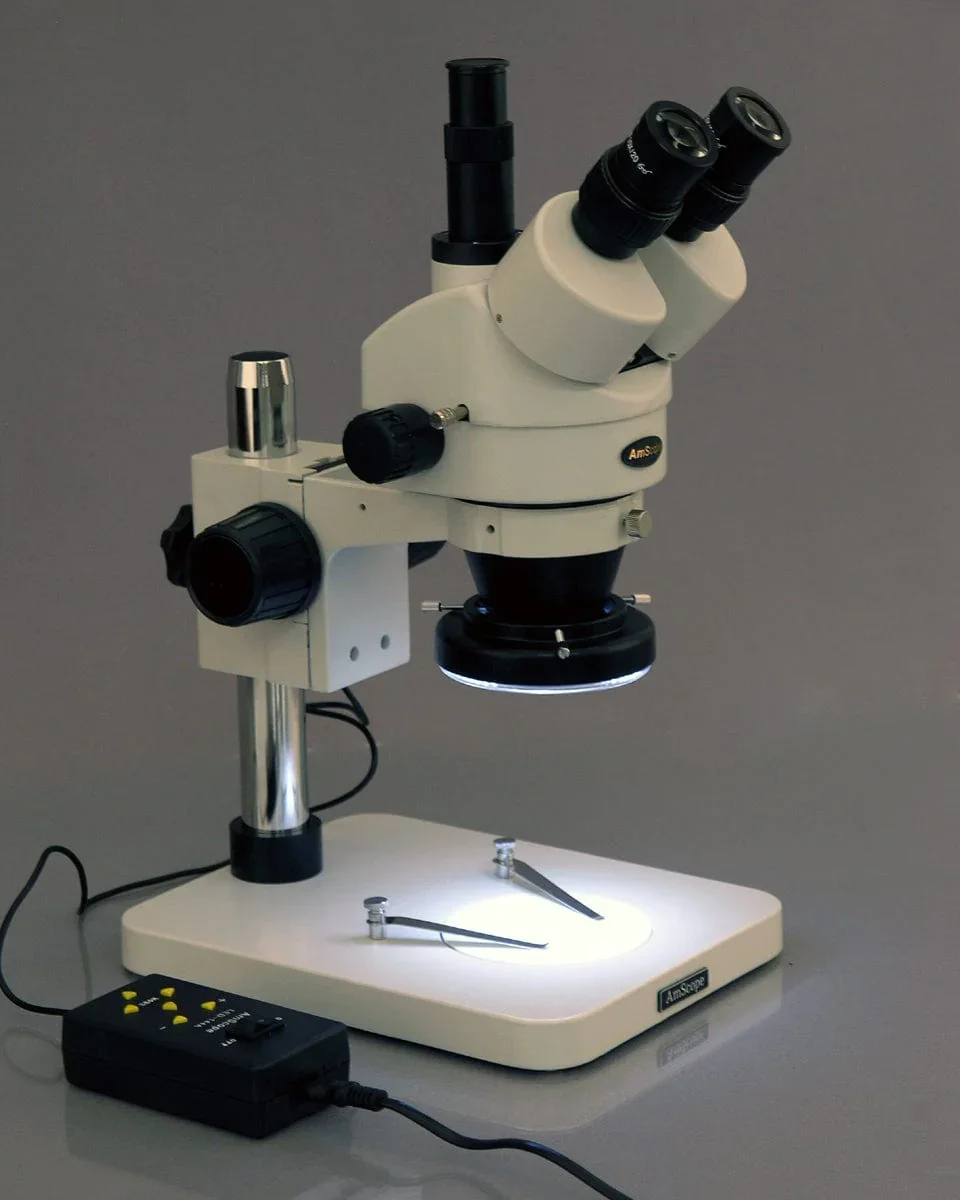

AmScope 3.5X 90X Trinocular Inspection Zoom Stereo Microscope with 144 LED 4 Zone Light

Product Overview

Description

This trinocular stereo microscope comes with a 144-LED 4-light-zone ring light. The microscope has a super widefield optical system that provides a large zoom magnification power (26:1) while offering a large working distance (8", 200mm). The trinocular port uses the third port for camera capabilities, or a third party to view as well, giving you the remaining two ports to view your specimen. The 144-LED ring light is lighting-direction changeable and lighting-intensity adjustable, providing cool, even and bright LED illumination. It features a separate control box allowing you to turn on/off each portion of the 4 light zones individually as well as changing the lighting direction so you may obtain the best images for your stereo microscope. This microscopy system is an ideal instrument for manufacturing engineers, lab technicians, gemologists, circuit board inspectors, and anyone in electronic and semiconductor industries. It is also the right microscope for biological laboratory applications that require low heat release.



Features:

• A trinocular stereo inspection microscope with LED ring light

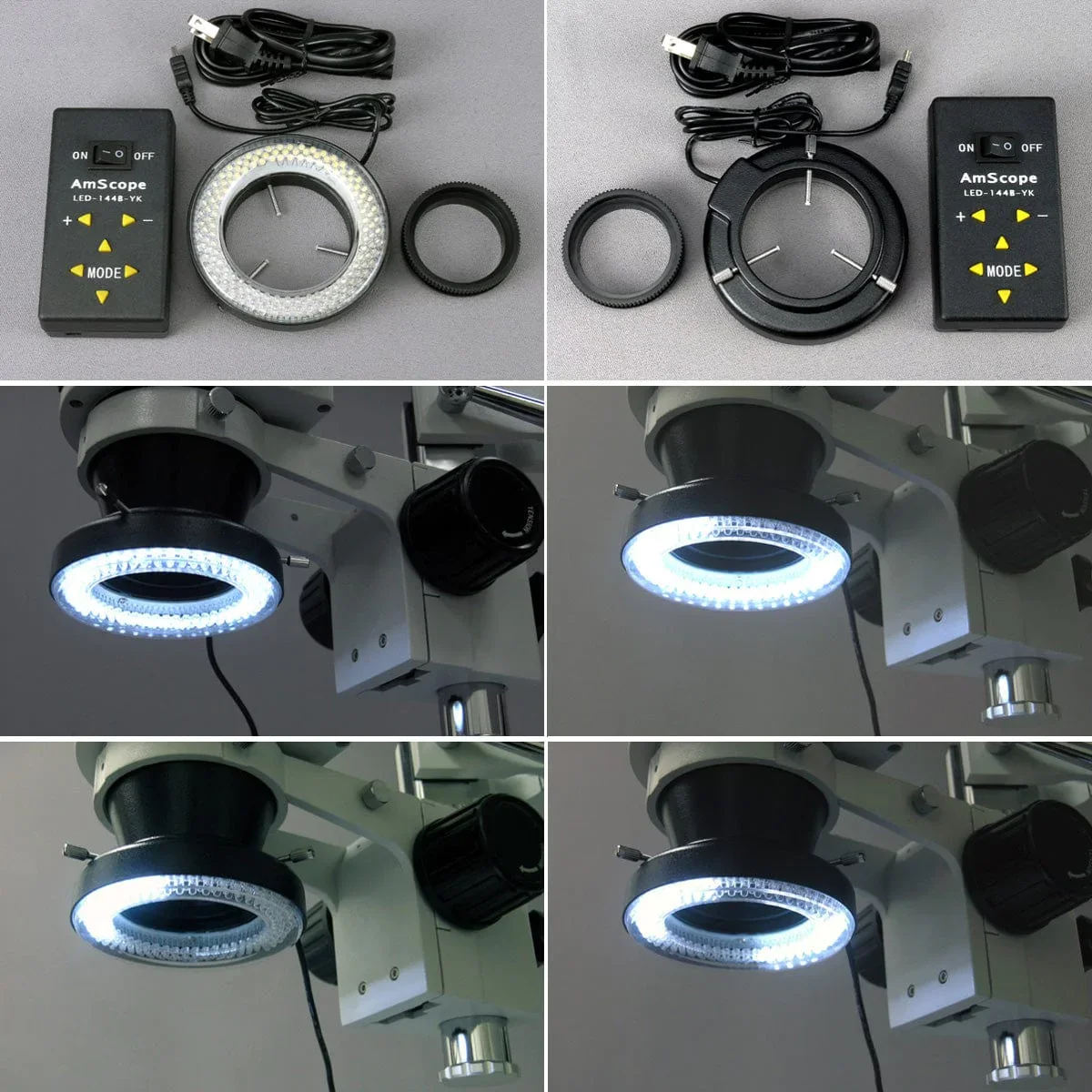

• Intensity- and light- direction variable cool, even and bright 144-LED ring illumination


• 3.5X-90X super wide zoom magnification power


• 8" (200mm) extreme large working distance


• High resolution with great flatness and contrast, giving sharp and clear images


• Trinocular head with 45-degree inclined 360-degree swiveling eye tubes

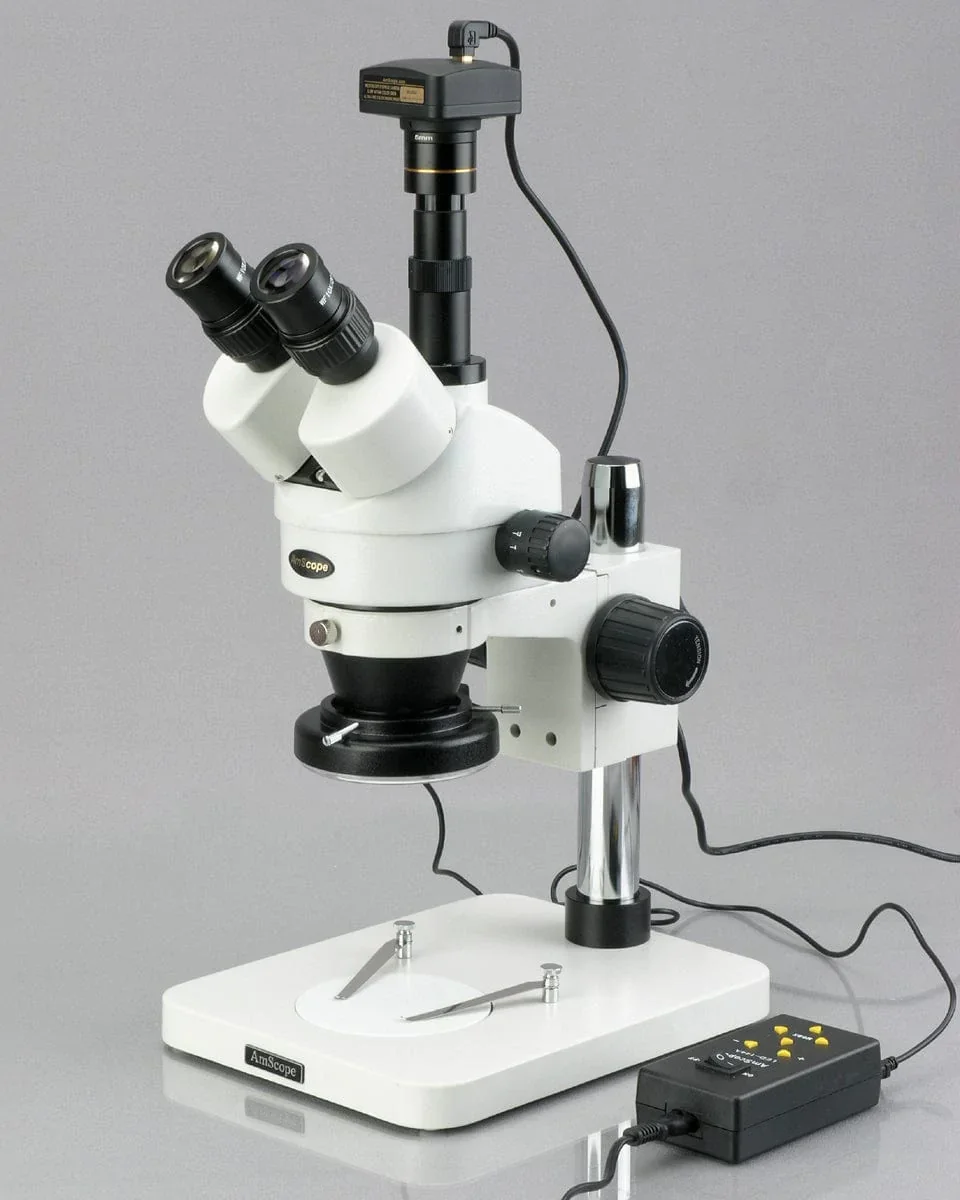

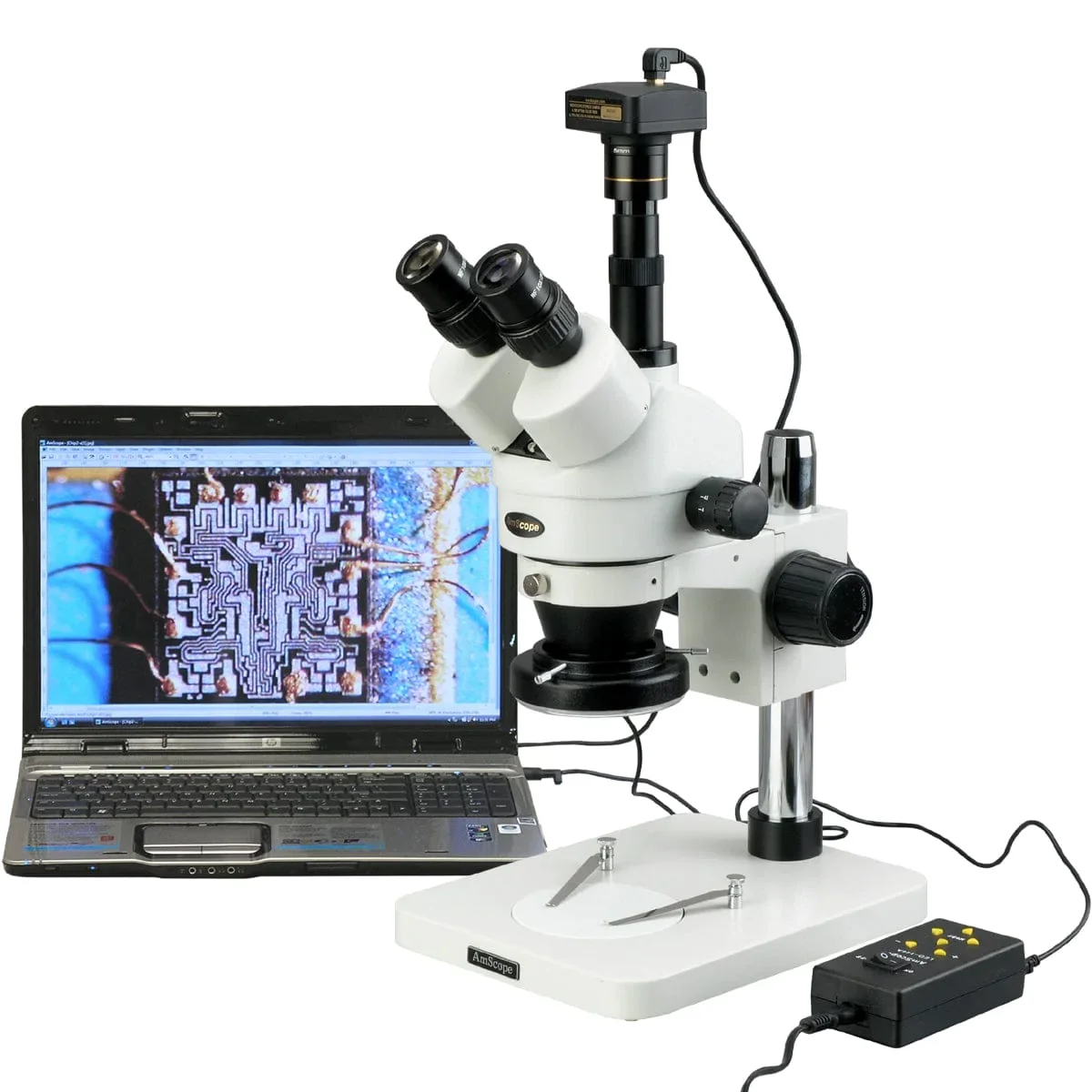

• The trinocular port enables the easy use of camera capabilities


• 30mm SUPER widefield high-eyepoint eyepieces with a 20mm field of view


• Sharp stereo erect images with a wide field of view


• Crystal clear, original true color microscope images


• Dual eye tubes with adjustable diopters


• Contemporary table stand


• Accurate alignment reduces eye strain for longer periods of viewing


• Full optical glass elements


• Precise ground glass lenses


• Full metal chrome-plated mechanical components


• Adjustable interpupillary distance


• Rubber eyeguards included


• Manufactured under ISO 9001 quality control standard


• Five (5) year manufacturer warranty for microscope





Specifications:

• Head: 360 degree rotatable 45 degree inclined trinocular


• Eyepiece: 30mm super widefield high-eyepoint WH10X/20MM


• Barlow Lens: 0.5X and 2.0X


• Zoom Range: 0.7X-4.5X


• Diopter Adjustment: +/- 5dp


• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)


• Working Distance: 8" (200mm)


• Field of View: 2-1/2" (65mm) super widefield


• Illumination: 144-LED ring light, 4 light zones


• Power Input: 110-240V, 50-60HZ, automatic switching


• Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)


• Round Plate: 3-3/4" (95mm) in diameter


• Accessories: a pair of eye-guards





Packing List:

• One Trinocular Stereo Zoom Head


• One Pair of Super Widefield 10X Eyepieces


• One 0.5X Barlow Lens


• One 2.0X Barlow Lens


• One 144-LED Ring Illuminator with 4 Light Zones


• One Pillar Table Stand


• One Focusing Rack


• One Round Plastic Plate


• One Pair of Eye-Guards


• One Pair of Clips


• One Dust Cover


• User's Manual Download
