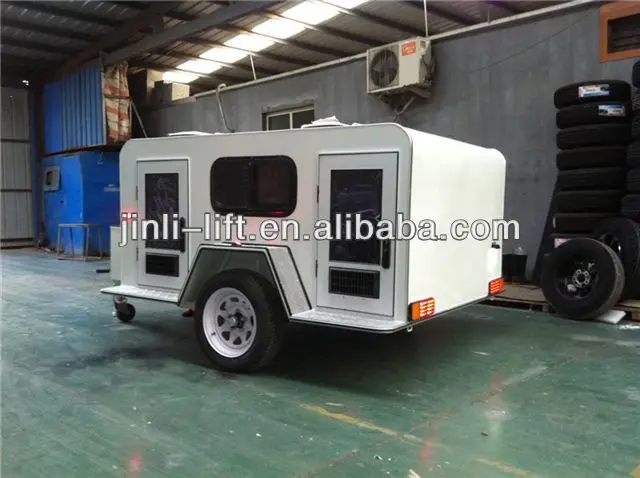

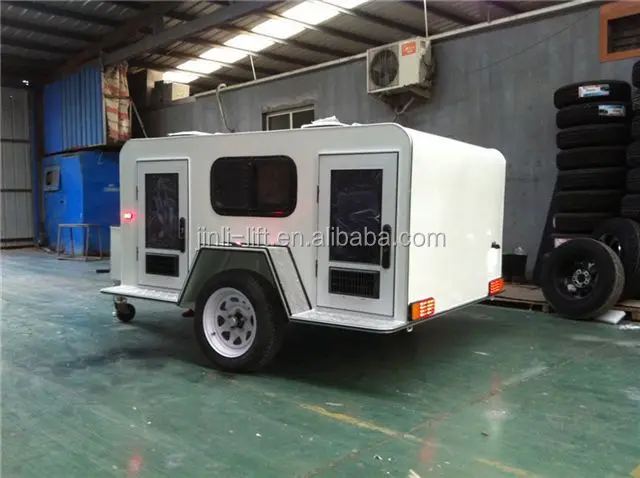

manufacture camping trailer with caravan doors dog trailer China

Model NO.

4DT-A

Origin

Jinan, Shandong, PRC

Overall Dimension

3468*2042*1296mm

Dimension of Body

2618*1522*936mm

Maximum Internal Dimension of Body

2593*1497*911mm

Color

single or customized

Production Capacity

20 Units/Month

Shipping

via sea from Qingdao Port.

Packing

loading in bulk fixed on the floor of container

payment

T/T 30% deposit in advance, the balance should be paid against copy of B/L date

Empty Weight

400kg

Max Payload

500kg

Overall Dimension

3468*2042*1296mm

Dimension of Body

2618*1522*936mm

Maximum Internal Dimension of Body

2593*1497*911mm

Chassis

hot galvanized RHS (3.5mm-4.0mm)

Frame

hot galvanized RHS(2.5mm)

Body

aluminium sheet(1.0mm-1.5mm)

Roof

glass fibre reinforced plastic 2618*1522mm

Wheel/Tyre

185/70R14 tyres and 14x6J steel rims

Spare Wheel

none

Suspension

roller rock suspension and compartment

Axles

one trailer axle

Brake System

single axle electric brakes with beak-away systems

Front Window

none

Side Window

two rectangle sliding windows, one each side

Side Door

four caravan doors with flyscreens, three each side

Turn Light

two each side

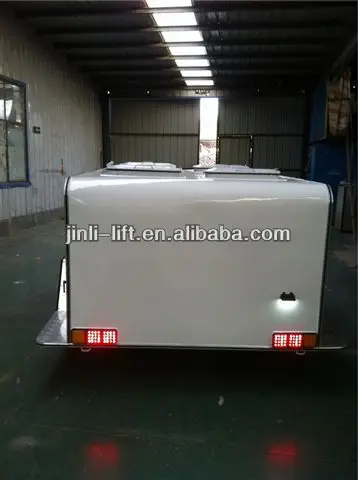

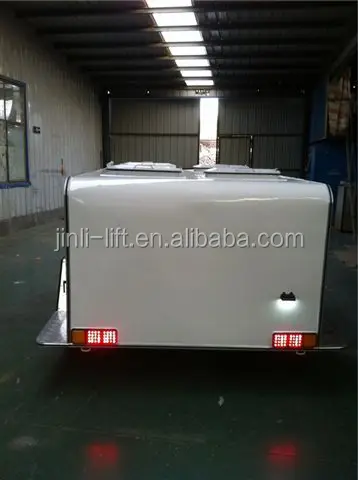

Number-plate Light

one on the rear

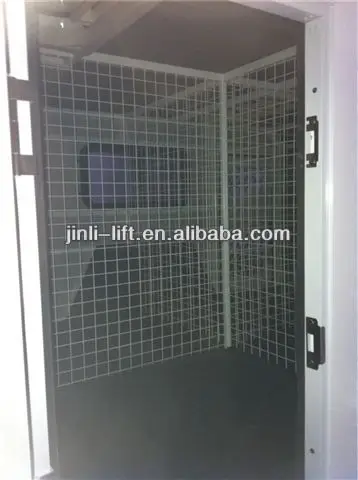

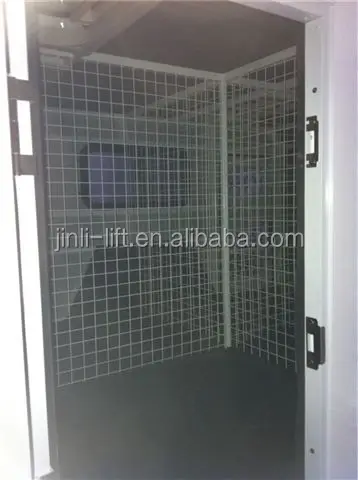

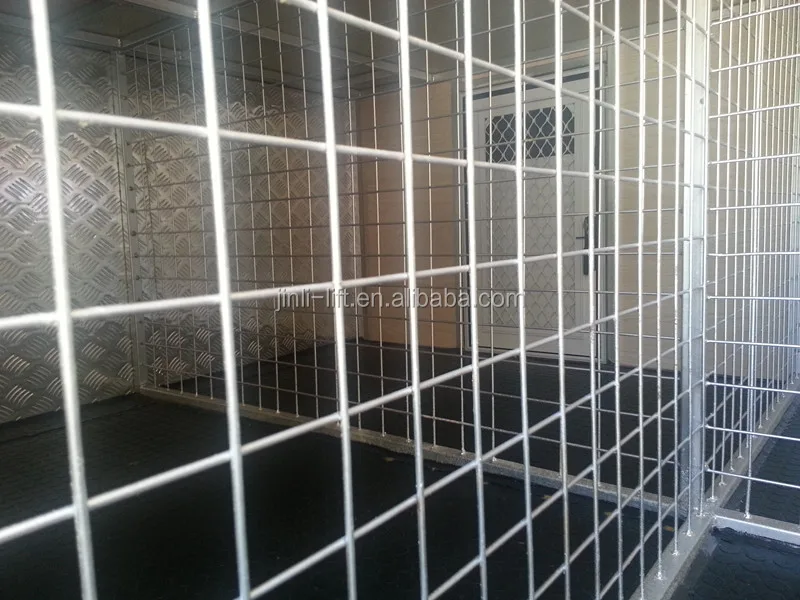

Dogs Divider

divided into 4 areas by wire mesh

Decorative Front Panel

none

Decorative Side Panel

none

Mudguard

external mudguards

Front Storeroom

yes

Jockey Wheel

swing-up jockey wheel

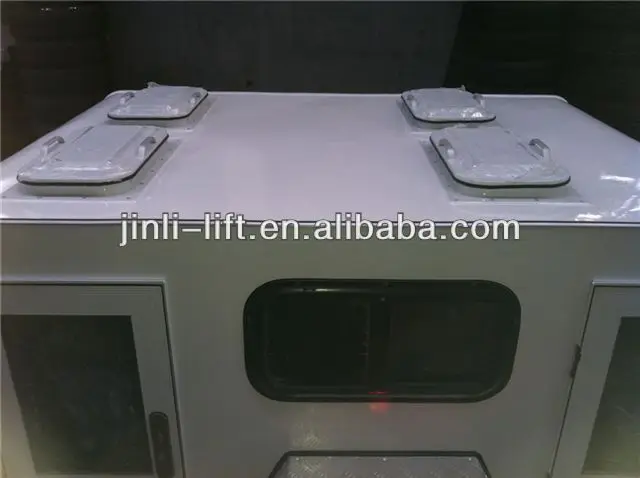

Roof Vents

four vents

Toolbox

none(optional)

Tailgate(upper)

none

Ramp Door

none

Dog Area

15mm marine plywood with 10mm thick strip rubber floor with all around seals
