HD Waterproof Fish Finder 7 inch LCD Underwater Video Fishing Camera System With 24Pcs White Lights Used For Ice Fishing

Product Overview

Description

HD Waterproof Fish Finder 7 inch LCD Underwater Video Fishing Camera System With 24Pcs White Lights Used For Ice Fishing







Monitor:
Screen size: 7 inch
Screen type: Digital color screen
Screen resolution: 800*480
Screen input voltage: 12V DC

Camera:
Camera Light Source: 24pcs bright white LED light
Camera resolution: 600TVL
Camera image sensor chip: 1/3 SONY CCD
Camera effective pixels: PAL:752(H) x582(V); NTSC:768(H) x494(V)
Camera shell materail: ABS plastic and metal
Camera view angle: 92 degrees
Camera video and picture: Color
Camera input voltage: 12VDC
Camera with 2pcs gravity block
TV System: PAL/NTSC
Sensing Area(mm): 3.6*2.7
Horizontal Sync.Frequency(KHZ): 15.625/15.734
Vertical Sync. Frequency (Hz): 50/60
Video Output: 1.0Vp-p 75Ω
S/N Ratio: Better than 45dB
Gamma Consumption: 0.45
Lens: 3.6mm
Lens Angle(Deg): 92 degree
Current Consumption(mA): 260mA
Power Supply(DC): 12V


Packing list:

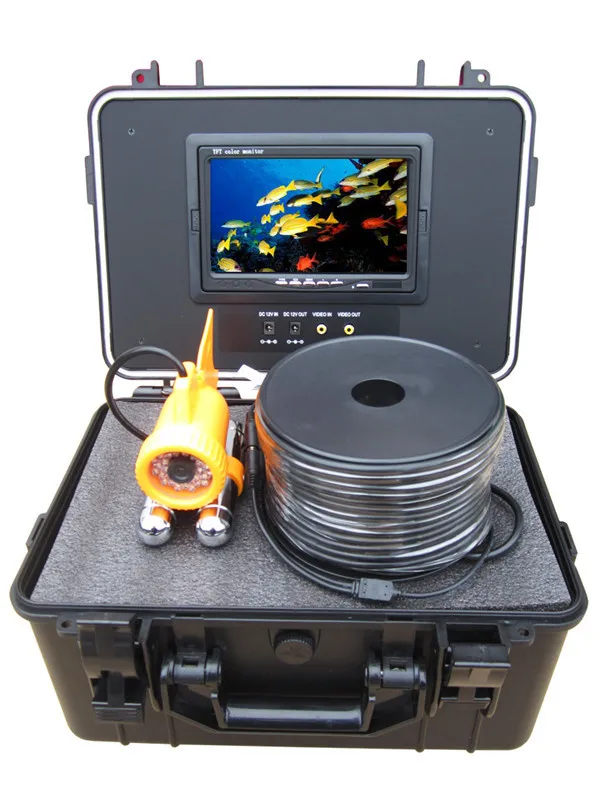

(1) 1x Black color ABS plastic case

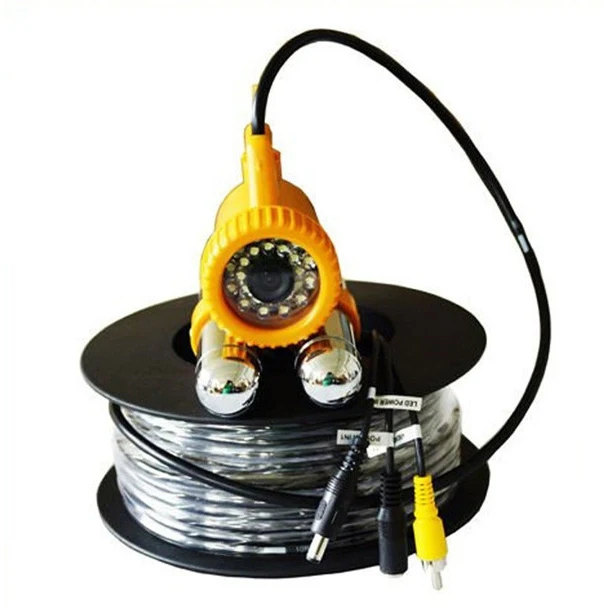

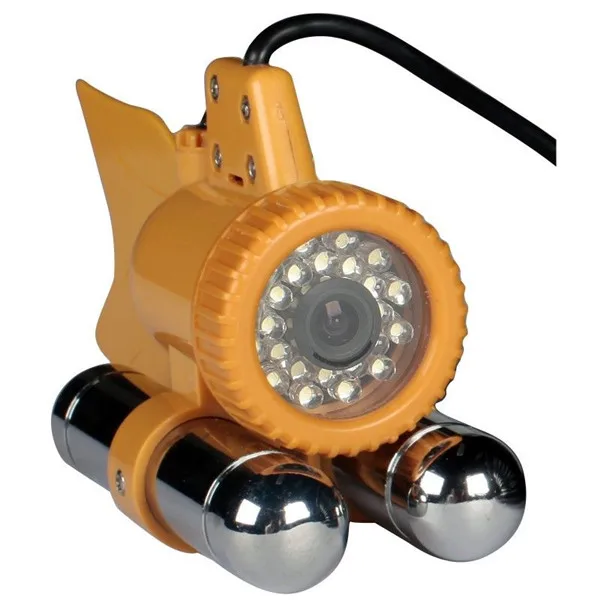

(2) 1x underwater camera with 24pcs White LED lights

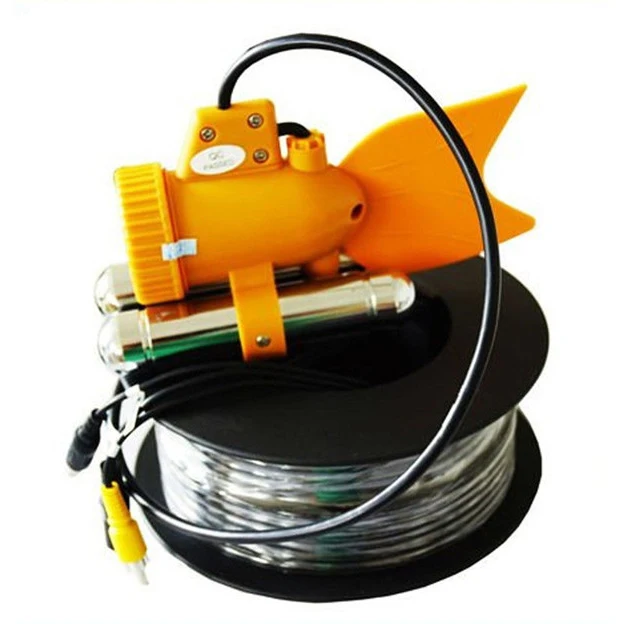

(3) 1x 20M PU skin cable with wheel
(4) 1x Lithium battery
(5) 1x Battry charger
(6) 2x Gravity block
(7) 1x English user manual
