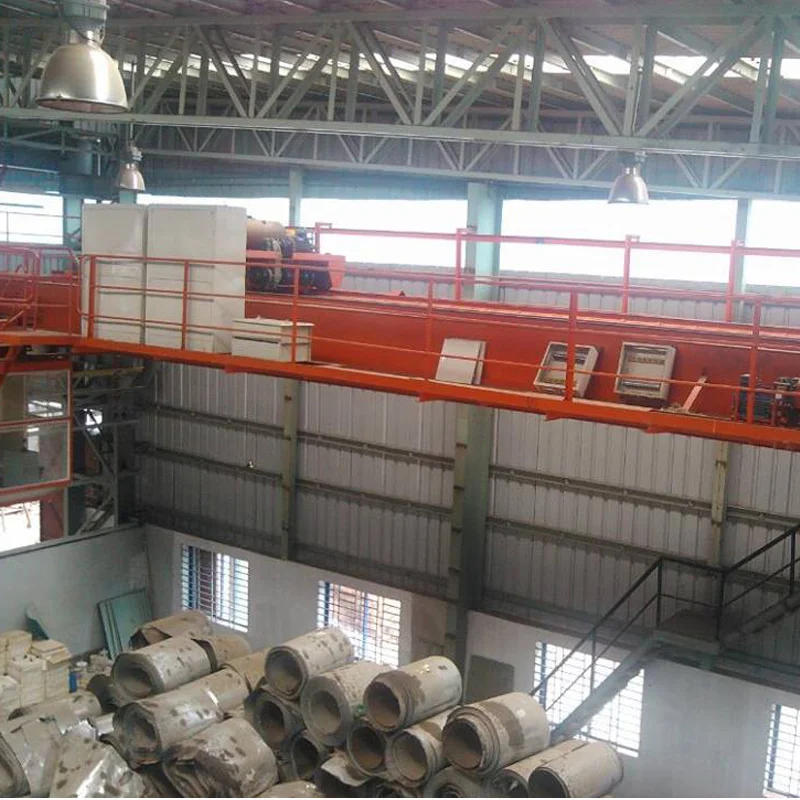

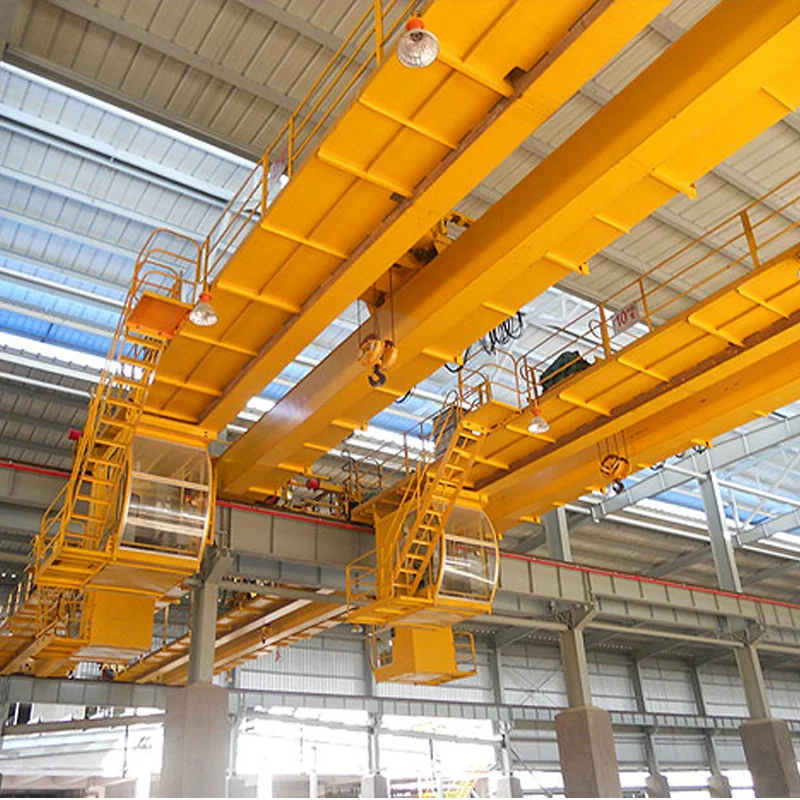

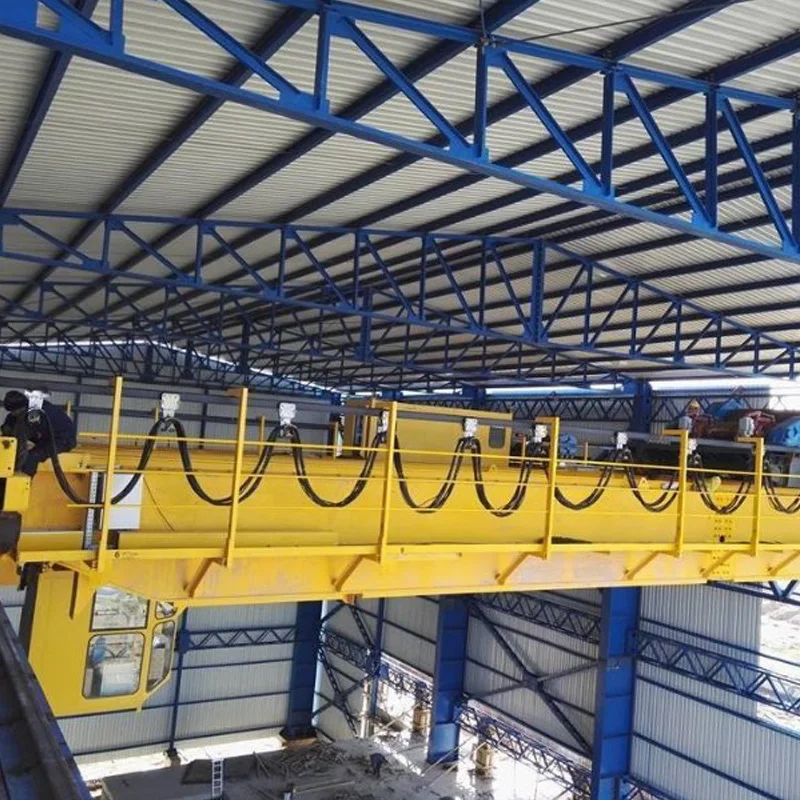

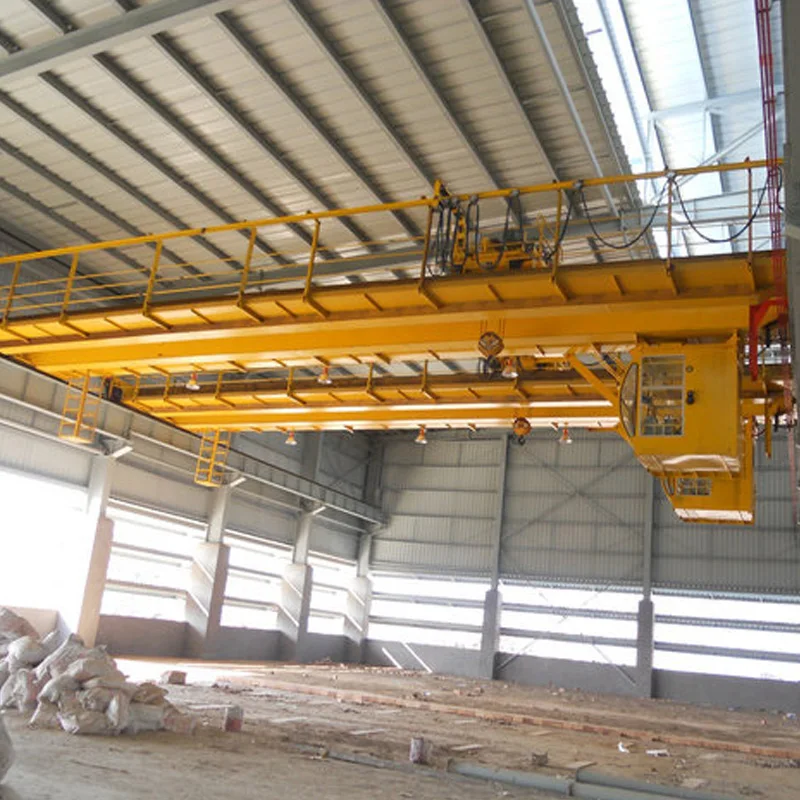

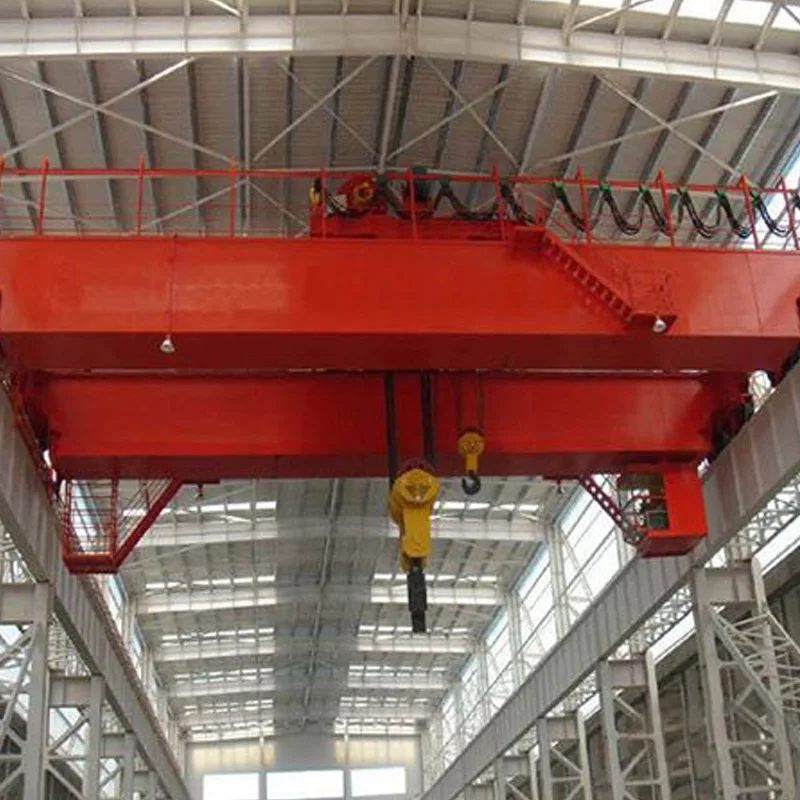

Yuantai 20 ton overhead bridge crane for sale
- Category: Other Cranes >>>
- Supplier: Henan Yuantai Crane Machinery Import & Export Co. Ltd.
Share on (60158438083):
Product Overview
Description
Yuantai 20 ton overhead bridge crane for sale
Product Description
Overhead crane For Sale Description:
1>HD Europe type single-girder crane with perfect performance
2>Europe type electric hoist double-girder crane
3>General LDA model single-girder crane
4>LP deflection suspension single-girder crane that can increase lifting height
5>Low-headroom single-girder crane that can reduce the construcction height
6>General LX model suspension crane
7>Non-power SL manual single-girder crane that can satisfy special requirement
8>SLX manual operation suspension crane
9>Muliti-pivot suspension crane with low wheel pressure
10>XG type suspension crane that can be user for super span
11>General LH type electric hoist double-girder crane
12>General QD model bridge double-girder crane
13>QZ type grab bucket double-girder crane adaptable to stuff loading and unloading
14>Overhead crane with magnet
15>Metallurgical overhead Overhead crane adaptable for high temperature work place
| Span | S(m) | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 |
|---|---|---|---|---|---|---|---|---|---|
| Lifting height | m | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Lifting speed | m/min | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 |
| Trolley speed | m/min | 37.2 | 37.2 | 37.2 | 37.2 | 37.2 | 37.2 | 37.2 | 37.2 |
| Crane speed | m/min | 90.7 | 90.7 | 90.7 | 90.7 | 90.7 | 90.7 | 90.7 | 90.7 |
| Lifting motor | kw | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
| Trolley motor | kw | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Total weight | kg | 11830 | 13670 | 15565 | 18200 | 20650 | 25040 | 28130 | 31080 |
| Max Wheel Load | KN | 72 | 78 | 84 | 92 | 97 | 109 | 117 | 125 |
| Track | P43 | P43 | P43 | P43 | P43 | P43 | P43 | P43 | |
| Main dimension | mm | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 |
| Rail top to main top | H1 | 1763 | 1763 | 1763 | 1763 | 1763 | 1763 | 1763 | 1763 |
| Rail top to hook centre | H2 | 71 | 71 | 71 | 71 | 71 | 71 | 71 | 71 |
| Wheel base | W | 3400 | 3400 | 3550 | 3550 | 3550 | 5000 | 5000 | 5000 |
| Crane width | B | 5054 | 5054 | 5204 | 5204 | 5204 | 5948 | 5948 | 5948 |
| Hook left limitation | S1 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Hook right limitation | S2 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 |
| Trolley gauge | K | 1400 | 1400 | 1400 | 1400 | 180 | 1400 | 1400 | 1400 |
GENERAL CRANE
Overhead crane for sale
| ||||
| ||||
|
|
|
Bulk materials handling cranes | |
|
|
Grab crane is a good helper for transfering powdery, bulk material. Grab can be clamshell bucket type or orange peel type for different material. We can alaso provide you mechanical grab or electric hydraulic type grab according to your requirement. | Double girder overhead crane with magnetic chuck, is suitable for lifting steel scrap or Iron ore powder in steel factory. High safety performance with function keeping magnet when power off. Durable crane structure to make sure the continuous serving. |
Long materials handling cranes | |
|
|
Equiped with a hanging beam, double girder overhead crane is designed to fix the requirement for long material lifting, such as wood, long pole, plate or long bar. with a magnetic chuck make lifting the steel bar, plate more easier. | Crane with electromagnet beam is best choice for steel plate lifting. The electromagnet beam can be telescorpe type to satisfy different size cargo. The lift point can also be specially designed according the cargo. |
Packaging & Shipping
Overhead crane for sale
Company Information
Overhead crane for sale
| Yuantai Crane Machinery is professional logistics handling products exporter, with long history trading time having rich technical experience. We are located in Changyuan--- the crane's hometown, have passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification. our products are recommend by WTO. Yuantai always adhere to customers first,holding positive attitude to satisfy the customers' the demand. |
FAQ
Overhead crane for sale
1. Is your products customized?
Yes, because the working condition are different, all our yuantai products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of this overhead crane?
Thanks for your question. The max. Lifting capacity of QD type double girder overhead crane is 950 ton. If this can’t satisfy your working requirement.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can this type work in hazardous environment?
Thanks for your question. QD type double girder overhead crane is just for application in general manufacturing workshop. Crane for hazardous environment, please consult our professional sales manager.
7. Do your side can provide other lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
