Customized TN Blue Negative Segment LCD with white LED backlight For Audio Systems

Product Overview

Description

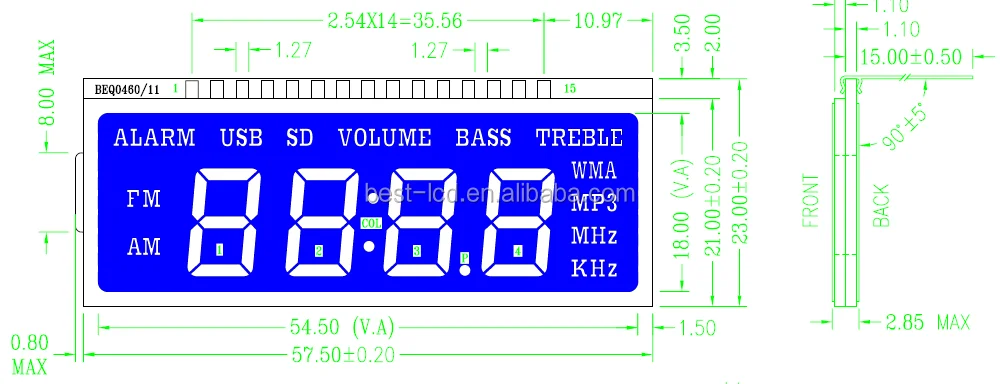

1. Professional Mechanical Drawing:







2. Precisely Technical&Mechanical Parameters FYI:



Usage	For Audio Systems/ Consumer Electronics with white LED backlight
Display type	TN/Blue Negative/Transmissive
Outline size	57.5*21.0/23.0*1.1mm
Viewing size	54.5*18.0mm
Viewing Angle	12 O'clock
Driving Method	1/4duty, 1/3bias
Connect type	Metal Pin
Pitch	2.54mm
Operate temp	0~50 deg.
Storage temp	-10~60 deg.
Power supply vol.	3.3V, 75HZ

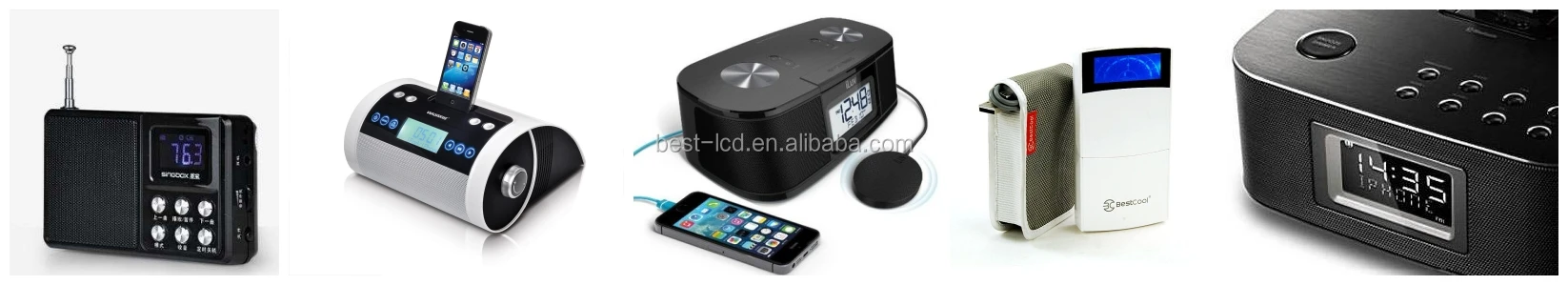

3. Appropriate Application:  Customized TN Blue Negative segment TN LCD Display With White LED Backlight For Audio Systems & Home Applicances.

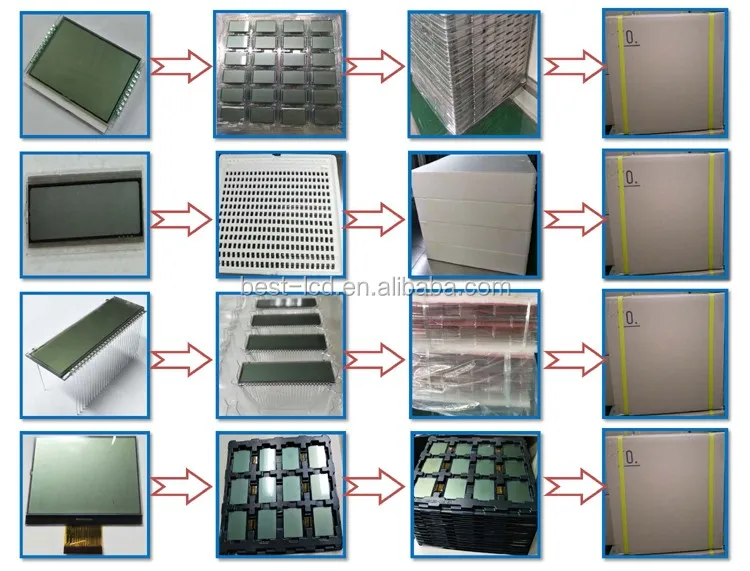

4. Qualified Packaging:











5. Trusted Shipping:











6. Outstanding Capabilities&Services:

Customizing & designing segment, character, graphic LCD Display and LCD Module(Including LED Backlight, IC) with different sizes, shapes, display icons for clients.



Product Type:

1. LCD Type:  TN, HTN, STN, FSTN, VA, COB, COG etc.....

2.  Any digitals, Icons, graphic can be customized and designed according to customers' requirements.

3. Polarizer type: Transmissive, Transflective, Reflective

4. Connector Type: Metal Pins, Zebra, Heat-seal, FPC...

5. ITO Glass thickness: 1.1mm, 0.7mm, 0.55mm

6. The range of operating Temperature: -40~90°C





Our products are widely and well accepted in North America such as USA,Canada; European countries such as UK, Germany, France, Netherlands, Greece, Russia, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain, etc. ; Asia countries such India, Singapore, Malaysia etc..









7. Contact us:

If it arouses your interests or if you want to learn more details and get the latest updates, pls add my trademanager/Skype or send inquiry to me, I'll be glad to answer!



Trademanager: cnbestlcd

Skype: helenwang7708

QQ: 627807171
