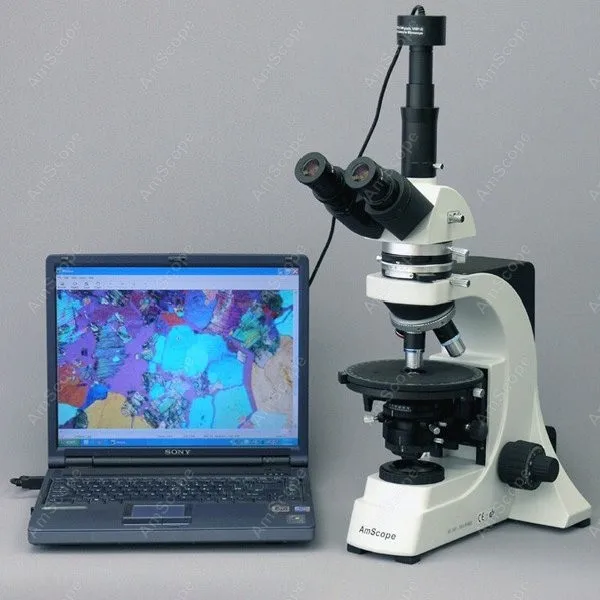

This trinocular infinity polarizing microscope has a 30 degree inclined 360 degree rotatable trinocular head, coarse and fine focusing and 30W halogen illumination. It offers four magnification settings (40X,100X, 400X, 600X). It comes with an extreme widefield plan optical system. It is a perfect microscopy system for metallurgical labs and foundries for silicon wafer inspection and quality control. Its Retail Value is $10,000.
Features :
A high quality professional infinity polarizing microscope with plan optical system
Perfect for geology, petrology, mineralogy, toxicology, pharmaceutics, and forensic medicine!

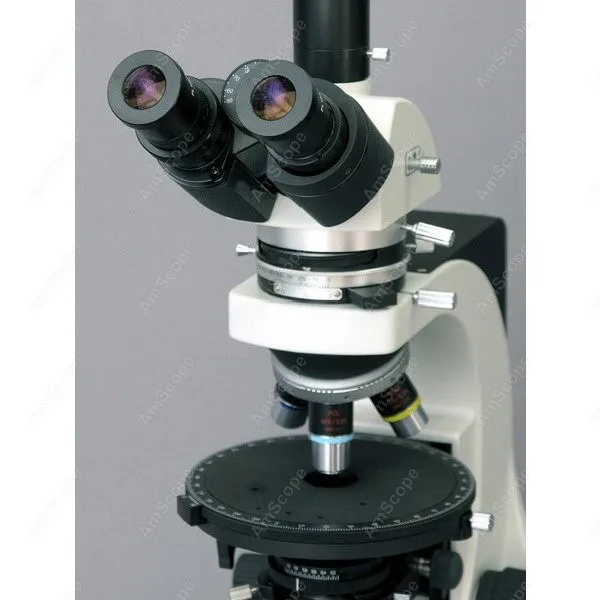

30 degree inclined 360 degree rotatable trinocular head
Four magnification settings, 40X, 100X, 400X and 600X
30 mm PL high-eyepoint 10X eyepieces
Four Infinity corrected PLAN distressing objectives, 4X, 10X, 40X and 60X, for super quality images

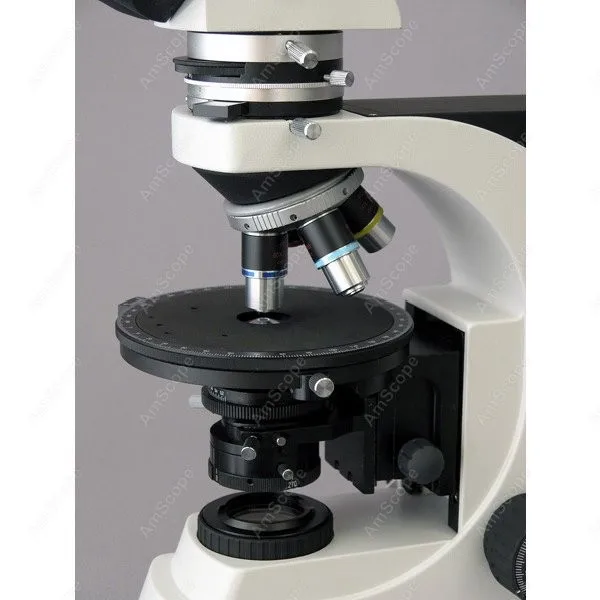

360 degree rotatable stage with locking control
Kohler illumination system with swing type achromatic condenser
Built-in focusable Bertrand lens on rotatable disc with centering controls
Built-in analyzer with capability for removal from optical path
Full optical glass elements
Precise ground glass lenses
All metal mechanical parts
Coaxial coarse and fine focusing system
Dual focusing control knobs
Focusing tension control mechanism
Adjustable interpupillary distance
Adjustable diopters on both eye tubes
Solid metal frame construction with stain resistant enamel finish
Graduated in 1 degree for 90 degrees
360 degree rotatable polarizer able to be removed from optical path and lock positions
Brightfield/polarizing selectable knob for easily changing light from brightfield to polarization
Super widefield high eye-point 10x eyepieces with 22 mm field of view (PL 10x/22mm)
High-eyepoint optics for an easy observation, especially for eyeglass wearers
Reversed quadruple nosepiece - the design allowing easier access to slides
Objective centering screws on nosepiece for precise alignment
50mm - 80mm adjustable interpupillary distance (the distance between two eyes)

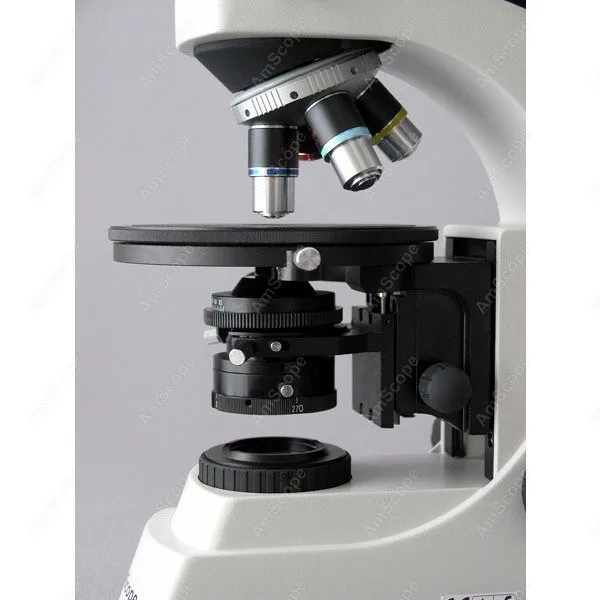

Sub-stage condenser on swing with alignment control and iris diaphragm
Rack pinion steel gears for easy and better condenser movement
45mm Blue filter for base illumination
Large fully rotatable round stage with ball bearing movement, 160mm diameter with graduation marks every 1 degree for the full 360 degrees
Stage rotation lock screw and detachable stage slide clips
Tension-adjustable coarse focusing
Adjustable lock ring stopper to limit coarse range to protect slides
Spare bulb, fuse, bottle of immersion oil and dust cover included
Optional PLAN objectives: 20X, 100XS (oil)
Excellent five (5) year factory warranty
Unbeatable lowest price guaranteed or difference back!
Satisfaction guaranteed or your money back!
