Vacuum Powder Feeder for Laboratory Extruder Food Powder

Product Overview

Description

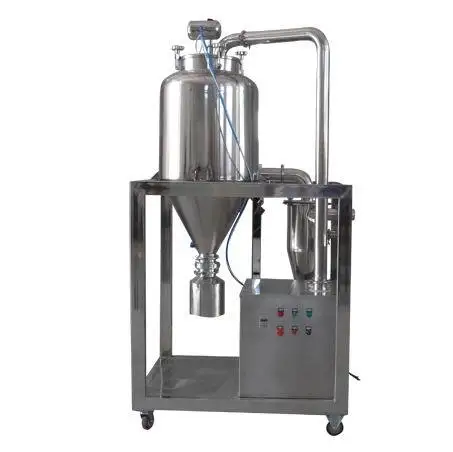

Topspack Vacuum Powder Feeder for Laboratory Extruder Food Powder



General Description:

When the compressed air supply vacuum generators, vacuum generators produce negative pressure to form a vacuum airflow, material is sucked into the suction nozzles, to form a material gas flow, after the suction tube to reach the feeder hopper. Filter complete separation of material and air, when the material filled silo, the controller will automatically cut off the gas source, vacuum generators to stop working, while the silo door automatically opens, the materials fall into the hopper of the device. At the same time, the compressed air pulse cleaning valve automatically clean the filter. Wait until the time or level sensor sends the signal feeding, auto-start on the feeder.

Characteristic
1--Using compressed air as primary energy sources.

2--According with GMP standard.
3--Solving the stratification of powder and granules.
4--The filters made of Ti will never be jammed and be abraded.
5--Eliminate the static electricity.
6--Made of nontoxic and corrosion resistant materials.
7--Leakage free capsule, to prevent cross contamination.
8--Materials are not adhering to the inner surface of the conveyor.
9--Intelligent control and high automation.

10--Modular structure, easy to clean and dismantle.
11--Small and light ,easy to install.

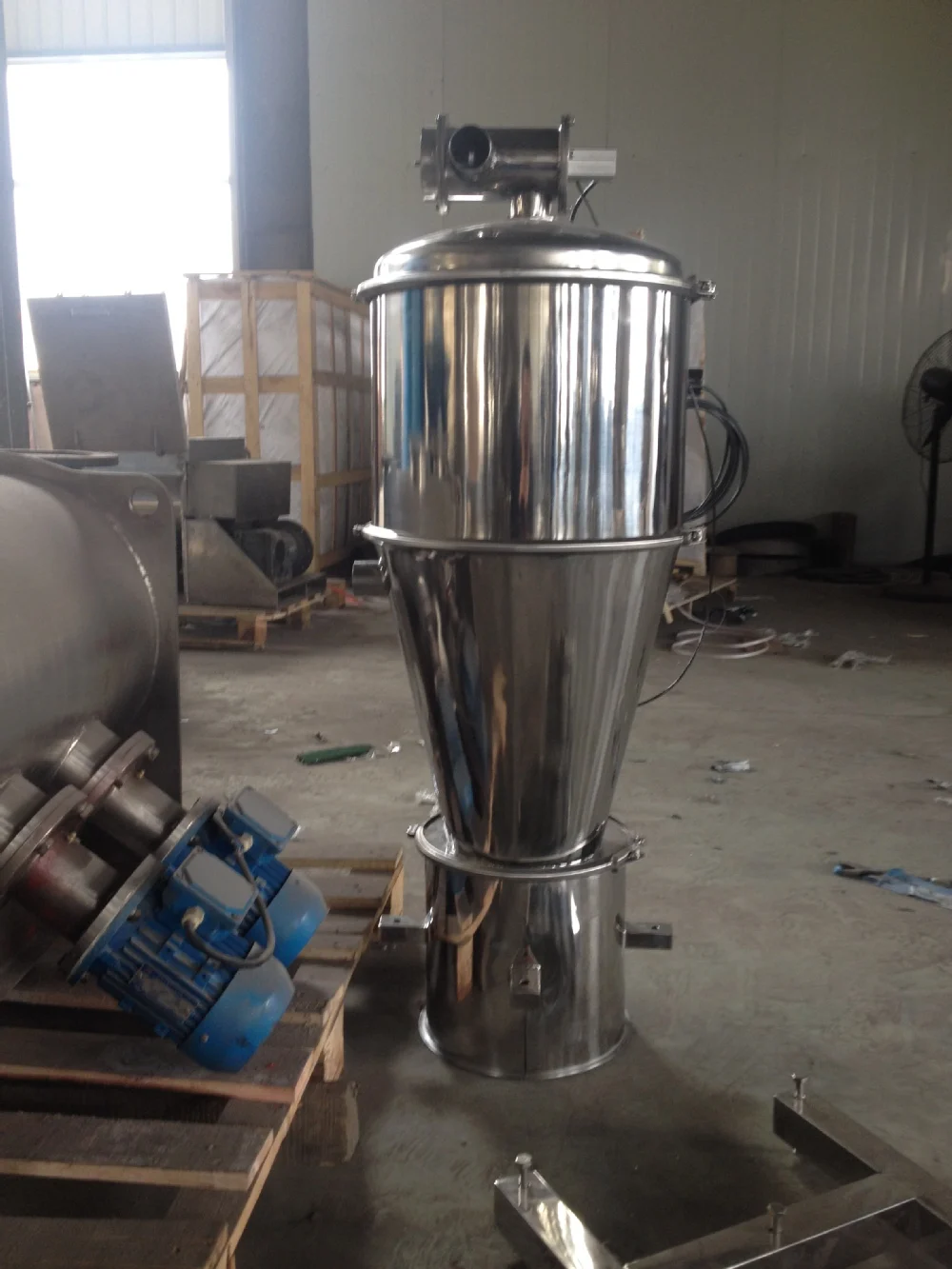

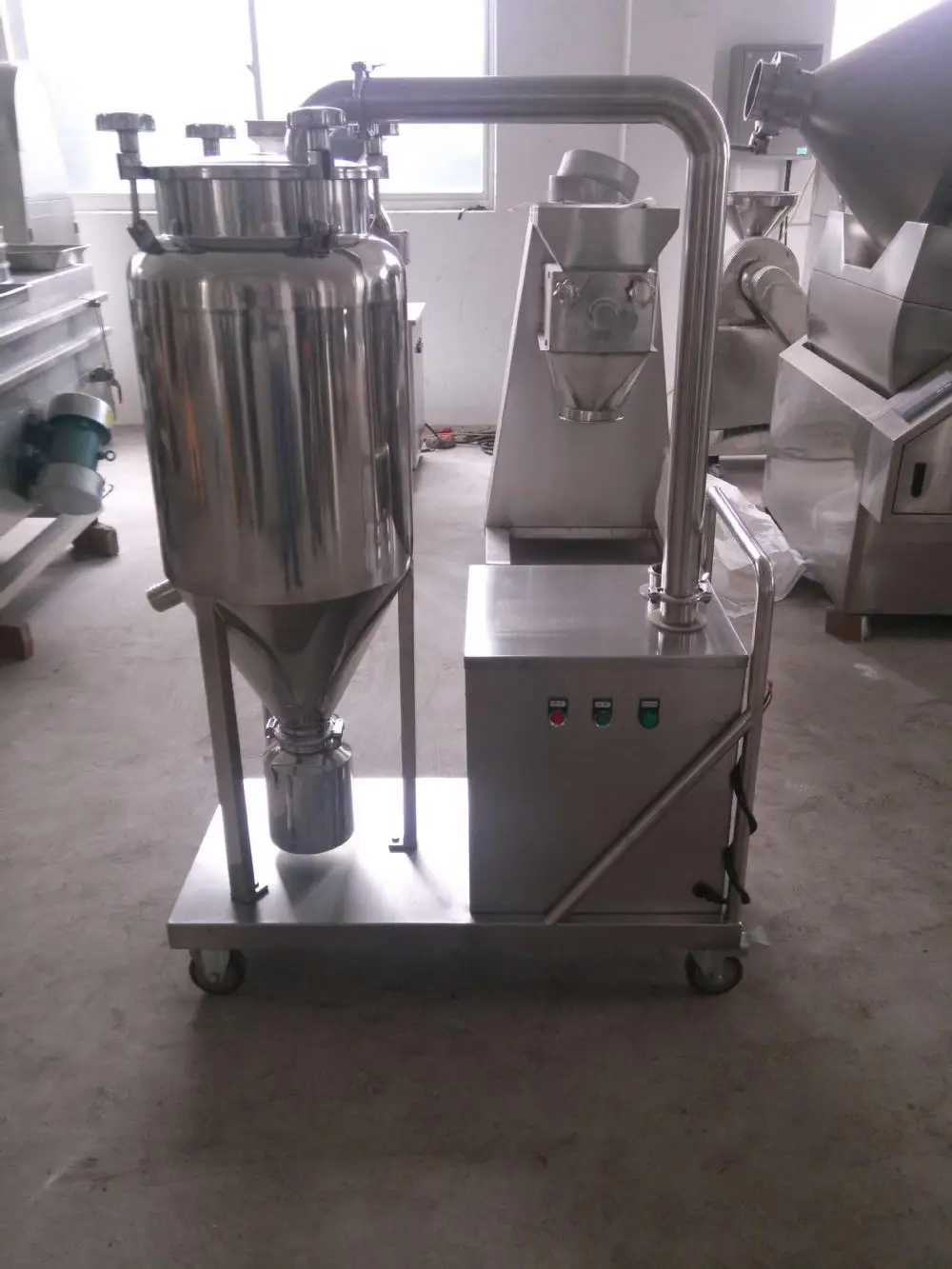

ZKJ-4 Model Vacuum Conveyor consists of material container, pipeline, vacuum conveyor, control system and so on. The max distance to convey is 30m in height or 90m in length and the max conveying capability can reach 18 t/h.

Model	Capacity (kg/h)	Motor powe (KW)	Air supply (L/MINS)	Pressure (Mpa)	Hopper Diameter (MM)	Tube Diameter (MM)
ZKJ-1	400	1.5	8	0.4-0.6	213	38
ZKJ-2	600	2.2	8	0.4-0.6	213	38
ZKJ-3	1200	3	8	0.4-0.6	290	51
ZKJ-4	2000	5.5	8	0.4-0.6	420	51
ZKJ-5	3000	4	10	0.4-0.6	420	51
ZKJ-6	4000	5.5	10	0.4-0.6	420	63
ZKJ-7	6000	7.5	10	0.4-0.6	420	63
ZKJ-10	4000	11	10	0.4-0.6	600	89
ZKJ-20	4000	18.5	10	0.4-0.6	600	89
