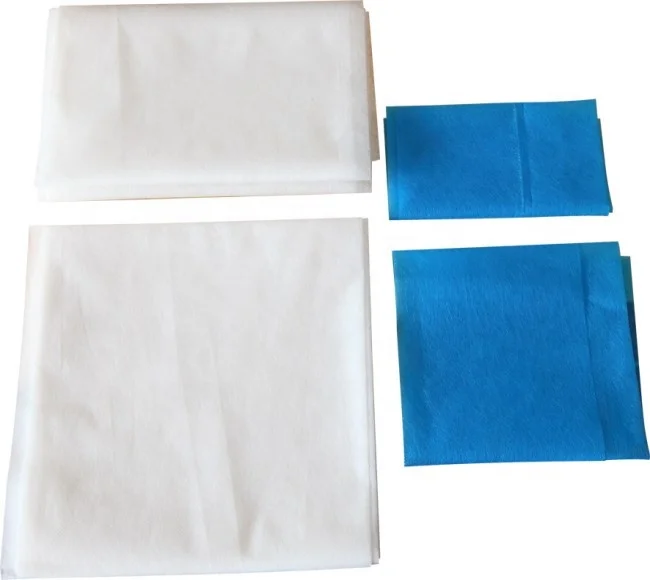

Машина для складывания нетканых простыней (медицинская)

Product Overview

Description

Equipment Introduction

Equipment requirements: The device can process all kinds of spunlace non-woven,hot air fabric, hot-rolled fabric; acupuncture cloth, spunbond fabric, SMS,paper-plastic and other raw material.

 Equipment working principle: Longitudinal folding→cutting length automatically→Transverse folding→output automaticlly→Product stacking,the whole line complete automaticlly.

 Width of raw material under 2000mm

  Folded width longitudinally arbitrary adjustable, the product Cutting length can be adjusted between 300-3000mm, length error of ± 1 mm.

Transverse folding: one half ,one- third,one -quarter,one –sixth,one-eighth



The machine adopts the cylinder to promote the material and tension control automaticlly, without manual operation



  All the drives use the imported servo motor, high precision



Touch screen control, only need to enter the data can change the specs,easy to operate.



 Electronic-control is touch screen man-machine interface operation,built-in production time,counting,a preset number of automatic shutdown,etc.



  Entire delivery system, strong, durable, non-polluting;



  Electrical wiring specifications and reasonable,elegant,easy to operate.





Technical parameters:

Supply Voltage: 380V50HZ

Power: 8.5KW

Weight: 4000kg

Speed: 0-60 m / min

Dimensions: 10300 * 2400 * 2150mm

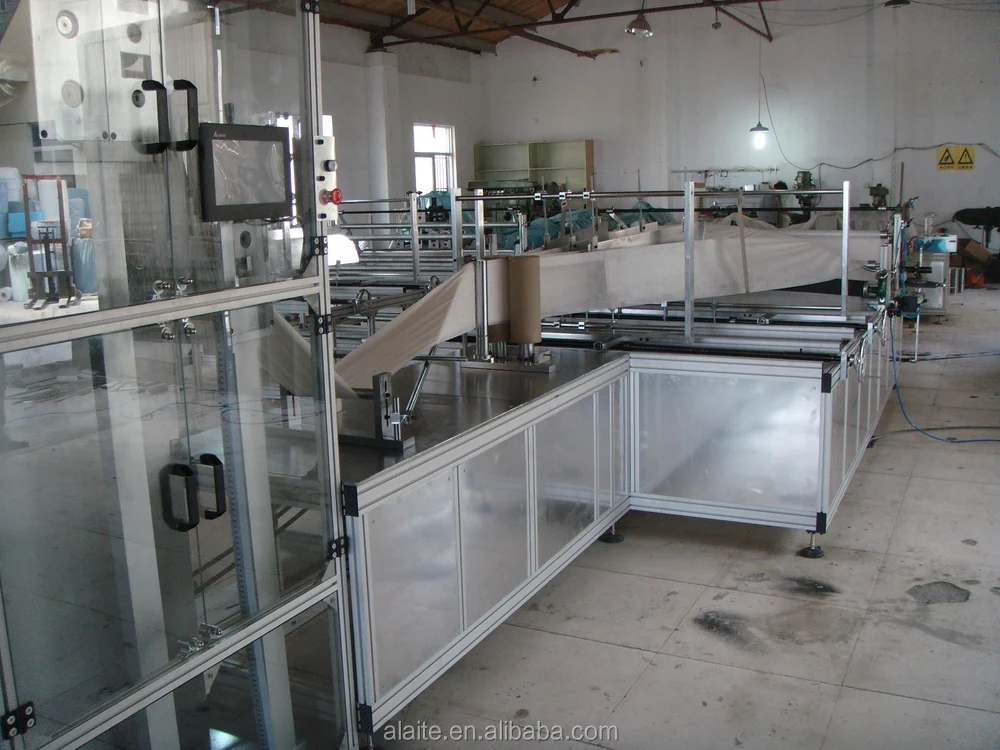

Machine structure Description



The host by the channel steel welded together,solid and  firm,surface painting, The feeding part is aluminum alloy rack, the appearance is beautiful and will not get rusted permanently.
