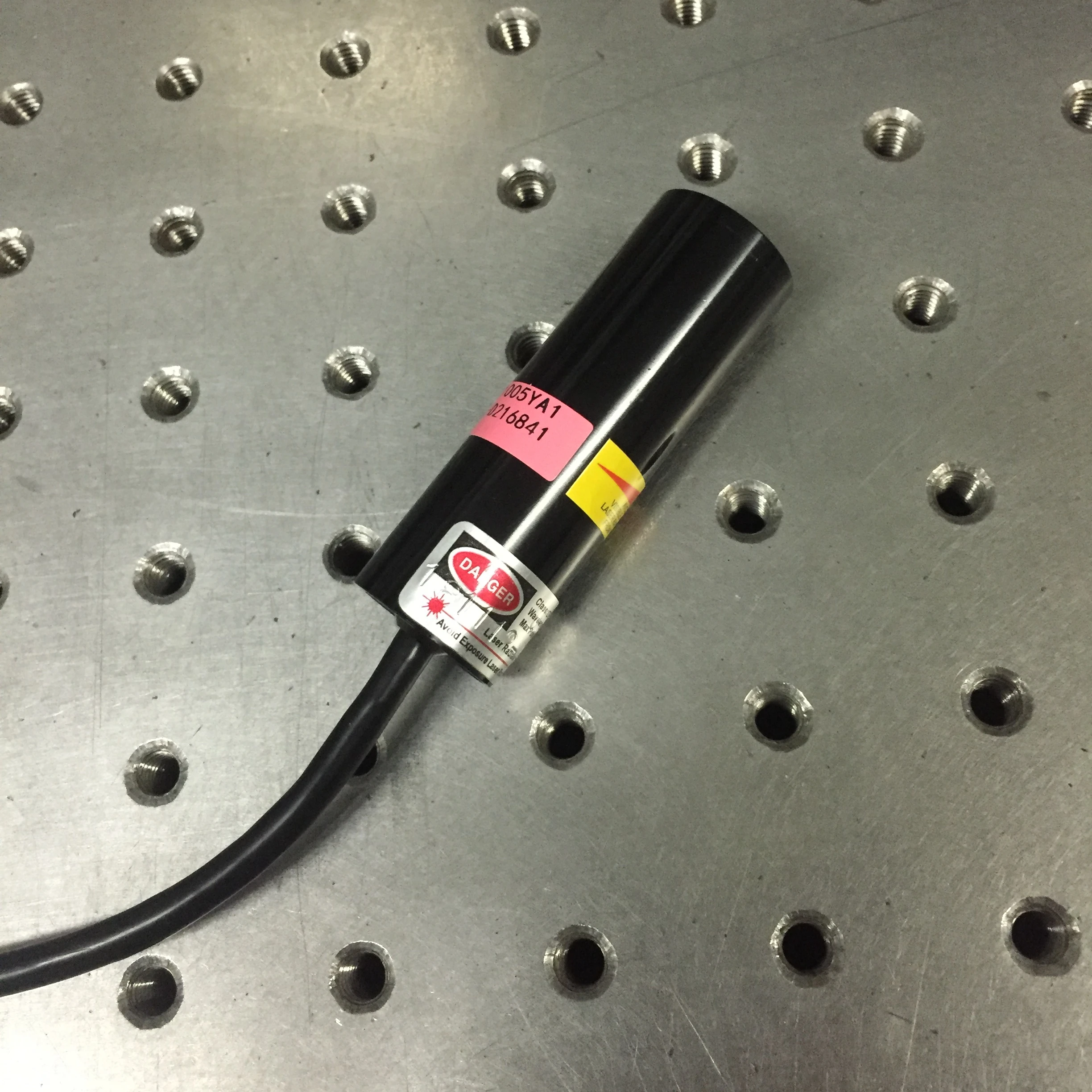

660nm 100mW red line laser module, made in Shanghai, China, low cost

DL-660-100-L

Optical Parameters^[1]

Parameters

Symbol

Typical Value

Unit

Central Wavelength

λc

660

nm

Wavelength Tolerance

+/-5

nm

Output power

P

100

mW

Power stability

Ps

<5%^[2]

%

Spatial mode

TEM₀₀

Fan Angle

20 ,30, 45, 60, 75, 90, 120

deg

Beam uniformity

+/-30

%

Expected operating lifetime

MTBF

10000

hrs

Warm up time

Tw

<5

min

Noise(RMS,10Hz-100MHz)

N

<1

%

Warranty time

1^[3]

year

Environmental Parameters^[4]

Operating temperature

Top

15~35

℃

Storage temperature

Tst

-40~85

℃

Note:

[1]: Test data under 25℃.

[2]: High power stability value is also available.

[3]: 2-year warranty time is also available.

[4]: case temperature.

Part Number

Red line laser

DL-660-AAA-L-BB

AAA

Output power: 30mW,50mW,100mW etc.

L

Line laser

BB

Package type

F: coaxial package type, size: phi25*100mm, 3-5VDC power supply included

00: to be customized

Package and legend

F: coaxial package type, size: phi25*100mm, 3-5VDC power supply included
