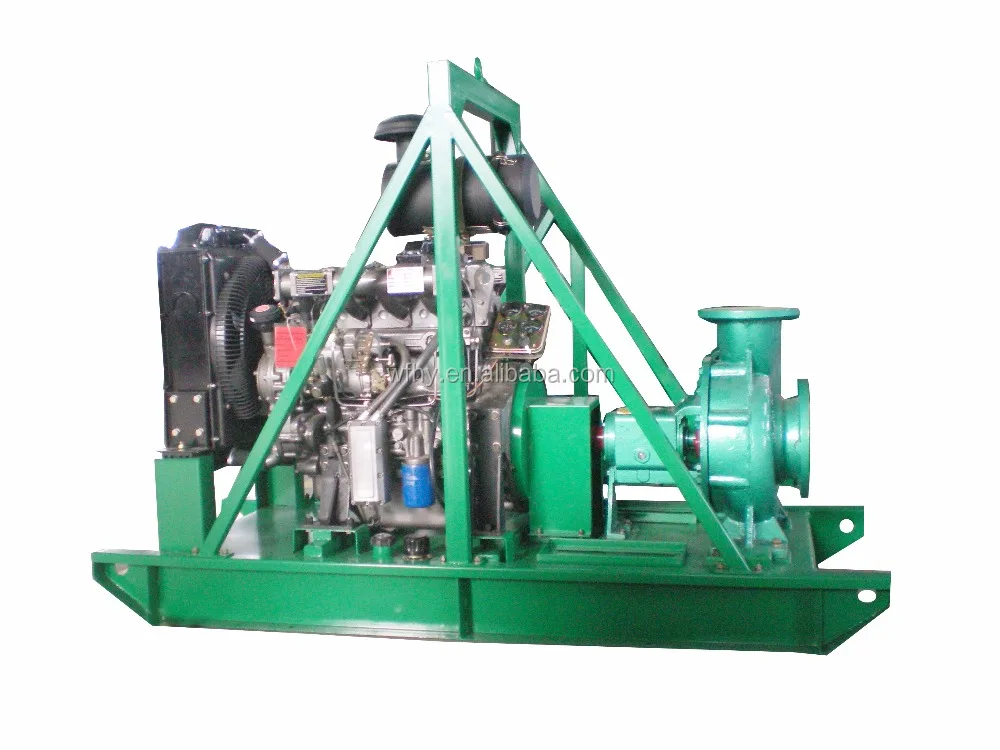

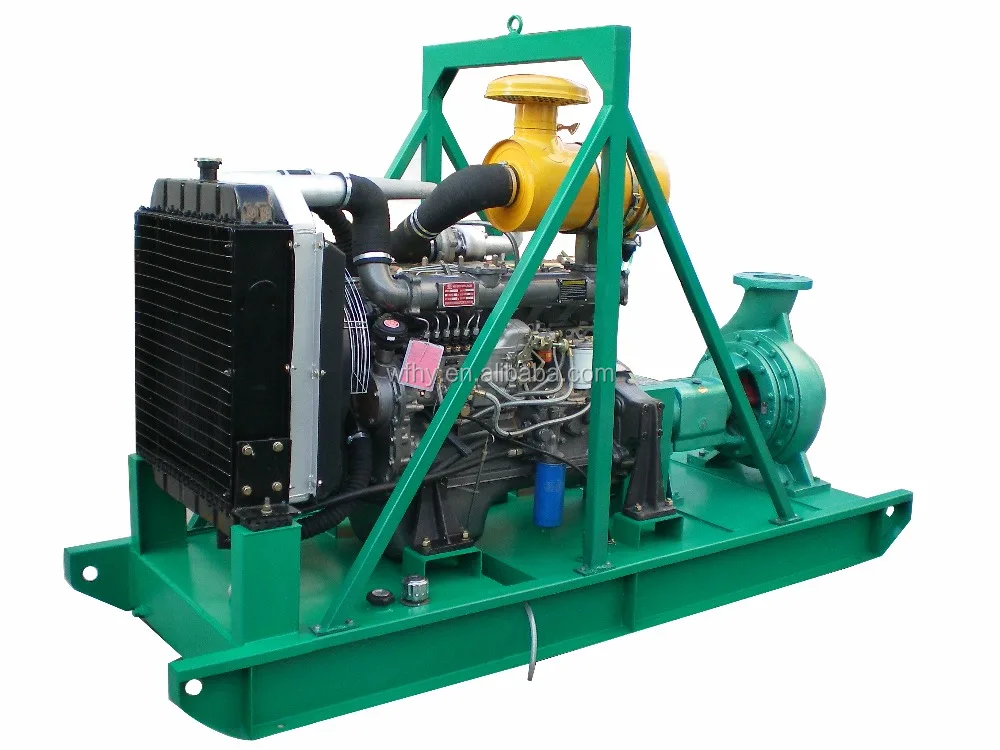

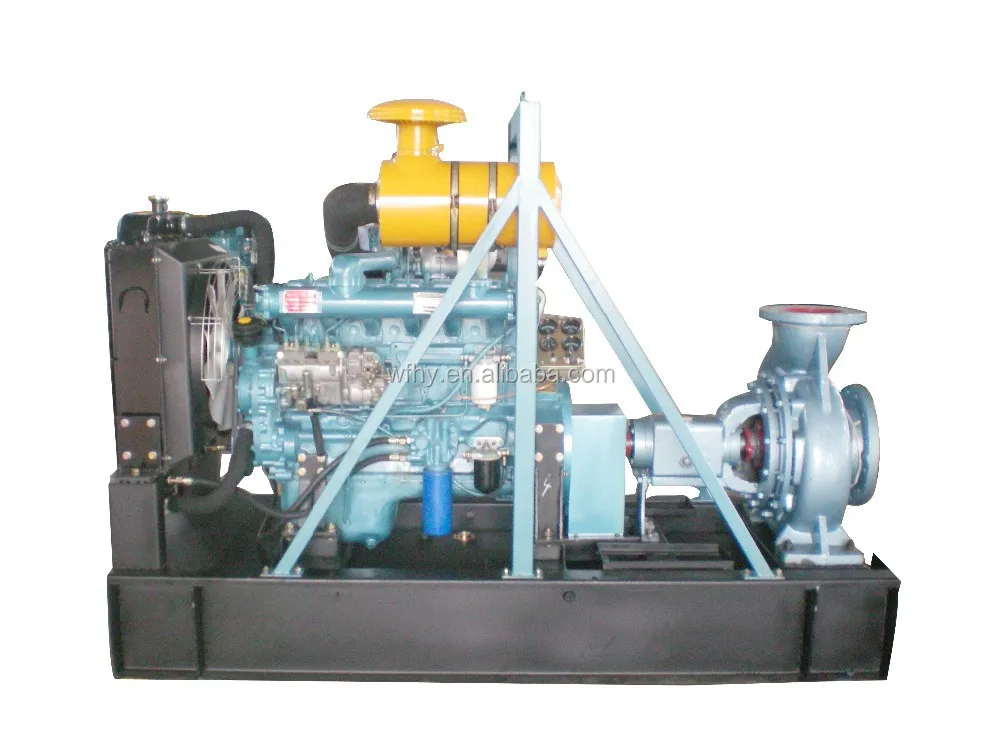

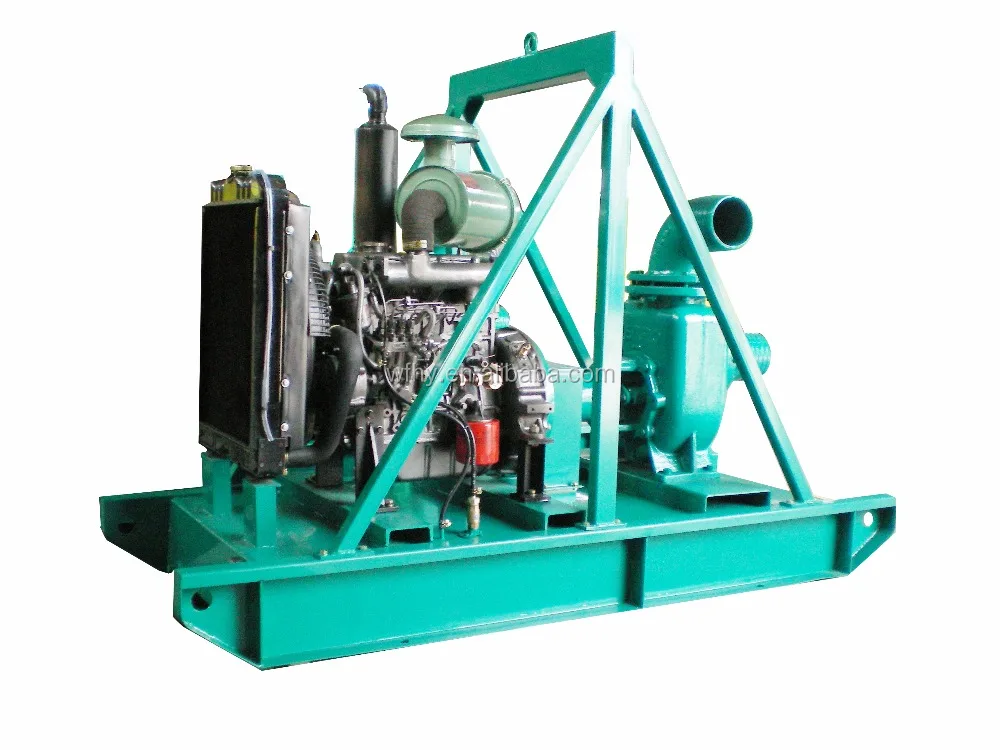

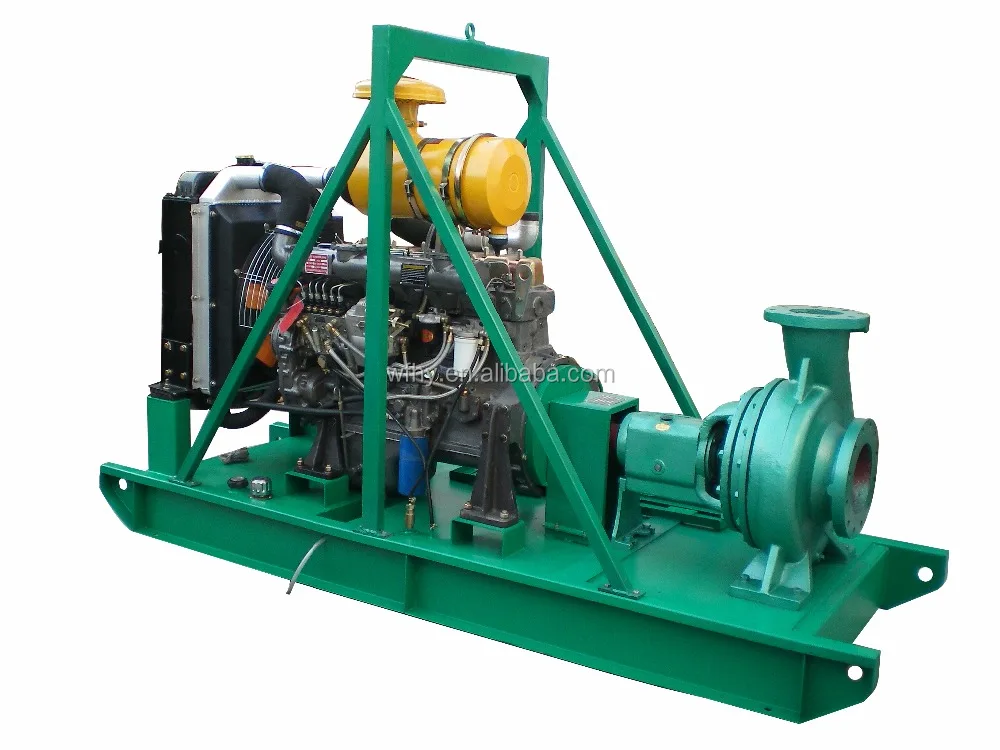

Diesel water motor Pump for irrigation

Product Overview

Description

DIESEL WATER MOTOR PUMP FOR IRRIGATION SPECIFICATION



USAGE: Farm irrigation, fire fighting, industrial water supply system

TREATED WATER : Fresh water, River water



1) Model:1004-4TZ06

2) Rated output/Max output(KW):30/33KW

3) Rated speed(r/min):1500

4) Starting method: Electric motor 12V DC

5) Cooling method: Closed water cooling

6) Governing method: Mechanical/Electronic governing

7) Intake method: Natural aspiration

8) Cylinders:3

9) Bore/Stroke:105/120mm

10)Type: in line,4 stroke, wet cylinder liner, direct injection



DIESEL WATER MOTOR PUMP FOR IRRIGATION

1) Model:FSR200

2) Type: Single grade, single suction, centrifugal

3) Outflow:240m³/h

4) Head:32m

5) Shaft power:23.7KW

6) Inlet diameter:150mm

7) Outlet diameter:125mm

8) Casing material: cast iron

9) Shaft material: cast iron

10)Impeller material: cast iron

11)Sealing method: Stuffing sealing/Mechanical sealing



DIESEL WATER MOTOR PUMP FOR IRRIGATION

1) key switch starting

2) alarm and shut down protection while low oil pressure, high water temperature, low speed and over load

3) display of speed, water temperature, running hours etc

4) automatic starting or ATS control system can be provided as per your requirements



FACTORY SHOW



DIESEL WATER MOTOR PUMP FOR IRRIGATION PRODUCTION LINE



 DIESEL WATER MOTOR PUMP FOR IRRIGATION PRODUCTS



DIESEL WATER MOTOR PUMP FOR IRRIGATION TESTING



DIESEL WATER MOTOR PUMP FOR IRRIGATION PACKING





CERTIFICATES
