equal distributions install hole of slewing bearing, crane parts, Professional,manufacturer

Product Overview

Description









Products type	1.single - row four - point contact ball 2.single - row Cross roller 3.double row of different diameter ball 4.Three - row roller 5.double row ball For Non-gear, External Gear, Internal Gear
Special services	1.slewing bearing design 2.Produce by your drawing 3.OEM service
Business type	manufacturer,trading company
Advantages	1.High qualified material,low MOQ,excellent quality,competitive prices, professional advice 2. Standard and non standard are all acceptable 3. OEM available 4.Stronger loading capacity, Larger radial and axial force bearing ability 5.Independent R&D team 6.Strict quality control management 7.Exquisite technological standard 8.Sufficient stock 9.Excellent after sales service
Material	50Mn/42CrMo or as your requirements
Package	1.First lubricated, Second circled with plastic film,kraft paper,blue belt,then packaged in wooden case,last gathered in Wooden pallet. 2 According to your requirements
delivery time	1.For general product , our delivery time need only 5 days is enough (goods in stock). 2.If you have special technical requirements or need additional processing,we first order need only 25 days, if that is roller continuous order, our delivery time only need 12 days.
Common loading ports	Guangdong
mmon application fields	Mine machine, port hoisting machine, port oil transfer equipment onshore and offshore crane,excavator,concrete machine,paper machine, plastic and rubber machine, weave machine, steel plant, electronic power plant, wind power generator, other construction and industry machines or equipment.







Slewing bearing and wheel bearing,some people also called it:slewing bearing,slewing ring bearing or turntable bearing.

Slewing bearing is nearly forty years worldwide emerging new type of mechanical parts, it is composed of inner and outer ring, rolling body, etc, at present, finalize the design production of slewing bearing in China, mainly in the early 80 s by the ministry of machinery industry in tianjin institute of engineering machinery group introduced the former federal republic of Germany Rothe Erde design and manufacturing technology of the company. Released on December 20, 1984 of the People's Republic of China machinery industry standard: JB / 2300-2300 the rotary bearing type, basic parameters and technical requirements, composed mainly of machinery and electronics industry of tianjin engineering machinery research institute, xuzhou hering slewing bearing factory is responsible for drafting, the country then issued standard of construction machinery in 1991: JB36.1-36.3-91, released in 1999 and 2011 successively new machinery industry standard JB / 2300-2300 and JB / 2300-2011.

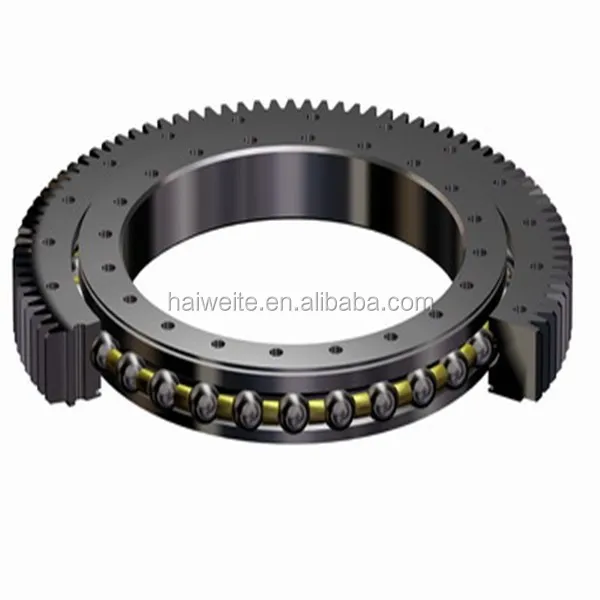

Slewing bearing, is a kind of comprehensive load to bear a large bearings, can withstand the larger axial and radial load and tilting moment. Slewing ring bearings generally installed with a hole in the gears or gear, grease holes and sealing device, which enable mainframe design compact structure, and guide is simple, easy to maintain. Slewing bearing presence of tooth, tooth and tooth in the four-point contact ball bearing, double row angular contact ball bearing, crossed cylindrical roller bearing, crossed tapered roller bearing and three composite bearings, four row cylindrical roller series, including four-point contact ball bearing has high static load capacity, crossed cylindrical roller with high load capacity, preloaded can make crossed tapered roller bearing bearing has great support stiffness and the rotation accuracy, three rows of cylindrical roller bearing combination height because of the increase to the bearing capacity of bearing, all kinds of power respectively by different race to bear, so under the same stress distribution, the bearing diameter can be significantly reduced, thus make the characteristics of the host more compact is a kind of high bearing capacity of slewing ring bearings. Slewing bearings are widely used in hoisting machinery, mining machinery, construction machinery, port machinery, ship machinery and mechanical precision radar and missile launcher equipment such as large rotary device.  At the same time also can according to customer's specific requirements of the design, development, production various special slewing bearing structure.
