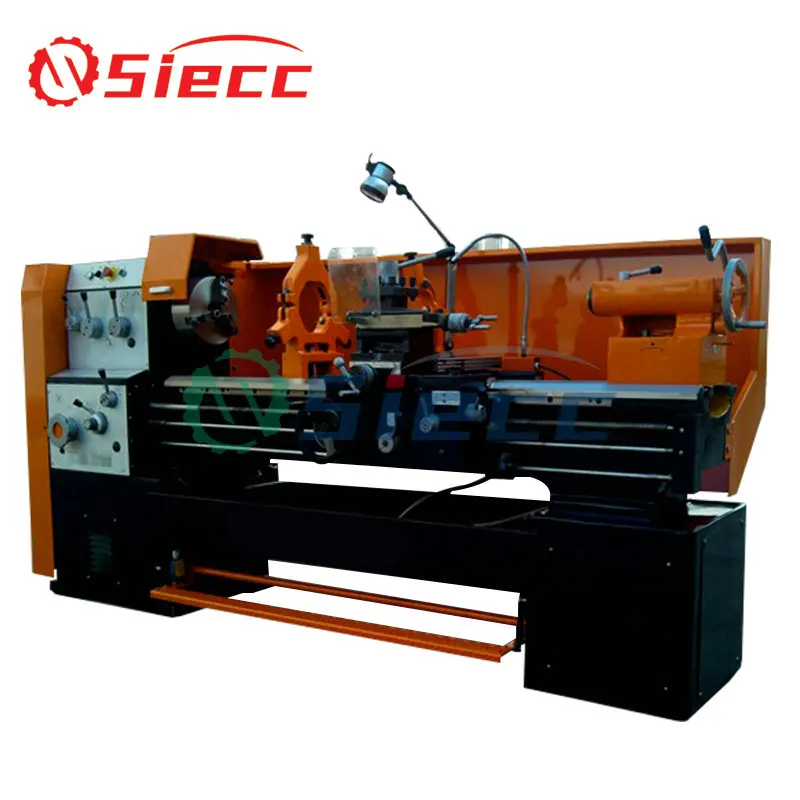

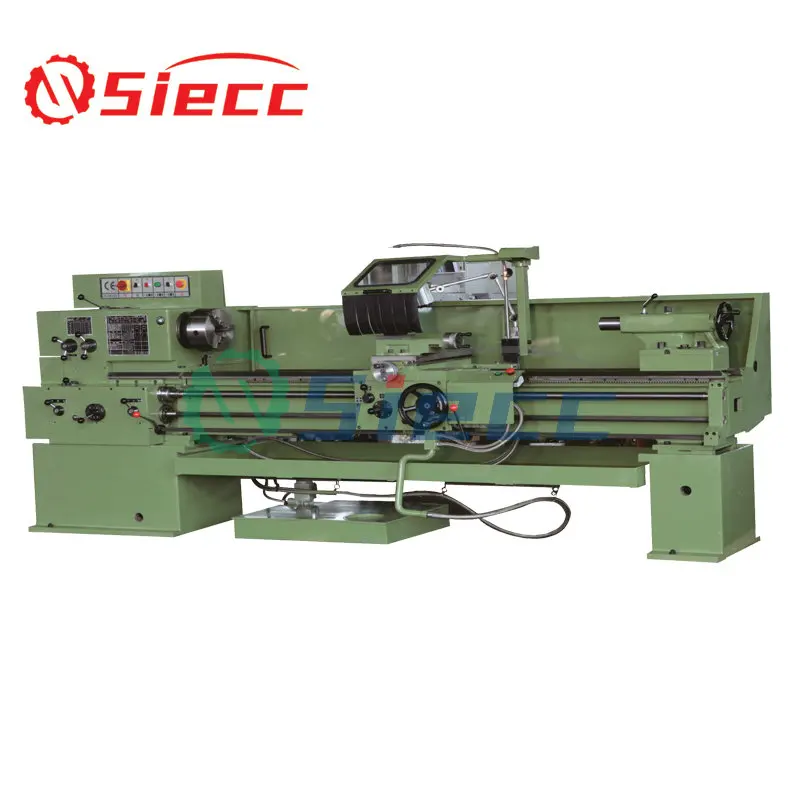

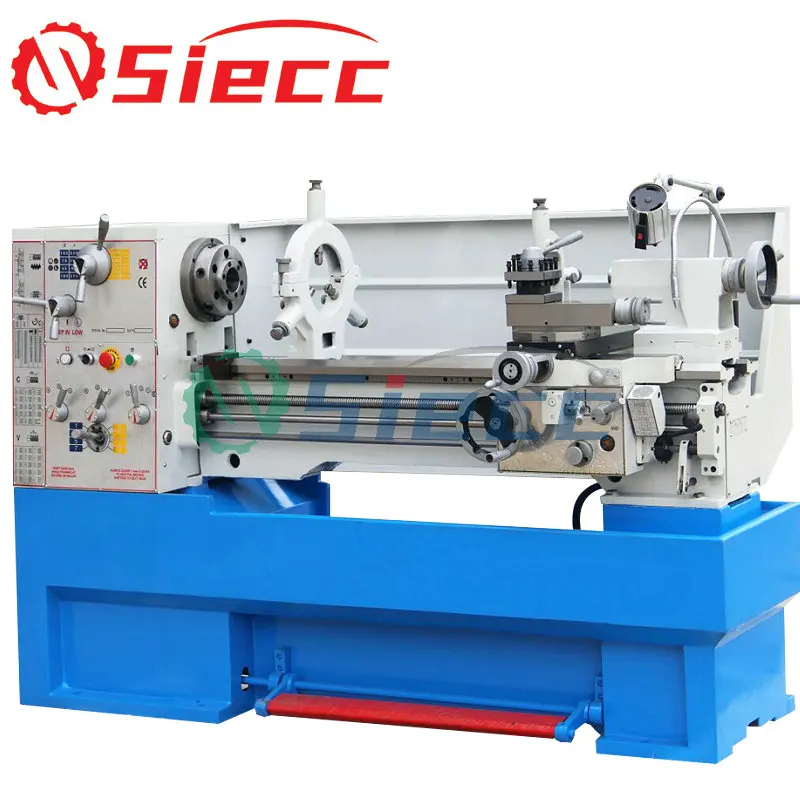

lathe machine new lathe machine price, semi cnc lathe, small cnc turning machine - SIECC
new lathe machine price,semi cnc lathe,small cnc turning machine
Product Description
| C6250HA SERIES HORIZONTAL LATHE | |||||
| PRODUCT FEATURES *THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED. *GEARS PRECISELY GROUND TO REDUCE NOISE. *SPINDLE SYSTEM IS OF HIGH RIGIDITY AND PRECISION. *RAPID FEED STRUCTRUE IS AVAILABLE ON APRON. | |||||
| Model | C6250HA | ||||
| CAPACITY | Max.swing over bed | 500mm | |||
| Max.swing over cross slide | 330mm | ||||
| Max.swing over gap | 660mm | ||||
| Effective length of gap | 200mm | ||||
| Center Distance | 1500mm | ||||
| Bed Width | 360mm | ||||
| HEADSTOCK | Spindle hole | 82mm | |||
| Spindle nose | ISO-C8 | ||||
| Spindle taper | MT8 | ||||
| Spindle speed(Number) | (9steps)40-1300rpm | ||||
| FEEDS | Longitudinal feeds range | 0.0832-4.66mm/r | |||
| Cross feeds range | 0.048-2.69mm/r | ||||
| Metric threads range | 19kinds 0.25-14mm | ||||
| Inch threads range | 49kinds 2-40inch | ||||
| Moudle threads range | 11kinds 0.5-3.5mπ | ||||
| CARRIAGE | Max.travel of top slide | 95mm | |||
| Max.travel of cross slide | 250mm | ||||
| Max.size of toolshank | 20*20mm2 | ||||
| TAILSTOCK | Dia.of tailstock sleeve | 65mm | |||
| Taper of tailstock sleeve | MT5 | ||||
| Max.travel of tailstock | 140mm | ||||
| MOTOR | Main drive motor | 5.5KW | |||
| Coolant pump motor | 125W | ||||
| PACKING L*W*H | Center Distance(1500mm) | 295*115*175cm | |||
| N.W/G.W | Center Distance(1500mm) | 1750/2050kg | |||
