automatic homogenizer machine/milk homogenizer/homogenizer for milk

Product Overview

Description

homogenizer machine/milk homogenizer/homogenizer for milk features:



1. Stainless steel

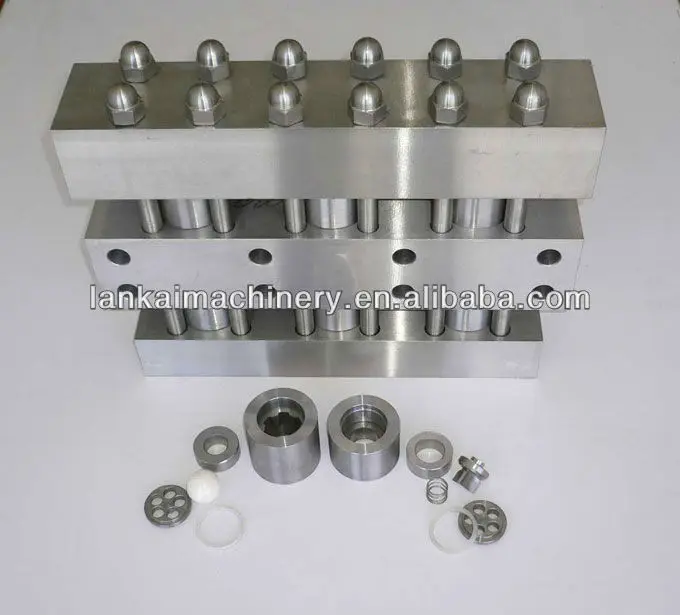

2.Three stainless steel pistons for high hardness treated hard chrome valve cover

3. without digital controller, manual controller can adjust the pressure.

4.Includes piston cooling device using tap water with safety system to lack of water pressure





Descriptions:

High pressure homogenizer is a special equipment of the liquid material thinning and high pressure transportation.

This equipment is widely used in the production, scientific research and technical development of a lot of areas, such as: food, dairy food, drink, pharmacy, chemical industry, biological technology and so on.

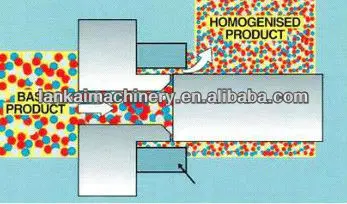

1. Be used as high pressure homogenizer It can cause the material thinning and mixture under the three action of extruding, strong impacting and decompression inflating. It is an important equipment of food, dairy food, drink processing and so on. It can cause the fat globule thinning while homogenization under high pressure to the milk, soy milk this kind of dairy food. And cause its products to be easy to digest and absorb, and to improve the dietary value. It can improve the fineness and the fraction void of the fluid material, as well as its intrinsic quality, while be used in the processing of ice cream this kind of production. If be used in the producing of emulsion, glue, fruit juice, syrup and so on, it will prevent or reduce the delamination of the material, improve the appearance of the material, and make the luster more bright, the fragrant thicker and tasting mellower.

2. Be used as high pressure delivery pump

It is an important equipment during the production of powdered medicine, as the fluid material produce high pressure when through the equipment, and be made to powder after through the spray drying device.

This equipment also can be used in the homogenating, high-pressure transportation and the high-pressure spray situation of other fluid materials.

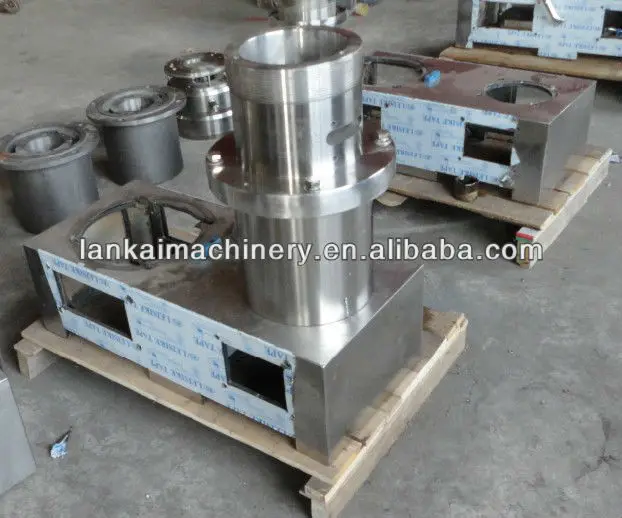

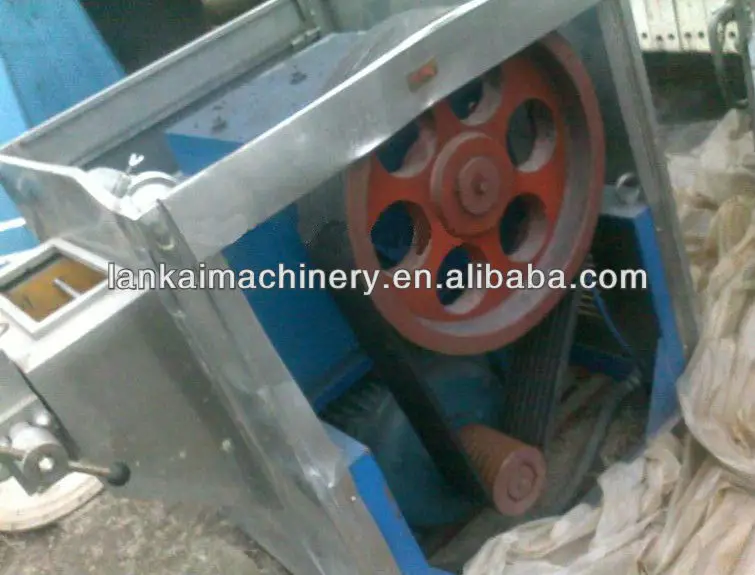

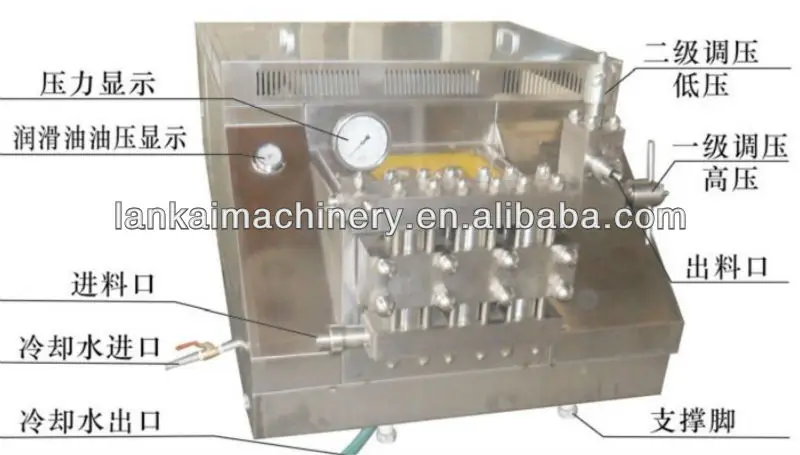

It is composed of frame, wheel box, pump body, pressure meter, homogenizer and so on.





Technical parameters:

Model	Flow L/h	Max pressure Mpa	Fixed pressure	Motor(KW)	Dimension (mm)
JJ-1/25	1000	25	20	7.5	1030×745×990
JJ-1.5/25	1500	25	20	11	1030×745×990
JJ-2/25	2000	25	20	18.5	1360×1010×1220
JJ-2.5/25	2500	25	20	22	1360×1010×1220
JJ-3/25	3000	25	20	30	1360×1010×1220
JJ-4/25	4000	25	20	37	1410×1120×1470
JJ-0.5/40	500	40	25	7.5	1150×860×1100
JJ-1/40	1000	40	30	15	1315×1100×1290
JJ-1.5/40	1500	40	30	22	1370×1010×1220
JJ-2/40	2000	40	30	30	1410×1120×1470
JJ-3/40	3000	40	30	45	1630×1480×2050
JJ-4/40	4000	40	30	55	1630×1480×2050
JJ-0.5/60	500	60	50	11	1315×1100×1290
JJ-1/60	1000	60	50	22	1315×1100×1290
JJ-2/60	2000	60	50	37	1395×1130×1430
JJ-3/60	3000	60	50	75	1630×1480×2050

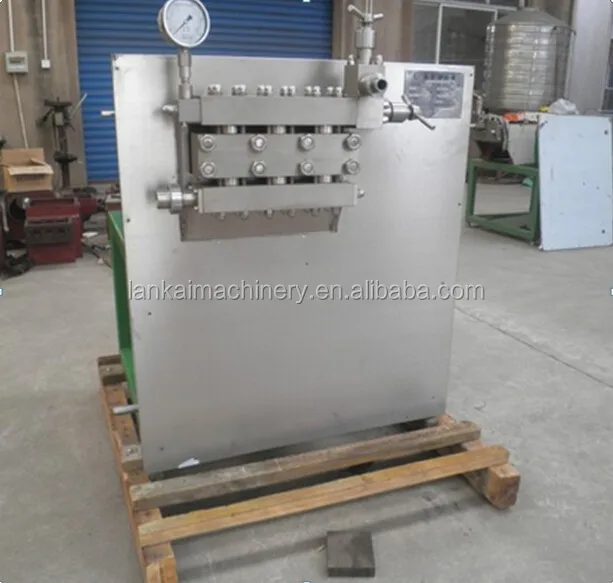

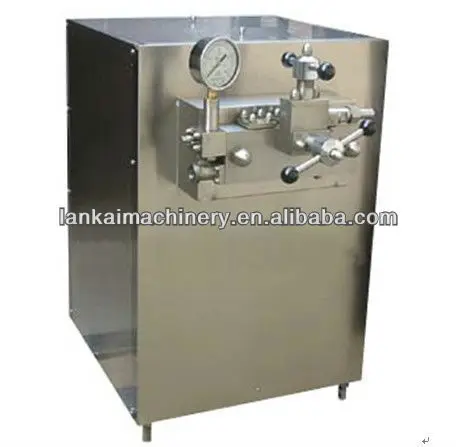

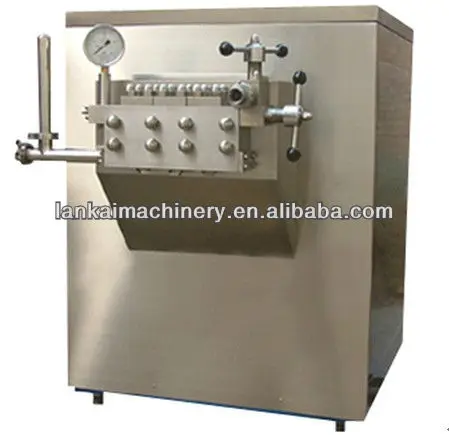

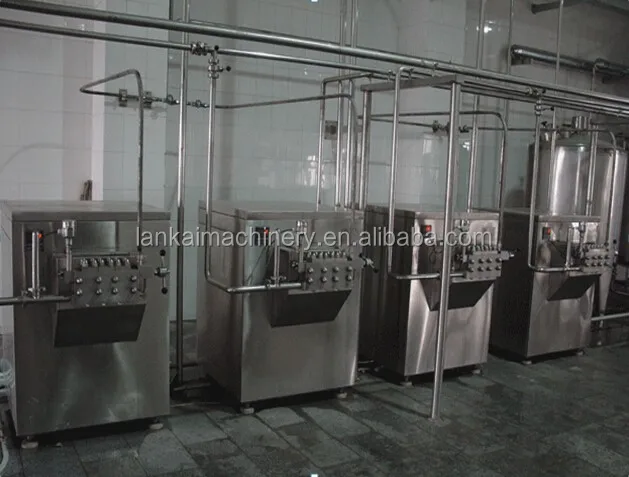

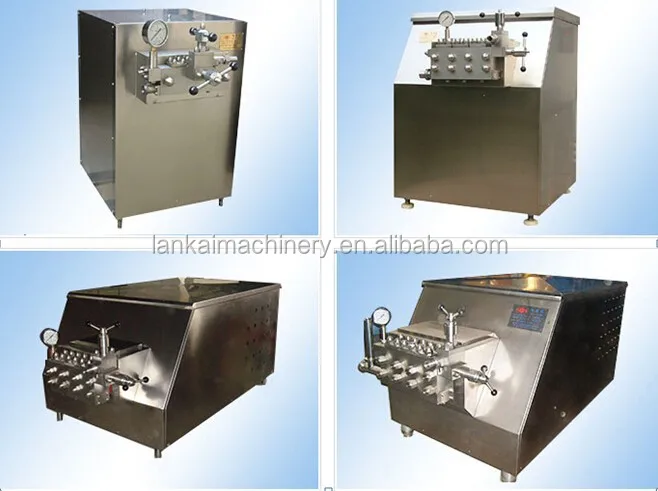

pictures of homogenizer  :
