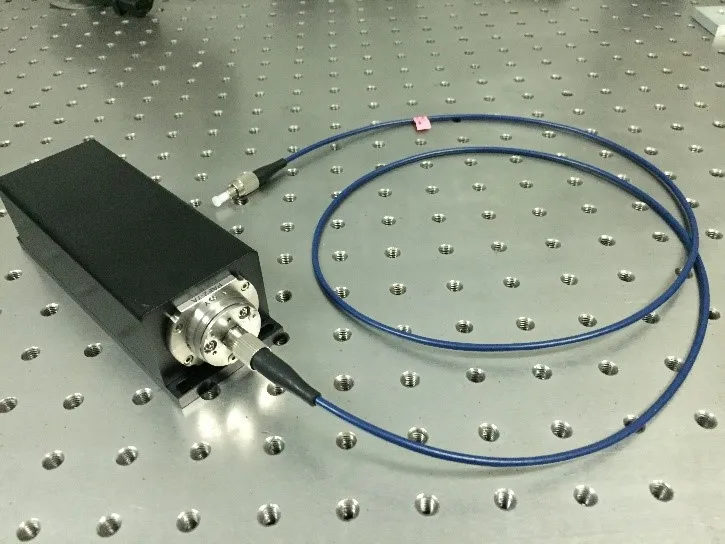

532nm 10mW single mode fiber coupled green DPSS laser

FC-532-020-SM

Optical Parameters^[1]

Parameters

Symbol

Typical Value

Unit

Central Wavelength

λc

532

nm

Wavelength Tolerance

+/-1

nm

Output power(after fiber)

P

10

mW

Power stability

Ps

<3% RMS^[2]

%

Fiber core diameter

~4μm, fiber detachable

Fiber Connector

FC-PC or FC-APC or SMA

Fiber Protective Outer Jacket

SP

φ3.0mm^[3] SUS+PVC tubing

Numerical Aperture

NA

0.12~0.13

Expected operating lifetime

MTBF

10000

hrs

Warm up time

Tw

<5

min

Warranty time

1^[4]

year

Environmental Parameters^[5]

Operating temperature

Top

0~40

℃

Storage temperature

Tst

-40~85

℃

Note:

[[1]: Test data under 25℃.

[2]: High power stability value available upon request.

[3]: φ0.9mm fiber tubing can also be optional.

[4]: 2-year warranty time available upon request.

[5]: case temperature.

Part Number

Single mode fiber coupled laser

FC-532-AAA-SM-BB

AAA

Output power(after fiber): 10mW,20mW etc.

SM

Single mode fiber coupled laser

BB

Package type

T2: laser head and driver separated, head size: 49*42*140mm, temperature stabilized

T7: 5 or 12 VDC driver included, head size: 49*42*140mm, temperature stabilized

00: to be customized

Package legend

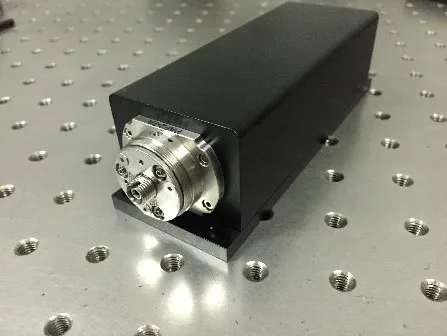

T2-serial package: laser head size: 49*42*140mm, driver separated, temperature stabilized

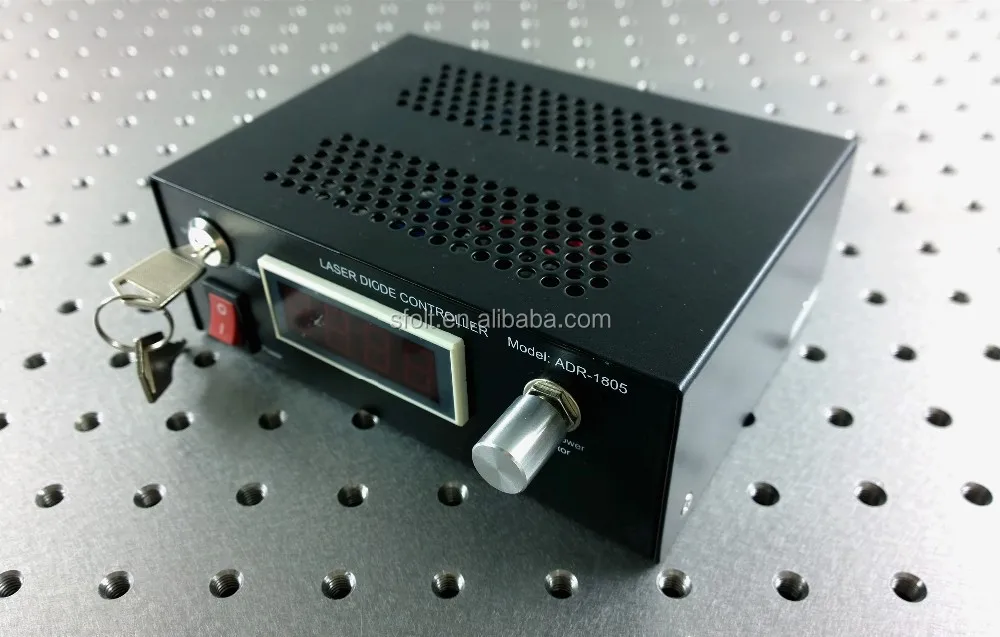

ADR-1805 laser driver, 90-240VAC power supply, with power adjustor and digital display

T7-serial package: laser head size: 49*42*140mm, driver separated, temperature stabilized
