Electric DC tubular motor for roller shutter

Product Overview

Description



Product Name: DC tubular motor for roller shutter

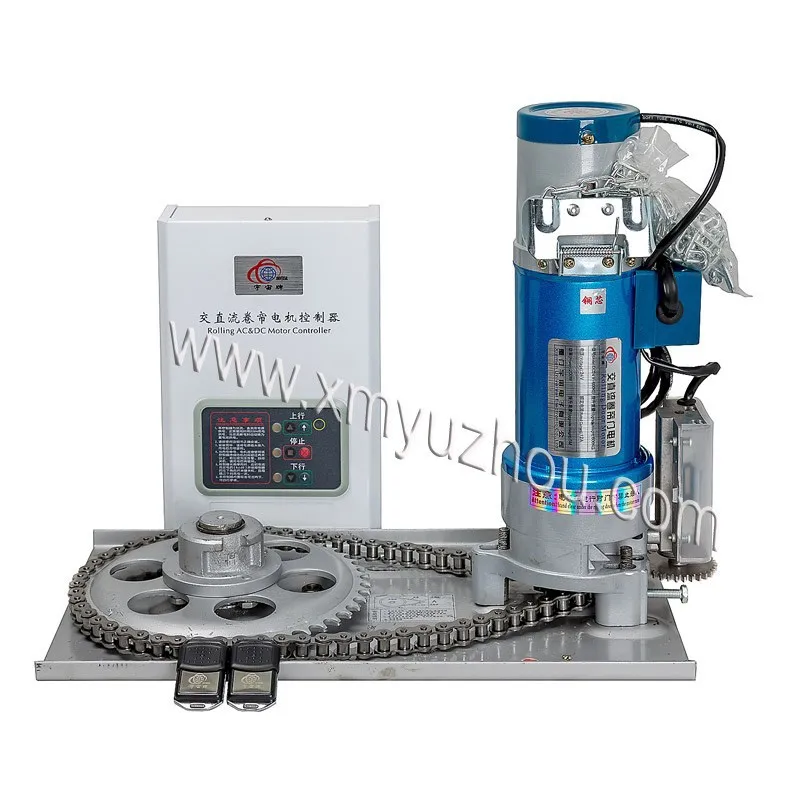

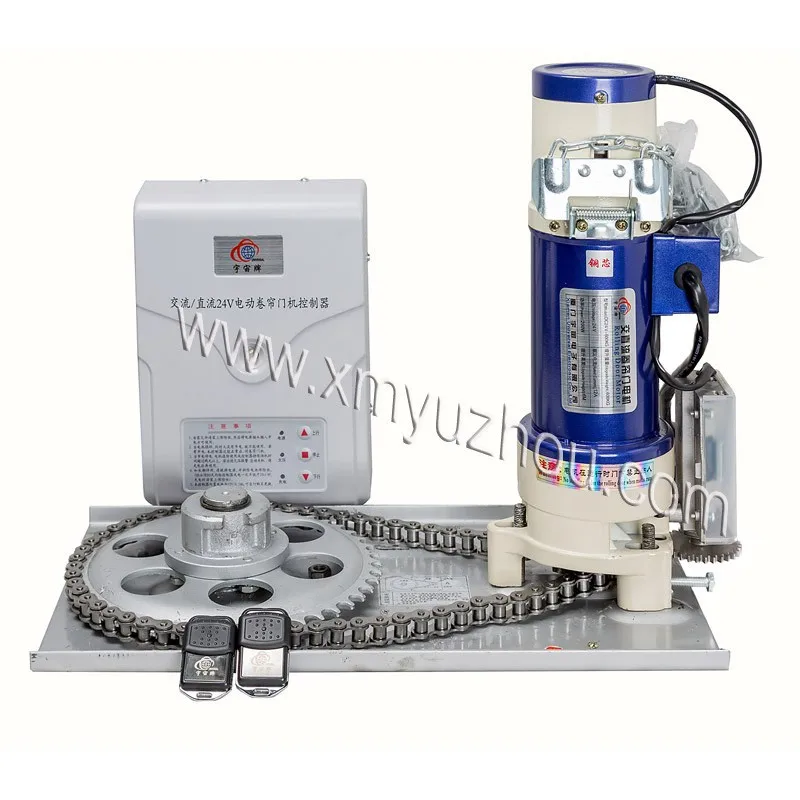

1.The structure of the DC tubular motor for roller shutter :



2.Main Features of DC tubular motor for roller shutter :





*Compact construction,large torque,and running without noise.



*Could match infrared sensor or alarm system(optional)

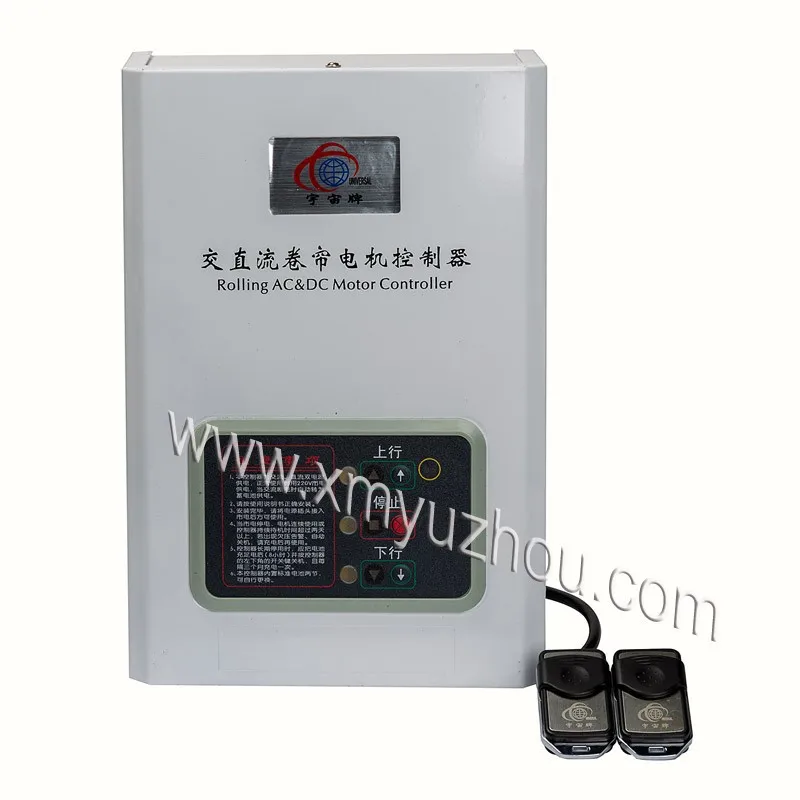

*Can work with remote controller





*Easy to install, easy to maintenance and long useful life.





*When power off,the motor still could work by the pulling the hand chain.





*UPS automatic system is available,the motor still could work automaticly when power off.





*Overheat protection:if the motor temperature is over 110 degreed centigrade, the motor stops working automatically, works again if temperature return below 70 degreed centigrade.









3. The Specification of DC tubular motor for roller shutter :



Model No.	Max Upgrade Weight (KG)	Max Upgrade Height (M)	Power (W)	Current Rating (A)	Output Torque   (N.m)	Rotation(r/min)	Chain NO.
DC 24V 50Hz
DC24V-300KG	300	6	200	12	168	4.9	10A
DC24V-500KG	500	6	240	14	345	4.6	10A
DC24V-600KG	600	6	240	14	412	4.2	10A
DC24V-800KG	800	10	380	16	650	3.9	10A

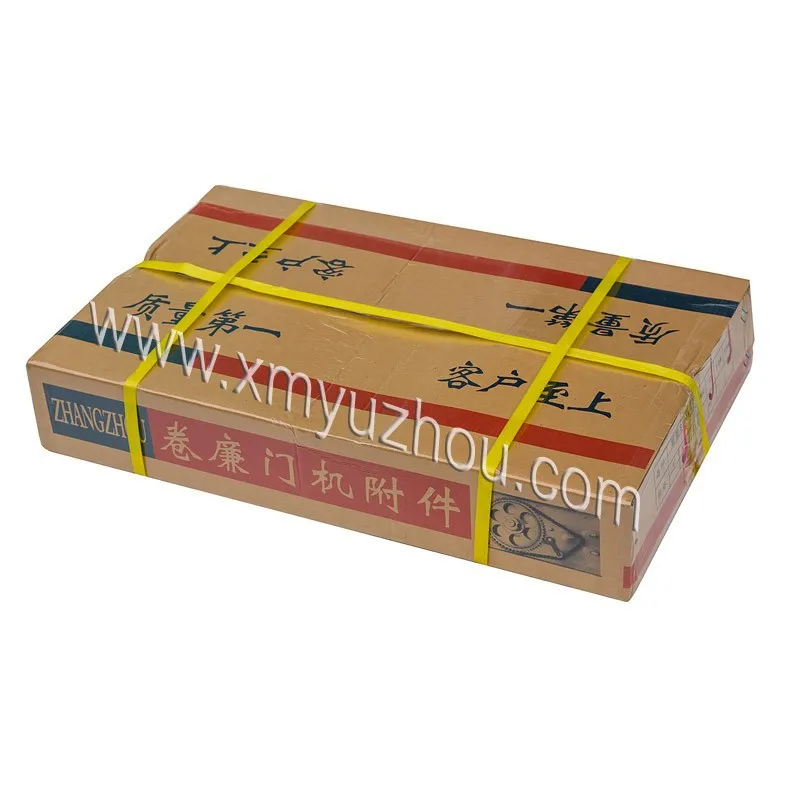

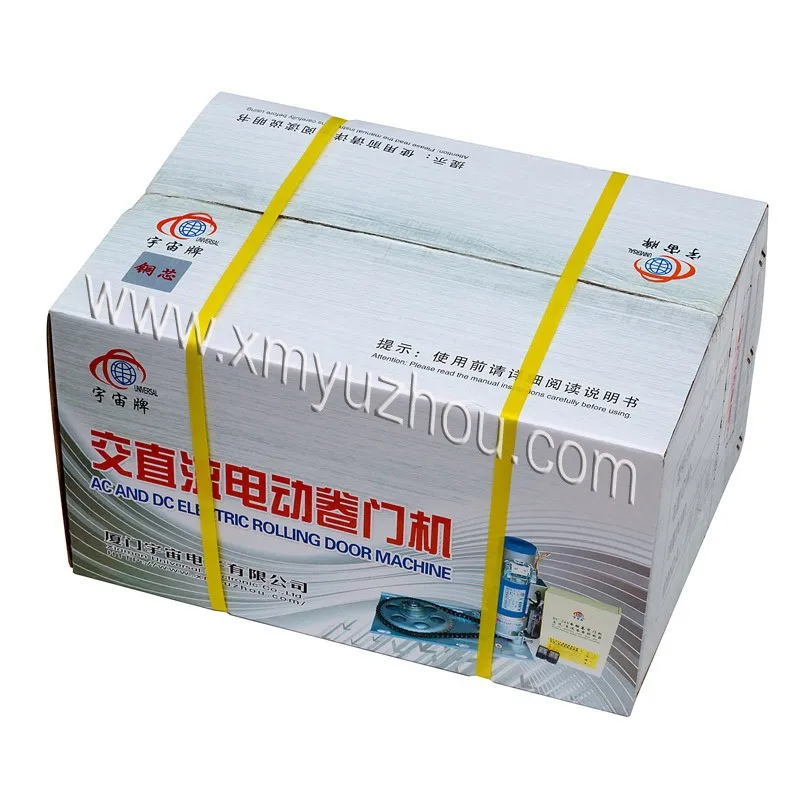

4.Packing Details of DC tubular motor for roller shutter and accessory:

Model No.:	DC24V-600KG
Brand Name:	YUZHOU
Product Name	DC tubular motor for roller shutter
Material:	100% Copper Wire
Outline Dimension of Motor Packing:	(46.0*32.0*26.5)cm
Outline Dimension of Accessory Packing:	(55.0*30.0*11.0) cm
Accessory Size:	4 inches/5 inches/6 inches
Total Weight per Set:	31 KGS





5.Application of DC tubular motor for roller shutter :



- DC tubular motor for roller shutter are widely used in shopping malls, hotels, warehouses, garages, post and telecommunications, banks, shops, factories and other buildings' rolling door opening and closing.
