As professional manufacturer land in China, Superluck has been producing Prepress equipment for more than 15 years and all of our prepress machines are popular worldwide. By comparing with the famous prepress brands, Superluck is Common, but we give better service than them. By comparing with those cheap price suppliers, Superluck is higher, but we promise clients' cost worthy. We trust every client is unique and special, but we cannot provide more except the considerate attention. We are here day and night, servicing and protecting all clients by phone and online.
Put simply, if you want a partner who really cares about your printing business choose Superluck.
Product Function:

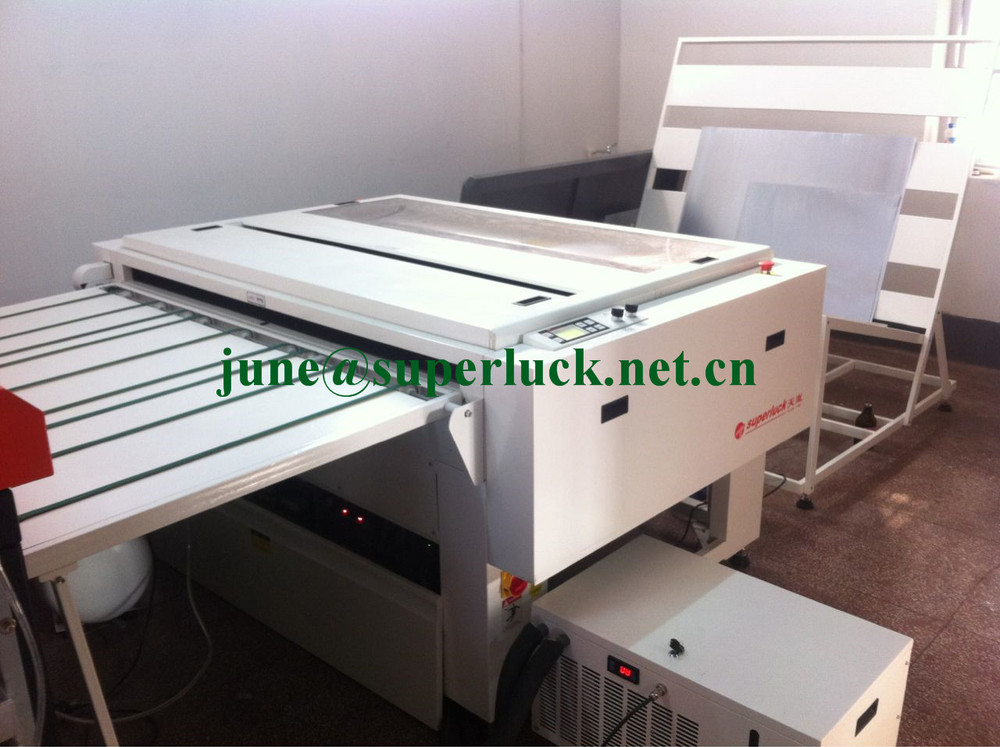

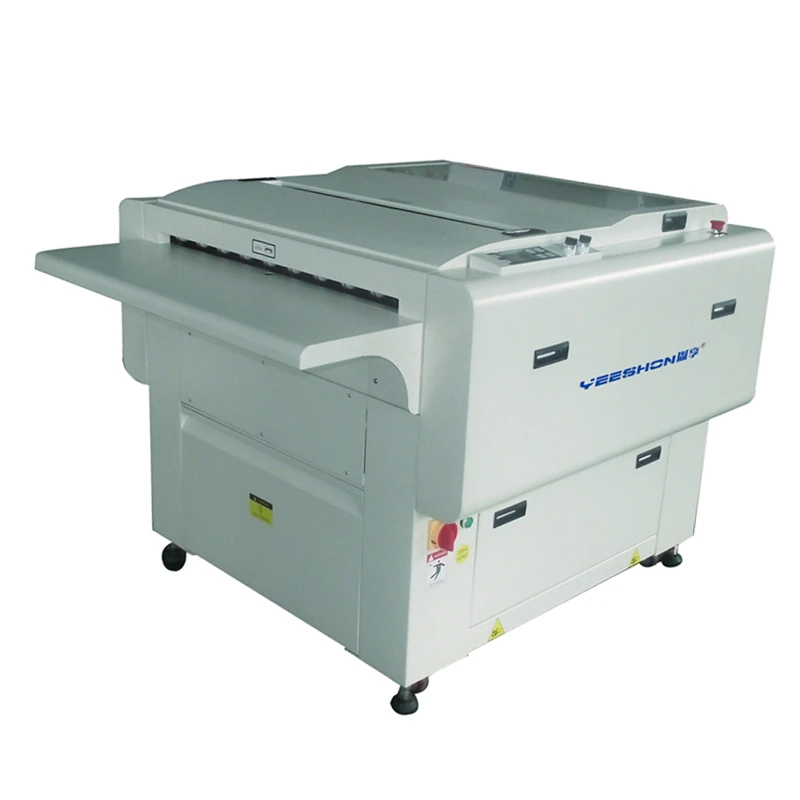

CTP Processor, also be called Thermal CTP Processor, UV CTP Processor, CTP Processing Machine .Superluck CTP Plate Processoris especially used to develop Thermal CTP Plates and UV CTP Plates. The whole working process contains four steps: Developing + Washing +Gumming +Baking/Drying.
Feature & Spec.
Features
1.PVC tank and duralumin body resistant to corrosion.
2. Extra-long developing with stable uniformity, especially adaptive to high-speed photosensitization thermal CTP plates.
3. Overdeveloping gum roller assures no damage to the surface and two sets of wash brushes assures sufficient development.
4. Independent develop cooling system keeps the develop temperature fluctuation within 0.5 dgree Celcius.
5. Accurate automatic anti-oxidation detecting and replenishing system of Superluck CTP plate processor controls developing concentration.
6. Automatic cleaning and recycling.
7. Precise PLC control, processing without any letup.
8. Energy saving and environment friendly.
Specification
Model
SL-88H
SL-120H
SL-140H
Material
Thermal CTP plate
Capacity
20-150 cm/min
Plate width (mm)
650
850
1350
Min. Plate length(mm)
300
450
450
Plate thickness(mm)
0.15-0.4
Tank content, developer(L)
25
50
68
Tank content, wash(L)
9
13.5
20
Adjustable temperature, dev
0 to 40 degree C. adjustable
Adjustable temperature, dry
normal temperature to 70 degree C.
Water consumption, max
6 L/min
8 L/min
12 L/min
Diameter of wash brush (mm)
50
Rotary speed of wash brush
80 rpm
Filter(um)
75
Water supply
Tap water (min. pressure 1 bar)
Gumming
Roller pressing gumming
Diameter of roller
60mm
Dev. replenishment
0-1L per plate
Dev. heating-up rate
0.5 degree C. per minute
Horizontal adjustment
Adjustable
Power supply
380V 3 phases 50-60Hz
Power consumption (kwh)
3.5
3.5
4.5
Voltage fluctuation
within 10%
Gross weight(kg)
400
500
780
Net weight(kg)
320
420
650
Video&Photos
Superluck machines' video are available on Youtube: please search these words "superluck offset prepress" or contact our online services for links.
Clients Visit
Printing Expo.

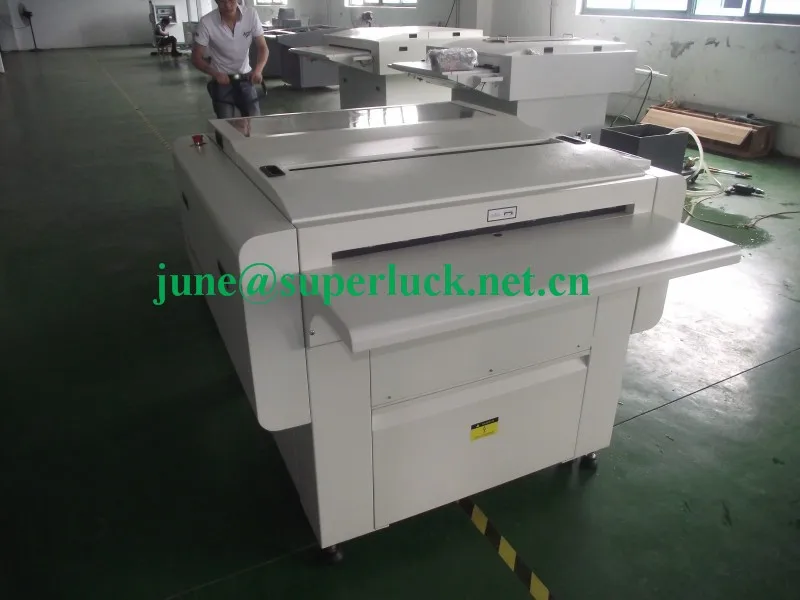

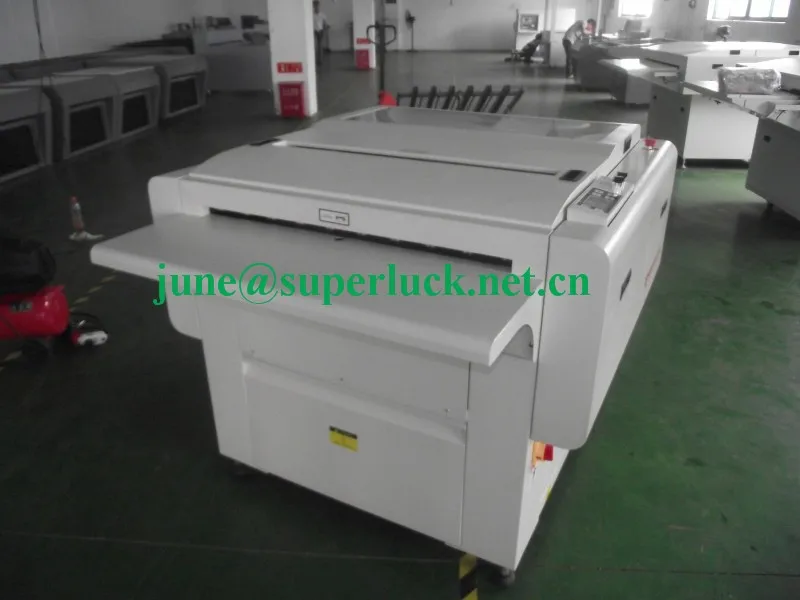

Superluck Plant
Trouble Shooting
1) My plate processor cannot boot or the LCD screen without any signal ?
1Check to be sure the power supply terminal is powered on , the circuit breaker is tripped.
Not cut the main power switch to ON (1) position , the power cannot enter the machine.
Safety emergency stop button is not the role of reversion , can also cause this problem, pull up the emergency stop button , emergency stop button will indeed return .
Because the circuit safe design, the main power supply has sent machines still press the green start button , the machine only way to start.
To maintain the machine to avoid abnormal current is too large , the circuit elements destroy the original , main circuit fuse design, the fuse blows , electricity can not be supplied to the host. Before replacing the fuse , be sure the unit will power off the circuit breaker has indeed . Indeed according to the design specifications of the fuse should be replaced, replace the fuse large , will cause the motor driver board circuit board burned
Open the electrical box cover , such as found electrical box with red and green lights , and the machine itself has power, but does not have any on the LCD display , there are two possibilities:
2)When the plate processor starts to develop plate, the machine does not move.
Developing syrup actual temperature below the set temperature condition, the machine does not allow developing plate. Check whether the set temperature of plate processor and actual temperature are the same.
Gear stuck:
A. LCD operating panel showing normal procedure to process plate, but the transmission gear if wear caused stuck, will enable the motor can not effectively drive, examine each transmission gear is a serious wear caused by teeth not normal occlusion phenomenon, if there is, you need to replace the new gear.
Input plate induced SENSOR induction distance adjustment inappropriate or fault. Input plate induction SENSOR columns with the adjusting screw can be small, small screwdriver adjusting sensing distance. There is light induced SENSOR bottom, bright or not bright, said SENSOR induction into things and no induction. Metal thin version close to test whether the normal induction SENSOR.
Roller motor fuse board if burned, roll wheel motor cannot rotate, can also cause abnormal phenomenon to develop plate. Check the drive plate fuse is burned, as has been burned, please replace the fuse specifications; another may fuse is not burned but drive plate itself has obvious burn marks, then you must replace the drive plate. Update the driver plate, driving the small knob plate should be adjusted to a proper position can make the drive plate play optimal efficacy.
