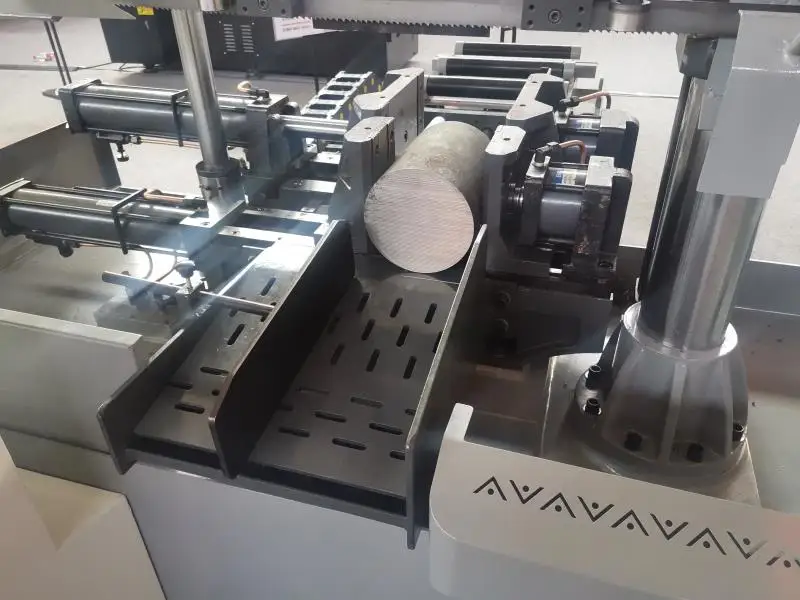

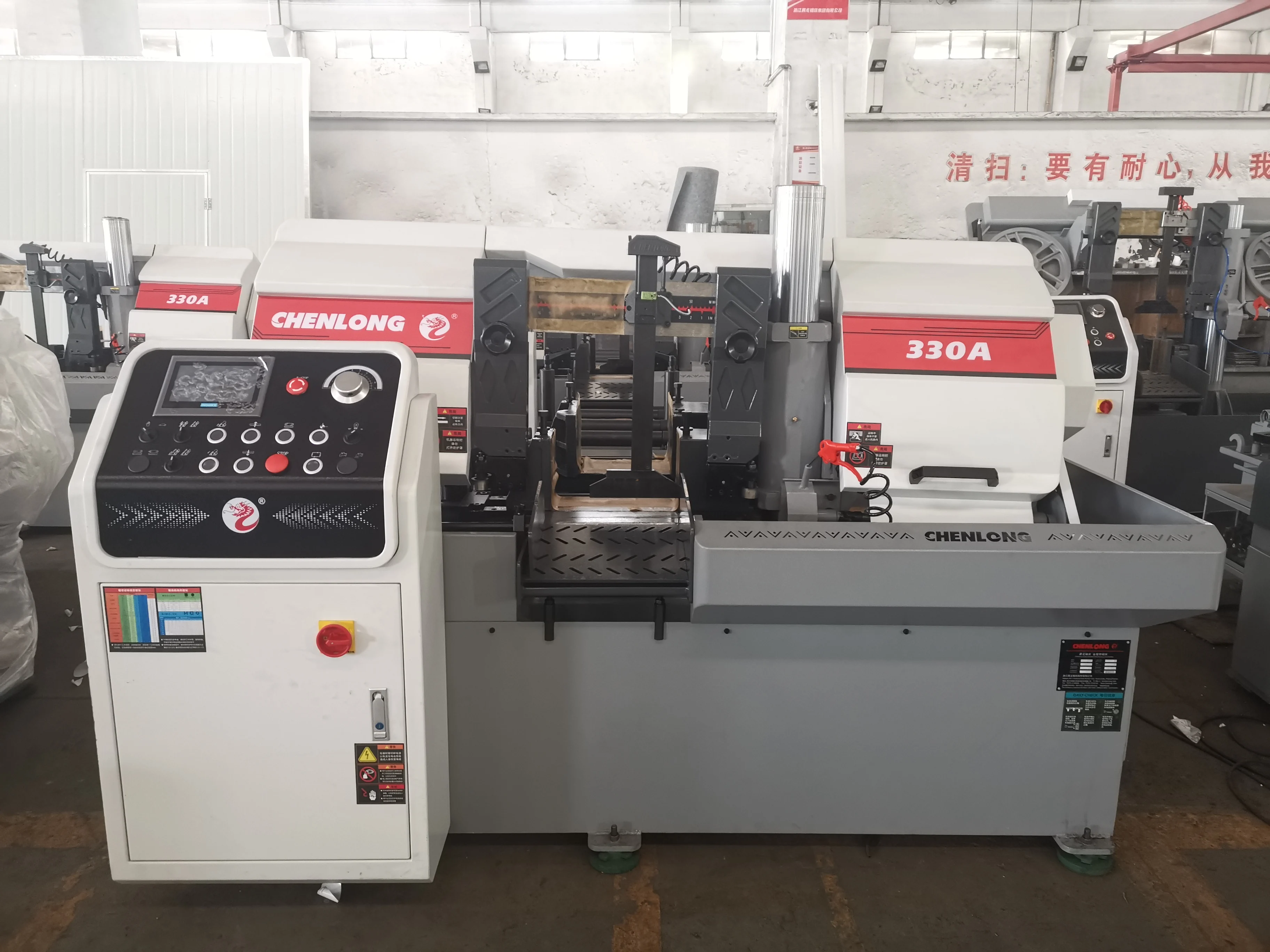

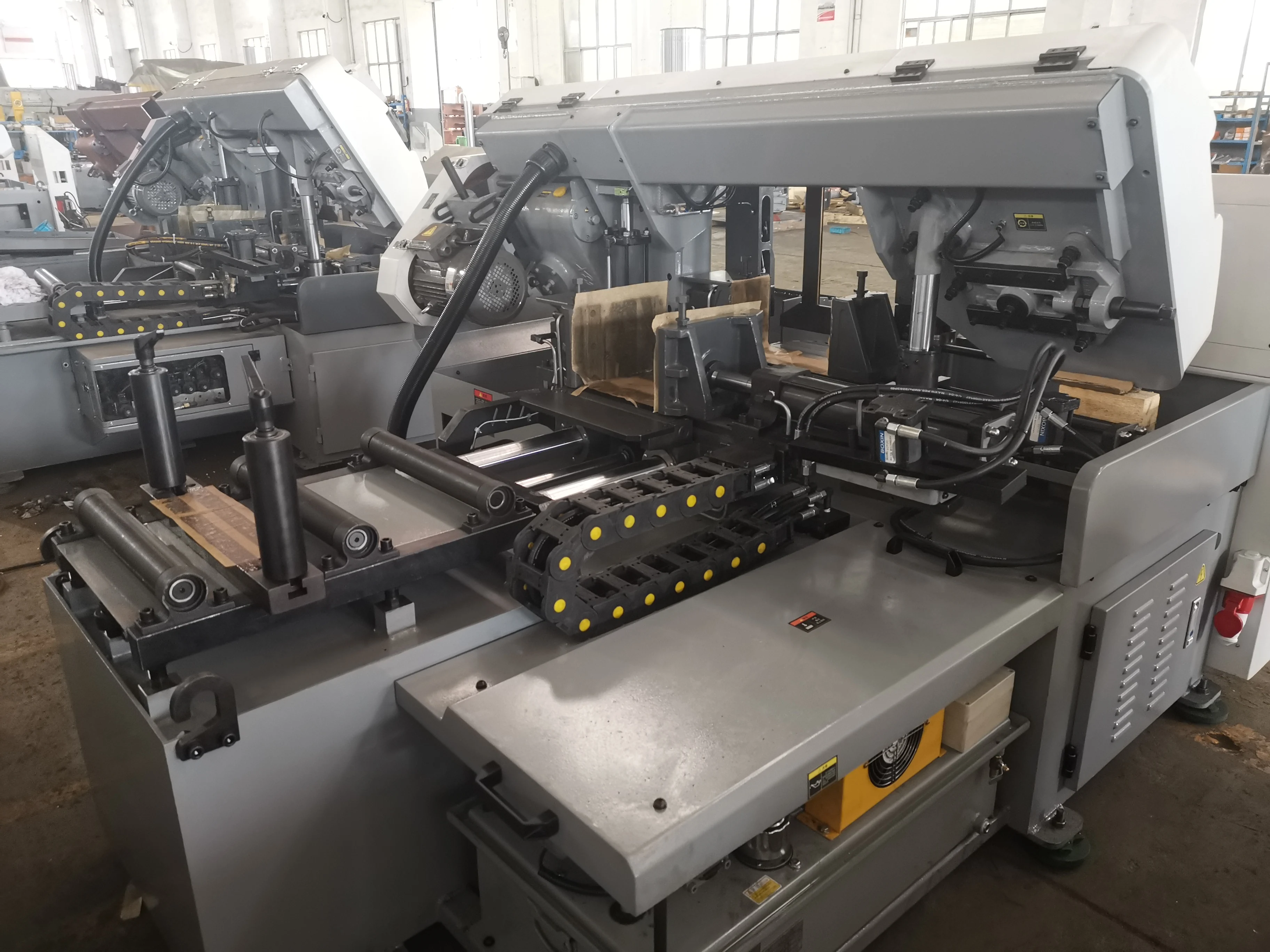

CHENLONG 330A Horizontal Band Saw, hydraulic Shuttle Vise Automatic Band Saw
- Category: >>>
- Supplier: Zhejiang Chenlong Sawing Machine Co. Ltd.
Share on (60161116762):
Product Overview
Description
| Product parameters | |||
| Model No. | 330A | ||
| Max.cutting | Round | 330mm | |
| capacity | Quadrate | 330×330mm | |
| Saw blade | Speed | 25/45/64/80m/min | |
| Size | 34×1.1×4115mm | ||
| Guides | Carbide and bearing blade guides | ||
| Cleaning | Wire brush &flood coolant | ||
| Tension | Manual | ||
| Motor output | Blade | 4kw | |
| Hydraulic | 0.75kw | ||
| Coolant | 0.09kw | ||
| Work Vice | Hydraulic | ||
| Work feeding | Automatic | ||
| Machine weight | 1800KGS | ||
| Machine size(L×W×H) | 2220×2350×1500mm | ||
| Standard Equipment: | Optional Equipment: | ||
| 1.Blade cleaning brush. | 1.Variable vice pressure. | ||
| 2.Working lighting. | 2.Roller table 2M long | ||
| 3.Fast approaching device. | 3.Inverter | ||
| 4.Out feed with auxiliary plate table. | 4.Hydraulic blade tension | ||
| 5.One piece of bi-metal saw blade. | 5.Automatic chip conveyor | ||
| 6.One set of tools with tool box. | |||
| 7.Roller table 1PC. | |||
