Yuheng quartz infrared heating element provides infrared energy with a fast heat up and cool down time while creating temperatures ranging from 1000 °F (537°C) up to 2000°F (1093°C).Depending on the design, our elements can reach full output in as little as 30 seconds and typically cool down to 50 percent output in less than 15 seconds. The quartz element is ideal for applications where process stoppages are anticipated or a quick heat up or cool down is necessary.
Product Name
Far infrared quartz heating element
Outside Diameter
8-20mm
Length
100-3000mm
Power
100-3000w
Voltage
24V/75V/110/220V/240V,etc
Surface Temperature Range
400~1000 °C

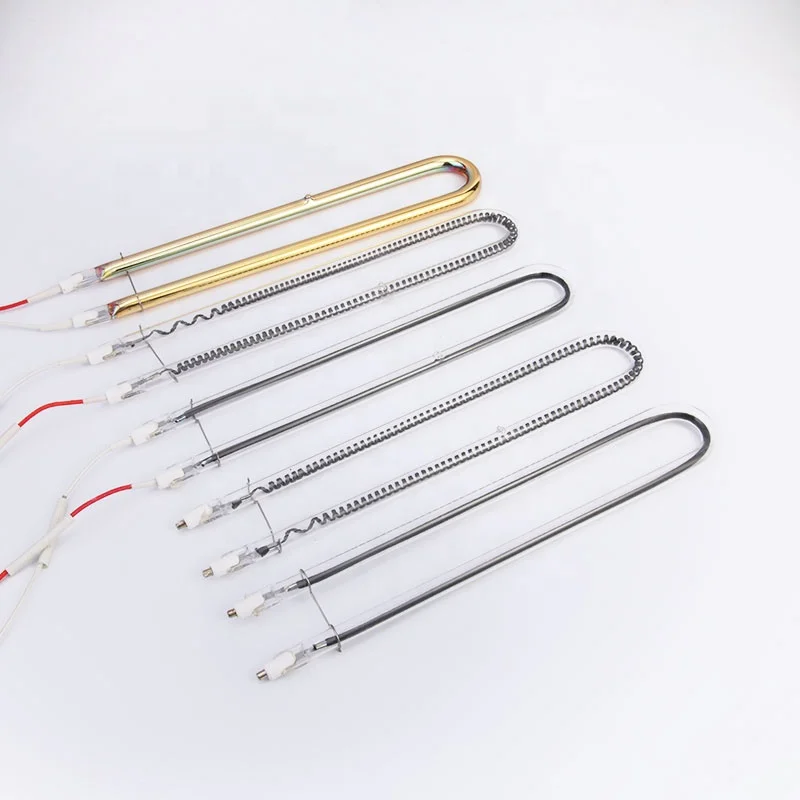

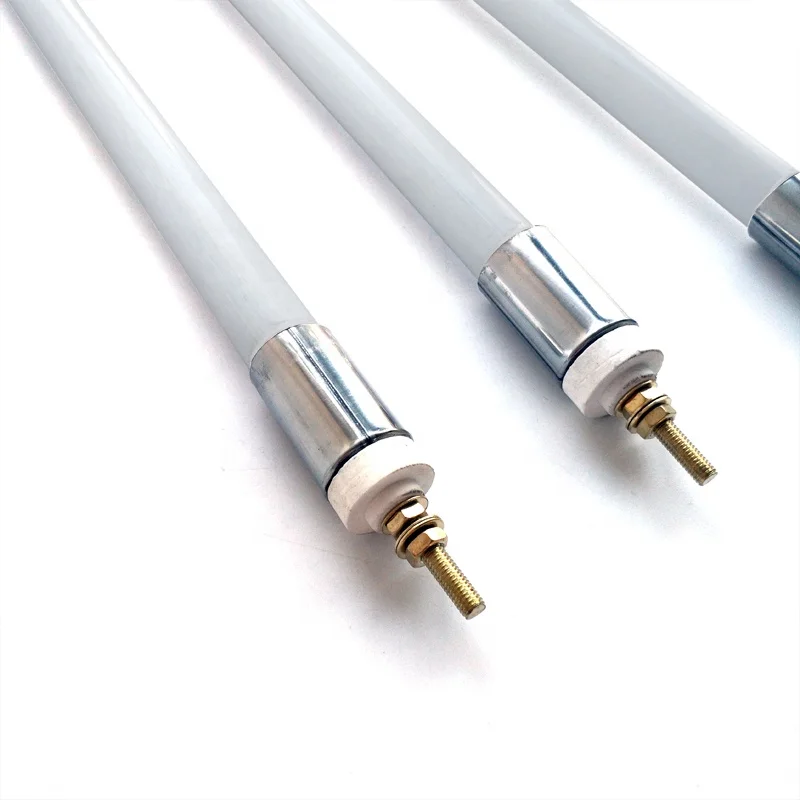

Product Show
Halogen
Carbon Fiber
Resistance Wire
Odering Details
1. Outside diameter and length of the quartz heating tube you need; 2. Power and Voltage of the tube you need; 3. The surface temperature you need; 4. Special requirements if you have.
Application
- Heater - Plastic forming - Bottle blowing - Paint drying - Food catering/processing and etc. - Pre-heating of PET perform - Fusing printing ink - Drying process in paper mill - Plastics thermoforming - Silicon wafer manufacturing process in Semiconductor - And various kind of drying processes
Packing & Delivery
Packing & Delivery
Delivery Time
When it comes to deliveries, most items are available in 15 working days
Packing
Wooden Case (also could meet customers special request)
