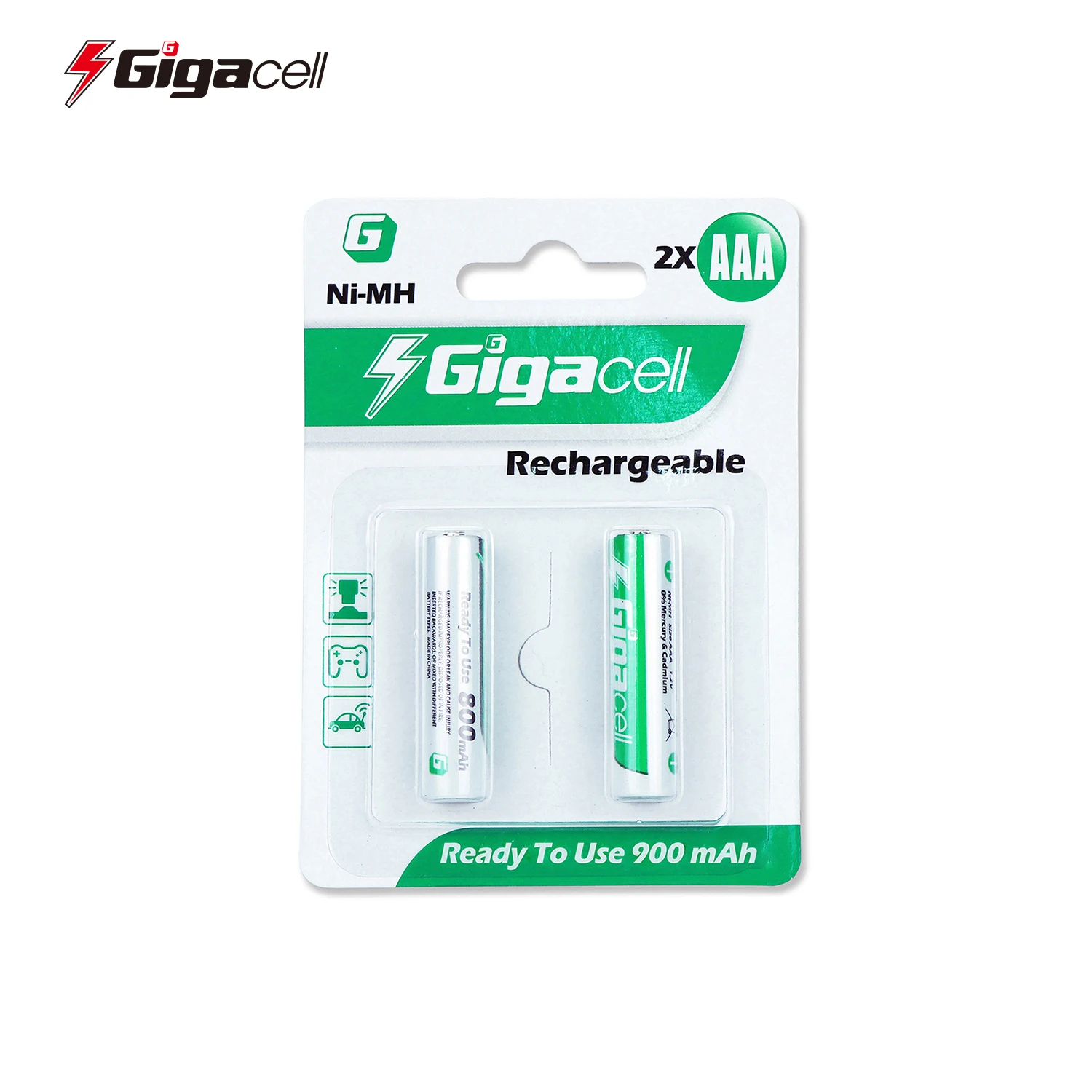

Rechargeable Ni MH HR03 900mAh AAA rechargeable battery for toys

Product Overview

Description

Rechargeable Ni-MH HR03 900mAh AAA rechargeable battery for toys



Technical Data:

- Size AA, HR6,  Ni / KOH-H2O / MH

- Nominal Voltage: 1.2V

- Diameter: 14.5×50.5(mm)

- Capacity: 2000mAh ( Discharged at 0.2C5, 24h/d, 20℃, e.v.= 1.0V )



Performance :  (20 ± 2°C ,55 ± 20% RH.)

Test	Unit	Specification	Condition
Internal impedance(Ri)	mΩ	≤50	Upon fully charge (1KHZ)
Standard Discharge (0.2C)	minute	≥300	Standard Charge , 1hr rest before discharge
High Rate Discharge (1C)	minute	≥42	Standard Charge , 1hr rest before discharge
Overcharge	N/A	No leakage nor explosion	90mA(0.1C) charge for 1yr
Charge Retention	mAh	≥540 (60%)	Standard charge Storage: 28 days at RT or 7 days at 45℃ Standard discharge
IEC Cycles Test	Cycle	>500	IEC 61951-2 (2003)
Accelerated Cycles Life	Cycle	≥300	Charge: 450mA (0.5C)                                                                               Discharge: 450mA (0.5C) to 1.0V/cell                                                                 End of life: 80% of nominal capacity



Packing information:

Jacket: Alu-foil jacket;
Packing:2/4 Pcs per Shrink pack;
Inner Box:12 Pack(48 Pcs);
Shipping Carton: 240 Packs (960 Pcs);
Meas: 39.5*26*19cm;
G.W.: 14.0 Kgs
