DM311 DM312 DM313 DM314 DM315 DM316 Precision light duty revolve live center as lathe tool:

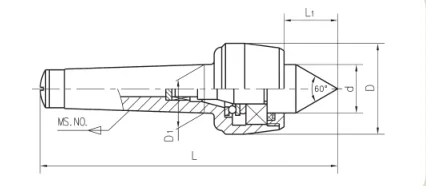

| order no. | Ms no. | L | D | L1 | d | D1 | Max Radial load(N) | Max speed(rpm) | accuracy(mm) |
| DM311 | MS1 | 115 | 34 | 20.3 | 18 | 12.065 | 320 | 5000 | 0.005 |
| DM312 | MS2 | 129.6 | 45 | 28.6 | 25 | 17.780 | 400 | 5000 | 0.006 |
| DM313 | MS3 | 160.2 | 52 | 32 | 28 | 23.825 | 800 | 4500 | 0.006 |
| DM314 | MS4 | 191.7 | 60 | 36.5 | 32 | 31.267 | 1250 | 3500 | 0.006 |
| DM315 | MS5 | 244.5 | 80 | 50.8 | 45 | 44.399 | 1500 | 3000 | 0.006 |
| DM316 | MS6 | 350 | 130 | 74.8 | 75 | 63.348 | 1800 | 2500 | 0.006 |
| DM317 | MS7 | 423.5 | 130 | 74.8 | 75 | 83.061 | 2200 | 2000 | 0.006 |
