Carbon Steel Welding Electrode AWS E6011
Product Description
AWS E6011
E6011 is a mild-steel, all position electrode designed primarily for use on AC power sources. It produces a
strong arc force for deep penetration and a fine spray transfer that enhances operator appeal. Fast freezing or rapid solidification of the metal allows welding in the vertical and overhead position. Its light slag eliminates slag holes that are prevalent on some applications with other electrodes. This product can be suited in a wide range of applications.
High cellulose with iron powder for higher deposition rate and high welding speed than other ordinary E6011 electrode.
Can be use in both AC or DC power source.
Fast freezing with stable, strong & deep penetrating arc force for easy manipulation in any position welding including vertical down & overhead.
Thin slag covering which is easily remove.
High quality weld metal with high ductility and pass radiographic test.
SIZES:
4.0MM
AWS SPECIFICATION:
AWS A5.1
AWS CLASSIFICATION:
E6011
WELDING CURRENT:
AC-DCEP(Electrode Positive)
CHEMICAL COMPOSITION OF DEPOSITED METAL(%)
C.............................................................................................0.120
Mn................................................................................0.300-0.600
Si........................................................................................... 0.300
P.............................................................................................0.040
S.............................................................................................0.035
TYPICAL MECHANICAL PROPERTIES(AS WELDED)
Yield Strength, psi................................................................55,000
Tensile Strength, psi.............................................................68,900
% Elongation..............................................................................27

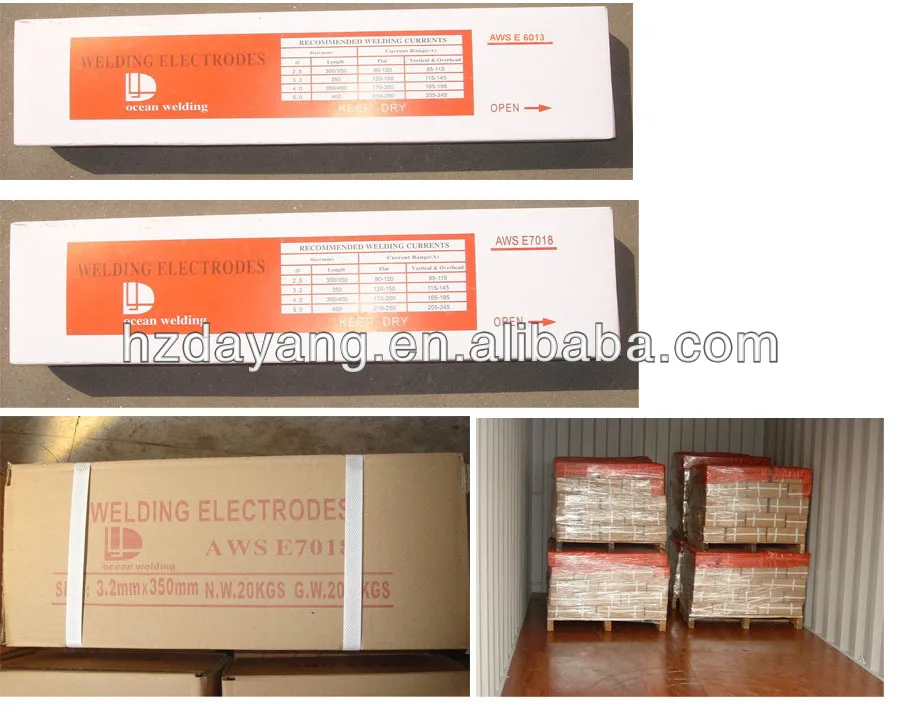

Packaging & Shipping
Packaging:
2.5*300mm 2.5kgs/inner box,8boxes/carton=20kgs
3.2*350mm 5.0kgs/inner box, 4boxes/carton=20kgs
Shipping:By sea/by air
Our Services
OEM is acceptable.
...
Company Information
Lin’an Dayang Welding Material Co.,Ltd., located in the western part of Hangzhou, was established at the beginning of this century. It is a specialized company, which develops and produces all kinds of welding materials. We concentrite on profession, science and technology innovation, adopt advanced technology and equipment, to implement international quality standard.
