Wood moulding machine 4 head planer four side moulder

Product Overview

Description

1) Each principal axis adopts independent drive to electric motor,features stronger cutoff force.

2) Adjusts for principal axis integrates at central of frontal side, features easy operation.

3)Galvanized workstation features superior abrasion resistance.

4)Equips with auxiliary unit alarming lack of material,it effectively improves smooth feed-in while lack of material.

5)Active roller below improves feeding efficiency.

6)Pneumatic pressing feeding roller section by section adjusts for pressing force,it favors for smooth feed-in of different thicknesses of timber.

7)Adopts central charging system,features convenience and promptness.

8)Equips with world-class electric element,features superior stability.

9)With fully sealed safety protective cover, this effectively avoids flying logging debris and noise blocked, and even acts as safety protection.

10)Double-deck working tables;it is easy for maintenance.

11)Pneumatic Pressing Feeding Roller Section By Section By Section Adjusts For Pressing Force, It Favors For smooth Feed-In Of Different Thickness Of Timber.

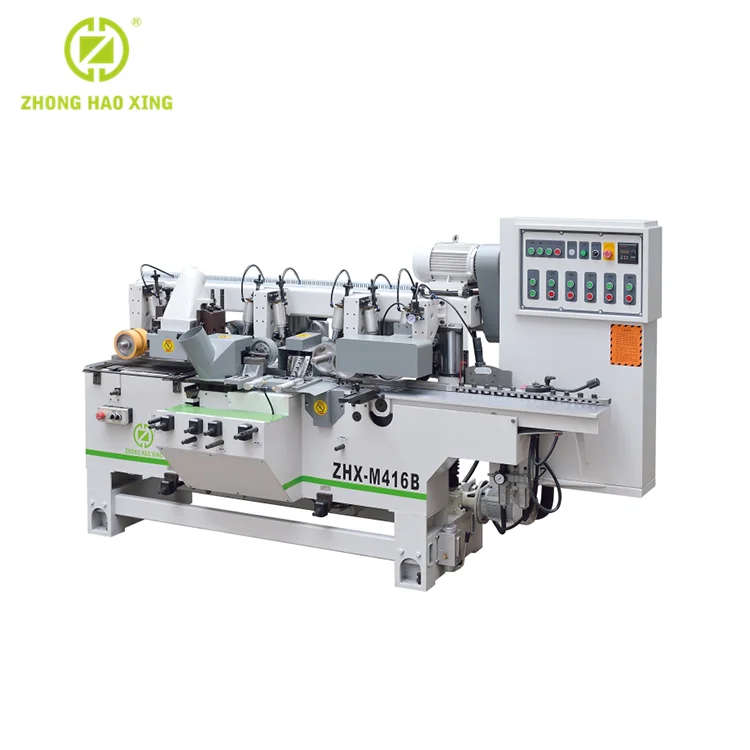

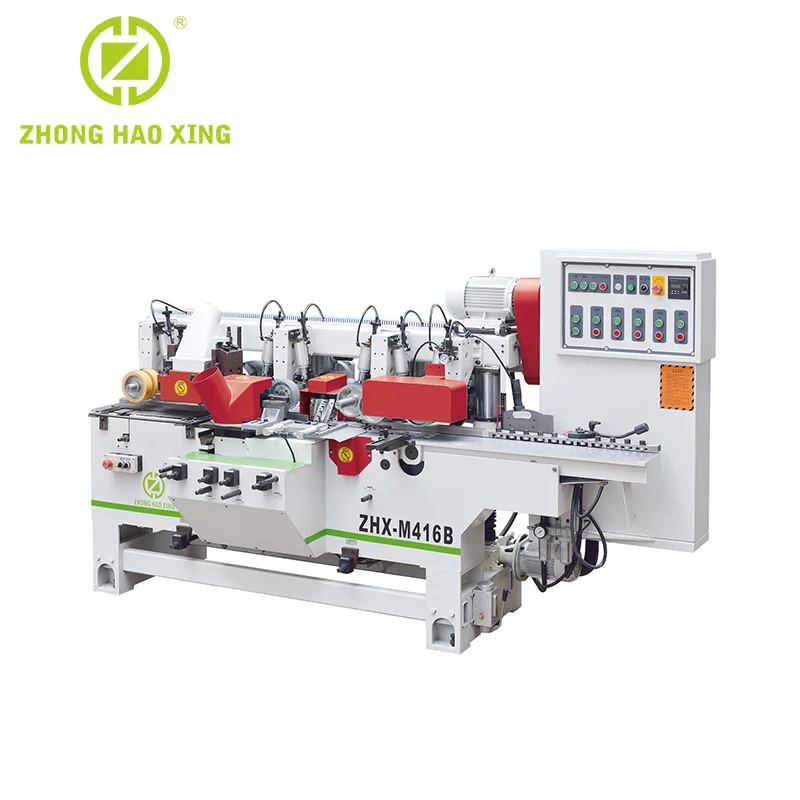

MODEL:ZHX-M416
Technical Data:
ONE,Machine Parameter:
Working Thickness:	8-120mm
Working Width:	15-160mm
Operating Platform length:	1800mm
Feed Speed:	5-25m/min
Spindle Diameter:	ø40mm
Spindle Speed:	6000r/min
Gas Source Pressure:	0.6MPa
Two,Motor Power:
The Ist Bottom Spindle:	4kw/5.5HP
The Ist Top Spindle:	5.5kw/7HP
Right Side Spindle:	4kw/5.5HP
Left Side Spindle:	4kw/5.5HP
Second Top Spindle:	——
Second Bottom Spindle:	——
Feed Beam Rise&Fall:	0.75kw/1HP
Feeding:	3kw/4HP
Total Motor Power:	21.25kw/40HP
Three,Knife Diameter:
Right Side Spindle:	ø125-ø160mm
Left Side Spindle:	ø125-ø160mm
The Ist Bottom Spindle:	ø125
The Ist Top Spindle:	ø125-ø160mm
The Second Top Spindle:	ø125-ø160mm
The Second Bottom Spindle:	ø125-ø160mm
Feed Diameter:	ø120mm
Dust Diameter:	ø125mm
Oversea Machien Dimensions(l*w*h)mm	3000*1550*1750mm
NET Weight(kg):	2200
Gross Weight(kg):	2280
