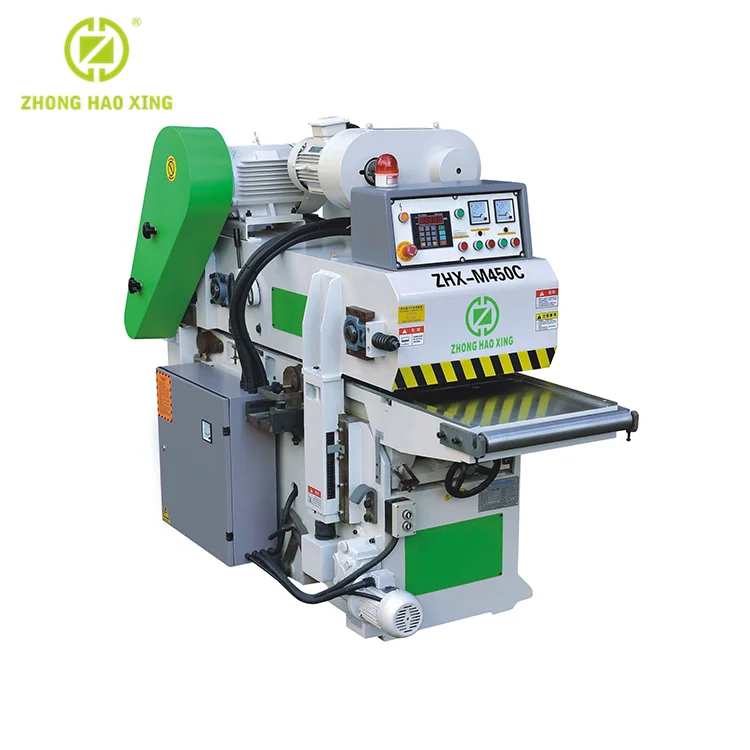

Max Working Width 610mm Double Side Planing Woodworking Machine
- Category: >>>
- Supplier: Foshan Zhonghaoxing Woodworking Machinery Co. Ltd.
Share on (60162133567):
Product Overview
Description
Specification
1. The work surface is made of hard chrome plating,smooth and wear-resistant.
2. Model B Double-side planner equired with the original spiral knife,Model A double-si
de planner equipped with domestic famous white steel blades.
3. The active feed rollers under the workbench ensure feeding smoothly.

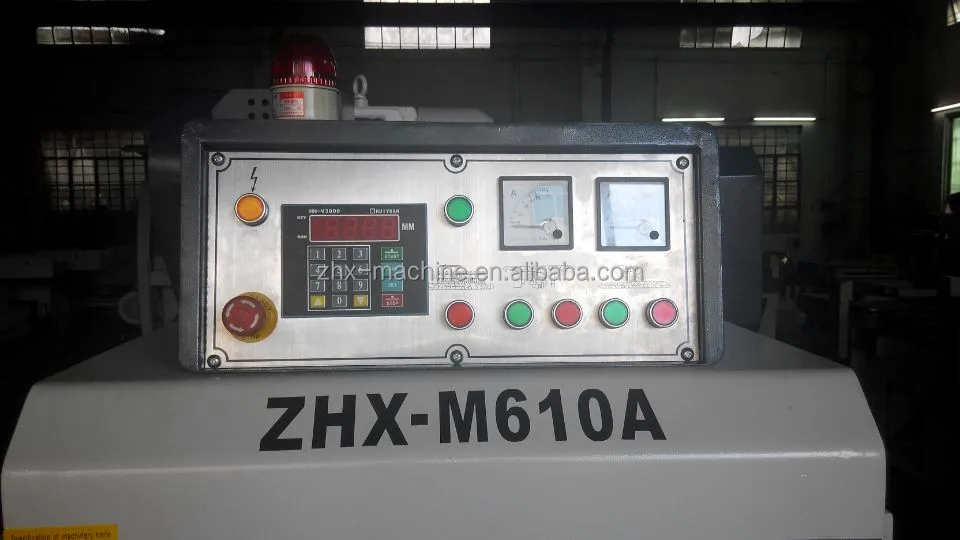

4.The digital input mode makes the operation simple and convenient; At the same time it adopts back up manually operated.
5. The front platen of horizontal knife fitted with tracking capabilities,no matter how much the wood processing amount it is, it can ensures feeding smoothly.
6. When the equipment retrofitting short material guiding device:the shortest processing length is 150mm.
7. The lower level knife.
8. The worktable is processed specially to become more wearable.
| Technical Data | ZHX-M450A/B | ZHX-M610A/B |
| Max Working Width: | 450mm | 610mm |
| Max Working Thickness: | 150mm | 150mm |
| Min Working Thickness: | 14mm | 14mm |
| Min Working Length: | 320mm | 320mm |
| Cutter knife: | A(3pcs)B(106PCS) | A(3PCS)B(144pcs) |
| Spindle Rotation Rate: | 4500r/min | 4500r/min |
| Feeding Speed: | 7-16m/min | 7-16m/min |
| Top Spindle Power: | 7.5kw | 7.5kw |
| Bottom Spindle Power: | 5.5kw | 5.5kw |
| Feeding Motor Power: | 2.2kw | 2.2kw |
| Elevating Motor Power: | 0.37kw | 0.37kw |
| Total Power: | 15.57kw | 21.07kw |
| Overall Dimensions: | 2150×1100×1680mm | 2350×1268×1680mm |
| Weight: | 2150kg | 2200kg |
