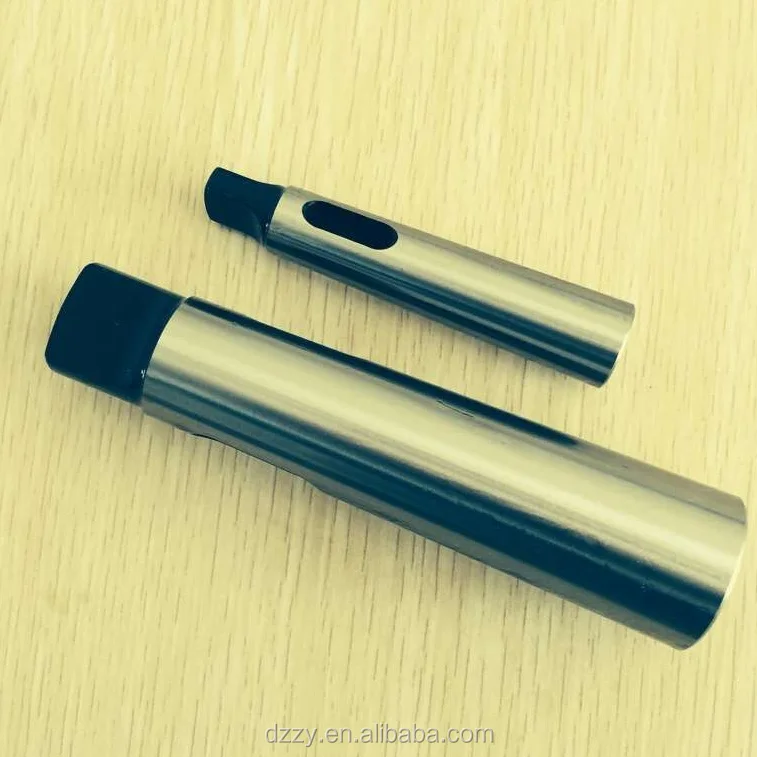

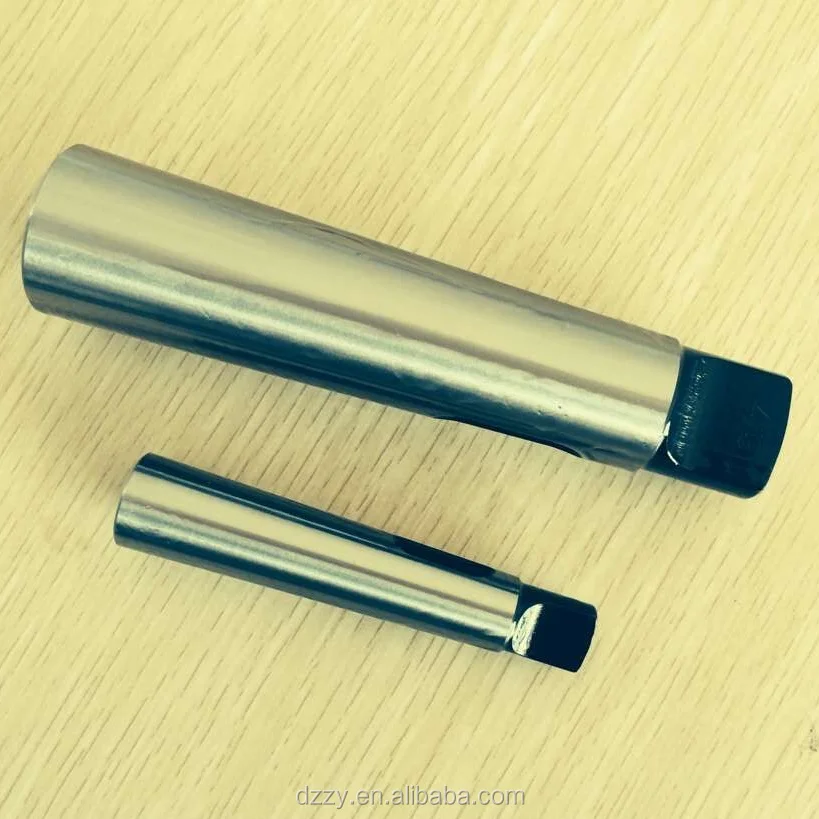

DIN2185 Morse Taper drill Sleeves

Product Overview

Description



DIN2185 Morse Taper Drill Sleeves:



Material:65Mn

Standard:DIN2185

Size:MT1,MT2,MT3,MT4,MT5,MT6

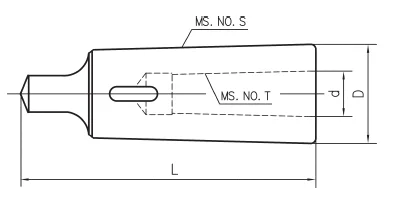

model no.	MS.NO.S	MS.NO.T	D(mm)	d(mm)	L(mm)	Wt(kg)	Accuracy(mm)
B1-0	1	0	13	9.045	80	0.10	0.015
B2-1	2	1	18.6	12.065	92	0.10
B3-1	3		24.1		99	0.24
B3-2		2	24.7	17.780	112	0.12
B4-1	4	1	31.6	12.065	124	0.60
B4-2		2		17.780		0.50
B4-3		3	32.4	23.825	140	0.38
B5-1	5	1	44.7	12.065	156	1.59	0.020
B5-2		2		17.780		1.49
B5-3		3		23.825		1.36
B5-4		4	45.5	31.267	171	0.95
B6-1	6	1	63.8	12.065	218	3.84
B6-2		2		17.780		3.73
B6-3		3		23.825		3.85
B6-4		4		31.267		3.12
B6-5		5		44.399		1.95
