Nordson Floor Wall Mount DC12V 24V Emergency Release Steel Electromagnetic with Signal output Fireproof Door Holder Stopper
- Category: >>>
- Supplier: Shenzhen Nordson Electronic Co. Ltd.
Share on (60162796672):
Product Overview
Description

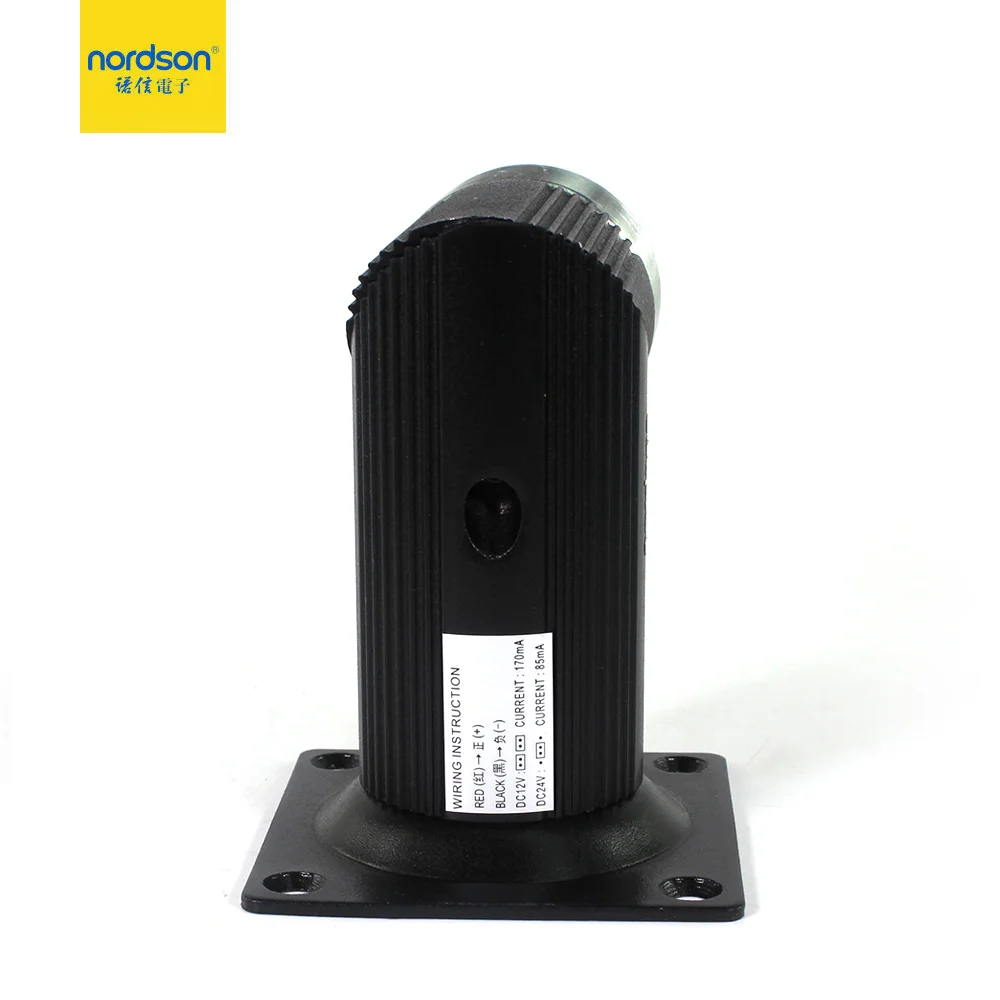

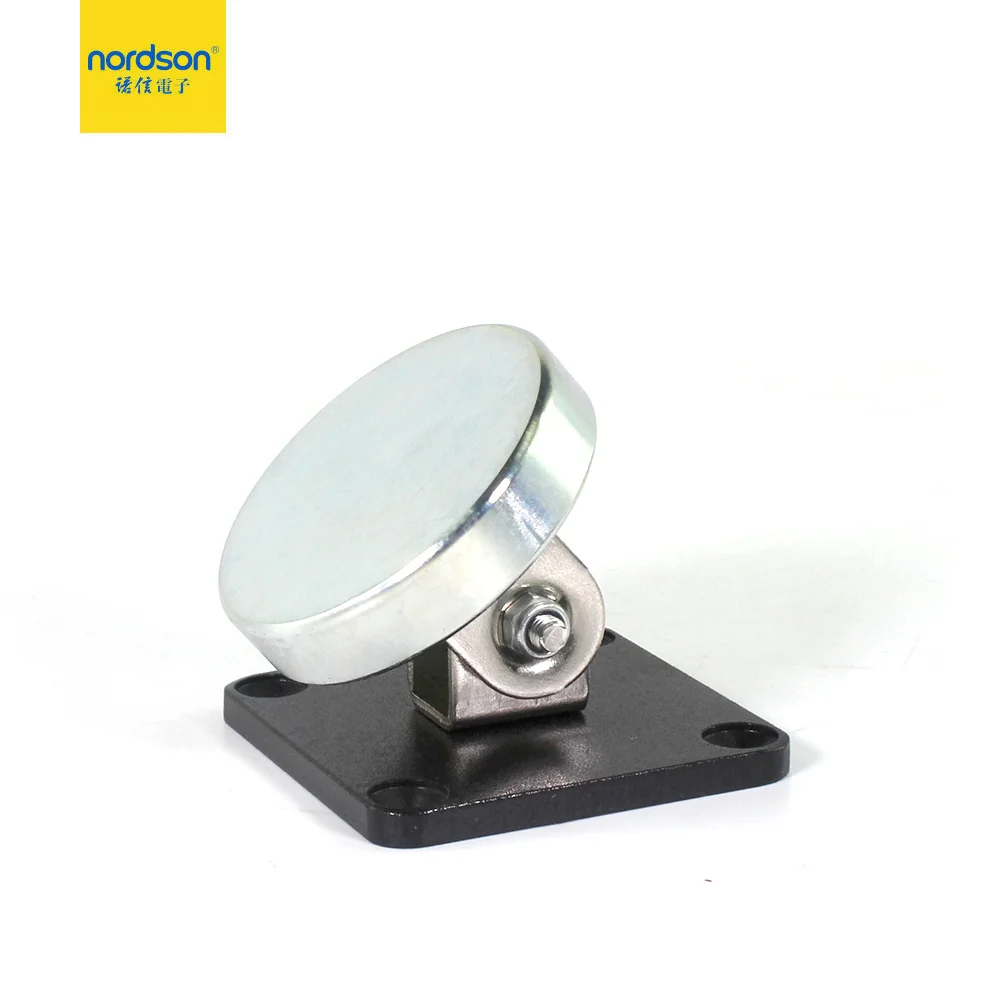

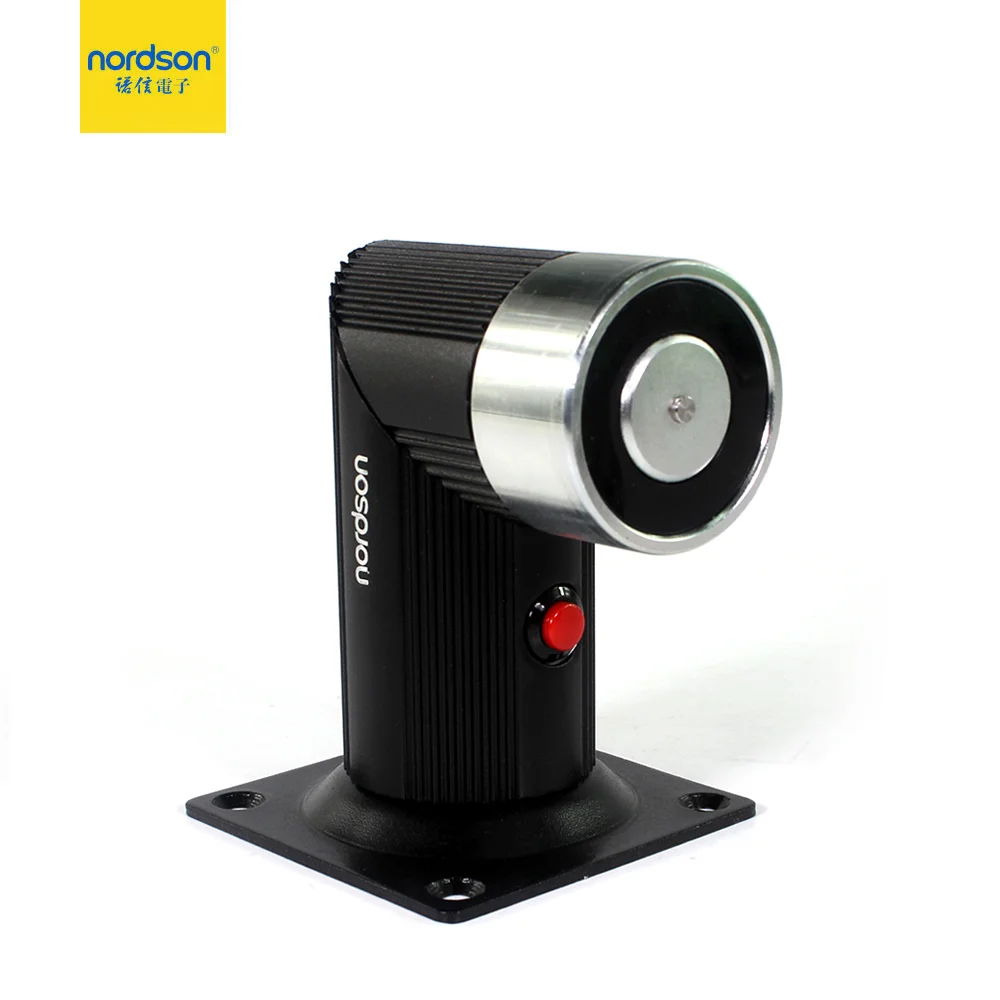

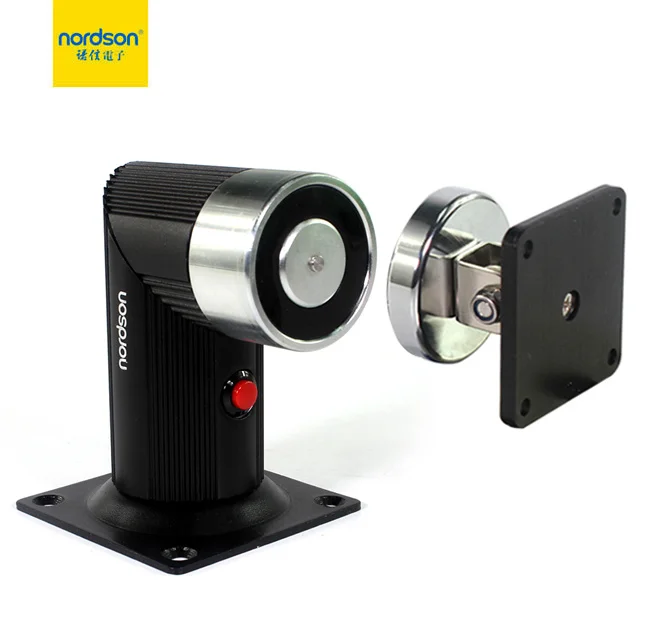

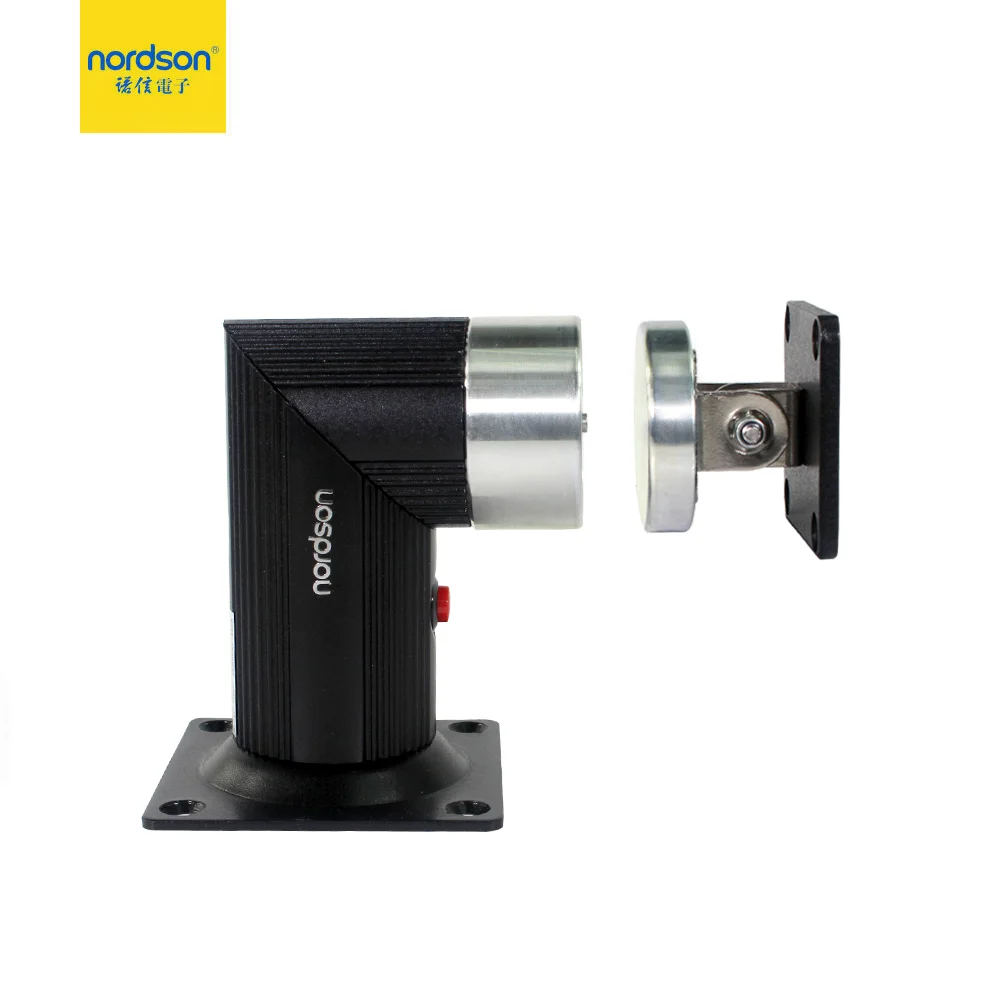

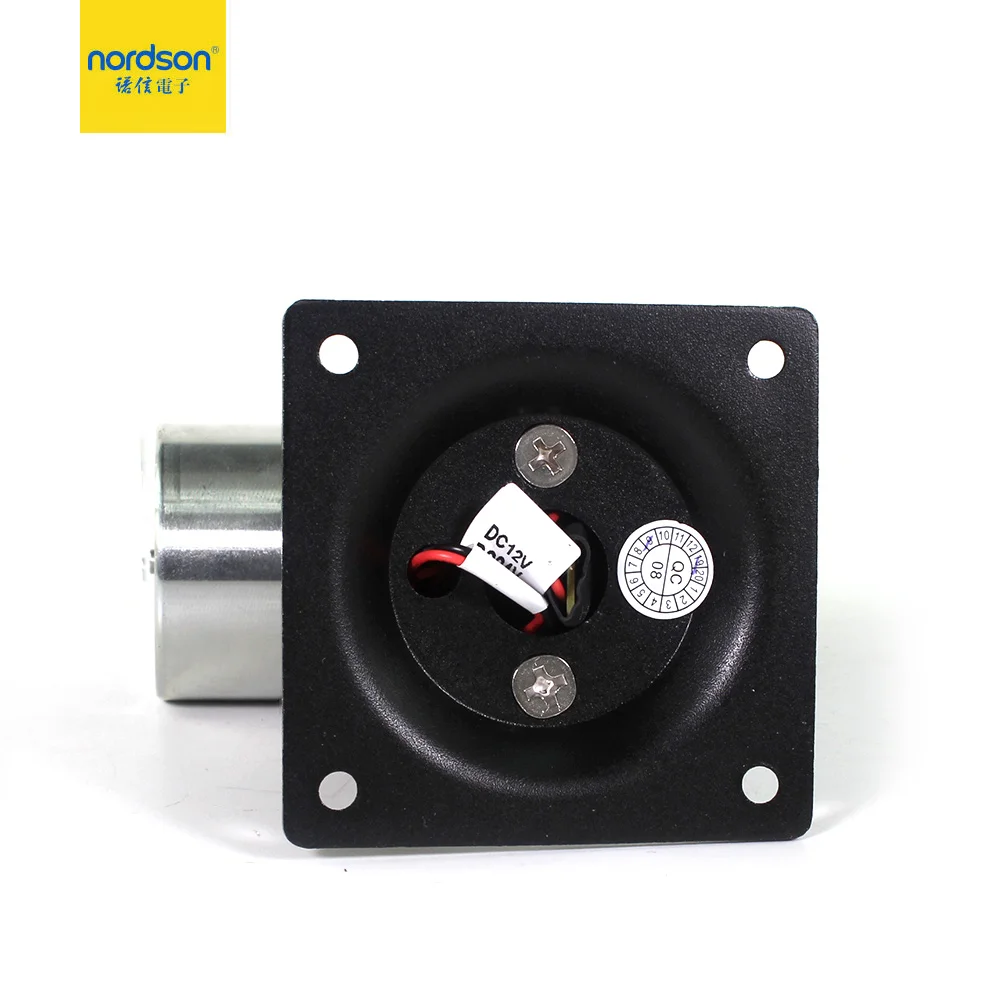

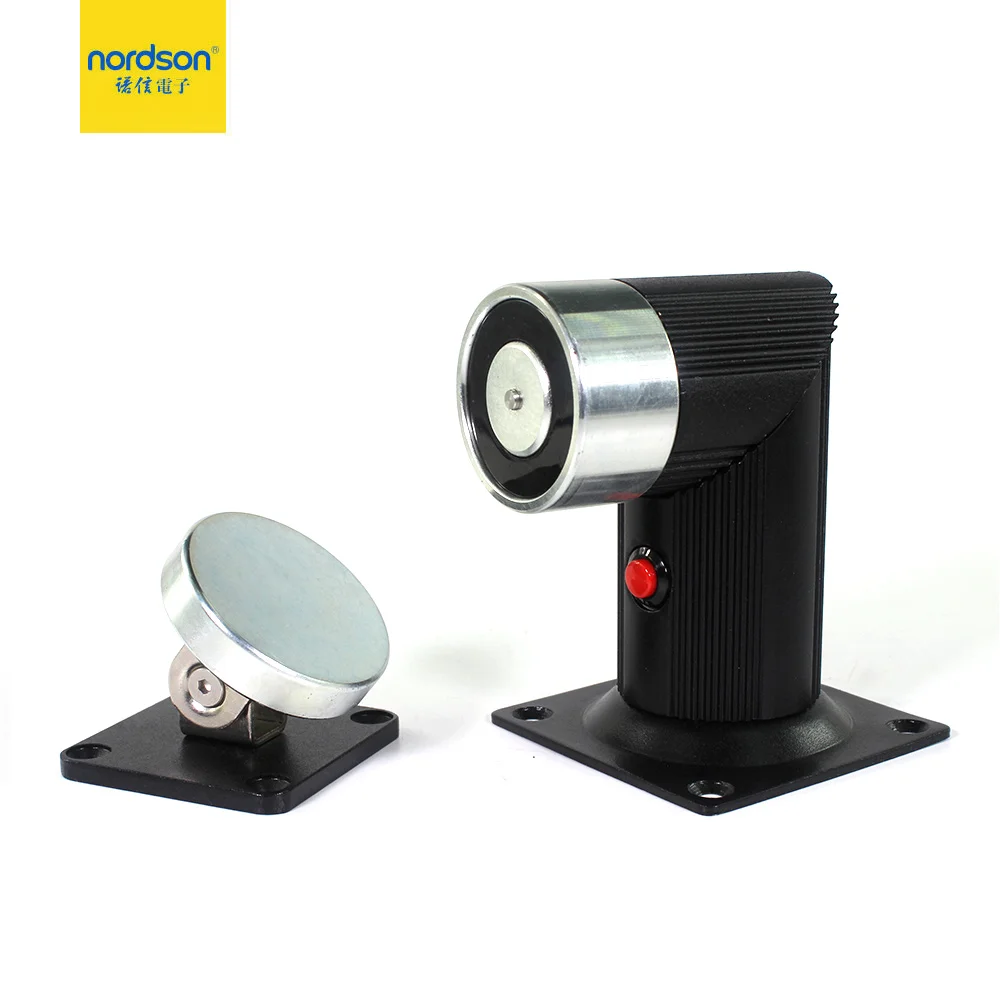

Floor Wall Mount DC12V 24V Emergency Release Steel Electromagnetic Fireproof Door Holder Stopper with Signal output
Product Description
| Product Parameter | Parameter Description |
| Dimensions | L80xW80xH120(mm) |
| Holding Force | 70kg(150Lbs) |
| Voltage | 12VDC ( DC24V+10% need order) |
| Current Draw | 12V/100mA 24V/50mA |
| Optional | Manual door release button |
| Suitable for | All Kind of Single & Double Smokeproof Doors |
| Surface Temp | ≤+20℃ |
| Operating Temp | -10~+55℃(14-131F) |
| Suitable Humidity | 0~90%(relative humidity) |
| Finishes for Shell | High Temperature Paint and Environmental Protection |
| Finishes for Armature | Zinc |
| Weight | 1.06kg |
Advantage:
Collinear Load Test 70kg,150pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standad Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Low Power,Environmental Protection.
Anti-Residual Magnetism Design.
Professional Design, Dual Insulative Housing.
Automatically close the smokeproof door when fire happens.
CE Certificate by European Union.
Packing & Shipping
- We ship to worldside by DHL, FedEx, UPS, EMS, Aramex etc..
- 1-5 working days for small quantity, 12-15 working days for large quantity after receipt of remittance.
Installation Floor Wall Mount Function signal Device Manual release button Holding force 100Lbs Power DC12V /24V
Warranty
- For product quality issues brought by external irresistible factors, NORDSON provides 3 years warranty for electromagnetic lock; 3 years warranty for access control panel, electric bolt and electric strike; 1 year warranty for biometric machines, exit button, bracket, and power supply.
- For product damage brought by other reasons, customer shall take the consequences by himself.
