Function
Security access control,easy to use access controller,Professional Metal Access Control suppliers of China
1.completely independent access control, can directly implement user passwords, card management and other functions

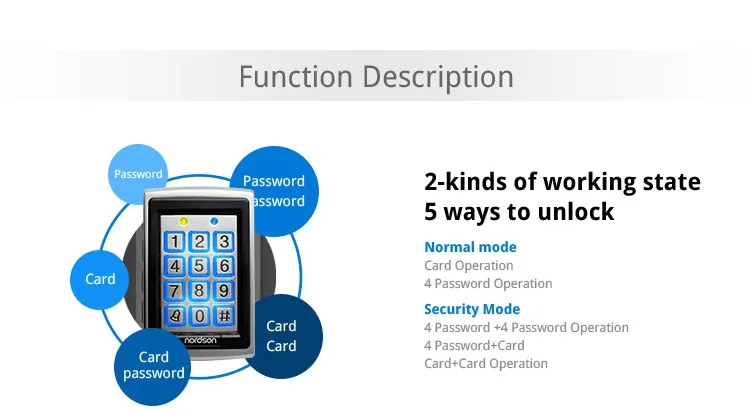

2.keyboard input, support card, password, card plus password, password + password to open the door in four
3.supports two modes of operation, normal mode and safe mode
4.supports three user levels 1. Ordinary users 2. Security User 3. Advanced users
5.reader sensor with high sensitivity, less than 0.1 seconds
6.supports a password to open the door, stand-alone card capacity up to 500

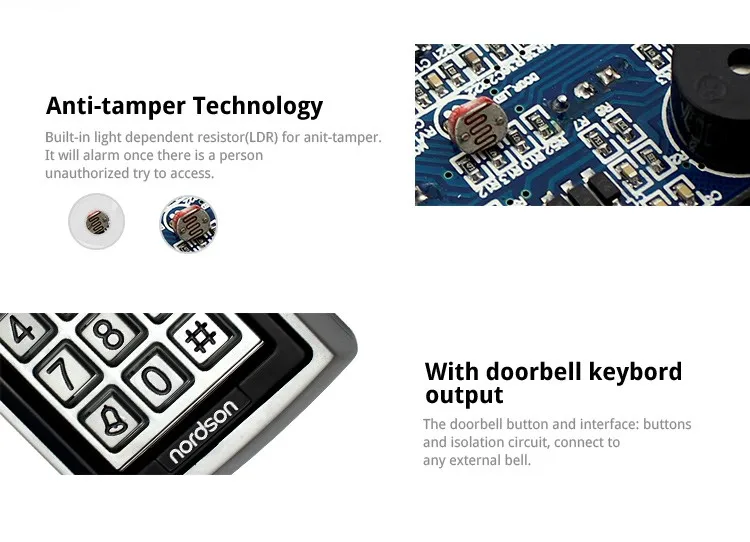

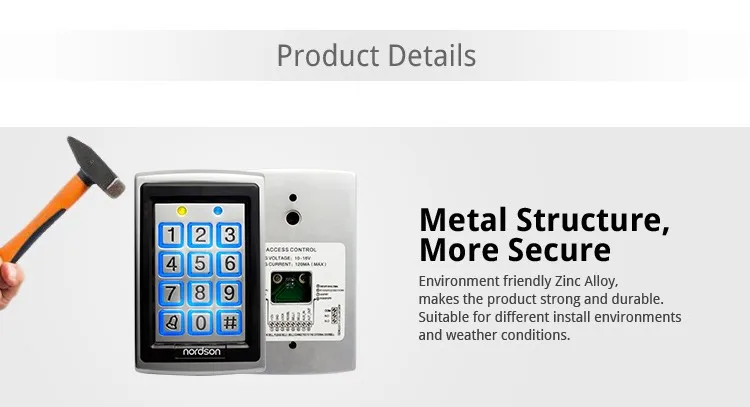

7.high-quality nickel alloy metal material, having a tamper alarm and door sensor alarm functions
8.exit button and doorbell input function
9.the surge absorption protection
Specification:
Security access control,easy to use access controller,Professional Metal Access Control suppliers of China
Verification Method |
4-Operation Mode:
4 number code Operation(Support 500 users),4 number code +4 number code Operation,4 number code+Card , Card+Card Operation |

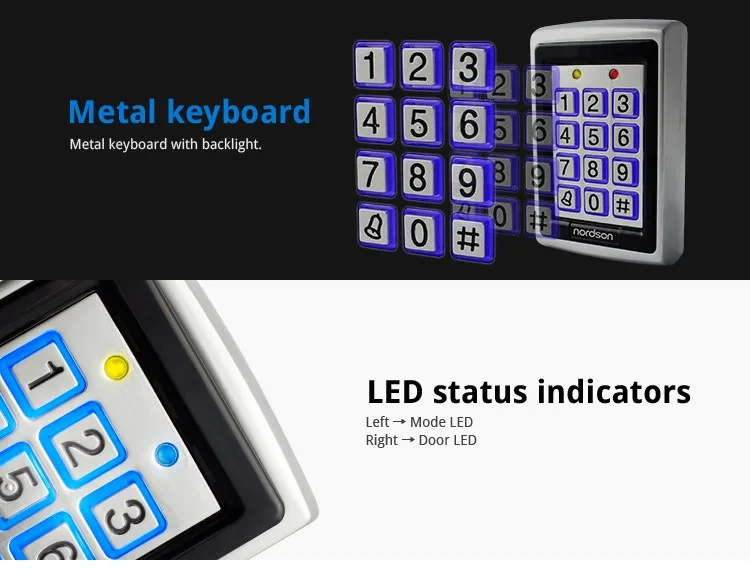

keyboard |
Metal buttons with luminous |
Capacity Of Cards |
500 Users |
Door Open Time |
0-99 seconds |
Proximity Range |
3-15CM |
Frequency |
EM-ID 125KHz or 13.56MHz |
Voltage |
DC 12V |
Current Drain |
<90mA |

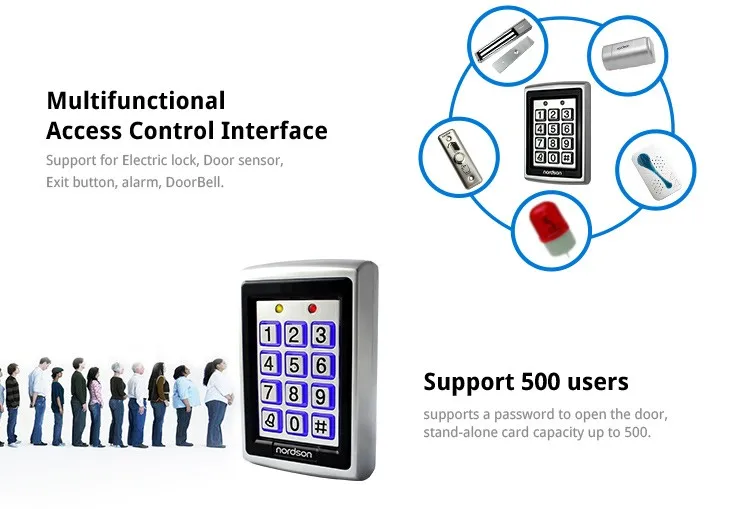

Access Control Interface |
Electric lock, Door sensor, Exit button, alarm, DoorBell |

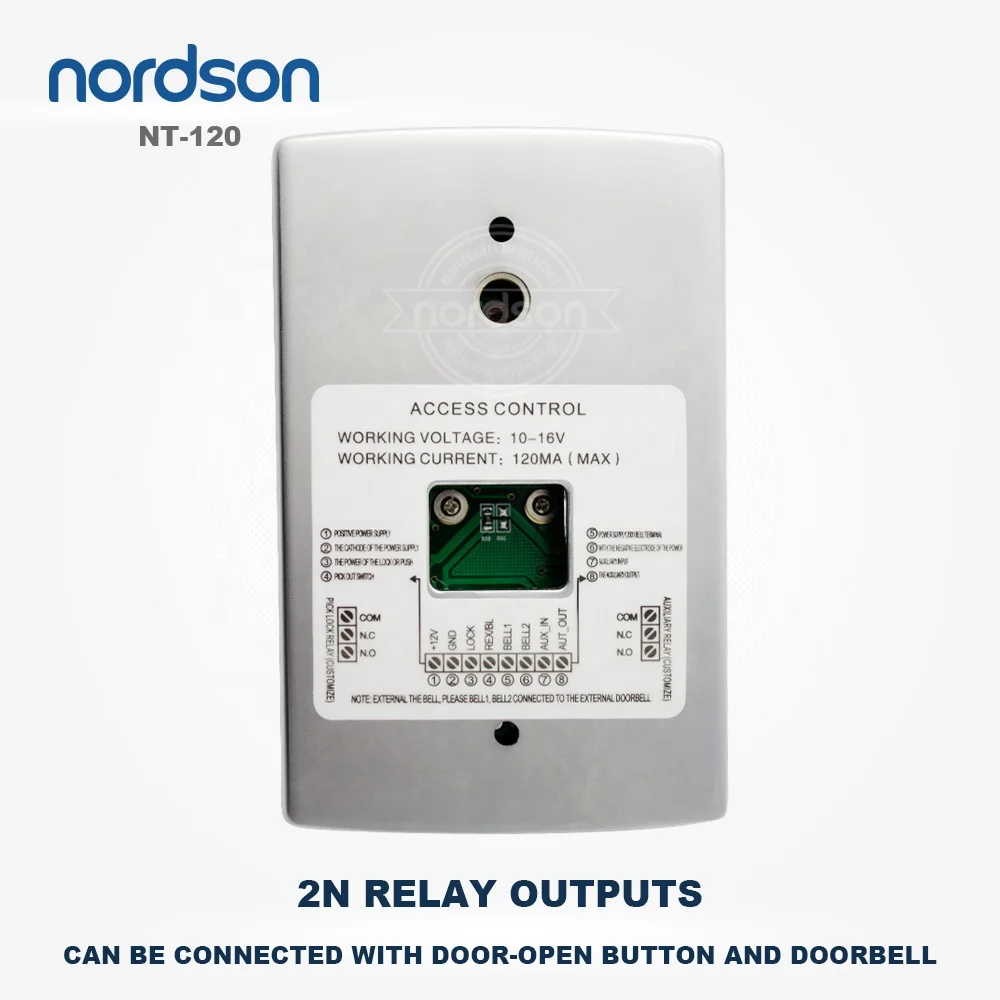

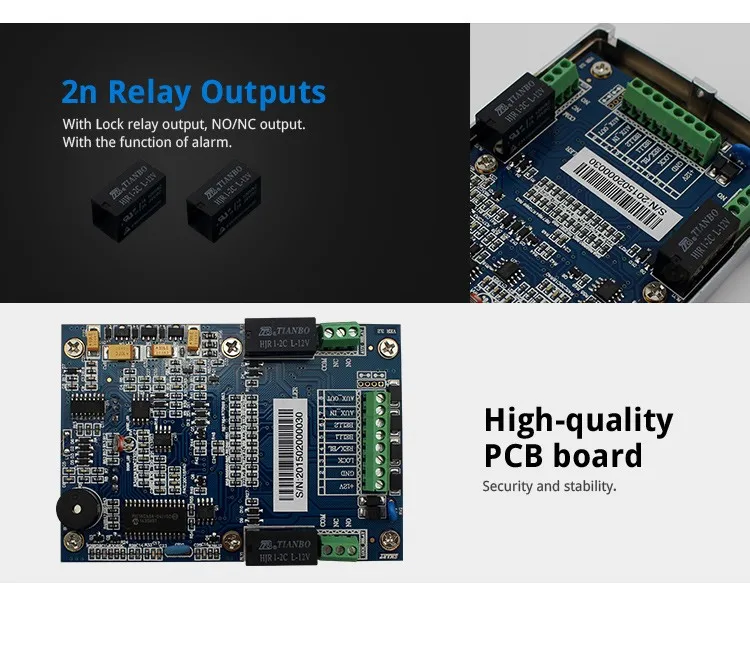

Relay output |
2n relay outputs |
Operating Temperature |
0°C - 45°C |
Operating Humidity |
20%-80% |

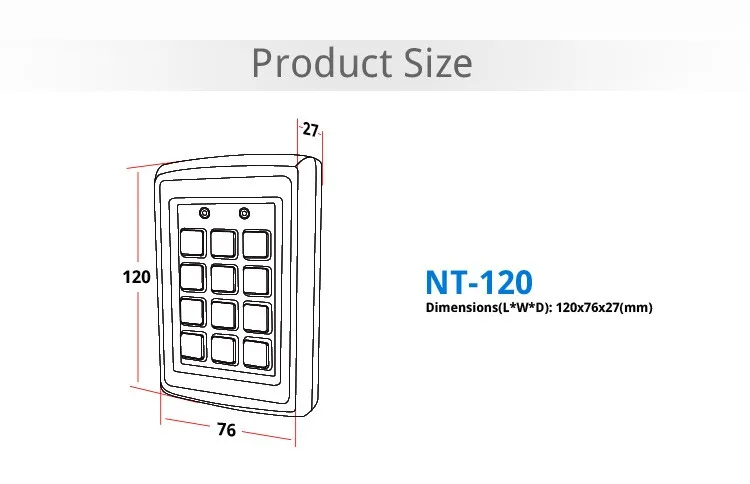

Dimensions |
120Lx76Dx27W(mm) |
Gross Weight |
0.41kg |
