Электрическая машина для удаления шелухи кукурузы

Product Overview

Description

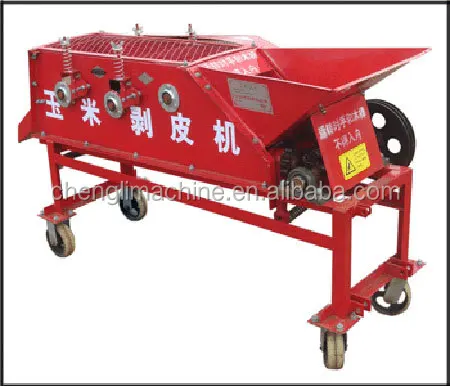

Hot sale High Quality Maize peeling machine corn husker /electric corn maize threshing husker dehuller peeling machine







Introduction of corn maize husker machine:

Corn husker machine is the equipment that put the corn outer skin peeling off after the corn harvest. It replaces the manual stripping tension and heavy labor, reducing the labor intensity, improve production efficiency, its broken rate is less than 1%, loss rate lower than 2%. Can finish husker homework well, replace manual operations, improve the work efficiency. It also can peel the skin of corn and thresh the corn at same time or in separate, according to the client's requirement.

How corn maize husker machine works:

When the corn husker machine starts working, the corns go into the cylinder chamber through the feed port, under the rotation, friction, extrusion and propulsion of the rubber roller, corn husk is separated from the corncob, corn husk and corn cob are discharged automatically.

In operation, the corncobs will get into the working space through feed hopper. Connected to the motor by pulley and V-belt, the driving shaft can reach a speed of 550-600 rev / min. The design of spiral rolling belt can help push the corncobs to the machine outlet, and the metal strip on the rubber roller is used to slice the corn peel, then the opened peel will be clamped and torn up by the roller shaft rotating at both sides, and completely peel the corncobs off.



Features of corn maize husker machine:

Extractor fan is used to separate corn kernels, cobs and corn silk

Shelling without breaking corn cobs

Powered either by electricity motor, diesel/gasoline engine



Corn maize husker machine Specification:

Model	CL-560
Rated Power(kw)	1.6kw-2.2kw/2
Overall dimensions(mm)	920*860*760
Net weight(kg)	70 kg without motor
Rubber roller shaft speed(r/m)	560
Productivity(kg/h)	500-600
Peeling off rate	98%
Motor wheel	φ70mm
