ZHX MJ320 multipurpose all in one woodworking machine price
- Category: >>>
- Supplier: Foshan Zhonghaoxing Woodworking Machinery Co. Ltd.
Share on (60163602789):
Product Overview
Description
panel saw wood cutting

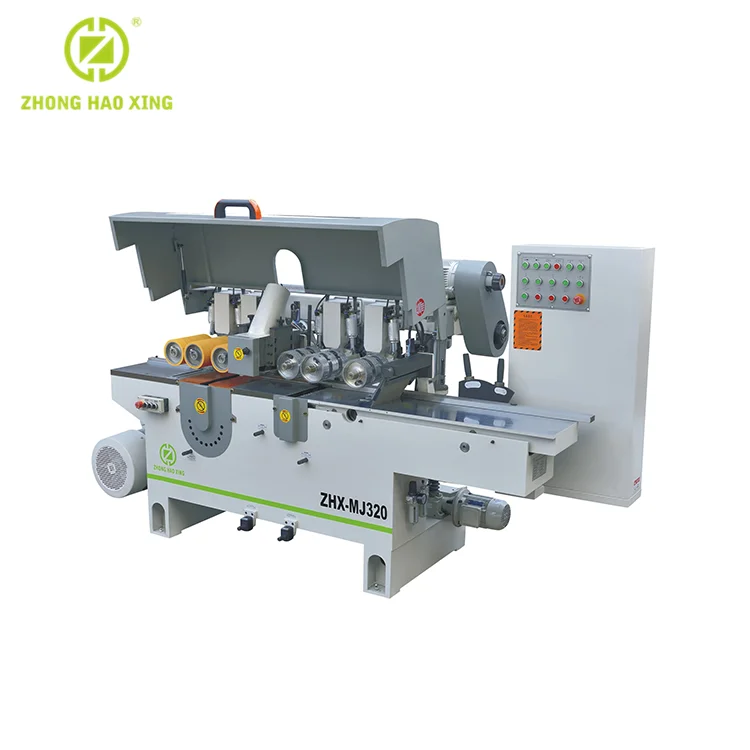

Model:ZHX-MJ320
Main Feature:

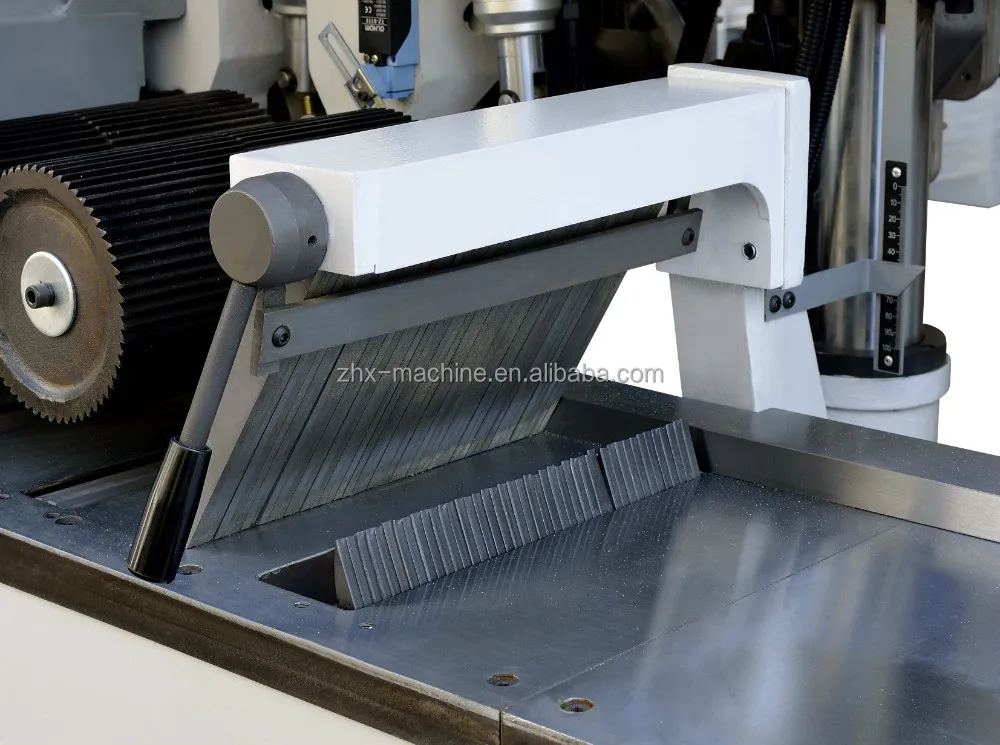

1) This saw blades with narrow rip make output efficient and profitable.
2) This machine planes wood at two surfaces to reach a certain thickness, and then divide with multiple rip saw blades into specified pieces
3) Using saw as planer, it has high machining quality.
4) Ideal equipment for molding laminated veneer, high precision and small panels.
| MODEL:ZHX-MJ320 | |||
| Max Working Width: | 200mm | Saw Arbor Dia: | 50mm |
| Max Working Thickness: | 10mm-80mm | Saw Arbor keyway: | 16×5mm |
| Spindle Speed: | 4000r/min | Saw arbor Speed: | 4000r/min |
| Feed Speed: | 14mm | Max Dia of Saw blade: | 300mm |
| Motor Power: | 2.2kw | Motor power of saw arbor: | 22kw |
| Cutter Shaft Dia: | 320mm | Lifting motor power of saw arbor: | 0.37kw |
| Cutter Shaft Speed: | 6000r/min | Transport system lifting motor: | 0.75kw |
| cutter shaft Movement Distance: | 10mm | TOTAL MOTOR POWER: | 34.82KW |
| Motor power of upper cutter shaft: | 5.5kw | Overall Dimensions: | 3070×1250×1600mm |
| Motor power of lower cutter shaft: | 4kw | Weight: | 2000kg |
