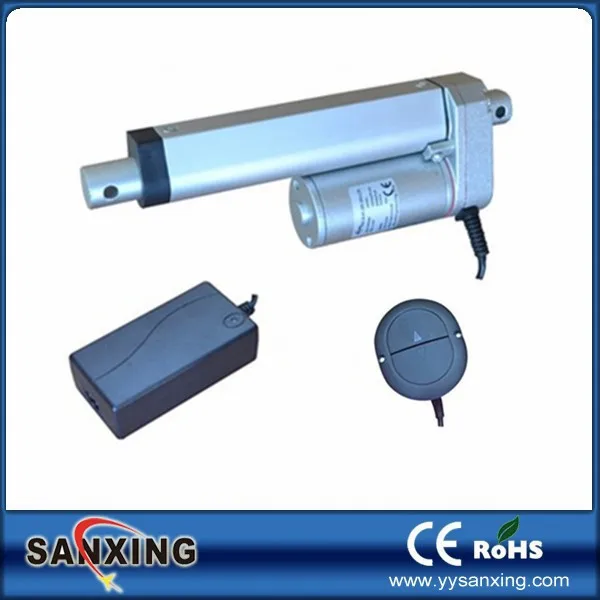

Low price low MOQ high waterproof linear actuator for window open and close

Product Overview

Description

 Low price low MOQ high waterproof linear actuator for window open and close



Product  description:



1.Light weight and compact structure;

2.Competitive price;

3.Simple installation;

4.Customized stroke;

5.Good service.



Technical data:

Input voltage:12V/24VDC

Max.Load:Push 1500N/pull 1500N

Speed: 5~35mm/s

Stroke(S): 25mm-1000mm

Minimum installation distance(A):stroke+105mm

Duty cycle: 15%

Limit switches:Built-in,factory preset

Operation temperature:-25 ℃~+65 ℃

Protection class:IP54

Rear connector: no ratation

Color:Black/silker















Application show:
