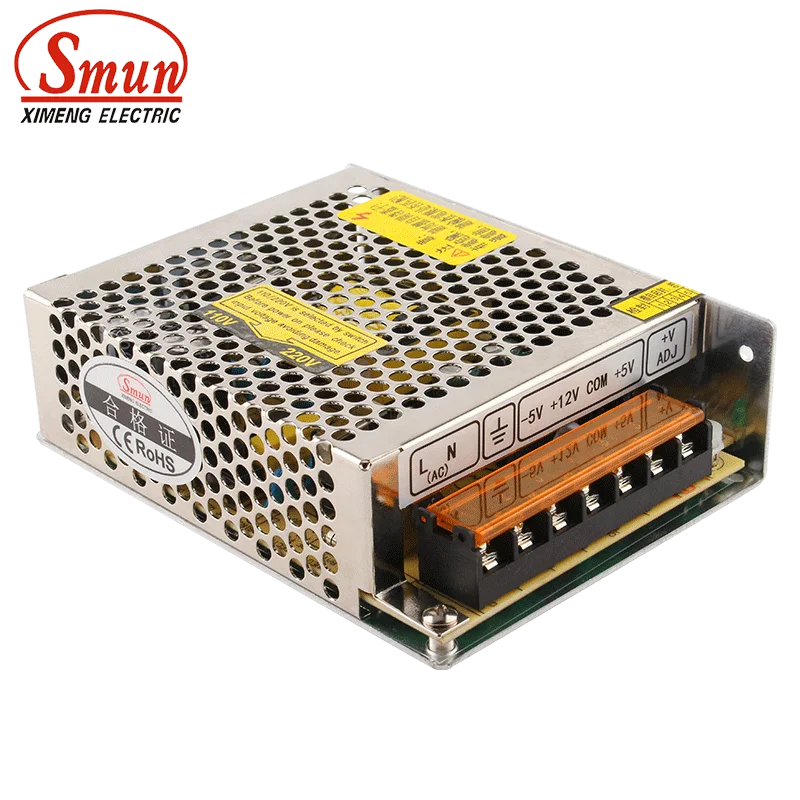

SMUN T 30B 5V 3A/ 12V 1A/ 12V 0.5A Triple Output Power Supply 30W SMPS With 2 Years Warranty
- Category: >>>
- Supplier: Zhejiang Ximeng Electronic Technology Co. Ltd.
Share on (60163910262):
Product Overview
Description
+5V 3A/+12V 1A/-12V 0.5A Triple Output Power Supply 30W SMPS
Features
· 1. AC input voltage range selected by switch
· 2. Small Volume,low weight,high efficiency
· 3. Protections:Short circuit/over load
· 4. LED indicator for power on
· 5. Triple output
· 6. 100% full load burn-in test
· 7. 2 years warranty
Product Description

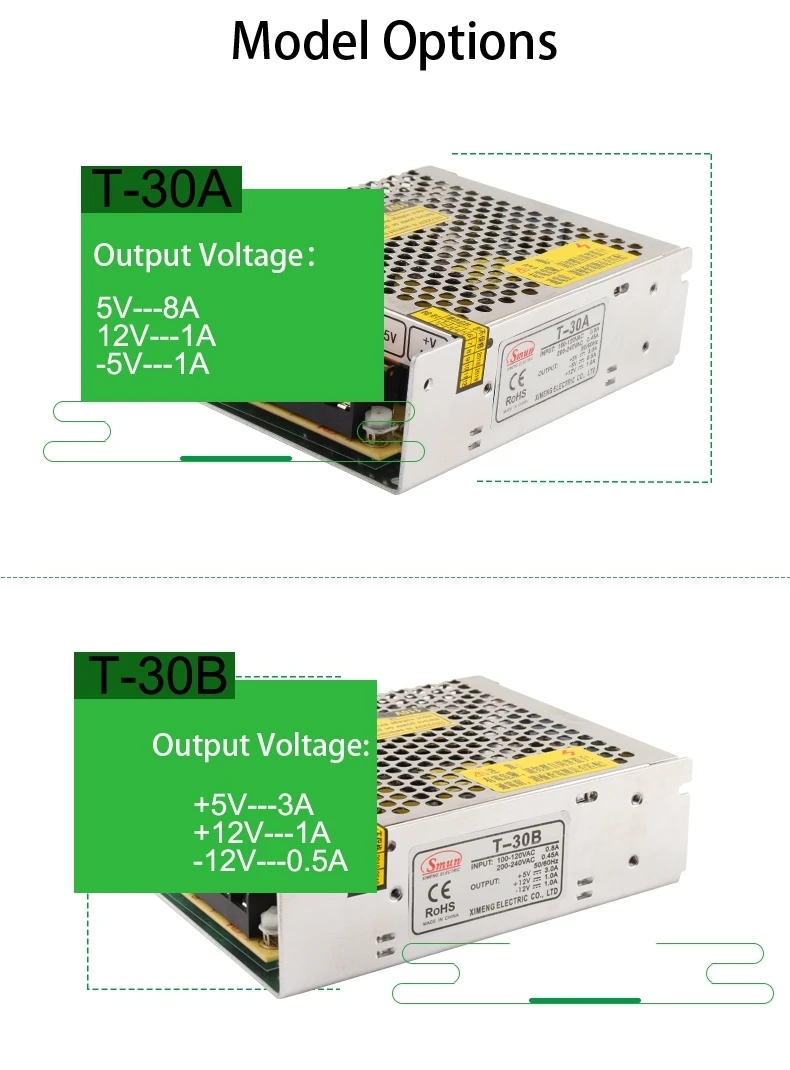

| Model | T-30A | T-30B | |||||
| Output | DC Voltage | Ch1:5v | Ch2:12v | Ch1:5v | Ch2:5v | Ch1:12v | Ch2:12v |
| Voltage tolerance | ±2.0% | ±6.0% | ±6.0% | ±2.0% | ±6.0% | ±6.0% | |
| Rated Current | 0.5-8A | 0.2-1A | 0-1A | 0.5-3A | 0.2-1A | 0-0.5A | |
| Related Power | 30w | 30w | |||||
| Wave&Noise | 80mVp-p | 120mVp-p | 80mVp-p | 150mVp-p | 120mVp-p | 150mVp-p | |
| DC Voltage ADJ range | Ch1:-9%~+10% | ||||||
| Set up,rise,hold up time | 200ms 100ms 30ms | ||||||
| Input | Voltage Range | 95 ~132VAC 180-264VAC 47-63HZ 120-370VDC | |||||
| AC Current | 1.6A/115VAC 0.8A/230VAC | ||||||
| Efficiency | 72% | 72% | |||||
| AC inrush current | Cold start current 18A/115V 36A /230VAC | ||||||
| Leakage current | <3.5mA/240VAC | ||||||
| Protection | Overload | Related output power 105-150% start overload protection | |||||
| Protection type: cutoff output, recovery after restart power | |||||||
| Over voltage | Ch2 :115%~135% | ||||||
| Hiccup mode,recovers automatically after fault condition | |||||||
| Environment | Working temp humidity | -10~+60°C 20%~90%RH | |||||
| Storage temp, humidity | -20~+85°C 20%~90%RH Non-condensing | ||||||
| Withstand vibration | 10-500Hz,2G 10min/1 cycle, period for 60min, each axes | ||||||
| Safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||||
| Isolation resistance | I/P-O/P:I/P-FG:O/P-FG: 100M Ohms/500VDC | ||||||
| Standard | Safety standard | Fit UL1012 | |||||
| Refer | Design refer to GB4943,UL60950,EN60950 | ||||||
| EMC standard | Design refer to GB9254,EN55022 Class A | ||||||

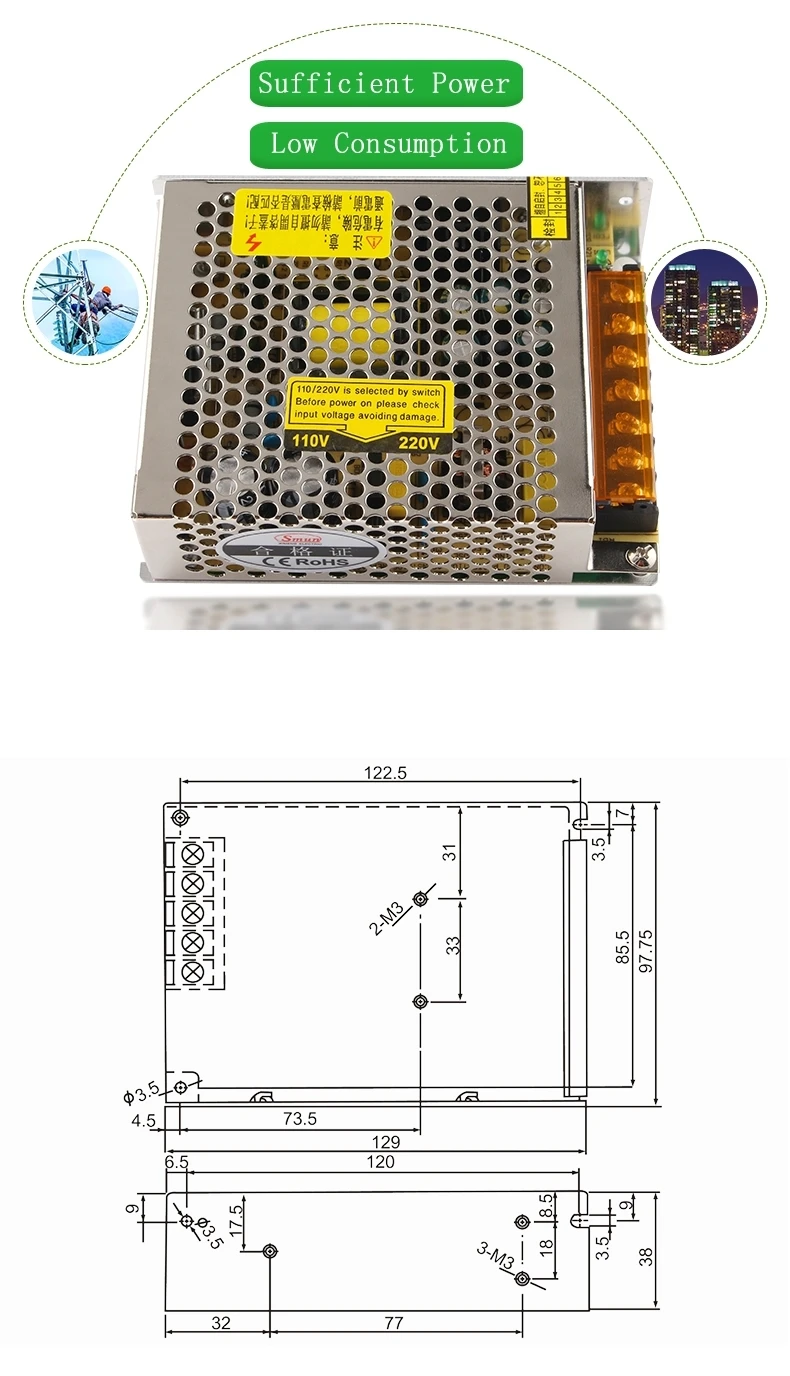

| Size | size | L129*W98*H38mm | |||||
| Package | 0.42kg, 45pcs/19kg | ||||||
| Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 degree of ambient temperature. | |||||||
| 2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor. | |||||||
| 3.Tolerance: includes set up tolerance, line regulation and load regulation. | |||||||
