In Mold Cutting Thermoforming Machine with robot stacker (whatsapp/viber 0086 13736907307)

Product Overview

Description

I. Usage:

It is suitable to form BOPS(OPS), HIPS, PS, PVC, PET and other plastic sheeet roll, which can produce various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, injection trays, oral liquids trays, etc.

Description: Automatic Plastic Air-Pressure Thermoforming Machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by a micro PLC, which can be operated in man-interface. It combines the material sending, heating, forming and cutting into one process. It has three operation models."manual","semi-automatic"and "automatic".



II. Features and Benefits:

1. In-mould cutting ensuring consistent and accurate trim

2. Oversized tie bars

3. Low energy consumption

4.  Double toggle system

5.  Multi-zone heating

6.  Minimum floor space requirements

7. Low air consumption

8.  Electric pre-heater

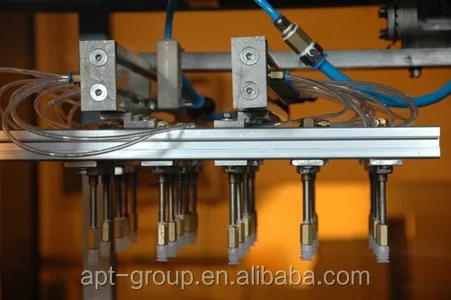

9.  Robotic Stacking equipment available



III. Main Technical Parameter:



Model	APT-510/580	APT-540/760
Max. Forming Area	510×580mm	540×760mm
Depth of Draw	≤120mm
Sheet Thickness	0.15-1mm
Max. Sheet Roll Dia.	710mm
Max. Knife Length	5500mm	7000mm
Used Sheet	BOPS,HIPS,PS,PVC,PET and etc.
Running Speed	10-25 (Mould/Min)
Power Consumption	5.5 Kilowatts/hr (Approximate)	7 Kilowatts/hr (Approximate)
Air Consumption	1.2 m3/min	1.6 m3/min
Water Consumption	0.01 m3/min(15-20°C)	0.015 m3/min
Power Supply	380V,50Hz, (Tri-phase, Four wire)
Overall Dimension	2.75×1.41×2.15(m)	2.75×1.7×2.5×(m)
Weight	2.5T	3.0T

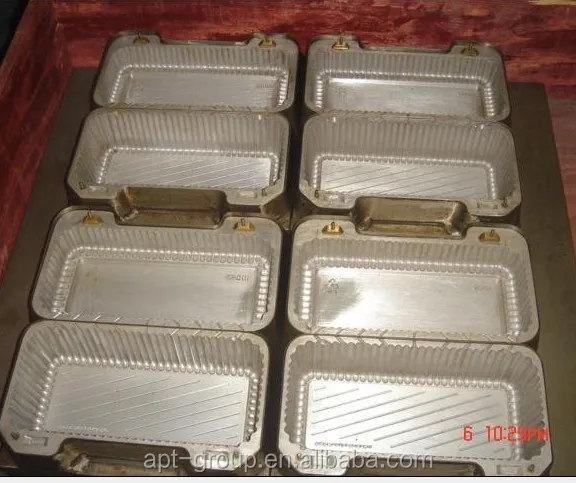

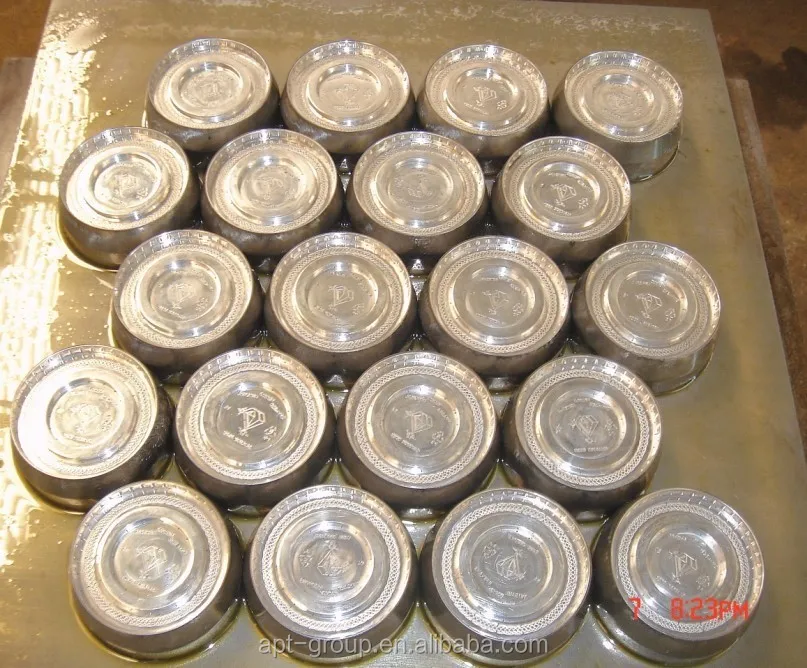

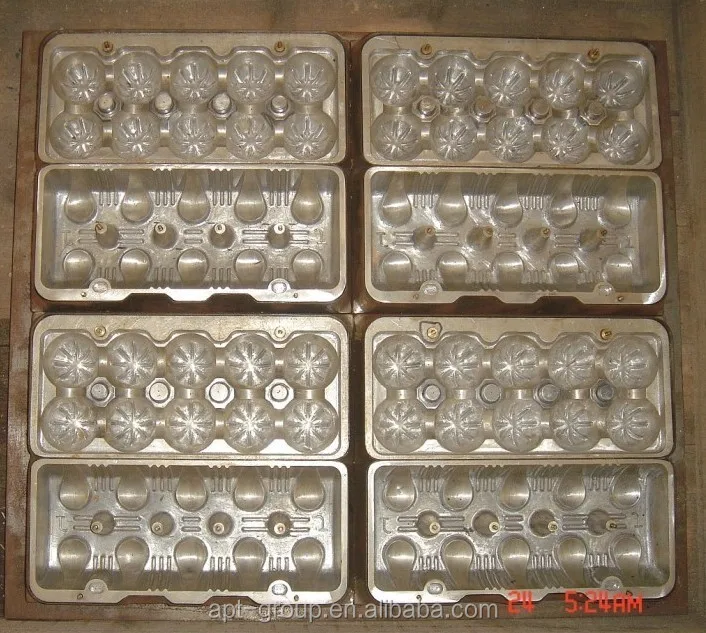

IV. Samples:



V. Auxiliary Machines For BOPS Thermoforming Machine:

1- 3HP Air Cooling Chiller: 1 Set

2- 3m³ Air Compressor: 1 Set





VIDEO LINK

https://www.youtube.com/watch?v=mJkXO7Tu-3k
