Горизонтальный Вертикальный кожух PF100B/5C

Product Overview

Description

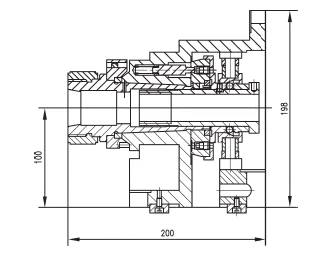

PF100B/5C Horizontal Vertical Collet Index:







Model no.	PF100B/5C
Height of centre	100mm 3-15/16"
Thread of spindle nose	2.25"-8
Radial run-out of center hole of spindle(measured from spindle nose 25mm/0.98"	0.02mm 0.0008"
End surface run out of the spindle's support shoulder	0.01mm 0.0004"
Parallelism of centre line of spindle to base surface	0.02mm 0.0008"
Dividing accuracy individual spacing error	±3"



1.With indexing specifications of 2.3.4.6.8.12 and 24 indexes,It has operational and vertical applications and has such unique properties as smaller dimension lighter in weight,durable high strength.



2.This unit can be used singly also can complete with PF100 center(purchsed specially).
