Hot Sale vertical panel saw With CE Certificate
- Category: >>>
- Supplier: Foshan Zhonghaoxing Woodworking Machinery Co. Ltd.
Share on (60164234840):
Product Overview
Description
Main Feature:
1) This machine is used for all kinds of panels
2) It's used to trim cubic wood to be clear.
4) This machine is used for all kinds of panels
5) It's used to trim cubic wood to be clamped and panels which have been cut with Single side saw or multiple side saw
6) It can ensure the straightness of panel and cubic wood and make the joint more firm
7) It's suitable for producing solid wood furniture and joinery board

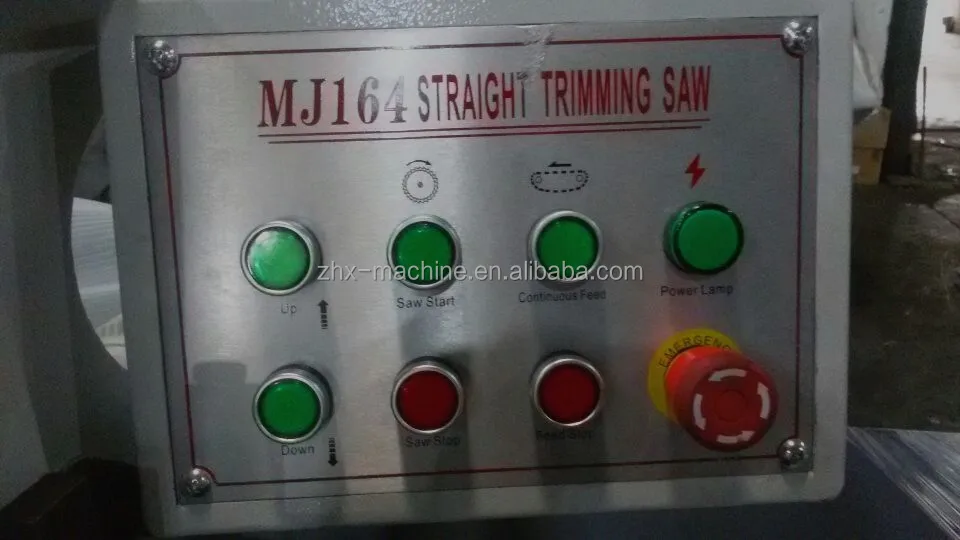

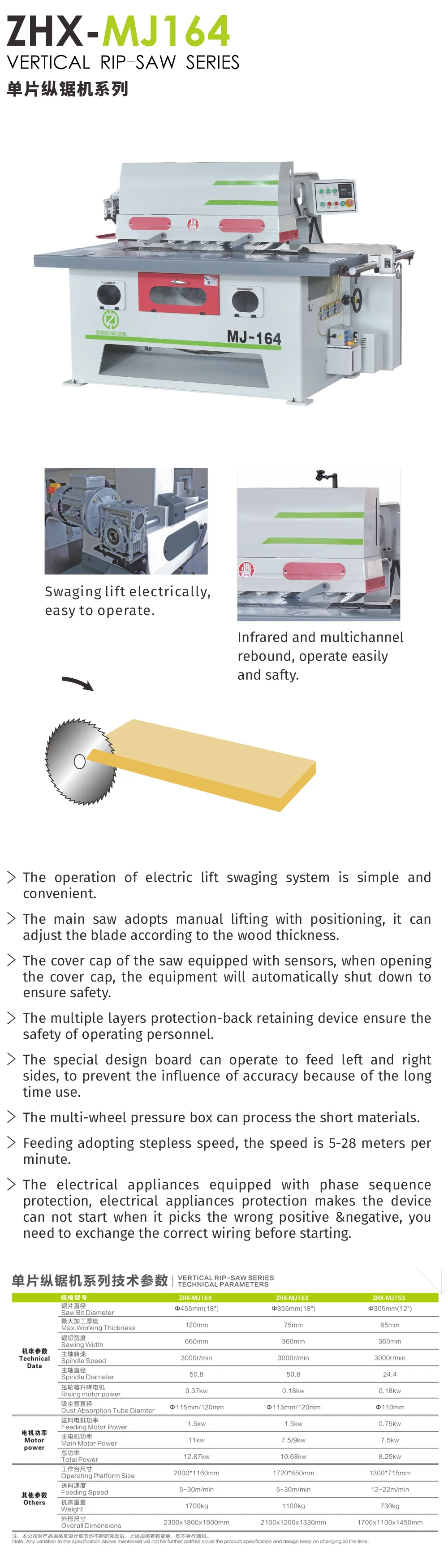

| Technical Date | ZHX-MJ164 | ZHX-MJ163 | ZHX-MJ153A |
| Saw Bit Diameter: | Ø455mm(18")Min400(16") | Ø355mm(14") | Ø305mm(12") |
| Max Working Thickness: | 110mm | 75mm | 85mm |
| Sawing Width: | 660mm | 360mm | 360mm |
| Spindle Speed: | 3000r/min | 3000r/min | 3000r/min |
| Spindle Diameter: | Ø50.8 | Ø50.8 | 24.4 |
| Feeding Speed: | 11-26m/min | 0-30m/min | 12-22m/min |
| Feeding Motor Power: | 1.5kw | 1.5kw | 0.75kw |
| Main Motor Power: | 11kw | 7.5kw | 7.5kw |
| Total Power: | 12.5kw | 9.02kw | 8.25kw |
| Operating Platform Size: | 2000×1160mm | 1720×850mm | 1300×715mm |
| Overall Dimensions: | 1920×1200×1400mm | 1950×950×1350mm | 1550*1000*1600mm |
| Weight: | 1740kg | 1400kg | 700kg |
