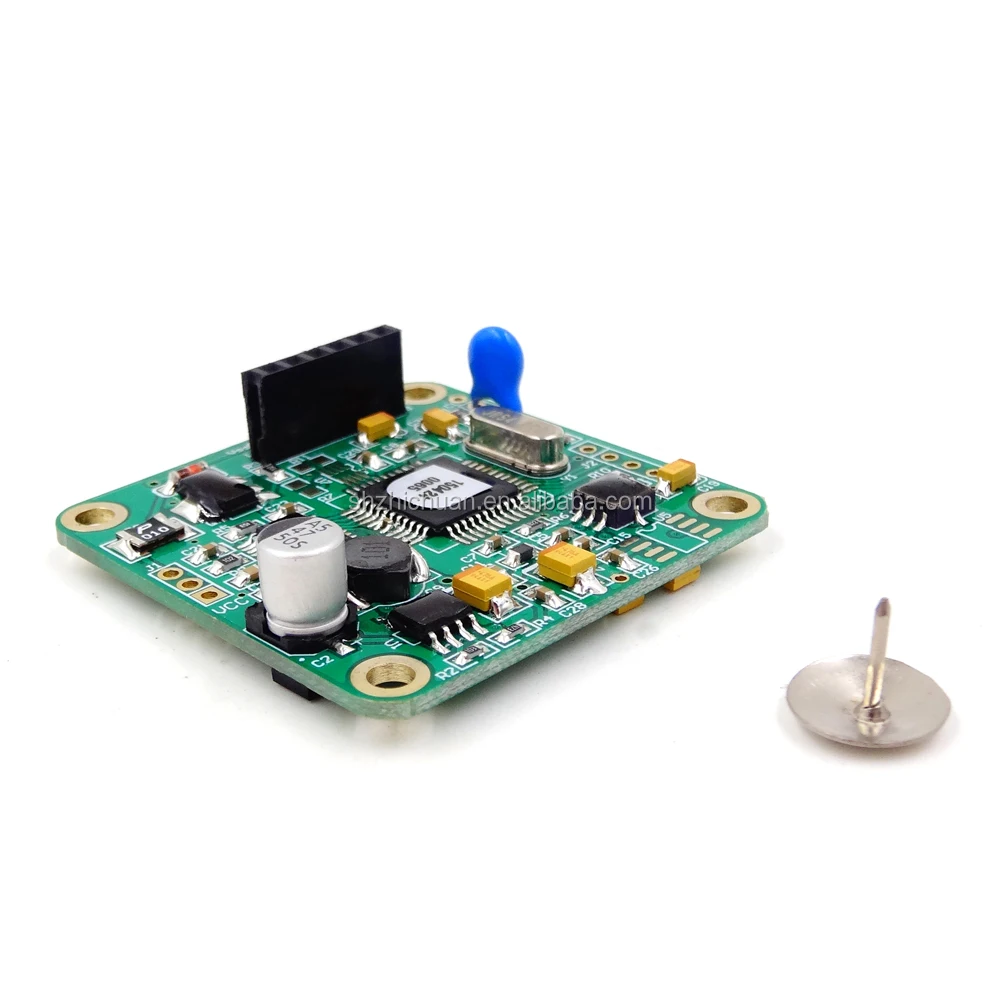

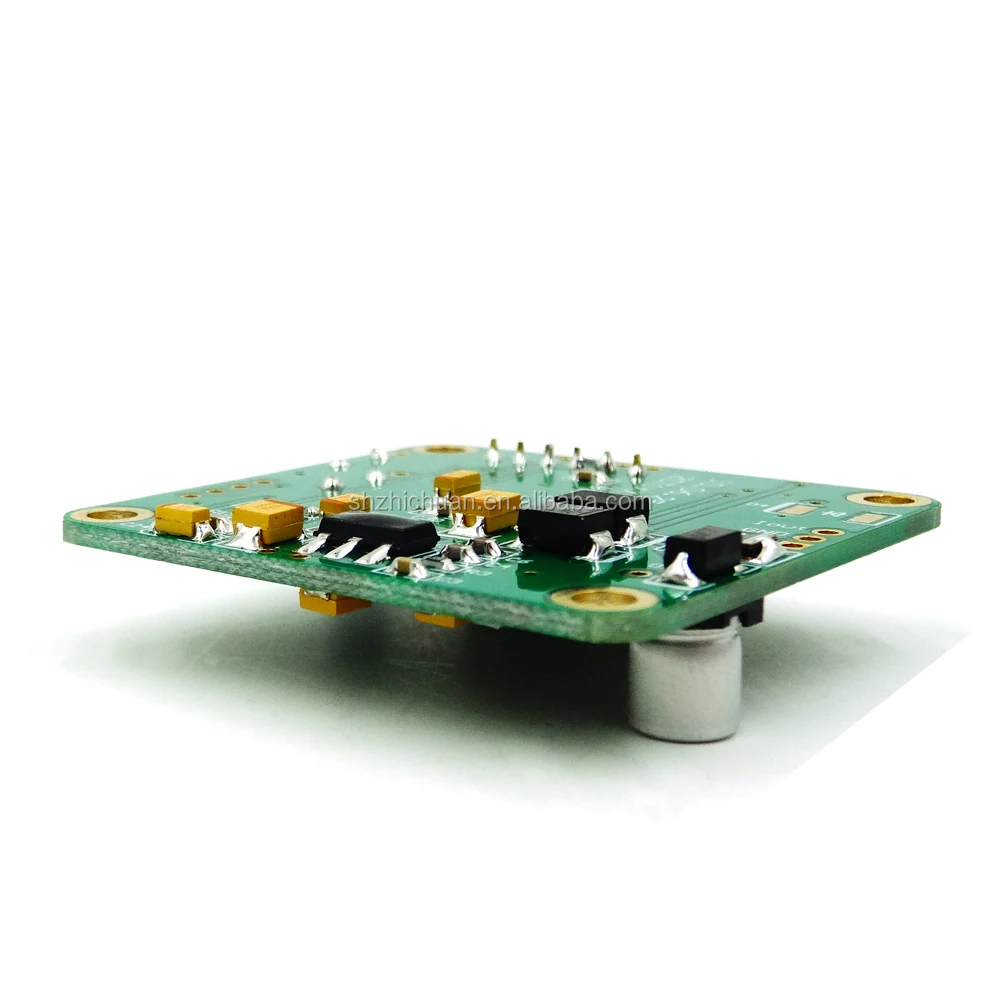

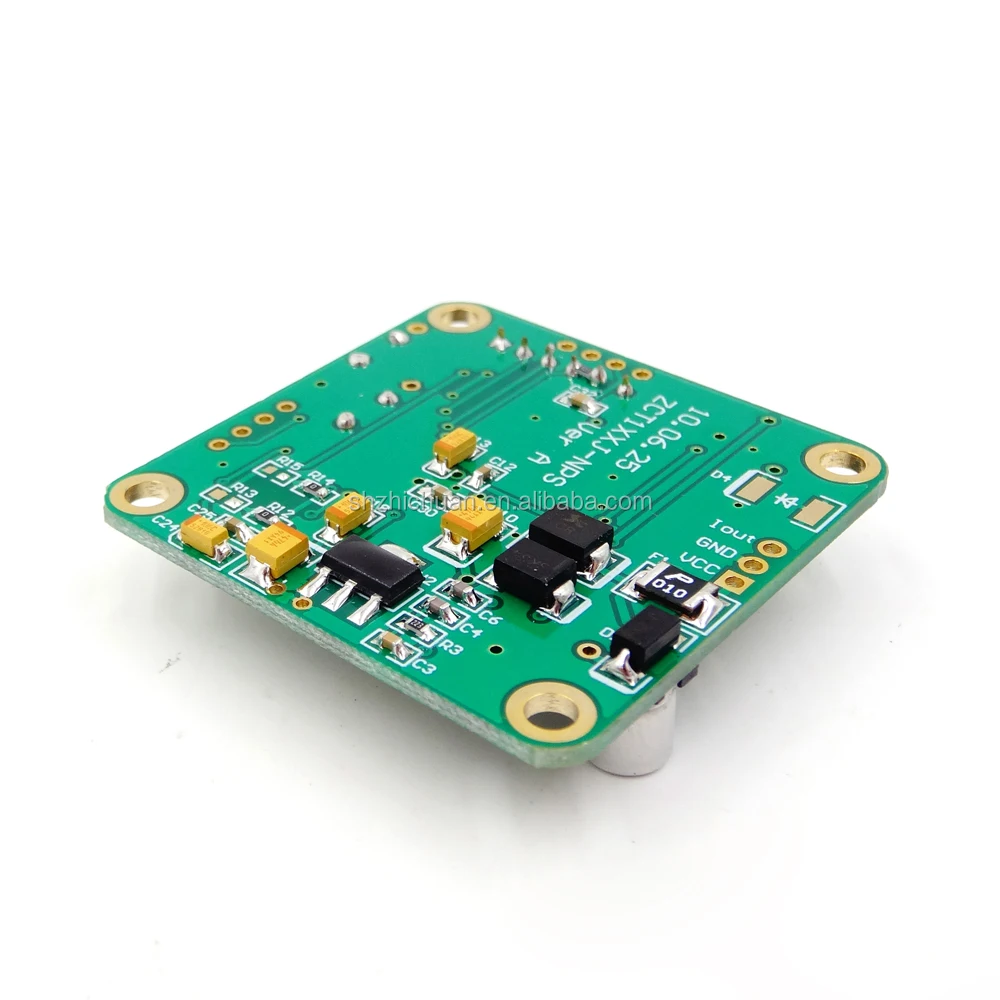

Cheap single axis RS485 angle sensor for solar tracker with CE Certificate
Product Description
ZCT1XXJ-XXX-17 single axis inclinometer is researched and produced by Shanghai Zhichuan. Its measuring range is 0-360 degree, outputs full duplex RS232 and half duplex RS485; It has zero-setting and baud rate optional function.
Part number introduction
Specifications (Testing temperature default is 25±3°C)
Item
Condition
Min.
type.
Max.
Unit
Operating parameter
Supply voltage
@5V
4.8
5.0
5.2
V(DC)
@7~15V
7
12
15
V(DC)
Quiescent current
@5V
25
mA
@7~15V
35
mA
Performance parameter
Measuring range
Single axis
0
360
°
Resolution
0.1
°
Accuracy
RMS
±0.5
°
Zero temperature drift
-25~+85°C
±0.03
°/°C
-40~+85°C
±0.05
°/°C
Output frequency
3
Hz
Others
Operating temperature
-40~+85
°C
Protection grade
IP67
Housing size
46*41*15.2
mm

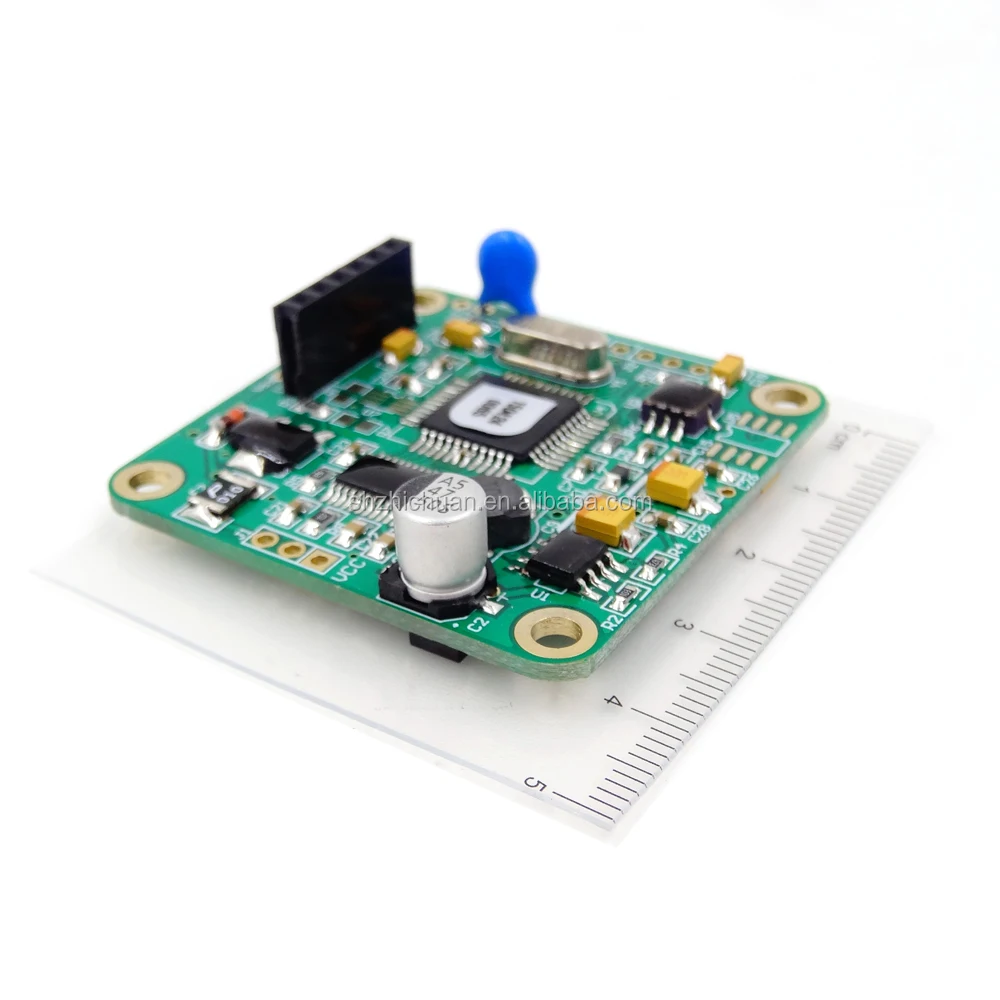

PCB size
25.4*25.4
mm
Definition of connection and module size
Our Services
1.Experienced staffs answer all your questions in fluent English.
2.Customizde design is available.OEM productsare welcomed.
3.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers
Company Information
We are the manufactureof tilt sensor and inclinometer in shanghai china.Our sensor is based on MEMS technology. As a professional manufacturer of tilt sensor in China, we can provide following service for you:
