(ZCTR02A)ZC customized cheap cranes solution tilt sensor indicator

What is Features of our tilt sensor indicator?

ZCTR02 is a display which researched by Shanghai Zhichuan Electronic Tech Co.,Ltd.

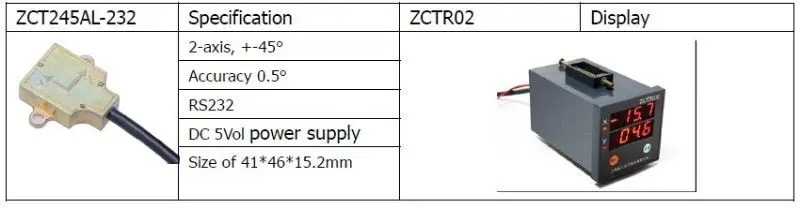

It is compatible for the following models: ZT245AN-232, ZCT245AN-TTL, ZCT245AL-232, ZCT245AL-TTL. Users can set the alarm angle according to one’s requirement. When the received angle value is greater than the alarm angle,

ZCTR02 light is power on to alarm. at the same time, the internal relay will be closed, trigger an external control circuit,

consequently play a controlling role.

What is Specifications of our tilt sensor indicator

Parameter	Value	Unit	Remark
Operating Voltage Range	9~36	V	DC
Quiescent current	<80	mA
Display Resolution	0.1	Degree
Baud Rate	9600	bps
Operating temperature	-20~+60	°C
Operating Voltage of Relay	Max:125 Min:60	V V	AC DC
Loading Capacity of Relay	1A 30VDC 0.3A 60VDC 0.5A 125VAC
Outline Size	72*72*120	mm	W*L*H

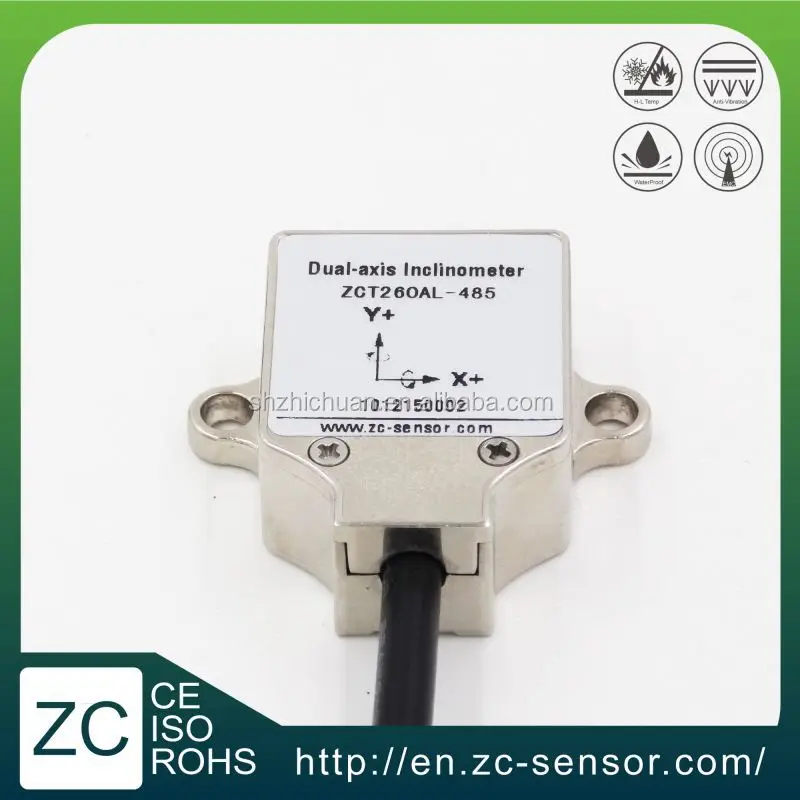

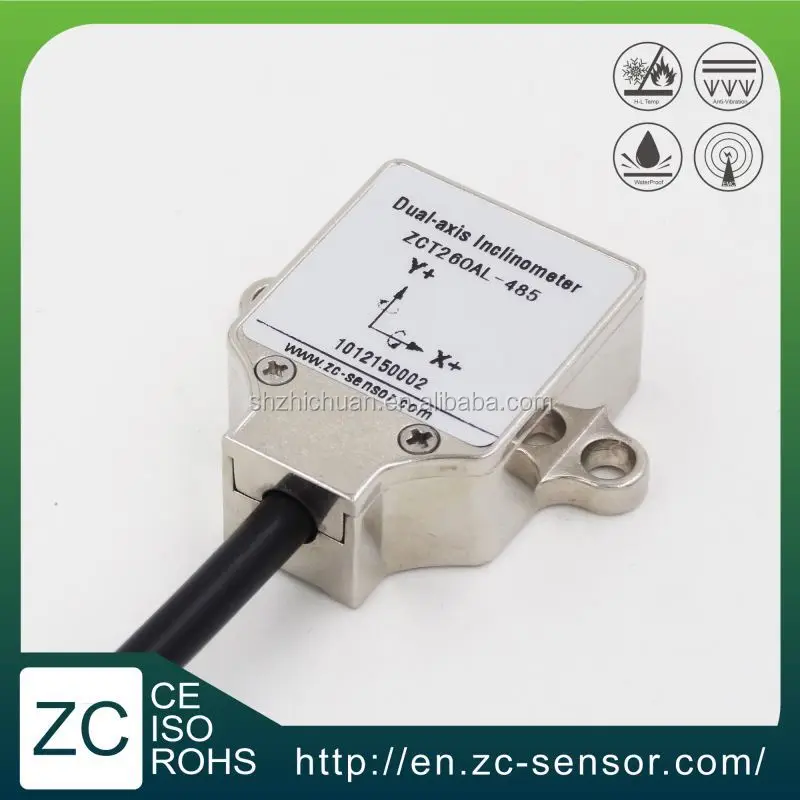

Product Photos





What is Packing Information of our tilt sensor indicator?

Our Certifications



Company View



What is Our Advantages?

1.Rapid response on any inquiry.

2.Competitive price.

3.Professional inspection department to guarantee quality.
