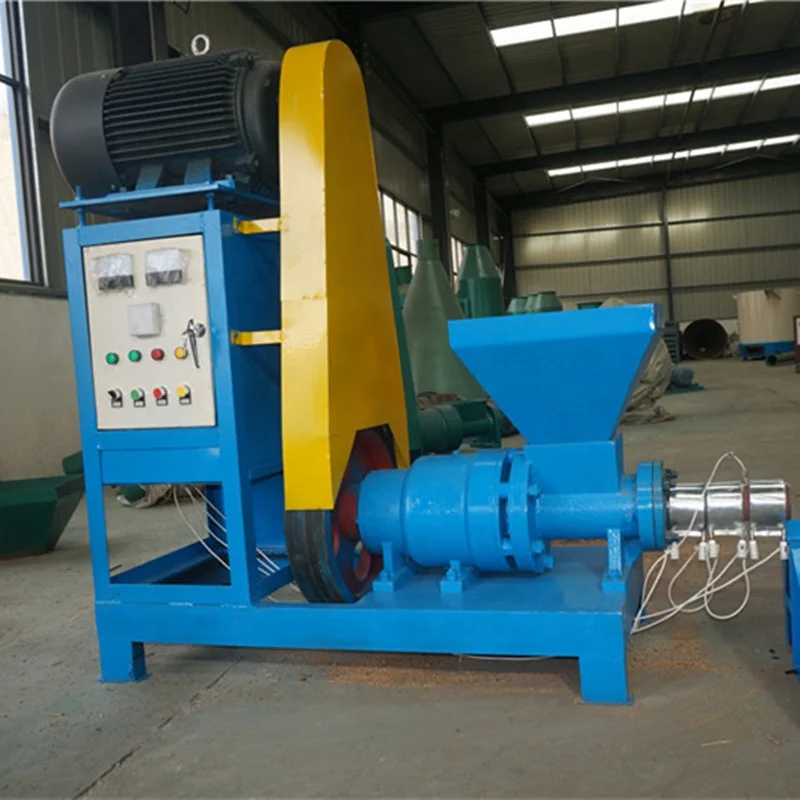

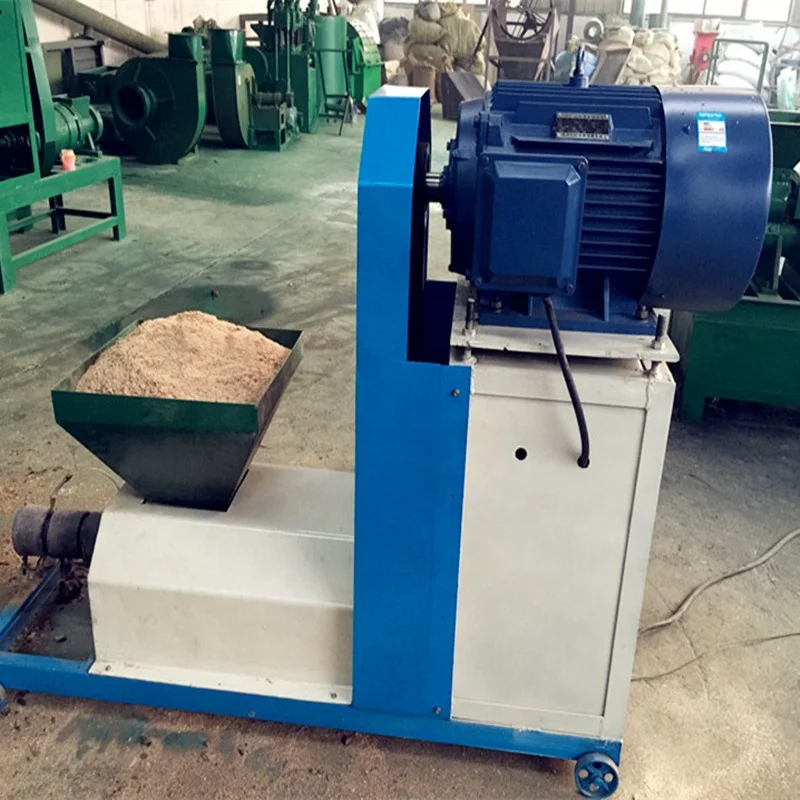

CE certification wood pellet briquette press machine

Product Overview

Description

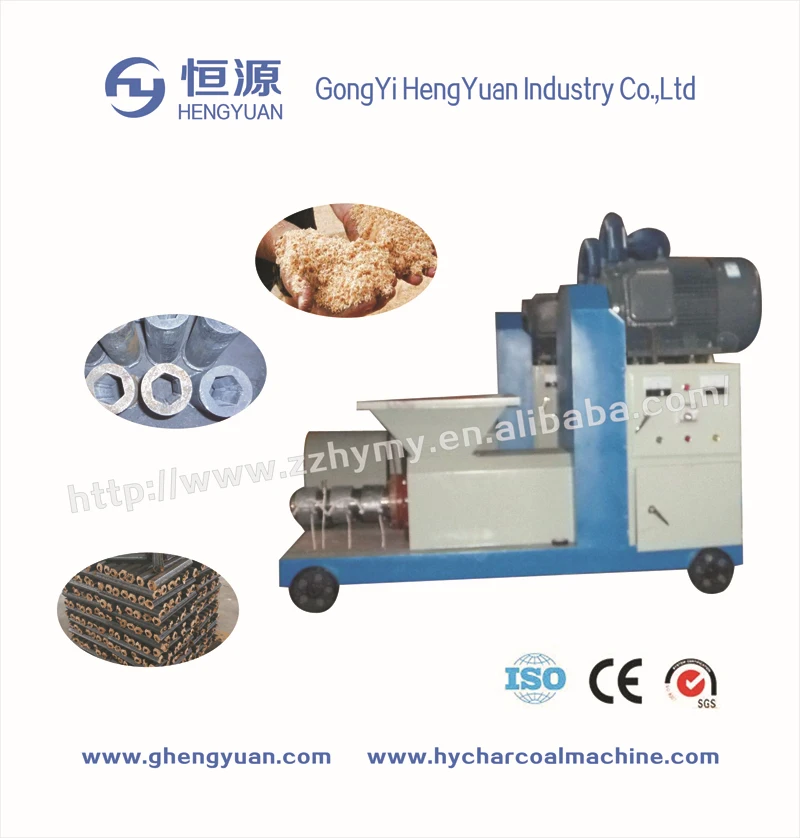

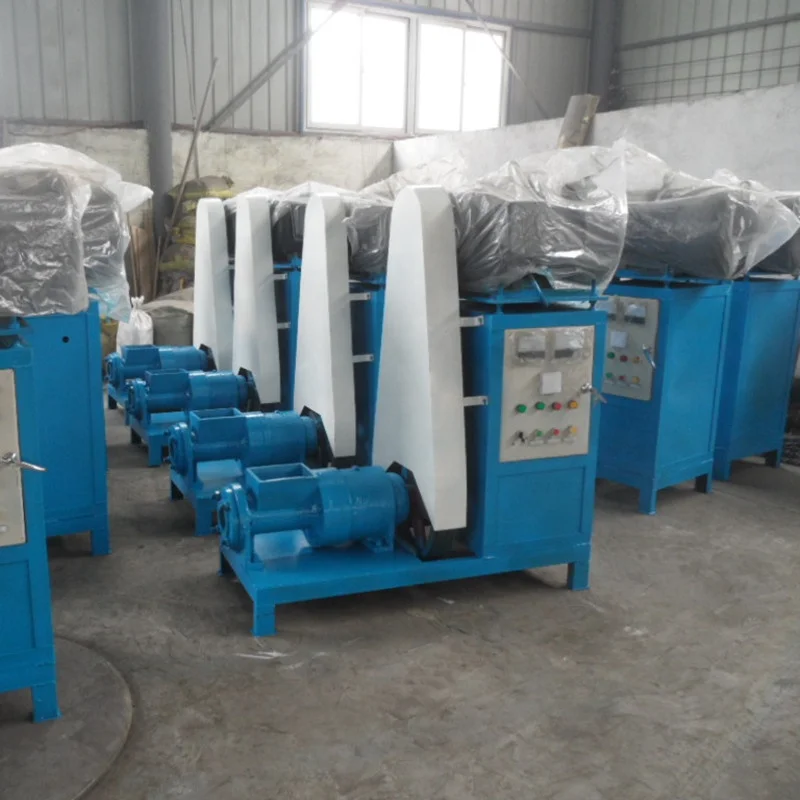

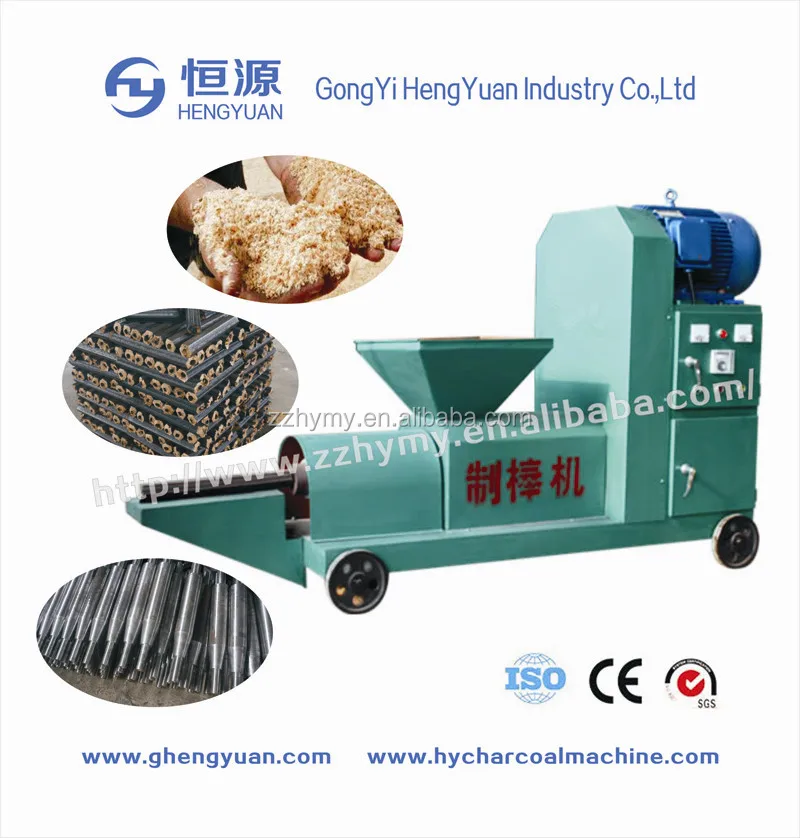

CE certification wood pellet briquette press machine



Brief instruction for wood pellet briquette press machine

Almost all the wood waste can be used as sawdust briqutting machine raw material, such as sawdust, wood sawdust, wood powder, wood chips, rice husk tree branchsand so on. But the diameter should less then 5mm. If the raw material cannot achieve requirement, it should be crushing first, and the moisture of the raw material is about 8-12%.



Main technology parameter for wood pellet briquette press machine

Model	Power	Capacity	Weight	Dimension	Note
ZBJ-1	15kw	120-200kg/h	550KG	1.68*0.72*1.25m	Briquettes size: 50mm
ZBJ-2	18.5kw	250-300kg/h	680KG	1.86*0.72*1.32	Briquettes size: 60-70mm
ZBJ-3	22kw	350-450kg/h	750KG	1.96*0.72*1.32	Briquettes size: 60-80mm



Raw materials for wood pellet briquette press machine

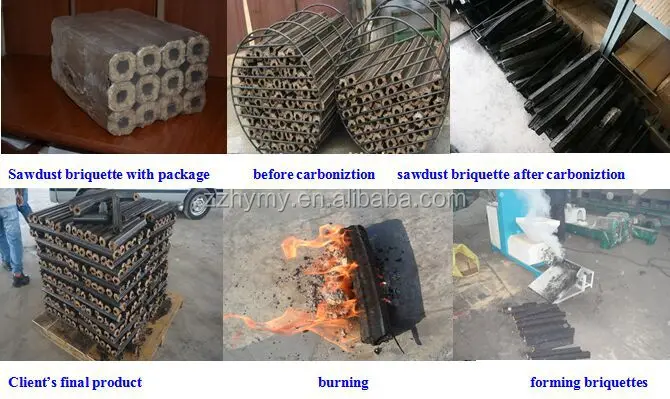

Final prodcut for wood pellet briquette press machine

Wood pellet briquette press machine final prodcuct shape mainlly is round, hexagon, square

and etc. We also could custom-made special mould, the diameter is 50mm, 60-70mm and 60-80 mm, diameter 60-80mm briquettes is the most stable capacity, the length is 30-40mm.



Working process of wood pellet briquette press machine

Main wokring process: crusher----dryer----briquettes machine ----carbonization

1.If the raw material is bigger then 6mm, we need crushing it first, with the crusher, final product daimeter need be 3-6mm.

2.Raw material moisture need less then 14%, if the moisture is too high, it will destory the briquette machine, so normally the moisture need less then 14%, we could according to your production line capacity, suggest a suitable dryer for you.

3.Put the raw material into the briquette machine feed hole, forming briquette.

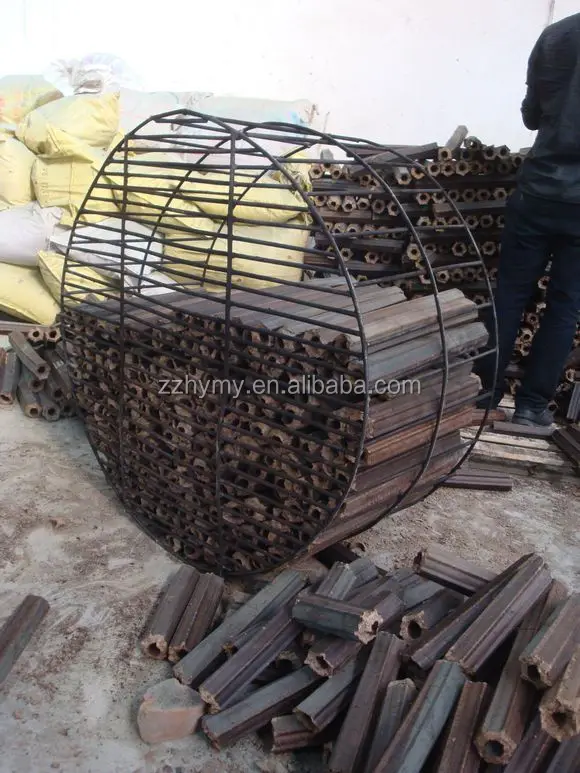

4.Put the sawdust briquettes to charcoal furnace, lighting the fire, start the carbonizaition, the carbonizating time about is 8-10 hours, then take out the inner basket cooling it 5-8 hours, get the charcoal briquettes.

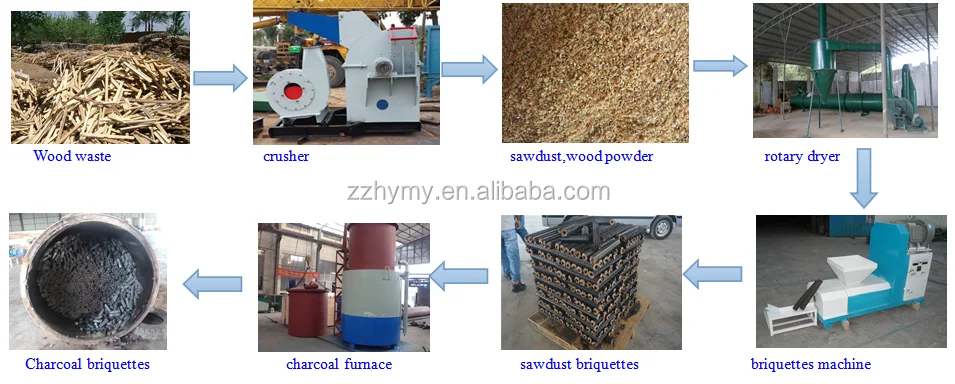

5.Whole production line working process is following picture.

Our company engineer helped our clients installing wood pellet briquette press machine

Our company cotton stalk briquette machine price, sawdust briqutting machine production line is popular in all over the world, if your prodction line is a big capacity working line, we also could provided engineer to help clients install the machine, and train how to operating the machine, how to maintance the machine.

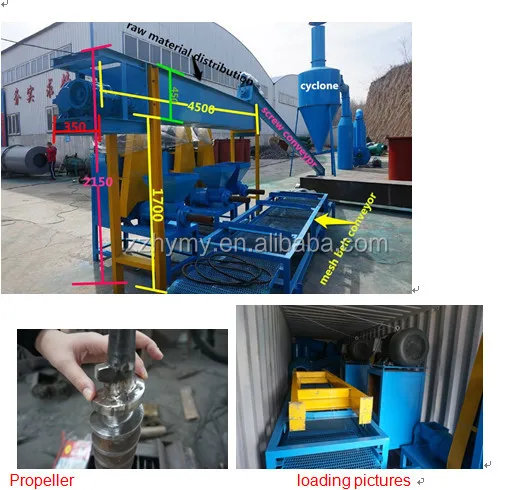

This is some pictures which our engineer installed the production line for our clients

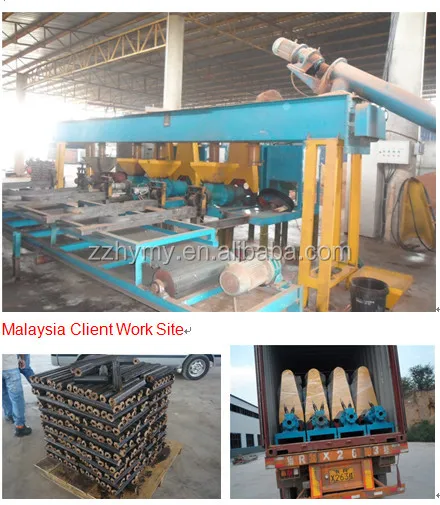

Wood pellet briquette press machine in Malaysia

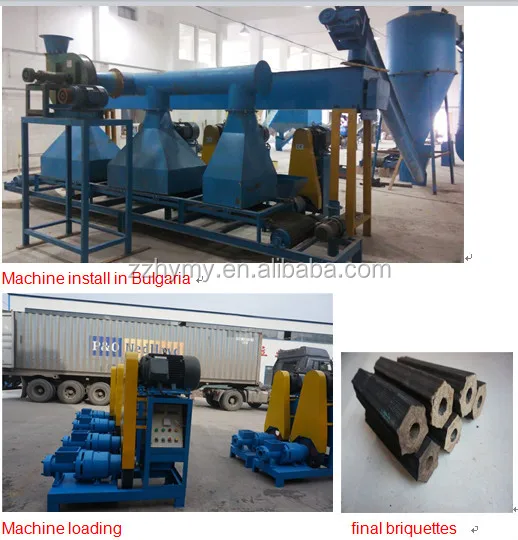

Wood pellet briquette press machine in Bulgaria



Wood pellet briquette press machine in Guatamala

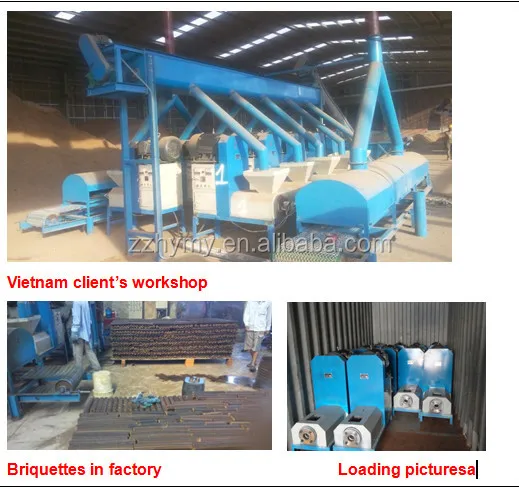

Wood pellet briquette press machine in Vietnam



Advantages for wood pellet briquette press machine

1 Increase the net calorific value per unit volume after carbonization

2 Easy to transport and store as densified product

3 Better solution to the problem for residue disposal

4 Uniform in size and quality as a kind of biofuel briquette



If you are interested in this wood pellet briquette press machine, please contact with me freely as the followings:
