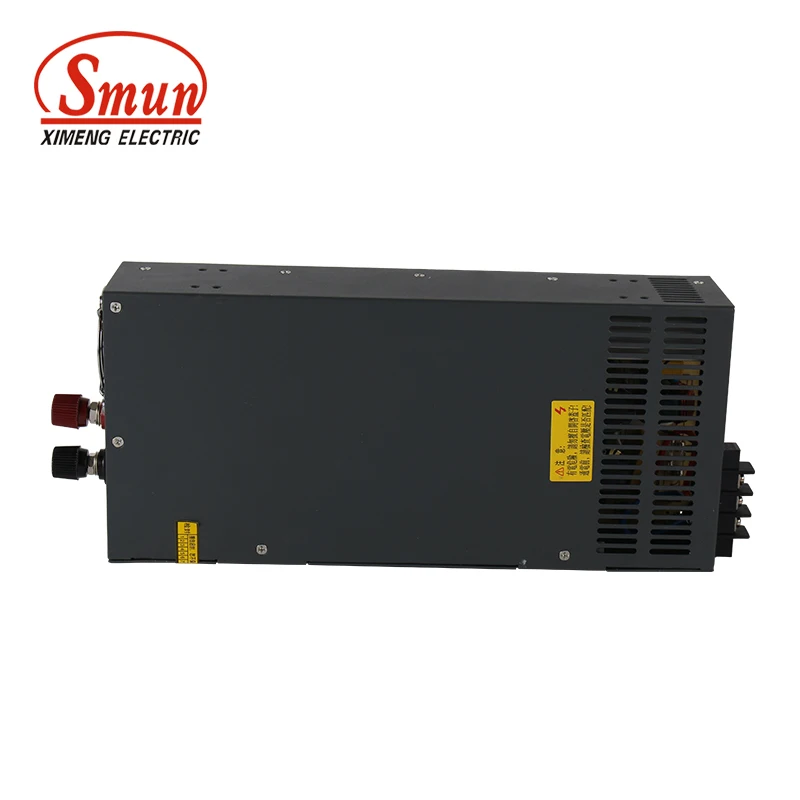

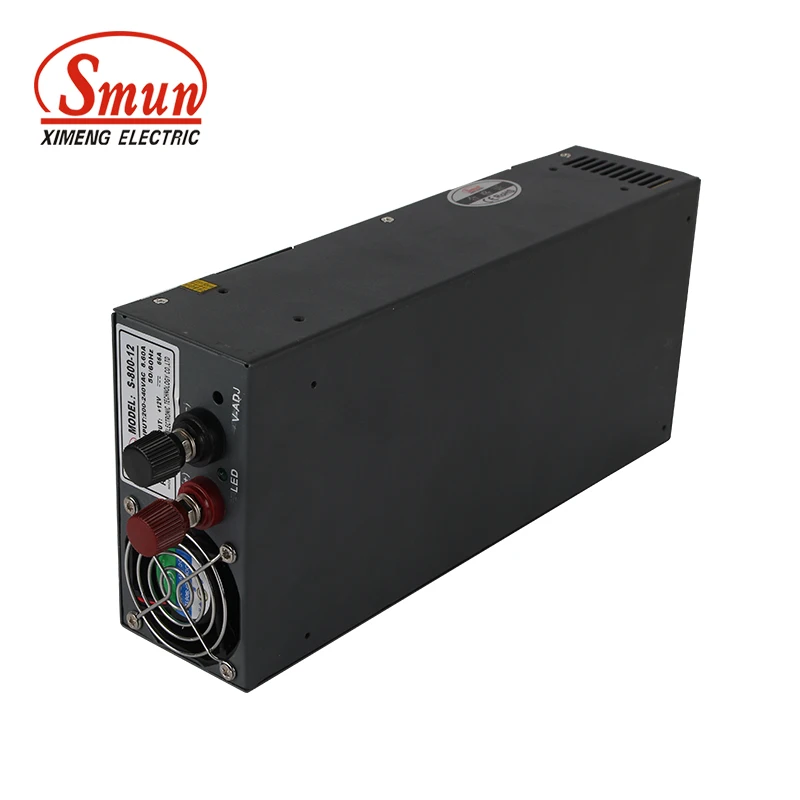

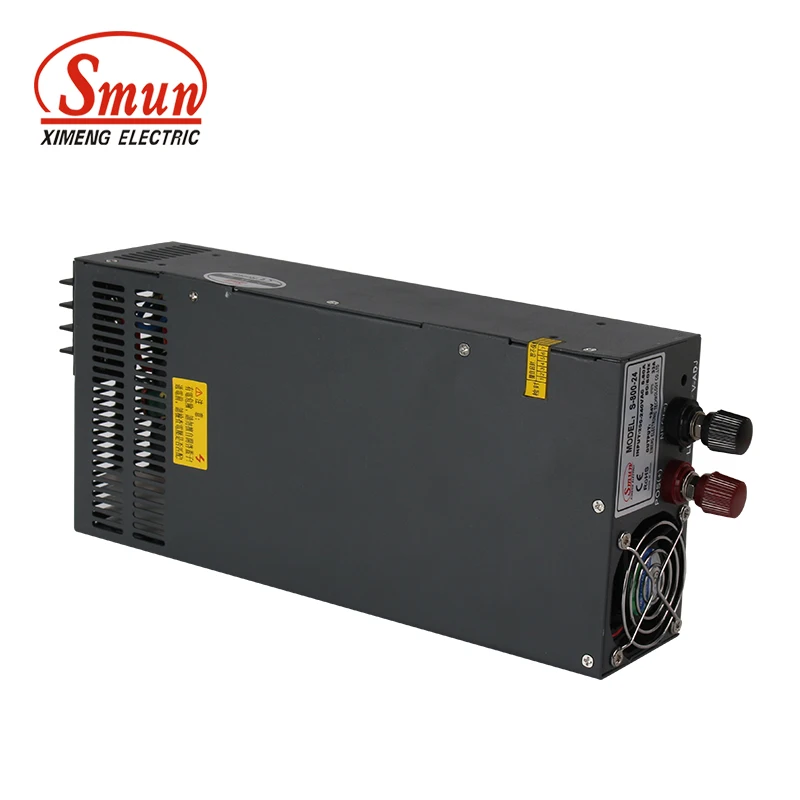

SMUN S 800 48 800W 48V 17A DC Output Switching Mode Power Supply Non Waterproof SMPS

SMUN S 800 48 800W 48V 17A DC Output Switching Mode Power Supply Non Waterproof SMPS

Price:

Quantity:

Model		S-800-12	S-800-15	S-800-24	S-800-48
Output	DC output Voltage	12V	15V	24V	48V
	Voltage tolerance	±1.0%	±1.0%	±1.0%	±1.0%
	Rated Current	66A	53A	33A	17A
	Related Power	800w	800w	800w	800w
	Wave&Noise	240mVp-p	240mVp-p	240mVp-p	300mVp-p
	Adjustable range for DC Voltage	±10%	±10%	±10%	±10%
	Set up,rise,hold up time	200ms 100ms 30ms
Input	Voltage Range	170-264VAC 47-63HZ
	Input Current	7A/230VAC
	Efficiency	82%	84%	86%	87%
	AC inrush current	Cold start current 50A /230VAC
	Leakage current	<3.5mA/240VAC
Protection	Overload	Related output power 105-150% start overload protection
		Protection type: cutoff output, recovery after restart power
	Over voltage	13.8V-16.2V	17.2V-20.2V	27.6V-32.4V	55V-64.8V
		Hiccup mode,recovers automatically after fault condition
Environment	Working temp humidity	-10~+60°C 20%~90%RH
	Stor temp, humidity	-20~+85°C 20%~90%RH Non-condensing
Safety	Withstand voltage	I/P-O/P:1.5KVAC 1min
		I/P-FG:1.5KVAC 1min
		O/P-FG:0.5KVAC 1min
Standard	Safety standard	Fit UL1012
	Refer	Design refer to GB4943,UL60950,EN60950
	EMC standard	Design refer to GB9254,EN55022 Class A

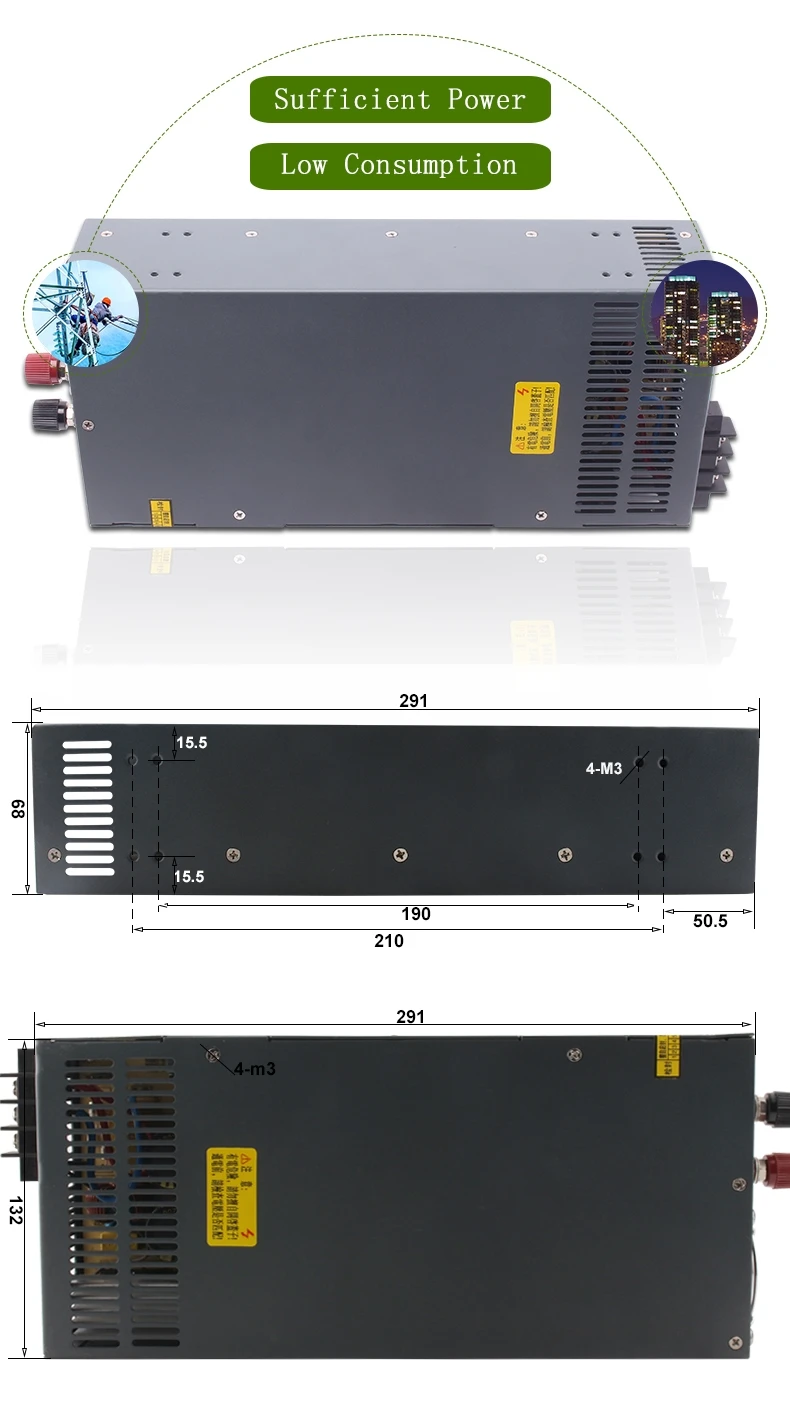

Size	size	L291W132H68mm
	Package	2.4kg, 4pcs/10kg
