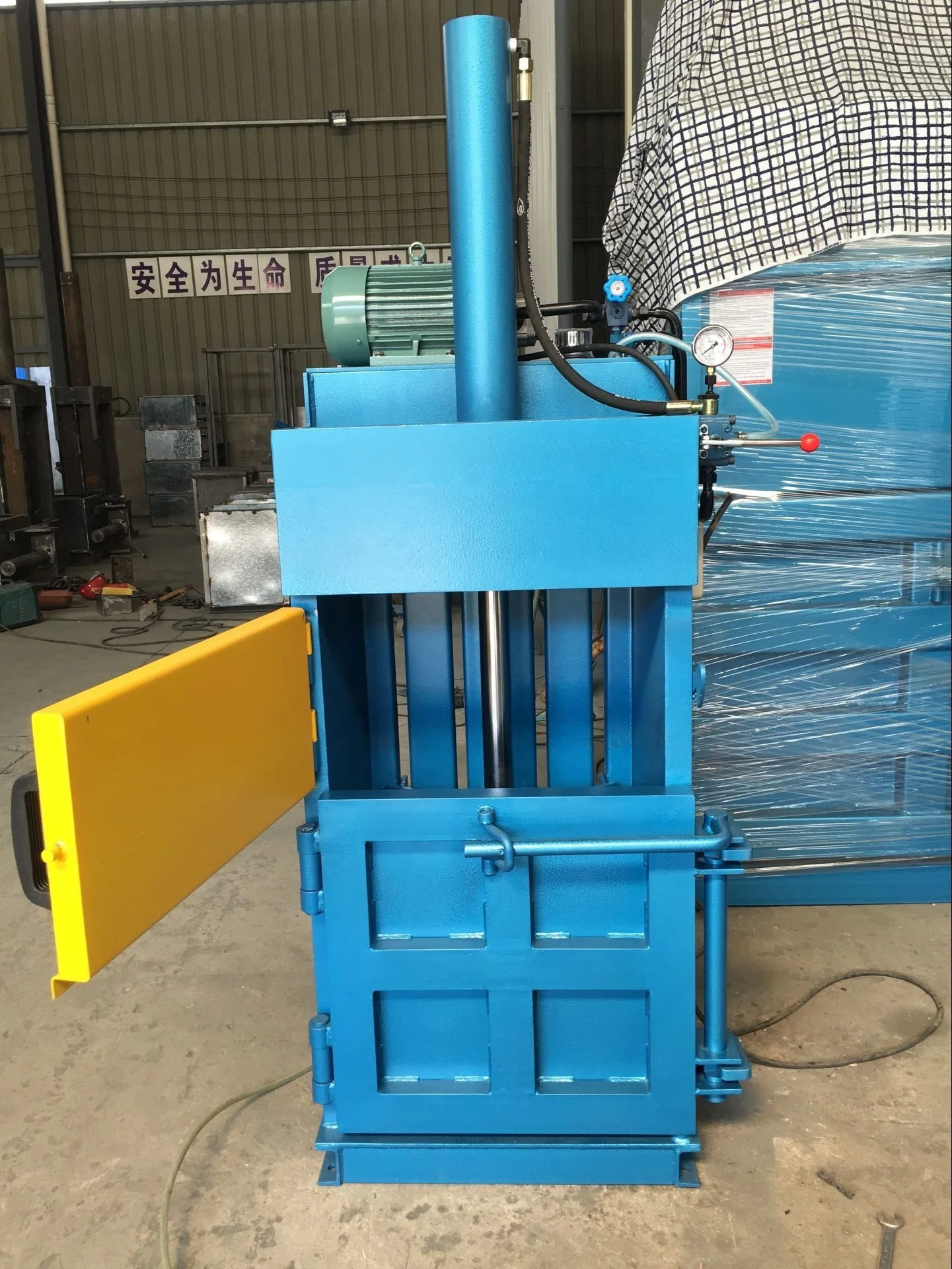

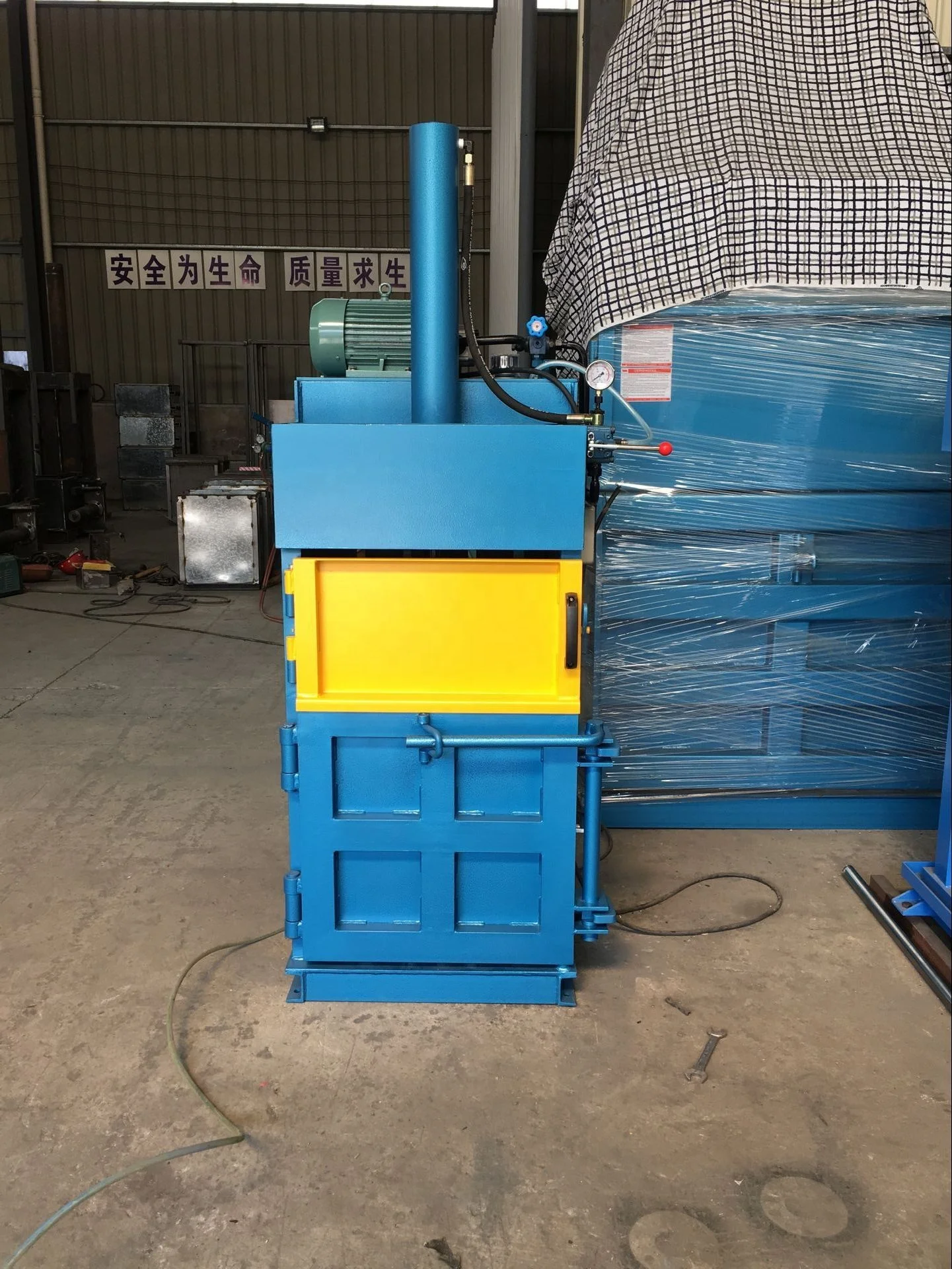

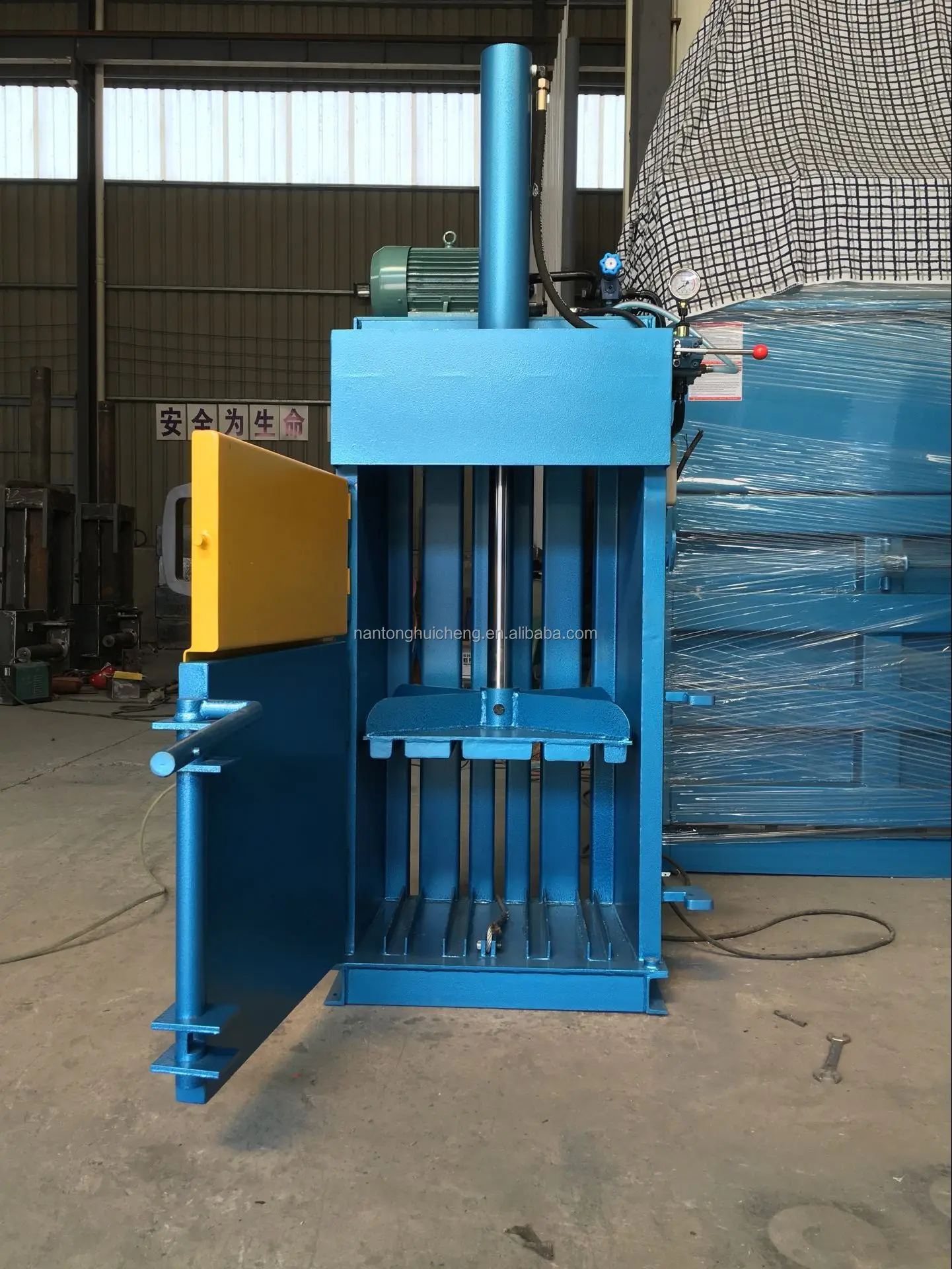

CE certificated hydraulic vertical waste paper used cardboard carton baling press
- Category: >>>
- Supplier: Rugao Huicheng Hydraulic Machinery Co. Ltd.
Share on (60165083095):
Product Overview
Description
CE certificated hydraulic vertical waste paper used cardboard carton baling press
This series machine mainly is used for baling cartons, cotton yarn, plastic, wood, etc. It is designed as vertical structure, hydraulic transmission, electrical control and manual binding. Usually the pressureforce of this series is from 10 ton KN to 60 ton KN, the efficiency is 4 ~ 6 pieces per hour. The weight of each piece is from 30 Kg to 300 Kg according to the material. Also, we can produce the machine according to the requirement from customer.
Features:
- Adopting a hydraulic drive mechanism, Use less energy, with huge operating energy
- Electric button control, it can reaches manual adjusting and semi automatic control.
- Independent feeding opening with automatic pulling out installation, to reduce labor force.
- It can be made according to the demands of customers, and the bale can be binded into “---” and “#” shape.
Technical data
The bale weight is for waste paper for reference !
Model | Force | Bale size | Bale weight | Efficiency | Power (KW) | Machine weight | Size (mm) |
HM10-6040 HE10-6040 | 10 Ton | 600*400 mm | 30-50 KG | 4-6 bale/hour | 2.2 | 1000 KG | 900*650*2100 |
HM20-8060 HE20-8060 | 20 Ton | 800*600 mm | 80-100 KG | 4-6 bale/hour | 3 | 1100 KG | 1000*750*2750 |
HM30-8060 HE30-8060 | 30 Ton | 800*600 mm | 100-130 KG | 4-6 bale/hour | 4 | 1300 KG | 1000*750*2750 |
HM30-11070 HE30-11070 | 30 Ton | 1100*700 mm | 130-150KG | 4-6 bale/hour | 4 | 1700 KG | 1350*850*3200 |
HM40-11070 HE40-11070 | 40 Ton | 1100*700 mm | 180-200KG | 4-6 bale/hour | 5.5 | 1800 KG | 1350*850*3200 |
HM40-12078 HE40-12078 | 40 Ton | 1200*780 mm | 200-240KG | 4-6 bale/hour | 5.5 or 7.5 | 2050 KG | 1600*1050*3300 |
HM50-12080 HE50-12080 | 50 Ton | 1200*800 mm | 320-350KG | 4-6 bale/hour | 7.5 or 11.5 | 2600 KG | 1600*1050*3300 |
HM60-12080 HE60-12080 | 60 Ton | 1200*800 mm | 380-420KG | 4-6 bale/hour | 11 or 15 | 2900 KG | 1600*1050*3300 |
HM80-12080 HE80-12080 | 80TON | 1200*800 mm | 450-480KG | 4-6 bale/hour | 15 | 3300 KG | 1600*1050*3300 |
HM100-12080 HE100-12080 | 100TON | 1200*800 mm | 500-550KG | 4-6 bale/hour | 15 | 3700KG | 1600*1050*3300 |
HM120-150100 HE120-150100 | 120TON | 1500*1000 mm | 650-700KG | 4-6 bale/hour | 15 or 18.5 | 4300KG | 2100*1550*3300 |
HM150-150100 HE150-150100 | 150TON | 1500*1000 mm | 850-900KG | 4-6 bale/hour | 18.5 | 5100KG | 2100*1550*3300 |
