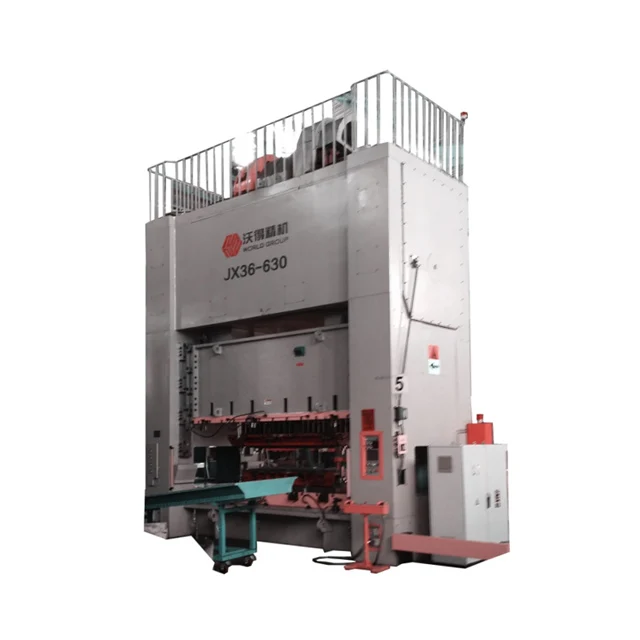

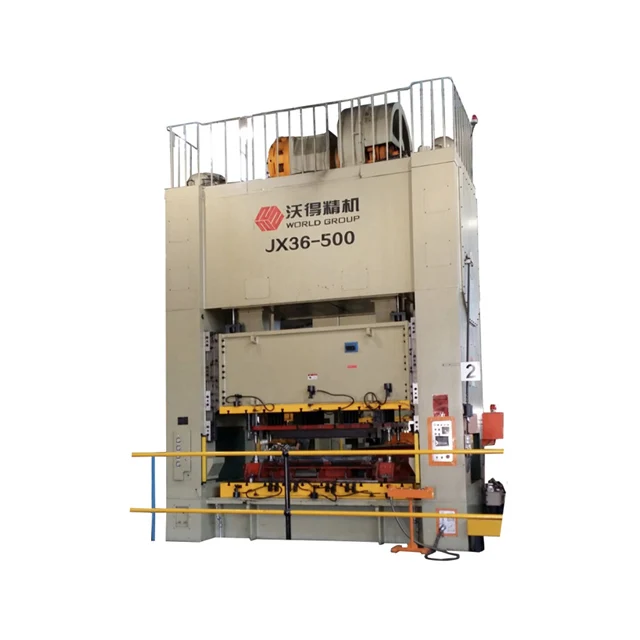

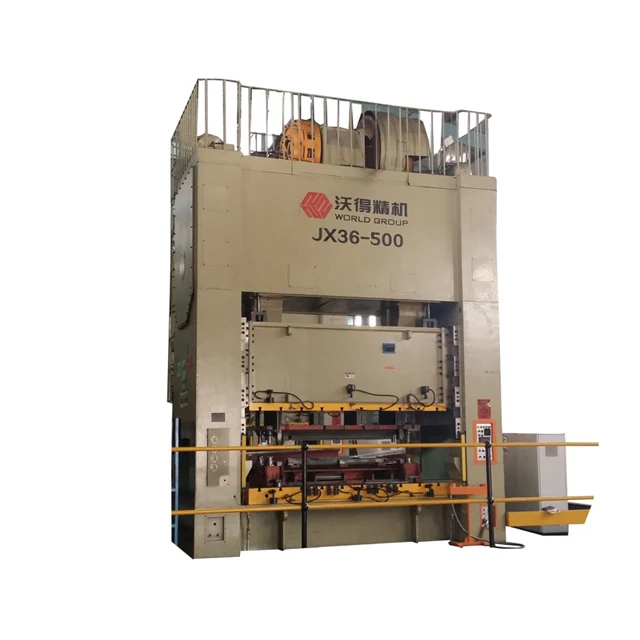

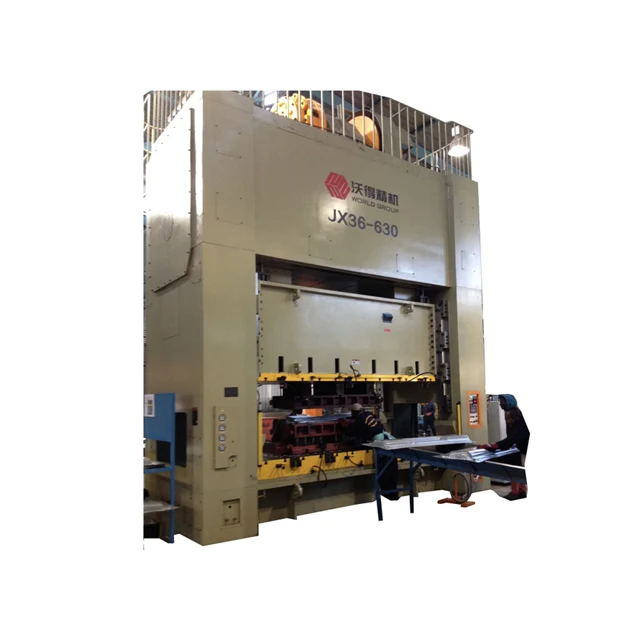

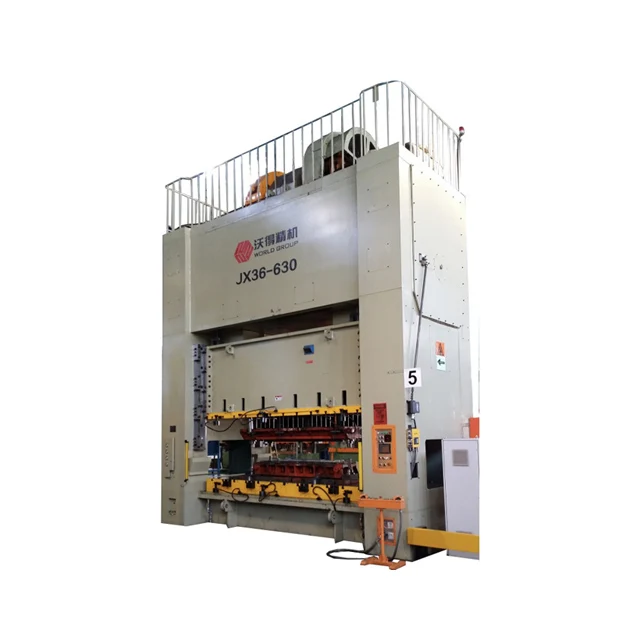

JX36 CE approved hydraulic 600 ton press

Product Overview

Description



Items	Unit	Specifications
		JX36-400	JX36-500	JX36-630	JX36-800	JX36-1000
Nominal Capacity	KN	400	5000	6300	8000	10000
Rated Tonnage Point	mm	9	12	12	12	12
Stoke Length	mm	300	300	350	350	400
Stroke Speed	spm	20-35	20-35	20-30	15-25	15-25
Max. Die Shut Height	mm	650	650	700	800	900
Die Shut Height Adjustment	mm	200	200	250	250	250
Table Size (FBxLR)	mm	1300×3000	1500×3000	1500×3600	2000×4000	2000×4000
Table Thickness	mm	220	220	250	250	250
Slide Bottom Size (FB-LR)	mm	1300×3000	1500×3000	1500×3600	2000×4000	2000×4000
Window Opening (FBxH)	mm	1000×650	1100×650	1200×700	1600×800	1600×900
Table Height	mm	710	710	710	710	710
Motor Power	KW	45	55	75	75	90
Overall Dimensions (LxWxH)	mm		3330x4650x7250	3800x5400x7700	4200x6150x9200	4600x6150x9900
Approximate Weight	T	≈85	≈95	≈125	≈145	≈195



600 ton press



specification (JX36)

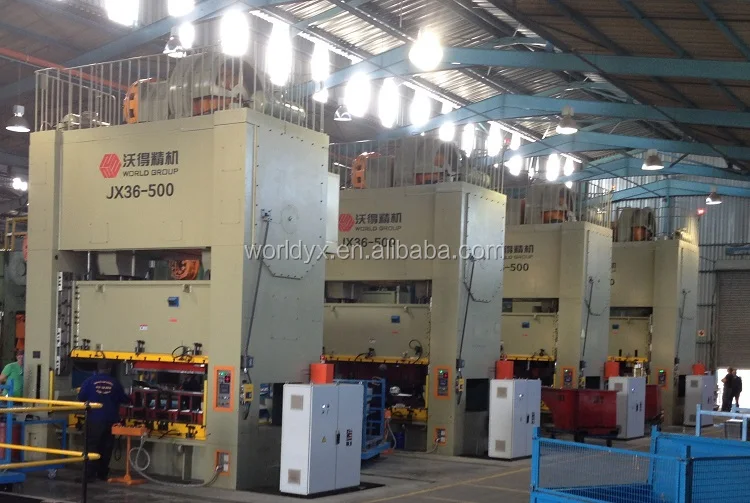

JX36 straight side two points press is designed for the application of high precision, heavy metal stampings works, such as motorcycle and bicycle parts, and home appliance components. Automation provisions, JX36 can be easily upgraded for progressive robotic or mechanical transfer system.

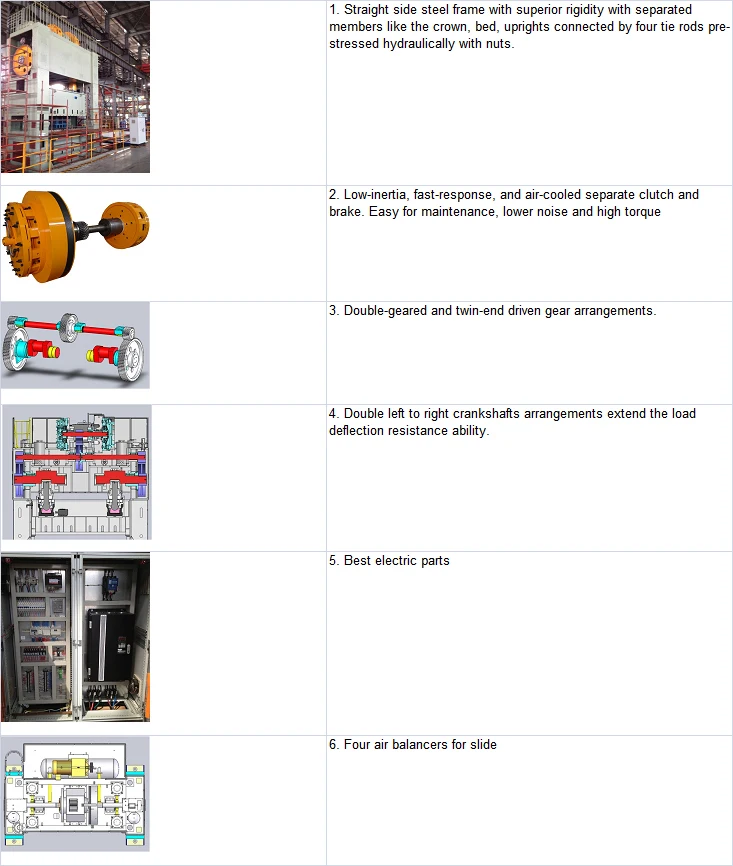

Features:

1. Wide bed for large tools

2. Straight side steel frame with superior rigidity with separated members like the crown, bed, uprights connected by four tie rods pre-stressed hydraulically with nuts.

3. Low-inertia, fast-response, and air-cooled separate clutch and brake.

4. High-performance hydraulic overload protection.

5. Double-geared and twin-end driven gear arrangements.

6. Double left to right crankshafts arrangements extend the load deflection resistance ability.

7. Extra-long, 8-face slide gibbings.

8. Thin oli circulated lubrication system.

9. Provision for the automatic feed system and the quick die change system. unction;





Details:
