Product Name: Far wave industrial catalytic ceramic infrared gas burner
ØThere are many do infrared burner, Only we produce catalytic infrared burner.
Company Information
Haodong Technology is the first and only manufacture in China who apply rare-earth catalytic combustion technology in ceramic infrared gas burner&heater. There is a layer of catalytic on the ceramic plate to help buring, which 20% energy saved and less emission.
Product Description
1. BBQ series Infrared burners
MODEL
Dimension
Weight
Gas Type
Heat Output
Power
mm
kg
BTU/h
Kcal/hr
Kw
HD220
220*170*60
0.9
NG/LPG
10000
2.94
HD400
400*80*60
0.7
NG/LPG
9030
2300
2.72
HD538
538*85*65
1.4
NG/LPG
13500
3400
3.9
HD668
668*85*65
1.7
NG/LPG
166000
4180
4.8
Ceramic infrared gas burner material:
1. Shell: galvanized sheet
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron
Ceramic infrared gas burner application

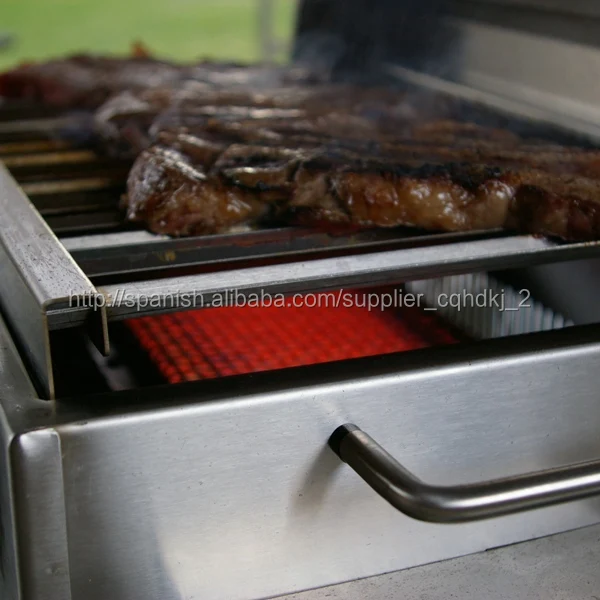

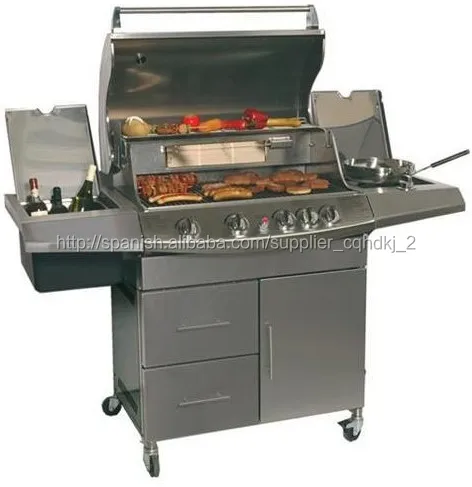

This series is specially make for bbq, commercial grill , chicken, poultry roaster and so on,which will not keep burner working above 4hours one time.

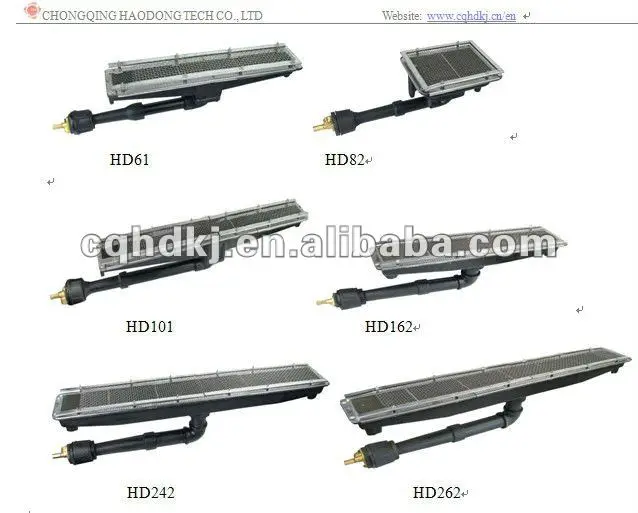

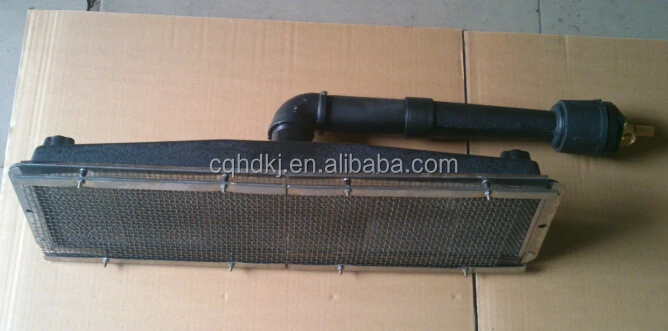

2.Industrail ceramic infrared gas burners
MODEL
Dimension
Weight
GasType
Heat Output
Consumption
mm
kg
KW/h
Kcal/hr
NG(m3/h)
LPG(kg/h)
HD61
423*80*94
3.8
NG/LPG
2.4
2030
0.18
0.18
HD82
219*164*108
4.8
NG/LPG
3.1
2700
0.24
0.24
HD101
690*80*115
6.9
NG/LPG
3.9
3380
0.3
0.29
HD162
570*130*175
8
NG/LPG
6.3
5400
0.49
0.47
HD242
840*130*175
11.7
NG/LPG
9.4
8120
0.75
0.71
HD262
930*130*175
13
NG/LPG
10.9
9360
0.8
0.82
Ceramic infrared gas burner material:
1. Shell: Cast Iron
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron
Ceramic infrared gas burner advantages :
1.Save above 30% energy than electric
2.High efficient: preheating up time can be reduced to under 30min
3.Eco-friendly :CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4.Naturally aspirated burner,no need of accessories equipment,like air blower,fire chamber...
Ceramic infrared gas burner applied range :

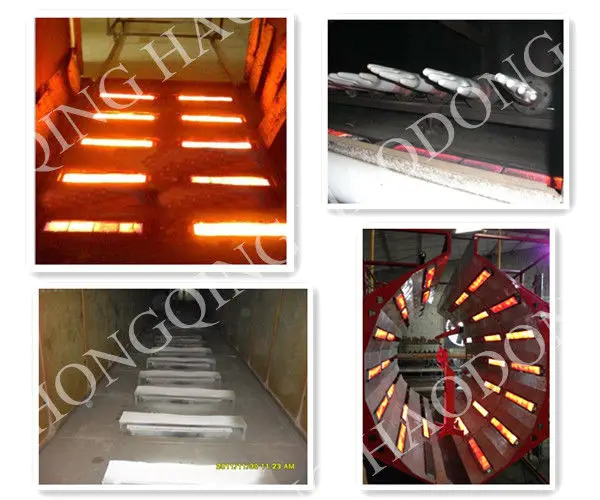

Infrared catalytic gas burner is good choice industrial drying,baking or curing oven,especially in tunnel&converyor oven,saving production&equirpment cost,demand of space is small and easy to control......It martched with auto-igntion,safe controller and keep stable temperature.Now is already widely used industrial drying,especially in metal curing & food baking.......
Chongqing Haodong Technology Factory produce bbq grill ceramic infrared gas burner, Industrial ceramic infrared gas burner, infrared burner, gas heater, heating panel, poultry heater, gas brooder, pizza oven burner, industrial oven heater, fruit dryeretc.
Ceramic infrared gas burner package:
Just sending us an inquiry, then we will take care of all the rest.
