Product Overview

Description

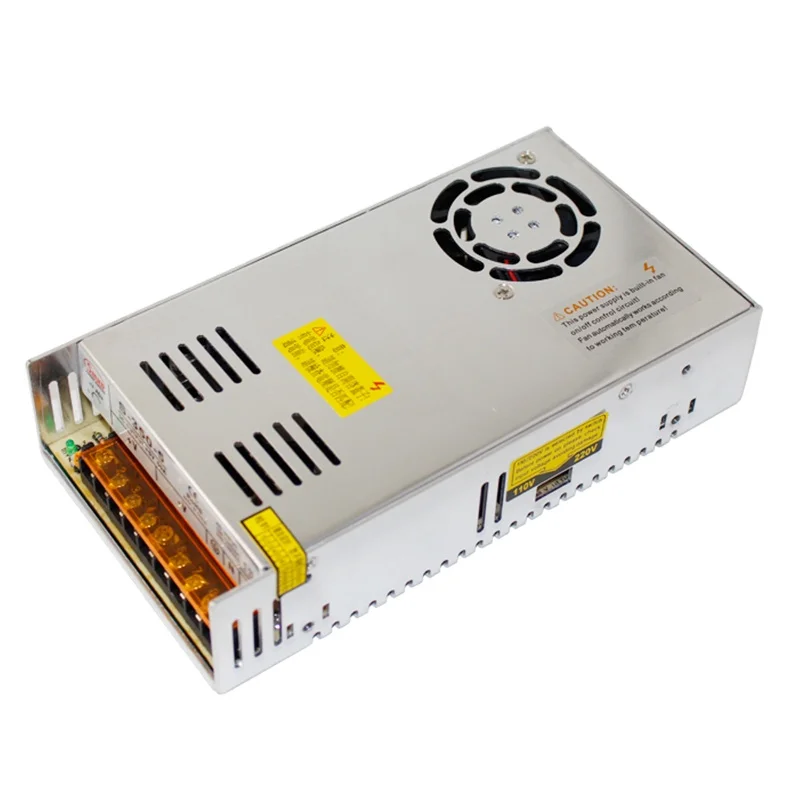

360W 60VDC 6A AC-DC Switch Mode Power Supply S-350-60





Features




· 1. AC input voltage range


· 2. Small Volume,low weight,high efficiency


· 3. Protections:Short circuit/over load/over voltage/over temp


· 4. Built-in cooling DC fan


· 5. Cooling fan ON-OFF auto control
· 6. LED indicator for power on


· 7. 100% full load burn-in test


· 8. 2 years warranty





Product Description








































































































































































MODELS-350-5S-350-7.5S-350-12S-350-15S-350-24S-350-60
OUTPUTDC VOLTAGE5V7.5V12V15V24V60V
VOLTAGE TOLERANCE± 2%± 2%± 2%± 2%± 1%± 1%
RATED CURRENT50A40A29A23.2A14.6A6.0A
CURRENT RANGE0-50A0-40A0-29A0-23.2A0-14.6A0-6.0A
RATED POWER250W300W348W348.3W350.4W360W
RIPPLE & NOISE(MAX)100mVp-p100mVp-p100mVp-p150mVp-p150mVp-p240mVp-p
DC VOLTAGE
ADJUSTMENT RANGE		± 10%± 10%± 10%± 10%± 10%± 10%
SETUP, RISE, HOLD UP TIME600ms, 30ms, 20ms
INPUTVOLTAGE RANGE85~130/170~264VAC Selected by Switch
AC CURRENT6.5A/115VAC  4A/230VAC
EFFICIENCY74%79%82%82%83%86%
INRUSH CURRENTCold start 50A
LEAKAGE CURRENT< 3.5mA/240VAC
PROTECTIONOVERLOAD PROTECTION110%~150% Shut down O/P voltage, re-power on to recover
OVER-VOLTAGE PROTECTION115%-135%
HIGH TEMPERATURE PROTECTON115%-135%
ENVIRONMENTWORKING TEMP. & HUMIDITY-10C~+50C; 20%~90 %RH
STORAGE TEMP. & HUMIDITY-20C~+85C; 10%~95 %RH
VIBRATION10~500Hz, 2G 10min. /1cycle, period for 60min, each along X. Y. Z axes
SAFETYWITHSTAND VOLTAGEI/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
ISOLATION RESISTANGEI/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ
STANDARDSSAFETY STANDARDSDesign refer to UL1950, EN60950
EMC STANDARDSDesign refer to EN55022, EN55024, EN61000
OTHERSWEIGHT0.9Kg
PACKING20pcs/19.7Kg
NOTE1. Tolerance: Includes set up tolerance, line regulation and load regulation.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire teminated with a 0.1μ f & 47μ f parallel capacitor.
