Product Overview
Description
Specifications
Easy to maitain
Operate and move
Parts are durable
Raw material are ecnomic
Process of manufacture are environmental

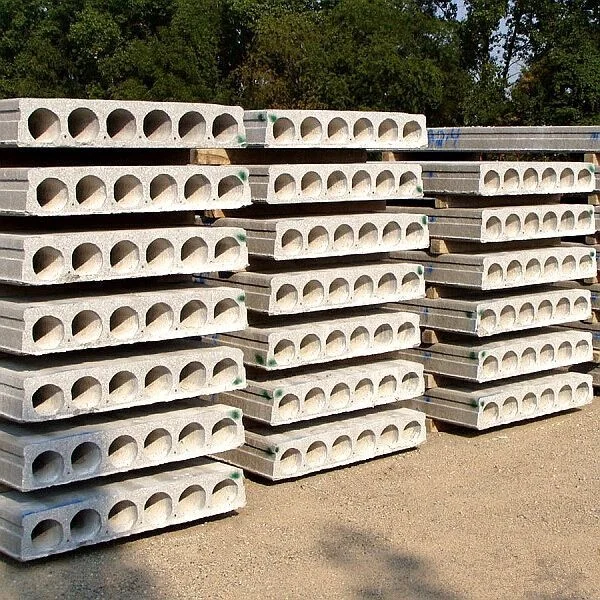

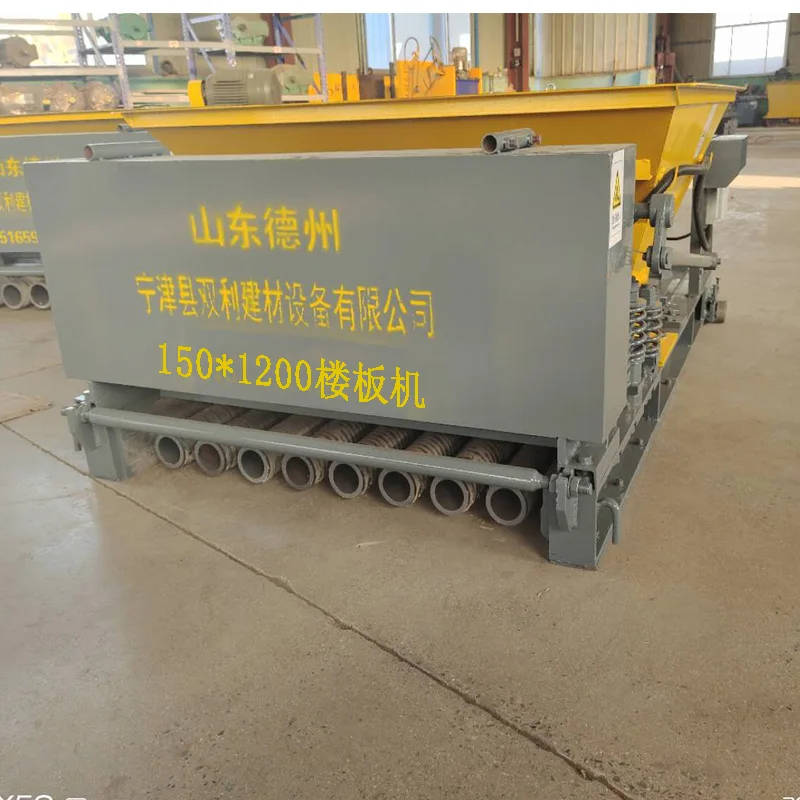

precast hollow core slab machine for prefabricated concrete houses
Brief introduction:
1.This machine is used for industrial and civil architecture area.
2.Raw material:cement,flyash,slag,ceramsite,pumice and so on.
3.Around of site need clean water,380V power.
4.The platform must be horizontal
5.Test-run machine before power-on,clean the machine after operation
6.We can produce and design according to customer’s demand.
Performance index:
Concrete Hollow Core Slab Machine | Motor power(kw) | Vibrator power(kw) | Weight (kg) | Forming speed(m/min) | Holes No. | Dia. of holes | Dimension LxWxH (m) |
50x500 | 3 | 0.8 | 700 | 1.2-1.4 | 8 | Φ25 | 1.80x0.75x0.65 |
50x500+80x500 | 4.0 | 1.5 | 930 | 1.2-1.4 | 6 | Φ25 (Φ42) | 2.03x0.73x0.66 |
60x500+80x500 | 4.0 | 1.5 | 910 | 1.2-1.4 | 7 | Φ25 (Φ42) | 2.03x0.83x0.66 |
90x600 | 4.0 | 2.2 | 955 | 1.2-1.4 | 6 | Φ50 | 2.10x0.84x0.73 |
100x600 | 4.0 | 2.2 | 975 | 1.2-1.4 | 6 | Φ60 | 2.10x0.85x0.73 |
120x600 | 5.5 | 3.0 | 1050 | 1.2-1.4 | 5 | Φ76 | 2.10x0.85x0.75 |
120x900 | 7.5 | 3.0 | 1580 | 1.2-1.4 | 8 | Φ76 | 2.50x1.30x0.90 |
120x1200 | 7.5 | 3.0 | 1650 | 1.2-1.4 | 11 | Φ76 | 2.50x1.70x0.90 |
120x600 | 5.5 | 3.0 | 1150 | 1.2-1.4 | 5 | Φ76 | 2.30x1.10x0.90 |
180x600 | 7.5 | 3.0 | 1290 | 1.2-1.4 | 3 | Φ130 | 2.30x1.10x0.95 |

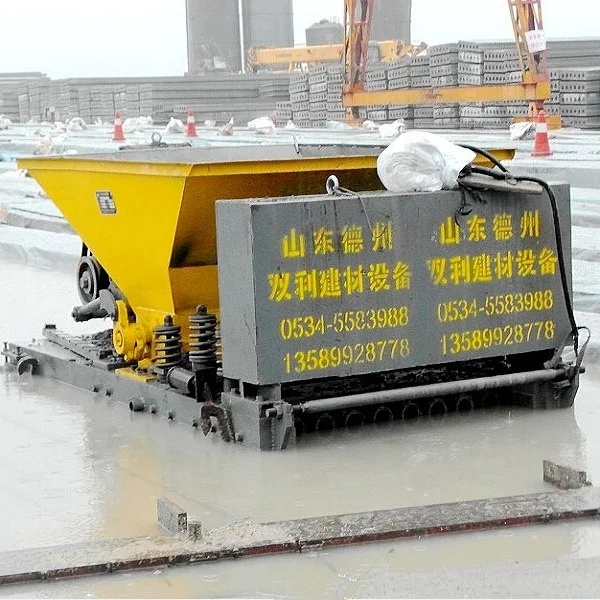

Productive line:

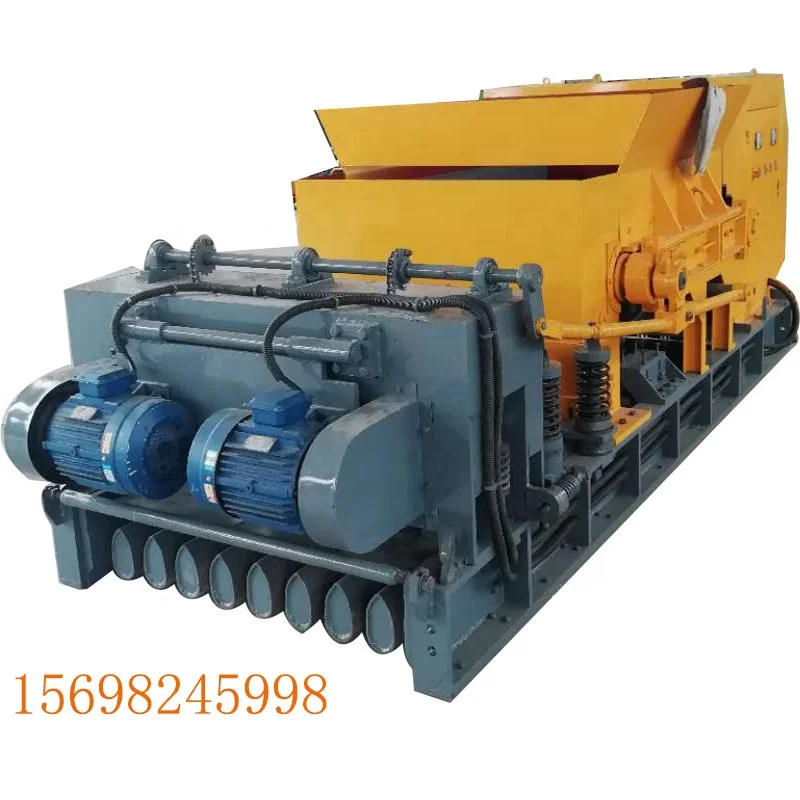

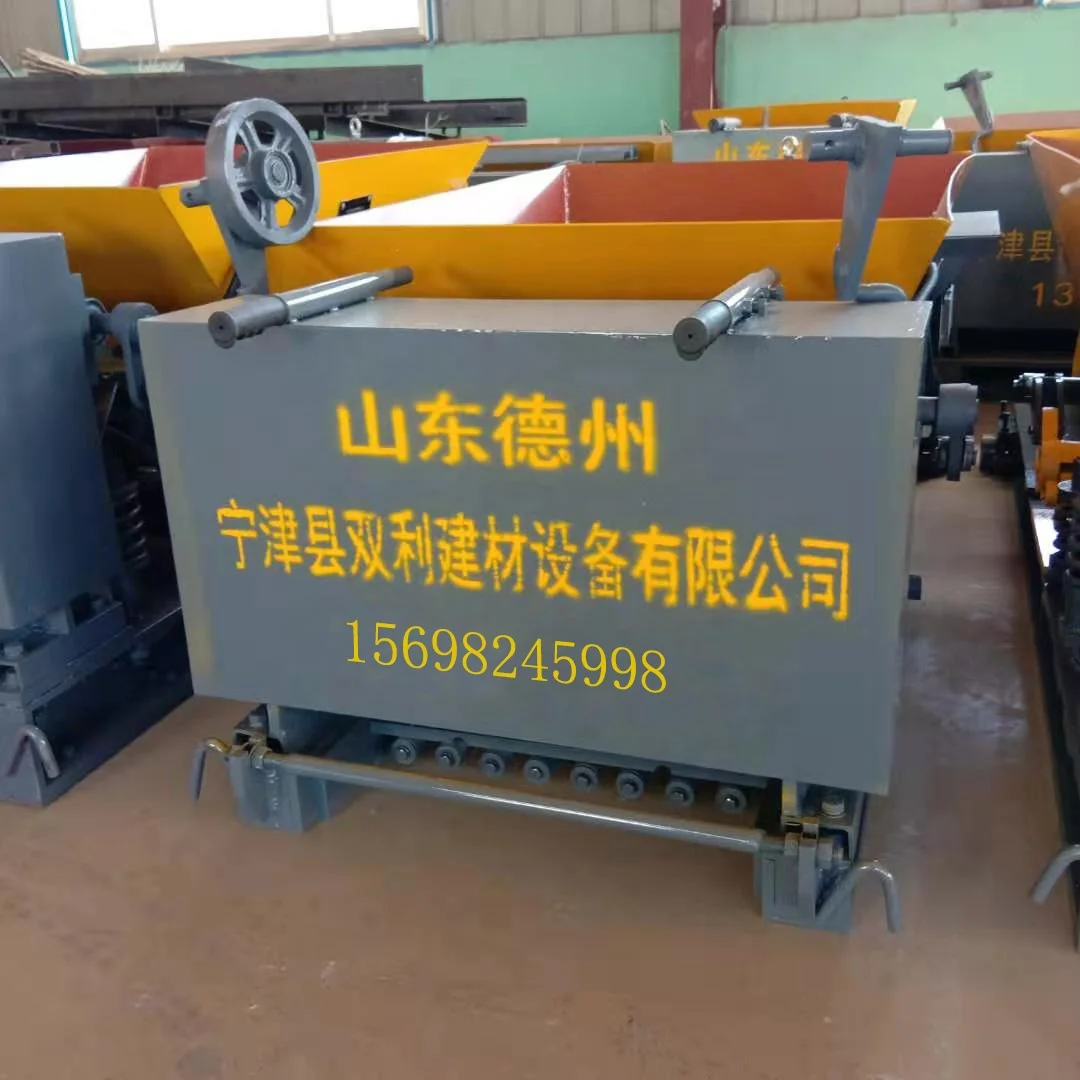

Well Parts:
Advantages:
1.fast molding speed1.2-1.4m/min
2.best concrete component with top technique
3.strong weght capacity
4.long service life
5.only 2 to 4 workers needed during the whole production

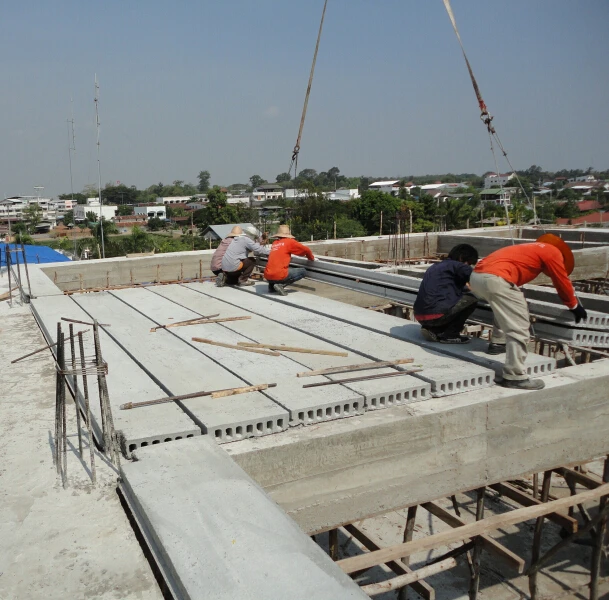

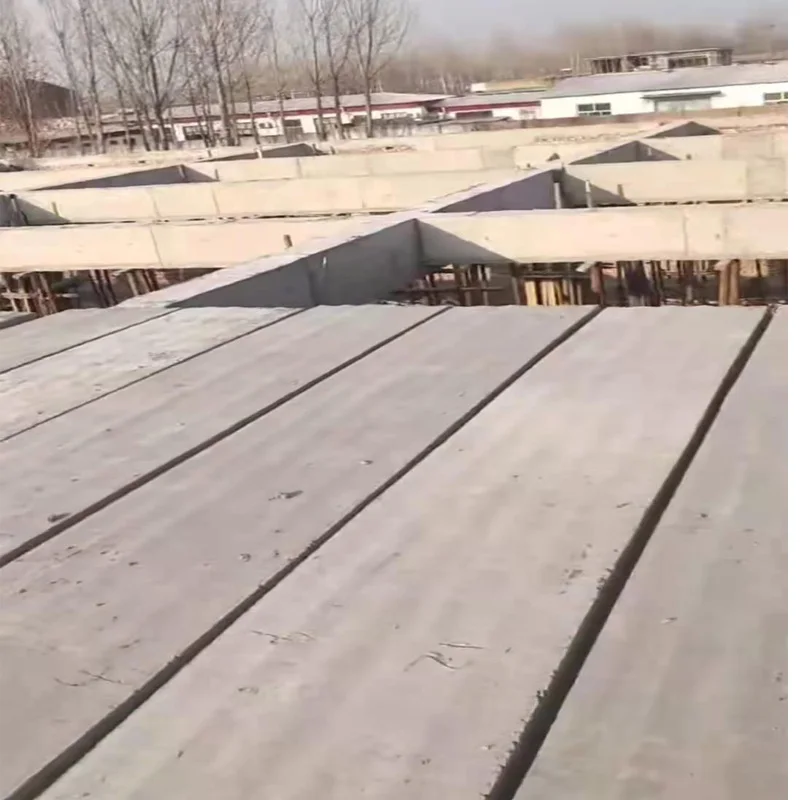

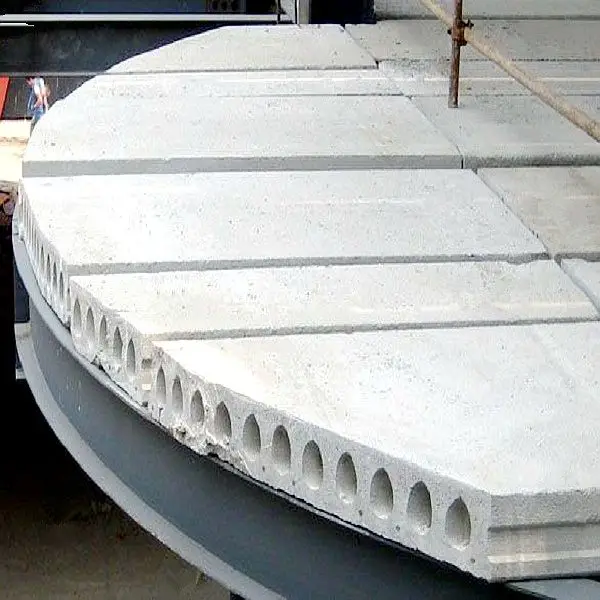

Application example:
Package:
By the sea or by the train. precast concrete extrusion panel machine with high quality was packed in wooden case.
Company Profile:
Ningjin County Shuangli Building Materials Machinery Factory was founded in 2005.The factory is located at the west of Ningjin County, on the 324 provincial highway.
We have strong technical force and excellent workmanship. The Market Strategy is base on the rural market_oriented. We specialize in the production of precast prestressed concrete molding machine. The factory runs through a strict management system with improved detection methods and perfect quality assurance system.
With the increasing effort on R&D ,We have successfully developed more than 100 models of precast molding machines, including Concrete hollow cored slab making machine, concrete lintel machine, concrete purline machine, concrete column making machine, lightweight wall panel machine, and concrete pipe making machine, etc. The thickness of the product can be varied from 30mm to 380mm, widest 1.2m, longest 18m.All our products can meet the country's large-scale construction projects and civil needs.
