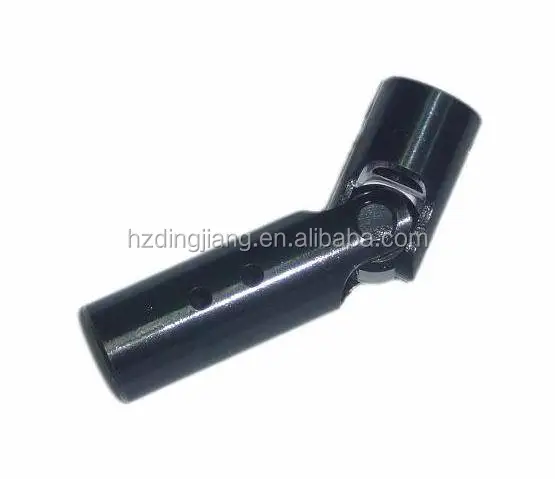

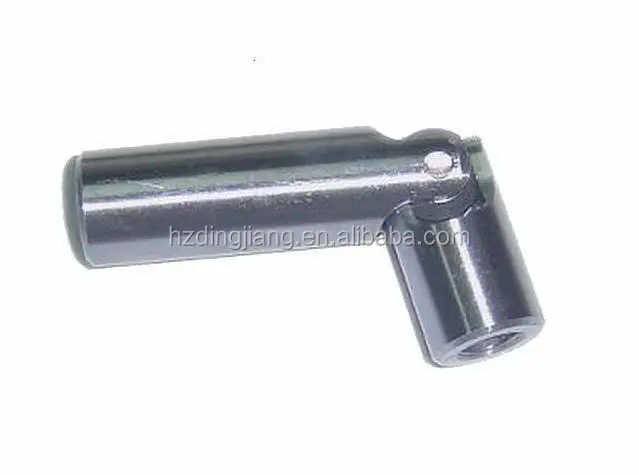

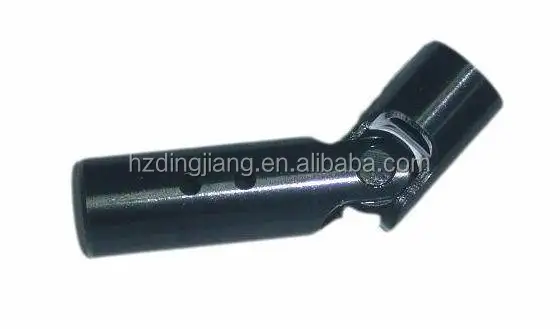

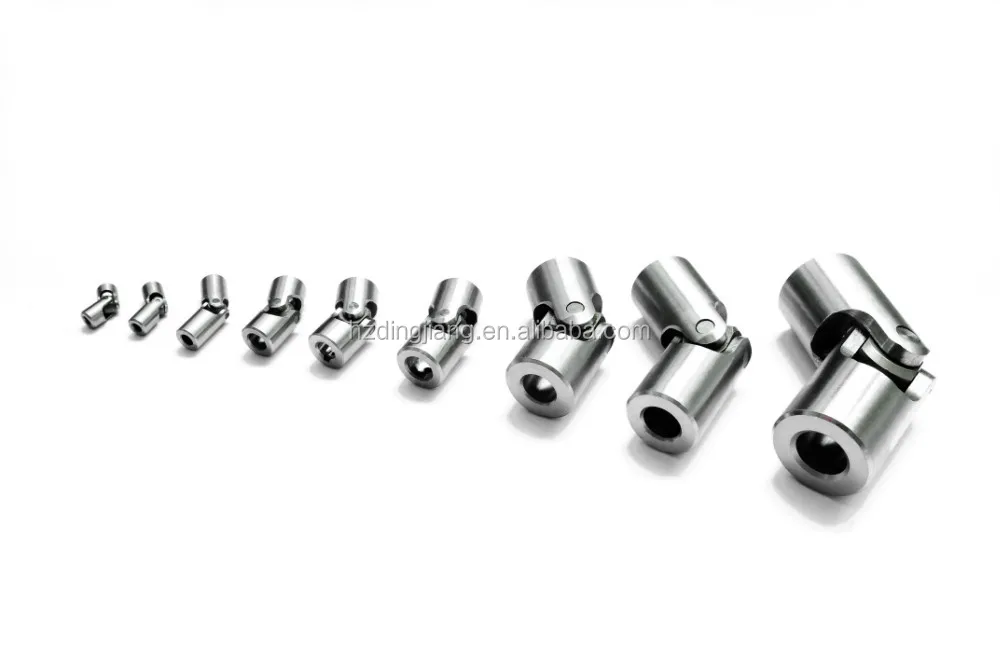

Small single Universal joint ,Special U joint

Product Overview

Description

Coupling Universal joint Universal joint cross Auto universal joint (withdut boot)

1.Application to all kinds of general mechanical situation, maxmum rotates speed may reach 1000r/min

2.Maxmum torsion can be 15000n.m

3.Each point of the largest rotation angle can be 45^o

4. Provides th efast locking arrangment that only has finshed product hole with the tolerance of H7 .Standard spline or hexagonal hole is available.

 It widely used in multiaxle drilling machine ,construction machine,packaging machine,automobile.parking facility and paper machine

Specifications

Max.speed can reach 1000PRM
Static breaking torque can reach 2000N.M

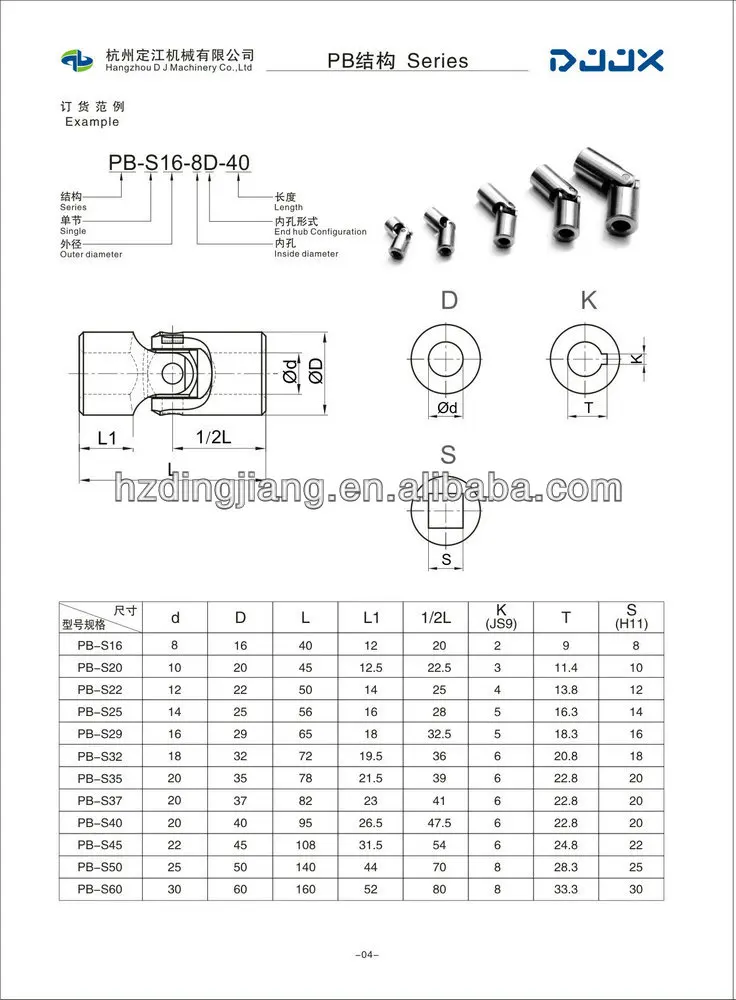

Special Universal joint,PBstyles

PB styles





Typical applications:
Can be used as a linkage, or transmission, between two intentionally misaligned shafts, rather than just as a flexible coupling .Lawn and garden equipment, conveyors and material handling equipment, food processing equipment

Advantages of DJJX’s Universal Joints, over those of other manufacturers:

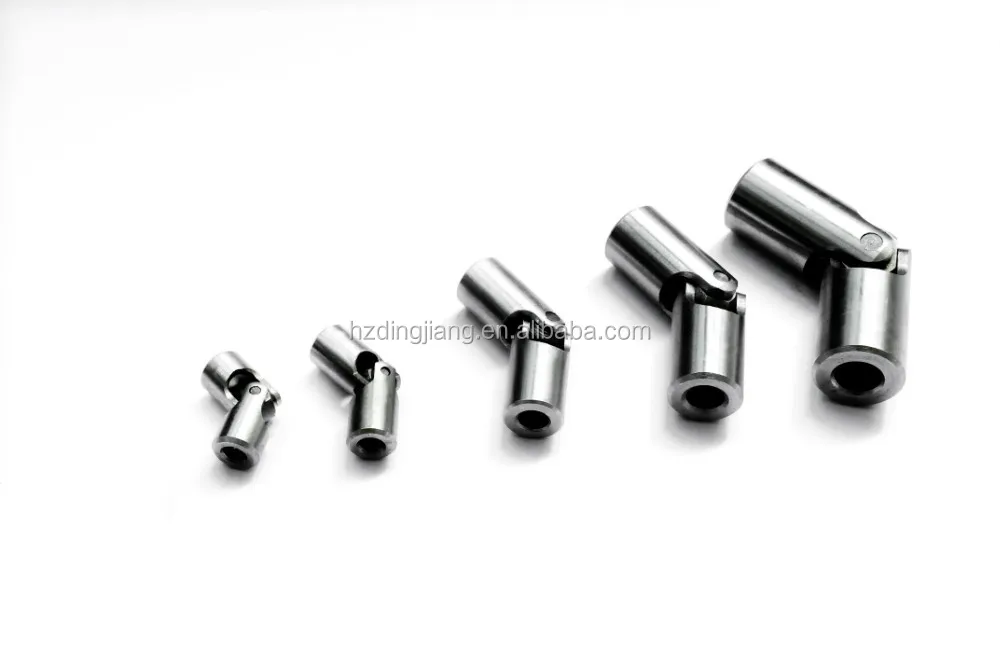

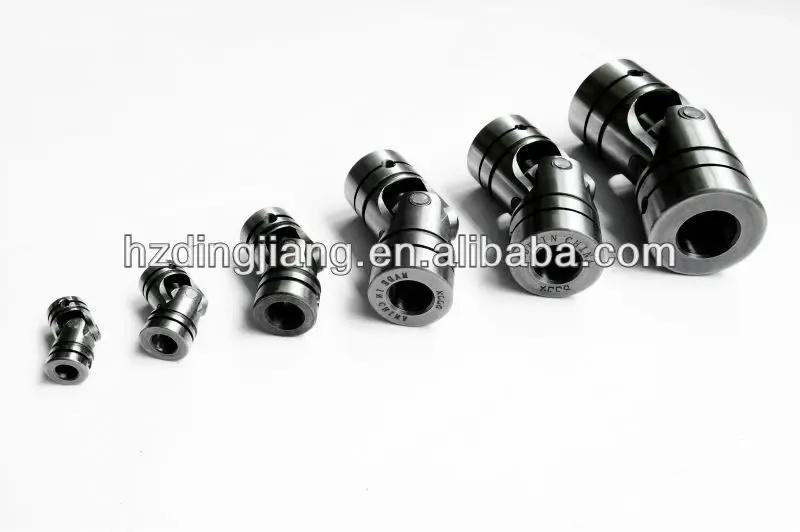

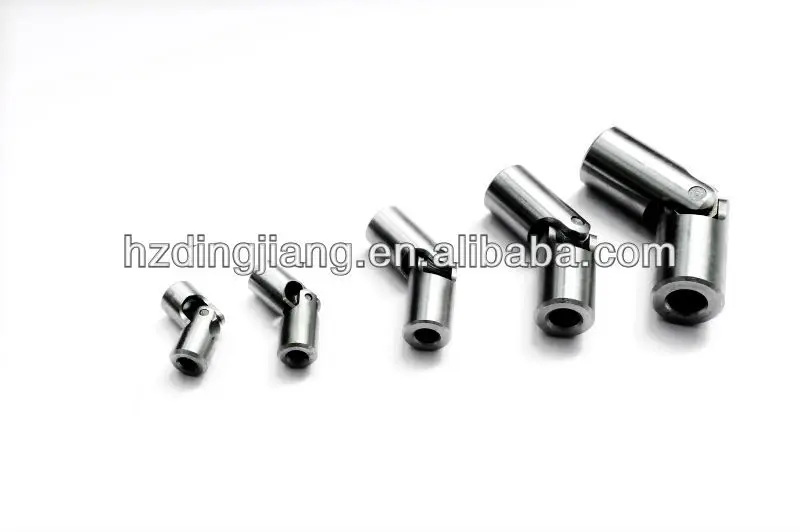

• Many sizes available
• Max. angle 35 degree
• Available in various materials
• All subcomponents very precisely machined from bar: No cheap castings or powdered metal parts, resulting in better overall and more consistent performance
• Several subtle design innovations that optimize performance and reduce cost
• Could manufacture products according to your provided drawing or samples

Variations offered by DJJX Couplings:
• Materials for midsection: 20Cr,40Cr
• Materials for hub: 40Cr,45#steel





SINGLE

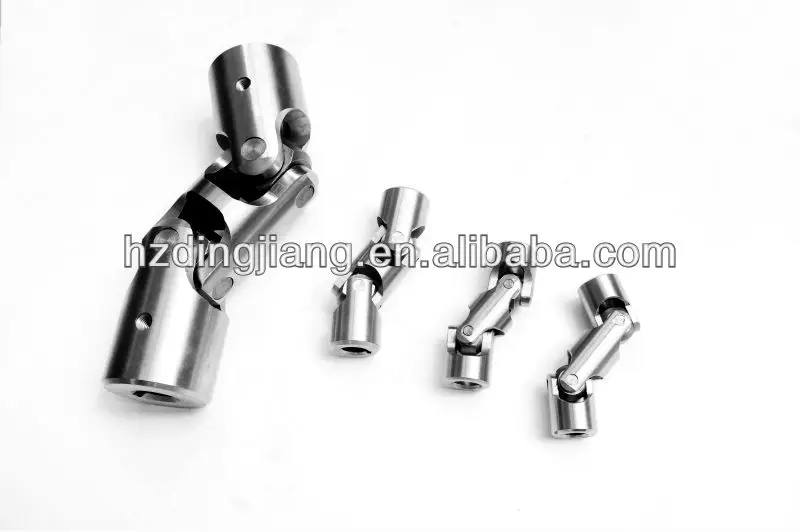

DOUBLE

EXTENSION

special

PRODUCTION

INSPECTION

STOCK
